Haynie
Member
For those who have done pepper mills with crush grind mechanisms, is it possible to shorten the stainless bar? I want to make a couple 6 inchers but their shortest is 10 inches.
Crush grind question
- Thread starter Haynie
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
micharms
Member
Mark:
I just finished turning and assembling my first 4 peppermills. They have the crush bring mechanism. They are a variety of heights and I,didmjustmcut down the rod to fit. I used my Dremel with a heavy duty cut off wheel and it worked perfectly.
Michael
I just finished turning and assembling my first 4 peppermills. They have the crush bring mechanism. They are a variety of heights and I,didmjustmcut down the rod to fit. I used my Dremel with a heavy duty cut off wheel and it worked perfectly.
Michael
The Penguin
Member
I use a hacksaw, then take the trimmed rod to my grinder to taper the end.
The Penguin
Member
oh, and I think the shaft is aluminum, not stainless steel
Haynie
Member
Cool. Thanks folks.
TellicoTurning
Member
You beat me to the reply... they are aluminum and I cut mine with a large pair of pliers that has a wire cutter built in, then run the end against my belt sander to smooth and re-shape the end of the shaft...
For those interested, you can get the grind mechanisms at this site in three sizes... 4.8, 10.2, and 18.5 inches.... shipping is pretty quick and not terribly expensive.
CrushGrind.US
Haynie
Member
Never thought about going to the ACTUAL maker to see what they offer. No sarcasm intended. I seriously never thought about it. Thanks chuck.
walshjp17
Member
There are also shaftless crush grind mechanisms. Check out http://www.chefwarekits.com/peppermill-kits/crushgrind-grinder-no-shaft
Last edited:
Haynie
Member
How do those work? Do they eventually work free of the blank?
walshjp17
Member
No. They snap into the bottom of the mill using 'pins' to grap onto the interior of the shaft. There are a few videos of them. Google 'shaftless crush grind pepper mills' for more info. A pdf of the instructions can be found here ==> Woodworking Project Kits and Supplies page 02
clapiana
Member
ditto on aluminum shafts which are very easy to cut. ensure you hammer over the ends.
the crushgrind 'wood' no-shaft version can be a challenge compared to the "typical" old school USA grinder or the crushgrind shaft version. the reward of getting your hands around the crushgrind wood version is you can do some funky cool mill designs.

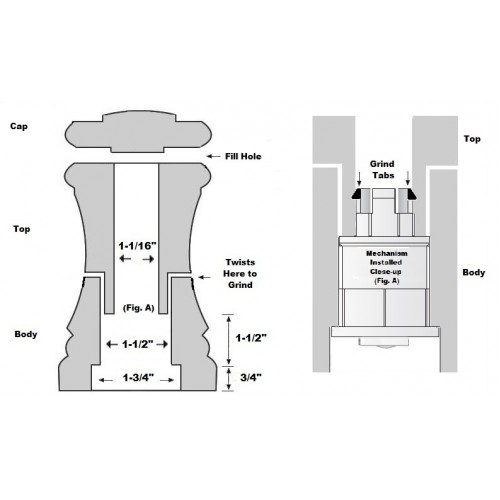

i have attached a crushgrind wood spec so you get an idea of how it is created.
the crushgrind 'wood' no-shaft version can be a challenge compared to the "typical" old school USA grinder or the crushgrind shaft version. the reward of getting your hands around the crushgrind wood version is you can do some funky cool mill designs.
i have attached a crushgrind wood spec so you get an idea of how it is created.
Attachments
Haynie
Member
Thanks Craig. That is helpful.
