Colored pencils - "Never Again Project"

Signed-In Members Don't See This Ad
See more from yaroslaw

Status
Not open for further replies.
yaroslaw

yaroslaw

Member
Joined
Sep 1, 2012
Messages
344
Location
Kyiv, Ukraine
Okay, that looks easy. Everyone is doing colored pencils. Just glue some together, drill, glue, turn. Right?...

That was one of those "I had to do it once, but never again" projects. Heck, I still have second 2" Sierra blank, might never turn it.

Glueing... That was fun! (not)
Blowouts on drilling... Easy fix - just glue two pieces together, redrill. Repeat until succeed.

But turning, oh my. No matter what I did, what tools used, how sharp they were - pencils just flew off. The only thing that worked - grinding with a Dremel on a lathe. Half a year to finish that project:)

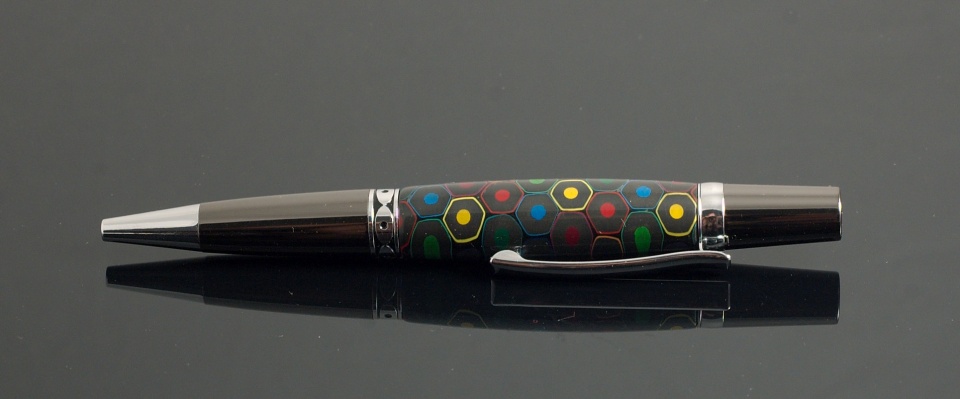

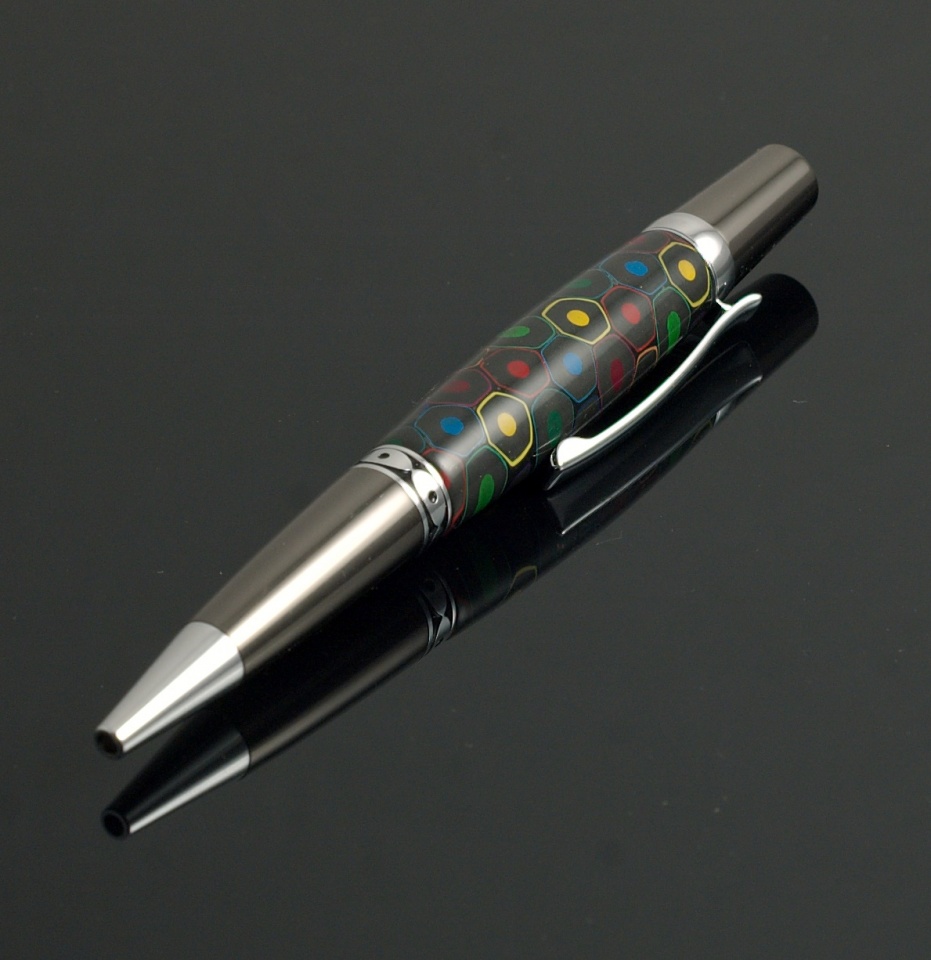

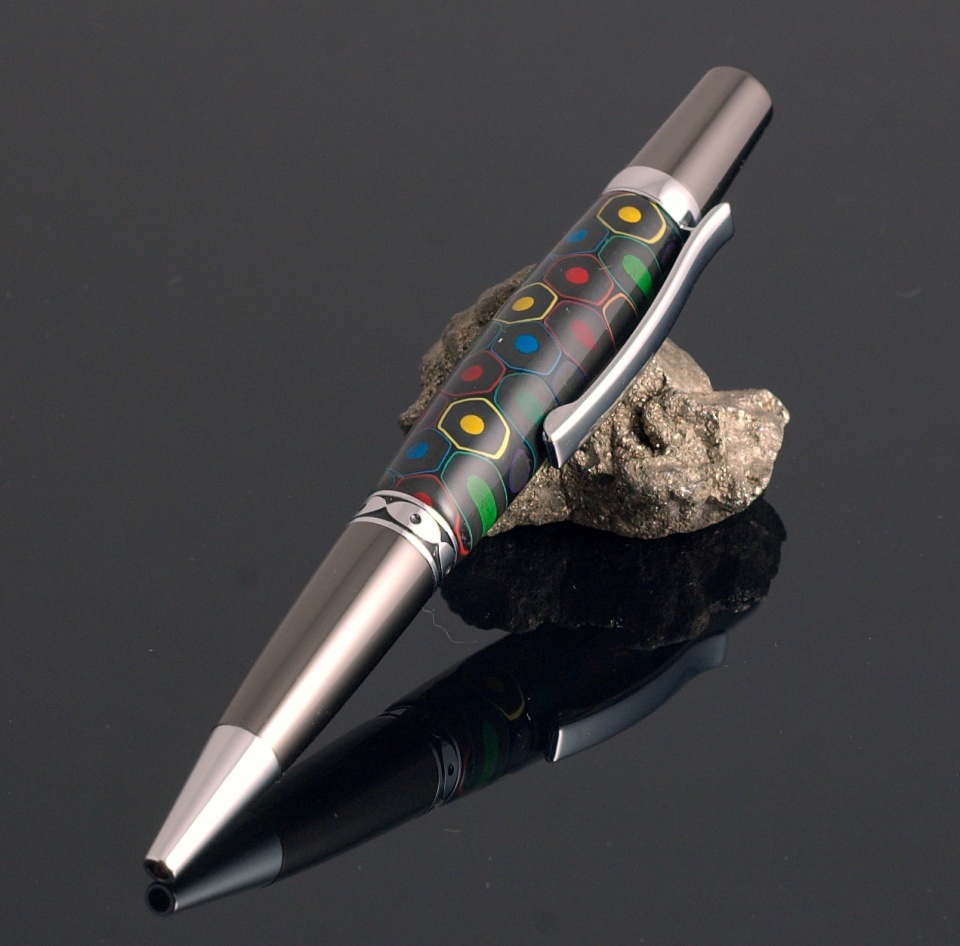

attachment.php


attachment.php


attachment.php


Attachments

  • DSC_3697.jpg
    199.5 KB · Views: 1,230
  • DSC_3584.jpg
    175.7 KB · Views: 1,603
  • DSC_3583.jpg
    73.9 KB · Views: 1,233
Signed-In Members Don't See This Ad
You get an A+ for both your pen and your perseverance !!!!!

But, seriously, how did you get the black color both in the wood of the pencils and in the matrix of glue around them ????

Last edited:
Great pen. Really like the black. But I had the same question. How did you get the black in the pencil and glue?

Best colored pencil I have seen. Have several teacher friends that would really like one.

magpens said:
You get an A+ for both your pen and your perseverance !!!!!

But, seriously, how did you get the black color both in the wood of the pencils and in the matrix of glue around them ????
Click to expand...

Black pencils. They are made of some polymer shmoo (not wood, or may be some wood dust mixed in). When I saw them I was super happy - looks way more cool then regular colored pencils. And dark matrix of glue was epoxy with mixed in black dye. And gluing it was not fun:)

Main problem is epoxy is not holding pencils for some reason. May be it doesn't stick to paint, may be I've should wash them with acetone prior to gluing, and sandpaper would definitely help, so don't skip this step if you try it by yourself.

And yeah, leads also want to go away when they become exposed on a side. So really, it's almost unturnable with normal tools.

Actually, I've first seen idea of grinding pen away after reading post by George (robutacion) several years ago, where he shows how to "turn" a pen barrel from styrofoam. But I'm using small dremel with sanding barrel, much more controllable.

Here's that thread

I'll have to look for those black-wooded pencils ... never have I seen them ... gotta try this.

Can you tell us the brand name of the pencils, please, Yaroslav ?

I think it looks great. And if it was as hard as you say.......I would keep it for myself.

You did good. Going to keep that "grinding idea" in my head for a long time. Never know when I might try it out on something else.

magpens said:
I'll have to look for those black-wooded pencils ... never have I seen them ... gotta try this.

Can you tell us the brand name of the pencils, please, Yaroslav ?
Click to expand...

Sorry for not very prompt response - had a show these days.

I can't help you on a brand name - first of, I live some 10000km and an ocean from you, that means almost no brand names are the same (we don't have even Loctite here!).

Second thing it was some chineseum brand that I don't really remember a name:( I just went to local Metro supermarket in school/kid's supply section and it was first I picked up on a shelf.

Sorry:(

I found these,and it seems they are not wood, which means it might be the same type of stuff that Yaroslaw uses since he refers to them as Polymer Shmoo!

stuckinohio said:
https://www.amazon.com/Colored-Penc...08157110&sr=8-10&keywords=black+color+pencils

Link...

After reading, the area around the lead does seem to be some sort of wood pulp, according to the manufacturer. It is the lead that they were referring to as being wax blend or something.
Click to expand...

Wood pulp mixed with some polymer - may be. Mine are soft and not "woody" to the touch.

Have to mention, that mine were A LOT cheaper. Can't remember exact price, but something around 1 dollar? for 6(or 12)? If I could find another pack I'll inform you:)

yaroslaw said:
stuckinohio said:
https://www.amazon.com/Colored-Penc...08157110&sr=8-10&keywords=black+color+pencils

Link...

After reading, the area around the lead does seem to be some sort of wood pulp, according to the manufacturer. It is the lead that they were referring to as being wax blend or something.
Click to expand...

Wood pulp mixed with some polymer - may be. Mine are soft and not "woody" to the touch.

Have to mention, that mine were A LOT cheaper. Can't remember exact price, but something around 1 dollar? for 6(or 12)? If I could find another pack I'll inform you:)
Click to expand...

thank you.

Yaroslav,

Thank you ... the info you provided does help me, believe it or not.

Lewis,

Thank you also ... perhaps you can forward the info you have to me re: brand, etc please. . Oh, I see you did, thanks. . Is the pencil cross-section hexagonal or round ?

Eppen,

Thank you for your info. . Those Black Widow pencils ... I wonder if they have a hexagonal cross section.

Last edited:
I like that the outer coating of the pencil is the same color as the lead in the middle. Very interesting. Beautiful pen.

mrBriken said:
Perhaps this is not usual, but I like mechanical pencils. For example, here are https://wowpencils.com/best-mechanical-pencils/.They are convenient for drawing.
Click to expand...

This is a spammer. I was suspicious of this user from the Ukraine when I approved the membership, but I decided to give him a chance. My spammer-detecting gut is rarely wrong, but my apologies for this one.

jeff said:
mrBriken said:
Perhaps this is not usual, but I like mechanical pencils. For example, here are https://wowpencils.com/best-mechanical-pencils/.They are convenient for drawing.
Click to expand...

This is a spammer. I was suspicious of this user from the Ukraine when I approved the membership, but I decided to give him a chance. My spammer-detecting gut is rarely wrong, but my apologies for this one.
Click to expand...
Wow Jeff good catch. Could we maybe get rid of his post all together?? Is there any virus in the link?? I clicked on it.

I get suspicious myself many times when old threads are brought to life again. People just join and they are looking at 10 year old posts gets my attention. They jump right into the conversation as if it still in play. Maybe just me. Thanks for watching.
