Howdy all.
I havent been on in a while. But i have project i have been wanting to do. And before i start. i was wondering if anyone here does it. I want to try inlays with my cnc router. So, if anyone here does this. I have a few questions. TIA.

Signed-In Members Don't See This Ad

mredburn

IAP Activities Manager
Staff member
Joined
Jul 5, 2009
Messages
8,752
Location
Fort Myers FL
Ask away, someone will have an answer. I have used my cnc mill to cut inlay pieces for my pens although probably not in the materials you will use. The end results are still the same.


BRobbins629

Passed Away Dec 28, 2021
In Memoriam
Joined
Mar 8, 2006
Messages
4,037
Location
Richmond, VA, USA.
One of the easiest ways to do inlays on CNC is to carve out the pattern and fill with colored epoxy or polymer clay. Helps tremendously if you have a rotary axis. Would be a good start.


bloodhound

Member
Joined
Dec 14, 2014
Messages
191
Location
Acushnet , ma
ok so the first question i have is. I assume you mill the inlay while the blank is round. maybe just proud of size? not square. I wish i have a 4th axis. but for now i will do it two sided. I also assume you use a normal end mill. not a vbit. i know in doing other larger inlays. Vcarved inlays come out nicer less if any gaps.


Paul in OKC

Member
Joined
Jul 26, 2004
Messages
3,089
Location
Oklahoma City, OK, USA.
What I have done is turn the blank a little oversize, then mount in machine. I run the pocket with a small, .031 diameter endmill. You have to watch out for how wide the inlay is so not to go too far off center, or you will have little depth on those edges. You can make some sort of indexer to rotate the blank evenly spaced for three or four 'sided' pockets.


bloodhound

Member
Joined
Dec 14, 2014
Messages
191
Location
Acushnet , ma
Thank you Paul. I work in a machine shop. So i have made a 6 sided block that will hold a short mandrel. And i have a .022 endmill. I am going to start out simple with like a pool cue diamond or something.


Paul in OKC

Member
Joined
Jul 26, 2004
Messages
3,089
Location
Oklahoma City, OK, USA.
Thank you Paul. I work in a machine shop. So i have made a 6 sided block that will hold a short mandrel. And i have a .022 endmill. I am going to start out simple with like a pool cue diamond or something.

That was one of my first ones as well. I will try to find a pic. Working in a machine shop does have its advantages for a thing or two, I have been a machinist for over 40 years now. I did my inlay part in a cnc bridgeport mill. Looked like I was working on a toothpick:)


randyrls

Member
Joined
Feb 2, 2006
Messages
4,821
Location
Harrisburg, PA 17112
There is a program called Estlcam. It allows you to set a design and specify whether you want the tool path to be inside the line, on the line, or outside the line.


Paul in OKC

Member
Joined
Jul 26, 2004
Messages
3,089
Location
Oklahoma City, OK, USA.

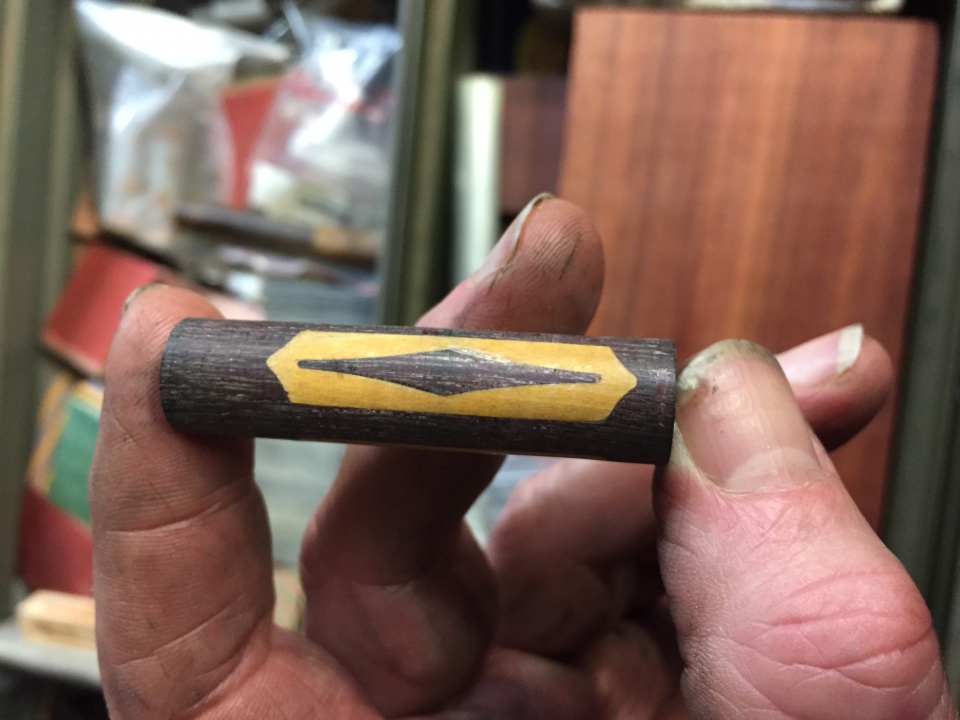

Found a pic.


Attachments

  • 55969D0D-5924-4FF8-8B89-16CDDDA04A55.jpg
    166.3 KB · Views: 158
