Cigar Barrel Too Short

Signed-In Members Don't See This Ad

JonathanF1968

Member
Joined
Oct 7, 2018
Messages
45
Location
Massachusetts
Somehow, I made a mistake in a PSI Cigar, and the cartridge doesn't retract all the way. I must have cut the tube a little short, around 1/32nd of an inch. Just enough that it will still write. I imagine I was too aggressive squaring the blank. (I've made about ten of these kits, and this is the first time I've had this issue. The longer barrel is on the bottom.)

I wonder if another type of blank would fit and solve this problem. This amazing page lists the Parker (standard for Cigar) as 3.875", the Caran D'Ache at 3.81, and the Sheaffer at 3.75".

https://refillfinder.com/pages/refill-size-guide

Do you think one of those would work? The wood used has some sentimental value and there's no more of it left, so it would be nice to fix this.


Last edited:
Signed-In Members Don't See This Ad

Bryguy

Member
Joined
Jun 9, 2013
Messages
322
Location
New Hampshire
I've done this too. If you plan on keeping the pen you can just sand down the plastic end of the Parker refill until it looks good. I wouldn't sell this one though.


TonyL

Member
Joined
Mar 9, 2014
Messages
6,388
Location
Alpharetta, GA 30004
You may not have...sometimes the ink point gets caught on a burr inside the "nib" (the lowest section where the point protrudes from.

If it is too long, you can disassemble and sand as suggested.

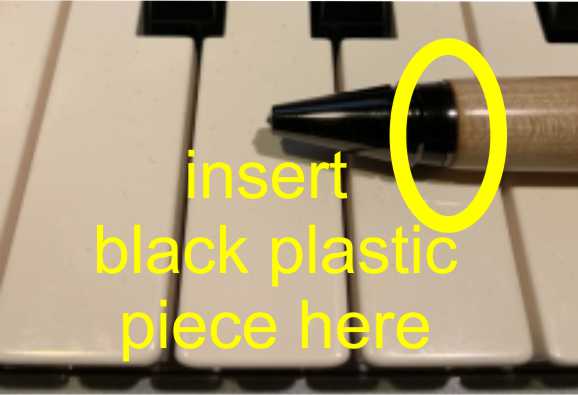

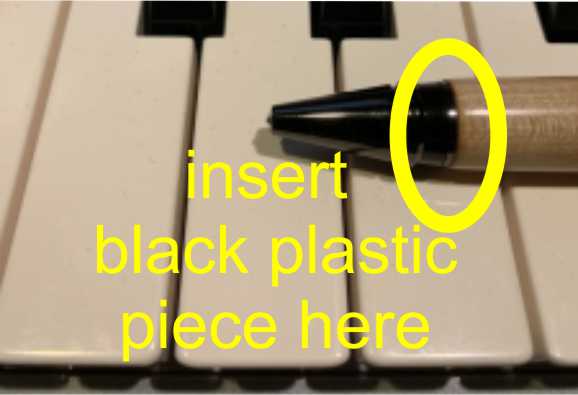

You can also try to slip an object like a piece of guitar pic or other plastic into the throat of the transmission. This may push the point further down well extended.

Good luck!


Kenny Durrant

Member
Joined
Sep 11, 2012
Messages
1,014
Location
Sachse Tx. 75048
I've also seen where the part inside the transmission doesn't retract all the way. It's because what ever the lubricant they put in it is too thick and it doesn't move freely. I have some machine oil that I use for fishing reels and it frees it right up.


bsshog40

Member
Joined
Oct 2, 2018
Messages
656
Location
Midland, Tx
Not sure how it would look but could also put the pen tip on a sanding wheel with fine grit paper and take it down a bit. Just a thought if you can't find another fix. Of course then you might get too much play when writing.

Last edited:

JonathanF1968

Member
Joined
Oct 7, 2018
Messages
45
Location
Massachusetts
Thanks everyone! Oh, how I need you people.

Mike gave me the tip that did the trip: use a drill bit (hand turning it)1 to cut just a teensy bit of the plastic away inside the transmission, so that the cartridge goes up higher, and voila! Now, it purrs like a kitten.

Whew!

I actually wonder if there was a bit of debris up there. Maybe a little bit of stray plastic or saw dust that got in, because I barely did anything, and then it worked fine.

Thanks so much, everyone! This piece of wood came from a cherry bannister cutoff, from a much beloved house that is no longer in my family and that we all miss very much. Everyone in the family got a pen made from this small scrap, but this was the last remnant for the last sibling.... It would have been very frustrating if I wasn't able to get it to work.
