Bushing sizes

Signed-In Members Don't See This Ad

OldWrangler

Member
Joined
Jan 29, 2008
Messages
593
Location
Spring, Texas, USA.
Has anyone ever put together a list of pen kits and what size bushings are required. I have a cigar box of bushings and have no idea what most of them are for. I have a couple of digital calipers to measure them with but I am not sure what sizes are needed for what kits.

The kits I am using are the Designer, Premier Designer, Cigar, Baron, click Sierra and El Grande.

If someone has a bushing chart, I would be ever so thankful to get a copy. If not exist this would make a great project for someone with more time on his hands than me.

Please post or PM me...I can trade out some quality blanks for the right info. Thanks

Signed-In Members Don't See This Ad

rjwolfe3

Member
Joined
Feb 12, 2008
Messages
8,356
Location
Mansfield, Ohio, USA.
Randy is working on one and I started one but gave up when I couldn't find the sizes for kits I didn't have. Some of the resellers list the bushing sizes on their website and some list them on the instructions. Unfortunately not all of them are listed so I hope someone can help ya.


Draconias

Member
Joined
Feb 27, 2008
Messages
38
Location
Mulino, OR, USA.
Here are a few I have entered into a database I have. Woodcraft & Berea:

bushingID Title Mnfr Price Pcs mandrel Dimensions
8A Bracelet Helper / Perfume Pen Berea 5.95 4 7 .398, .398, .398, .398
4A Detachable Necklace Pen Berea 5.95 3 7 .418, .414, .335
145233 Hart Double Twist 4.99 3 7 .470, .400, .365
2B Series 2000 Flat Top Rollerball / Fountain Pen Berea 0 4 8 .485, .485, .453, .453
1B Flat Top American Double Twist Pen / Pencil Berea 5.95 4 8 .490, .490, .392, .392
06S62 European style pen 6.99 4 7 .513, .425/.405, .408, .360
147478 Wall Street III / Tropical Island Series 3.99 2 7 .523, .550
128452 European style screw cap 7.50 3 7 .525/.450, .450, .445
146019 navigator screw cap pen 5.50 4 7 .536, .536, .481, .481
3B Round Top European Double Twist Pen / Pencil Berea 5.95 4 8 .550, .475, .410, .350
11A Cigar Pen Berea 5.95 4 7 .575, .530, .475, .460
144635 El Grande Rollerball and Fountain 0 4 7 .590, .590, .540, .540


GBusardo

Member
Joined
Dec 8, 2005
Messages
1,239
Location
Beachwood, NJ, USA.
I think most of the directions have the bushing sizes included. If you no longer have the directions, the sellers web site almost always has them. This might be a better way to go if you know where your kits came from. A same or similar kit from PSI does not usually use the same sized bushings from CSUS


casey2705

Member
Joined
Oct 21, 2020
Messages
3
Location
athen, ga

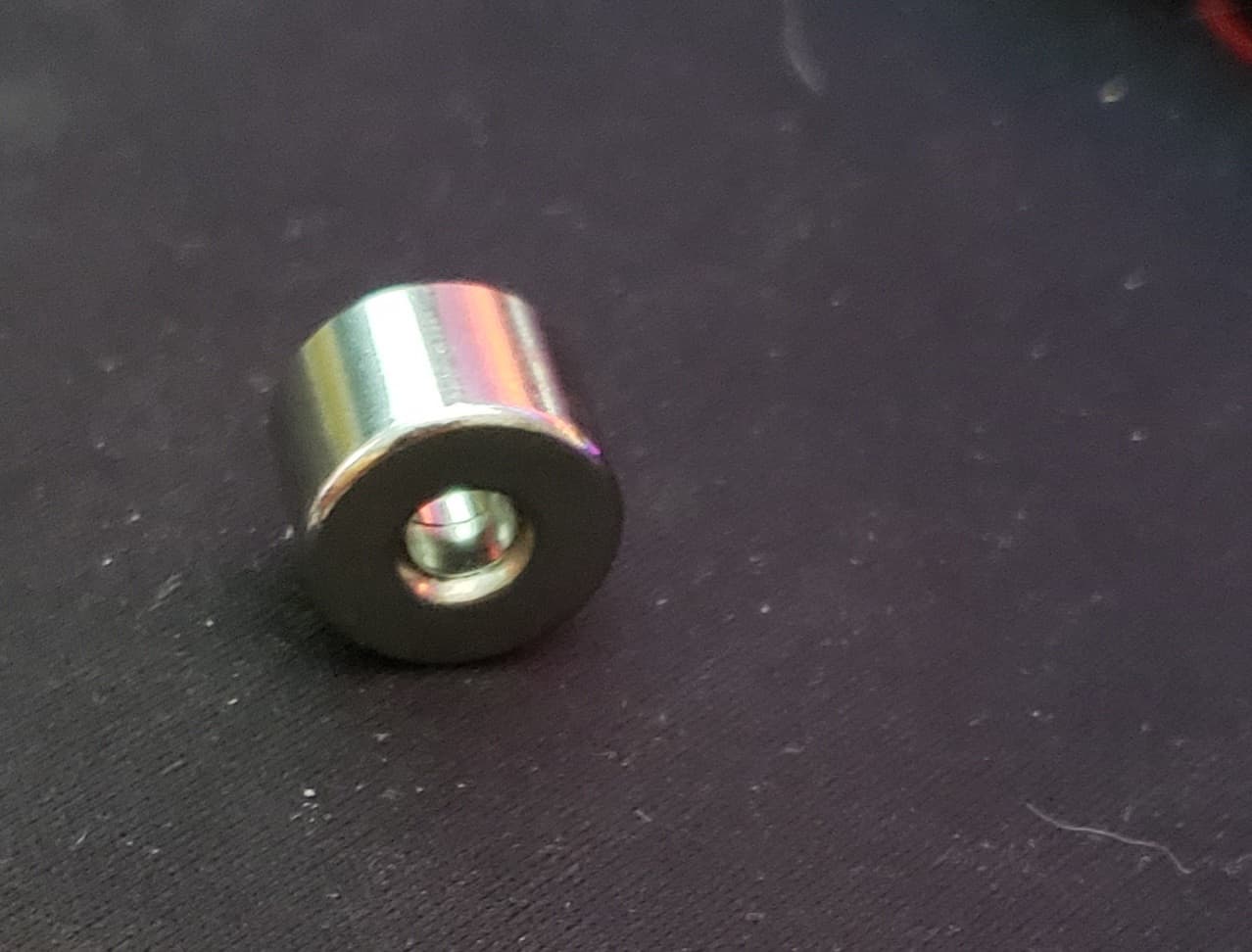

trying to figure out a bushing i have, .58 7mm tube both bushings are the same. Ive tried the PSI bushing book and the IAP bushing app. Nothing



mick

Member
Joined
Mar 13, 2005
Messages
2,558
Location
Decatur AL, USA
We have a very good app someone here in these forum created, search for it on Google Play or whatever apple calls theres. "Bushings and tube reference".
It's extensive. Tube sizes, OD, ID and length. Bushing sizes, again diameter and such. All you need is a good digital caliper and you're good to go!

Sent from my SM-G955U using Tapatalk
