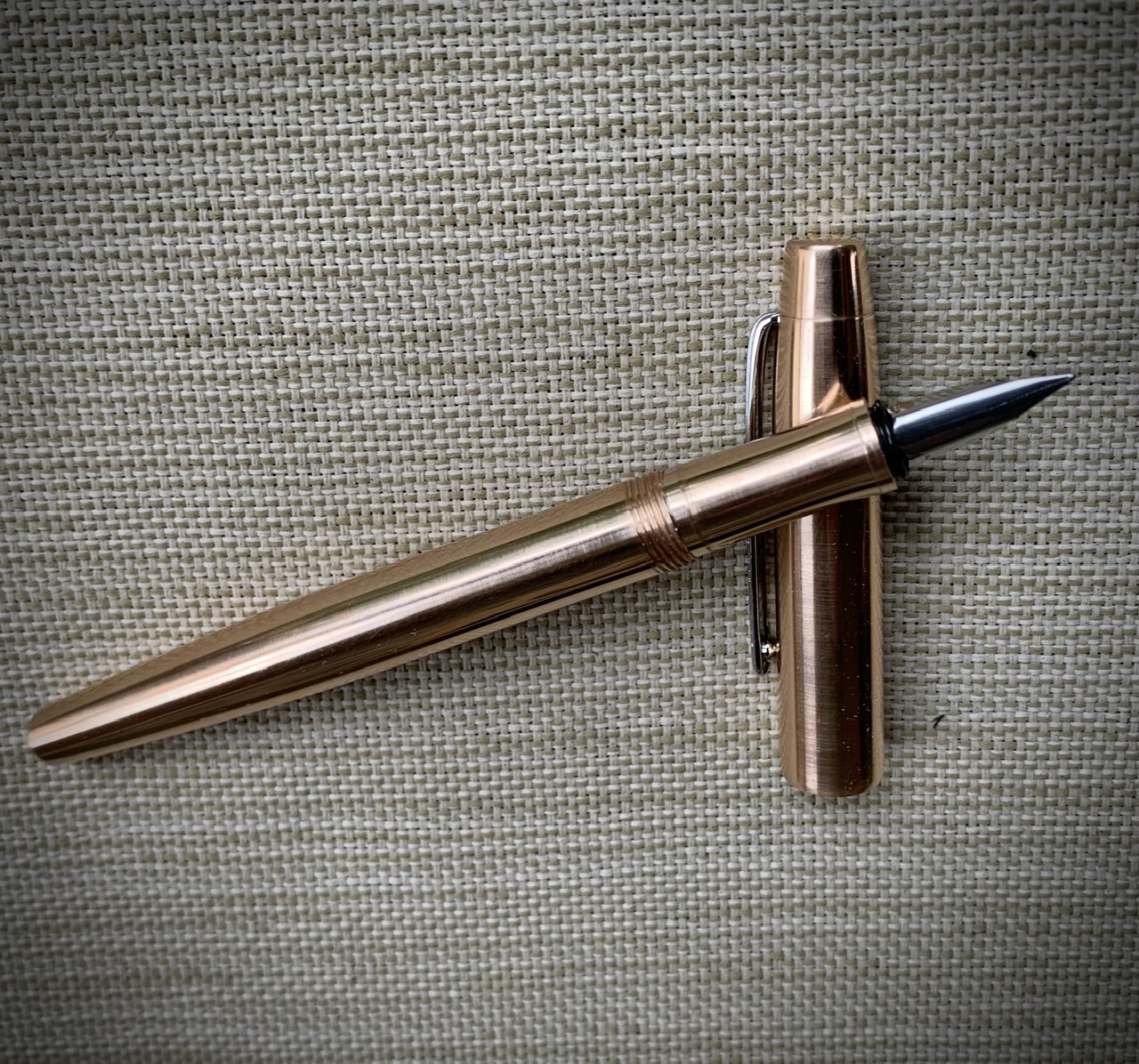

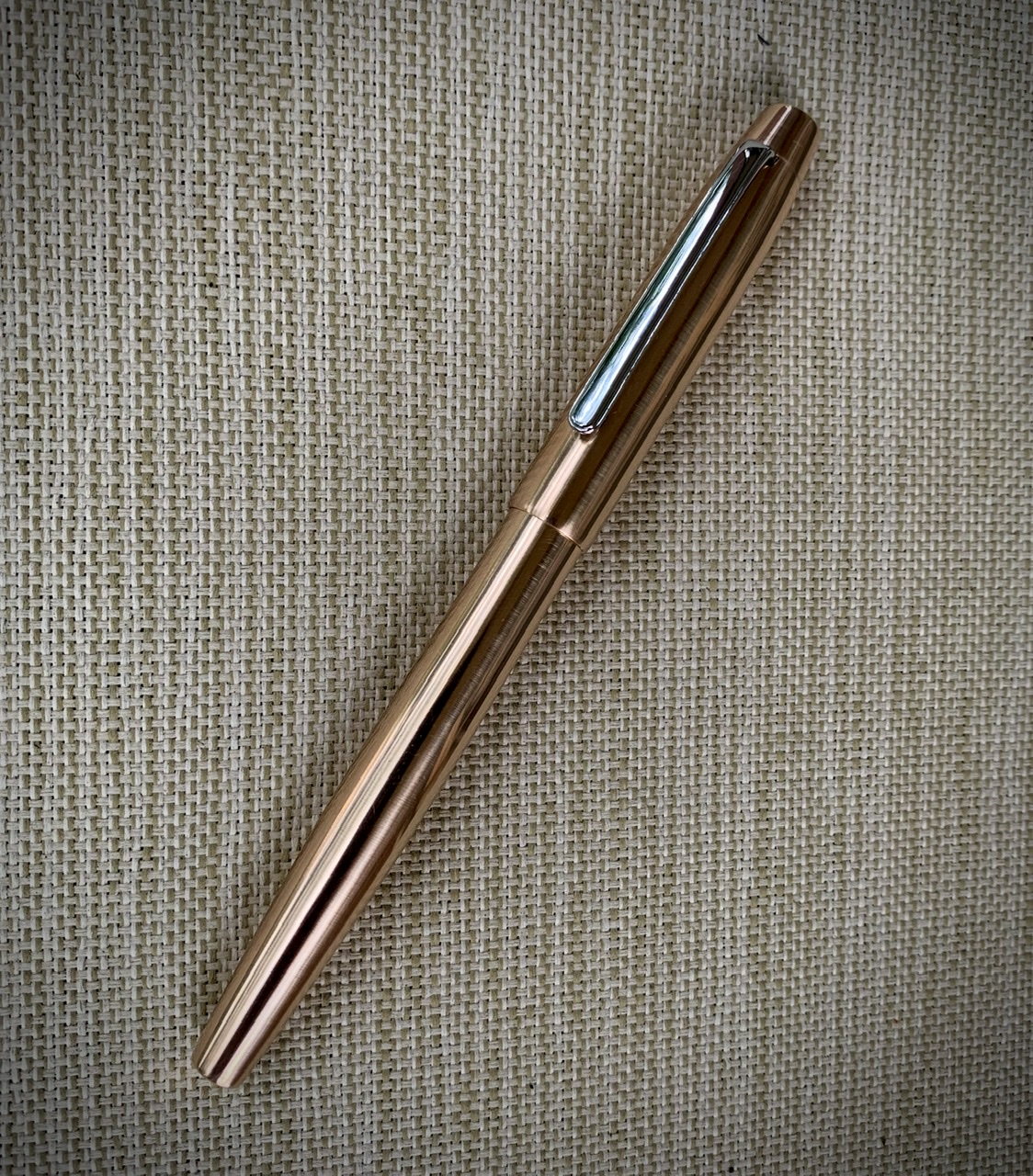

This is my first experience turning bronze. I used carbide inserts on my mini metal lathe. Turning was problem free. Drilling took some care, good cutting fluid and frequent chip clearing. It did not like my HSS cutoff tool, grabbing the tool and torquing the tool post. I used a hacksaw to make cuts on the lathe. On to the pen.

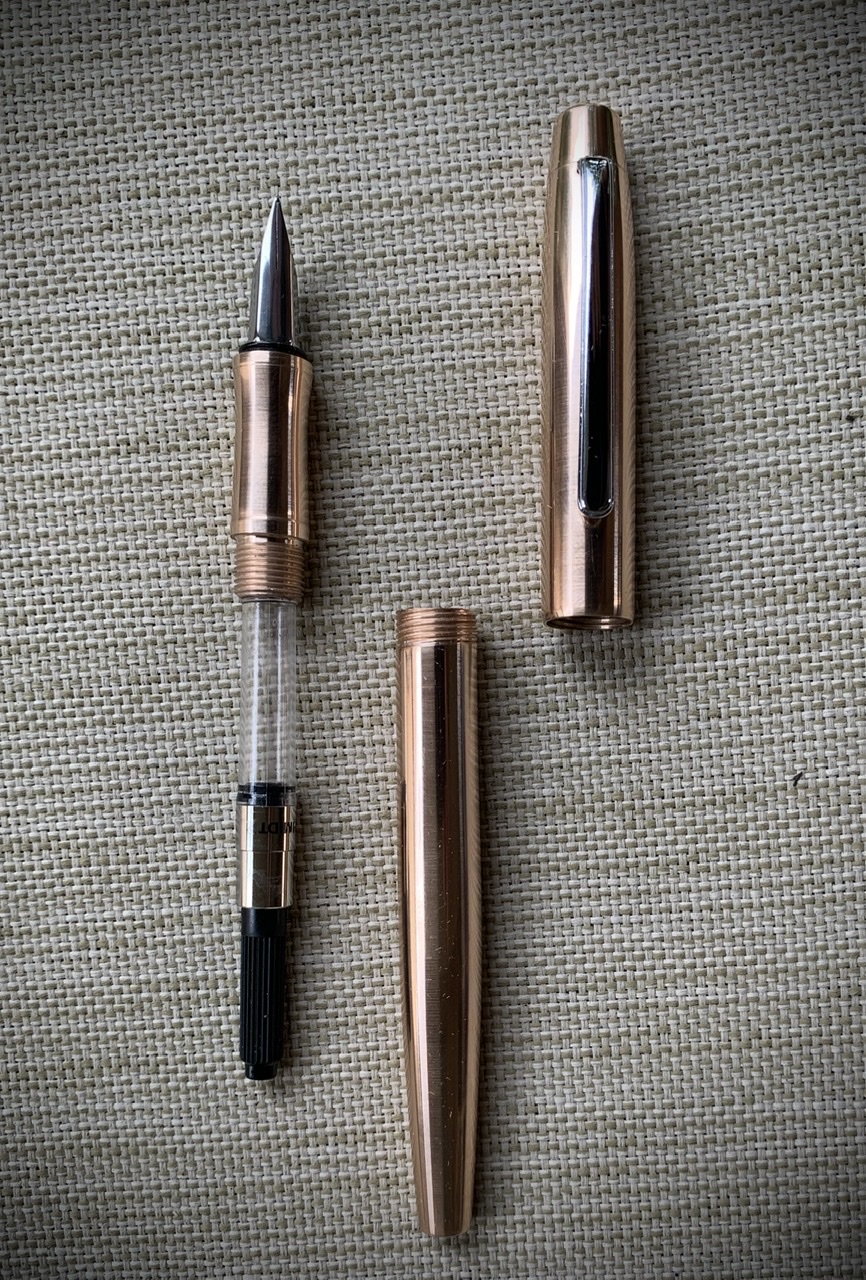

The pen uses a M11 x 0.8 triple start for the cap and a M9. X 0.75 for the section. The finial uses a M7 x 0.75 thread. The front section was made to use either a JOWO #5 or a Schmidt FPS rollerball nib. It currently has a JOWO #5 "Arrow" nib in polished Stainless Steel with a fine tip. The converter is a Schmidt K6 threaded converter. The clip is recessed in the cap and is from a PSI seam ripper kit. I'm anxious to see how the color changes with time. Comments and suggestions are always welcome.


Danny
