Branding iron

[hanau]

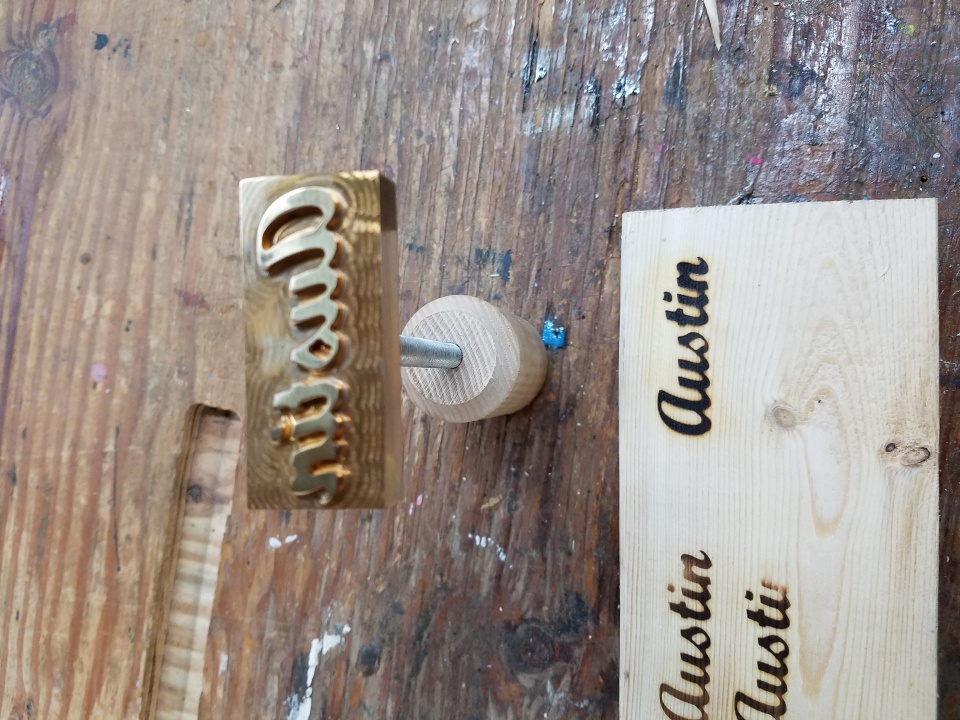

Been trying to get time to mess around with making a branding iron.
So far pretty happy with it.

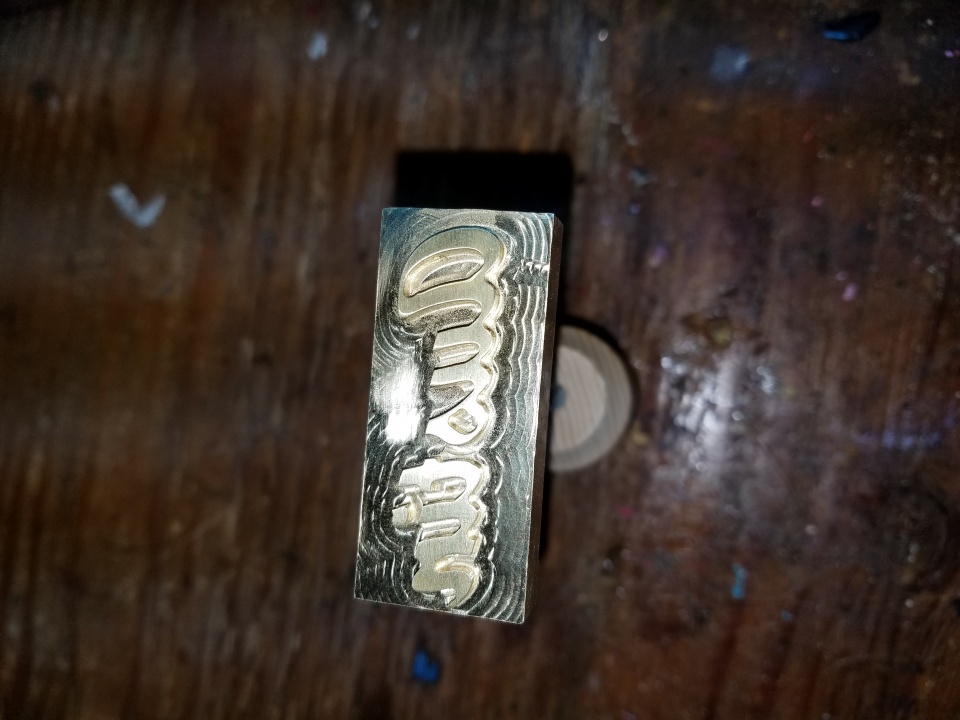

made using a 1/2" x 1"x 2 1/2" brass.
Eventually want to make cutting boards and to be able to brand them.



[eduardomachado]

how you did it?



[thewishman]

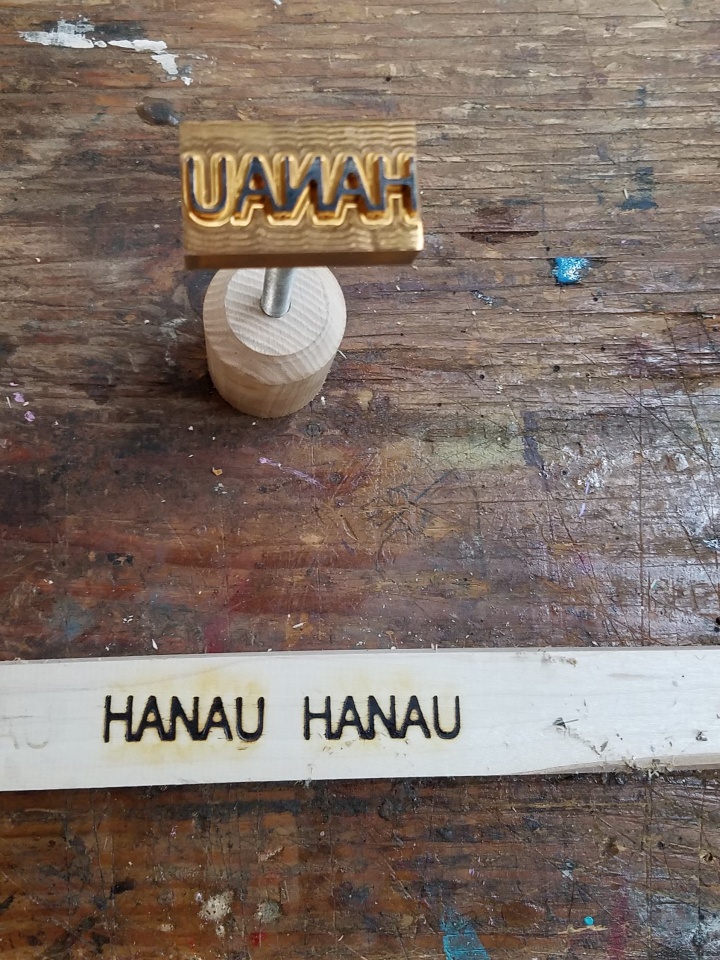

:befuddled:Um... That's NOT how you spell Hanau...



[hanau]

:befuddled:Um... That's NOT how you spell Hanau...

Your correct, I fixed it.



[hanau]

how you did it?

Made it on a cnc milling machine.



[Turned Around]

how you did it?

Made it on a cnc milling machine.

Care to share details about it? bit used, feed rates, etc.
Been looking at this as well. Where did you get the brass stock for it?

I really like it, very cleanly done



[hanau]

how you did it?

Made it on a cnc milling machine.

Care to share details about it? bit used, feed rates, etc.
Been looking at this as well. Where did you get the brass stock for it?

I really like it, very cleanly done

Thanks

I used a 1/8 carbide end mill think it was 10ipm
1/16 end mill at 3ipm
A little over hour on the mill.
This was made on a cnc mill that I built.
The brass I got of ebqy



[eduardomachado]

Price?


Sent from my iPhone using Tapatalk
