Bock #6 feed assembly drawings?

Signed-In Members Don't See This Ad

dbkyser

Member
Joined
Aug 3, 2021
Messages
9
Location
St Louis, Mo
I am looking for the drawings and dimensions of the Bock #6 Nib and Feed, have had no luck so far and hoping someone here can help.

Signed-In Members Don't See This Ad

Pierre---

Member
Joined
Jun 10, 2012
Messages
410
Location
France
If I ask Google what you asked here (drawings dimensions Bock #6 Nib and Feed), the first answer I get is what you're looking for, I guess.

Funny. :cool:


Dalecamino

Local Chapter Leader
Joined
Jan 2, 2008
Messages
14,570
Location
Indianapolis, In.

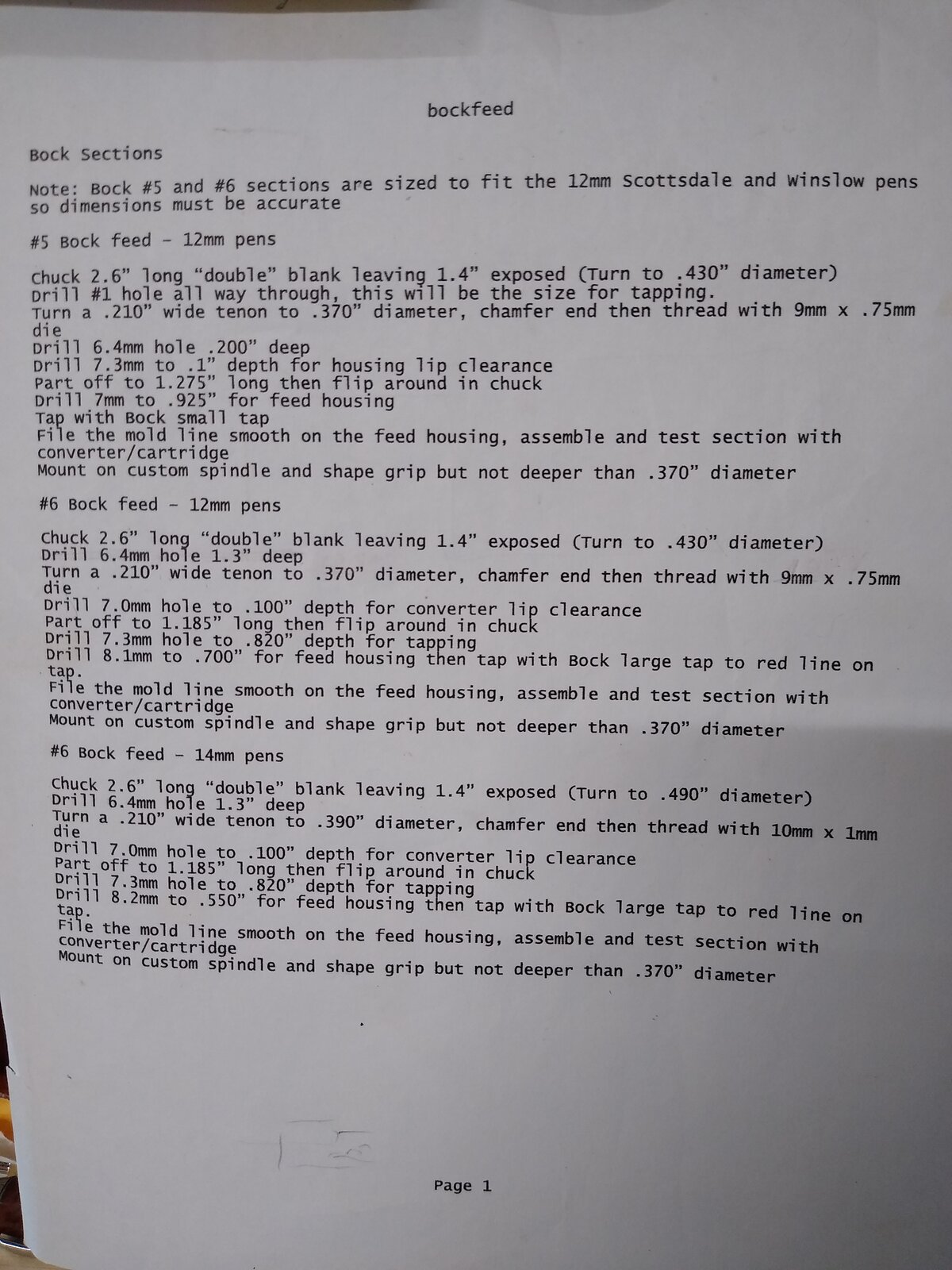

I don't have a drawing, but I have written instructions for making a section. Sorry, I have no idea of how to resize this.
Bock section instructions.jpg


Pierre---

Member
Joined
Jun 10, 2012
Messages
410
Location
France
When I googled all I got was JoWo diagram.
You are right, excuse me, I mixted up the nibs.
What I do is (sorry, metric! ) :
Drill through Ø 6,5
Drill L 22,5 Ø 7,3 Tap 7,9 x 0,6
Drill Ø 8,2, L 18,5
Drill Ø 8,5 L2

Top Bottom
