black to basics

Signed-In Members Don't See This Ad
See more from nappy155

nappy155

Member
Joined
May 25, 2011
Messages
223
Location
Philadelphia

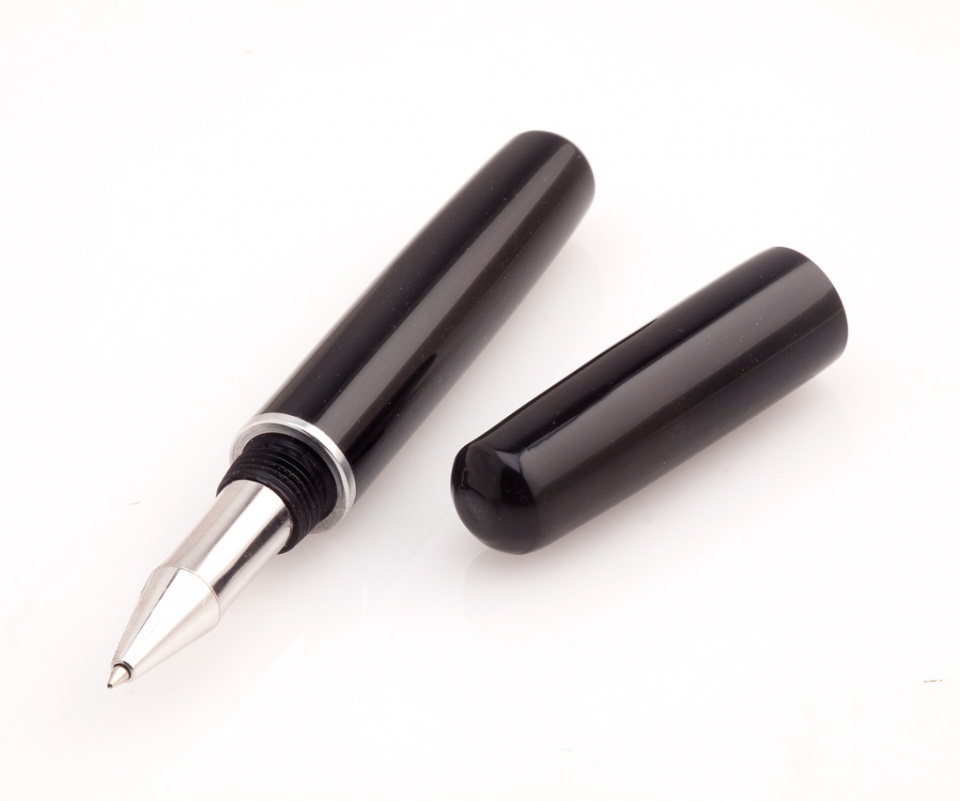

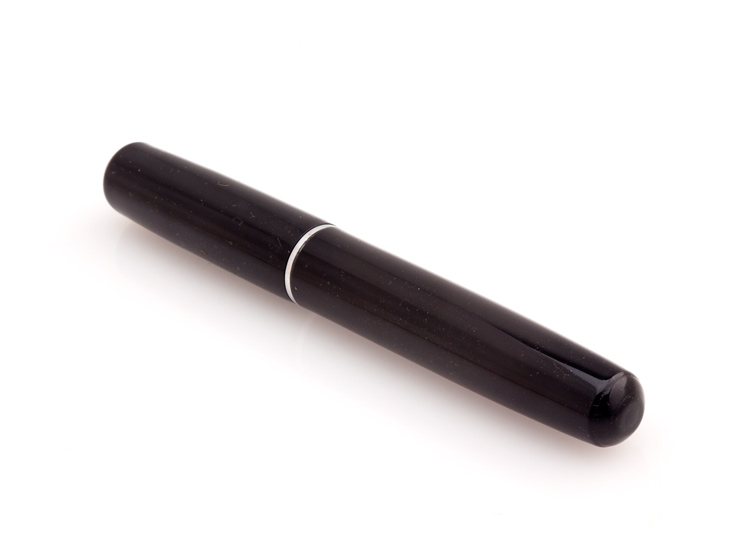

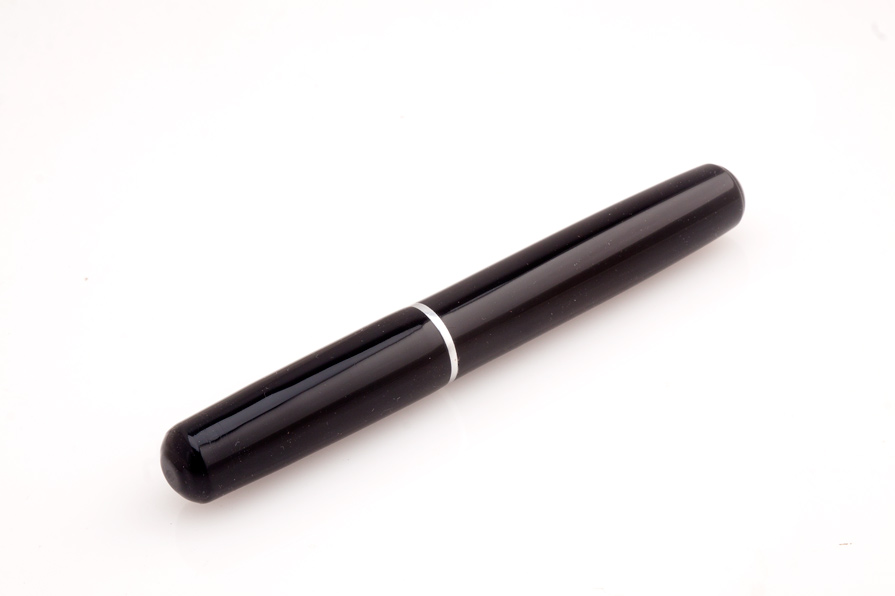

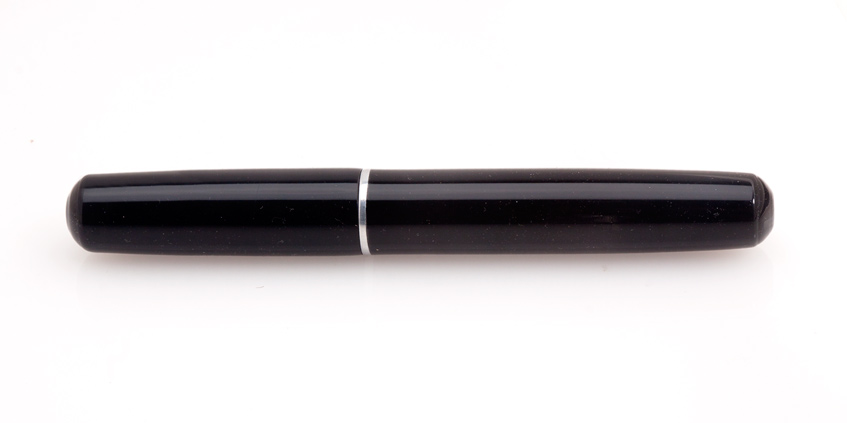

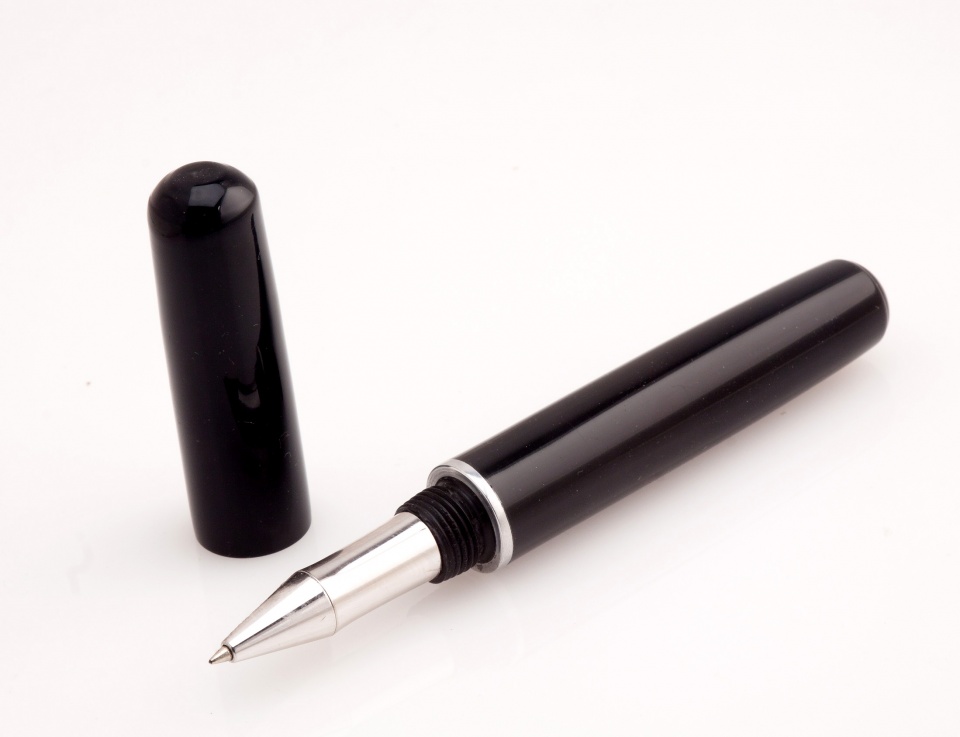

this was not my idea at the start but...things change


Attachments

  • IMG_5735.jpg
    86.2 KB · Views: 313
  • IMG_5731.jpg
    33.7 KB · Views: 260
  • IMG_5728.jpg
    46 KB · Views: 172
  • IMG_5727.jpg
    34.7 KB · Views: 173
  • IMG_5742.jpg
    81.6 KB · Views: 249
Signed-In Members Don't See This Ad

Joe S.

Member
Joined
Jan 11, 2012
Messages
2,000
Location
South Lyon, MI
While the fit is perfect and the finish is even more perfect, the shape seems a little off to me. The whole thing ties together nicely though!


propencity

Member
Joined
Feb 8, 2009
Messages
337
Location
Pearland, TX
Nice work Steven. I like the simple and elegant design. Difficult to remove all the fine scratches on the black acrylic but it looks like you were able to do it. What diameter size are the pen barrels? Thanks for sharing.


nappy155

Member
Joined
May 25, 2011
Messages
223
Location
Philadelphia
Nice work Steven. I like the simple and elegant design. Difficult to remove all the fine scratches on the black acrylic but it looks like you were able to do it. What diameter size are the pen barrels? Thanks for sharing.

widest...center dia: apprx 17.83mm
narrowest cap dia: 15.16mm
narrowest body: 14.48


SSGMEADER

Member
Joined
Jun 11, 2012
Messages
67
Location
New Hampshire
While the fit is perfect and the finish is even more perfect, the shape seems a little off to me. The whole thing ties together nicely though!

it is...i'm thinking about redoing the cap...

Really? other than maybe thinning the cap a little I like the overall look of the shape, the Cap proportion to body looks good. Simple design but sometimes I think less is more. Very James Bond looking you know tuxedo sleek, classic kind of feel.


Ambidex

Member
Joined
Nov 2, 2011
Messages
1,108
Location
Bristol NH 03222
While the fit is perfect and the finish is even more perfect, the shape seems a little off to me. The whole thing ties together nicely though!

as a novice at kitless..not being argumentative but what is off?? That is one of the prettiest even flowing pens I've seen..normally I don't intervene when it comes to a componentless discussion but dang...that thar is beeeeuuutfuuulll...in the words of a wanna be robertson:redface::redface:


Dale Allen

Member
Joined
Oct 27, 2012
Messages
1,378
Location
Akron, OH
I think I can see where you are going with regard to the cap. My guess is you are thinking of making it the same OD as the body section.
If so, that is going to make the internal thread area mighty thin.
I'd leave it as is because.....practically every screw apart or snap apart pen has a larger diameter cap.
Making them the same, for me anyway, would invite numerous mistakes in thinking which end come off and you would be holding the cap end and starting to write with it. Yes, the pen end it is slightly longer, but not by much.:biggrin:


nappy155

Member
Joined
May 25, 2011
Messages
223
Location
Philadelphia
thanks for the comments...i never though i would get into this as much as i have..i'm always striving to make the perfect kitless....so any comments/criticism are always appreciated...


nappy155

Member
Joined
May 25, 2011
Messages
223
Location
Philadelphia
I think I can see where you are going with regard to the cap. My guess is you are thinking of making it the same OD as the body section.
If so, that is going to make the internal thread area mighty thin.
I'd leave it as is because.....practically every screw apart or snap apart pen has a larger diameter cap.
Making them the same, for me anyway, would invite numerous mistakes in thinking which end come off and you would be holding the cap end and starting to write with it. Yes, the pen end it is slightly longer, but not by much.:biggrin:

yes i was about matching the diameters...i was going after a japanses cigar pens nakaya look...with a twist

NAKAYA - Cigar - Arai-shu, piccolo


Joe S.

Member
Joined
Jan 11, 2012
Messages
2,000
Location
South Lyon, MI
While the fit is perfect and the finish is even more perfect, the shape seems a little off to me. The whole thing ties together nicely though!

as a novice at kitless..not being argumentative but what is off?? That is one of the prettiest even flowing pens I've seen..normally I don't intervene when it comes to a componentless discussion but dang...that thar is beeeeuuutfuuulll...in the words of a wanna be robertson:redface::redface:

I'm not sure what is off, it just looks a little funny to me. I'm still a beginer, but I try to make consturctive comments when I can.


Joe S.

Member
Joined
Jan 11, 2012
Messages
2,000
Location
South Lyon, MI
Maybe... The nib end of the body is ever so slightly concave, barely. and the cap is just a little bit large on one end. Both of these could just be an illusion. This is still an incredible pen, much better than any pen I have ever made.


SDB777

Member
Joined
Feb 6, 2010
Messages
6,620
Location
Cabot, Arkansas USA
this was not my idea at the start but...things change


Gotta tell the 'rest of the story'...why was this not the idea at the start? That blank looks like it had plenty of dye/mica in it....can't see through it, that is for sure(which makes this one great).


Any chance on getting the info on the 'nib stuff'? Is it a cartridge refill, or a 'stick'?




Scott (keep them coming) B


Jim Burr

Banned
Joined
Feb 23, 2010
Messages
3,060
Location
Reno, Nv
I still think it's great!! Looks like...and I'm usually wrong...you took a hair off the cap and rounded the ends a bit? I'd own that any day of the week and twice on Sunday! Any thoughts for a clip?


Dale Allen

Member
Joined
Oct 27, 2012
Messages
1,378
Location
Akron, OH

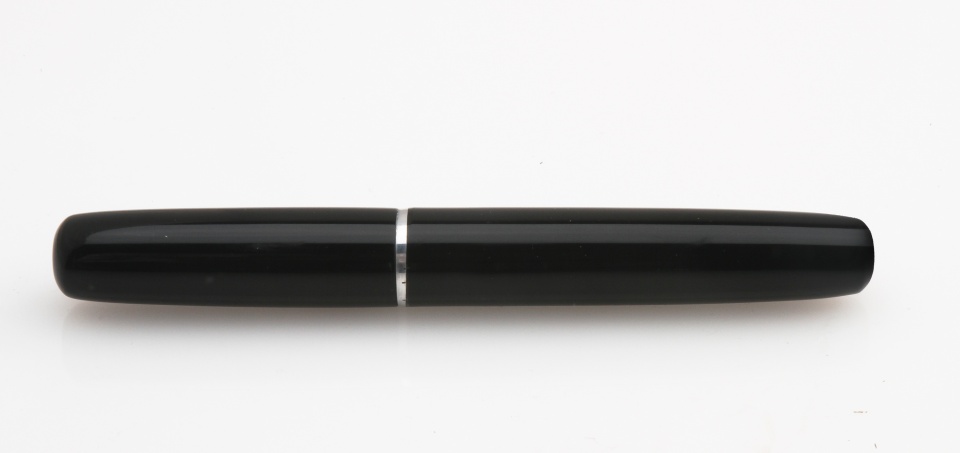

Now ya did it. What were you thinking?:biggrin:
Now it looks as good,or better some would say, than it did before.

Personally, I have to commend you for managing to return it to the lathe and not have to remake it. That's what would have happened to me!:wink:
