Bespoke Pens

[RichAldrich]

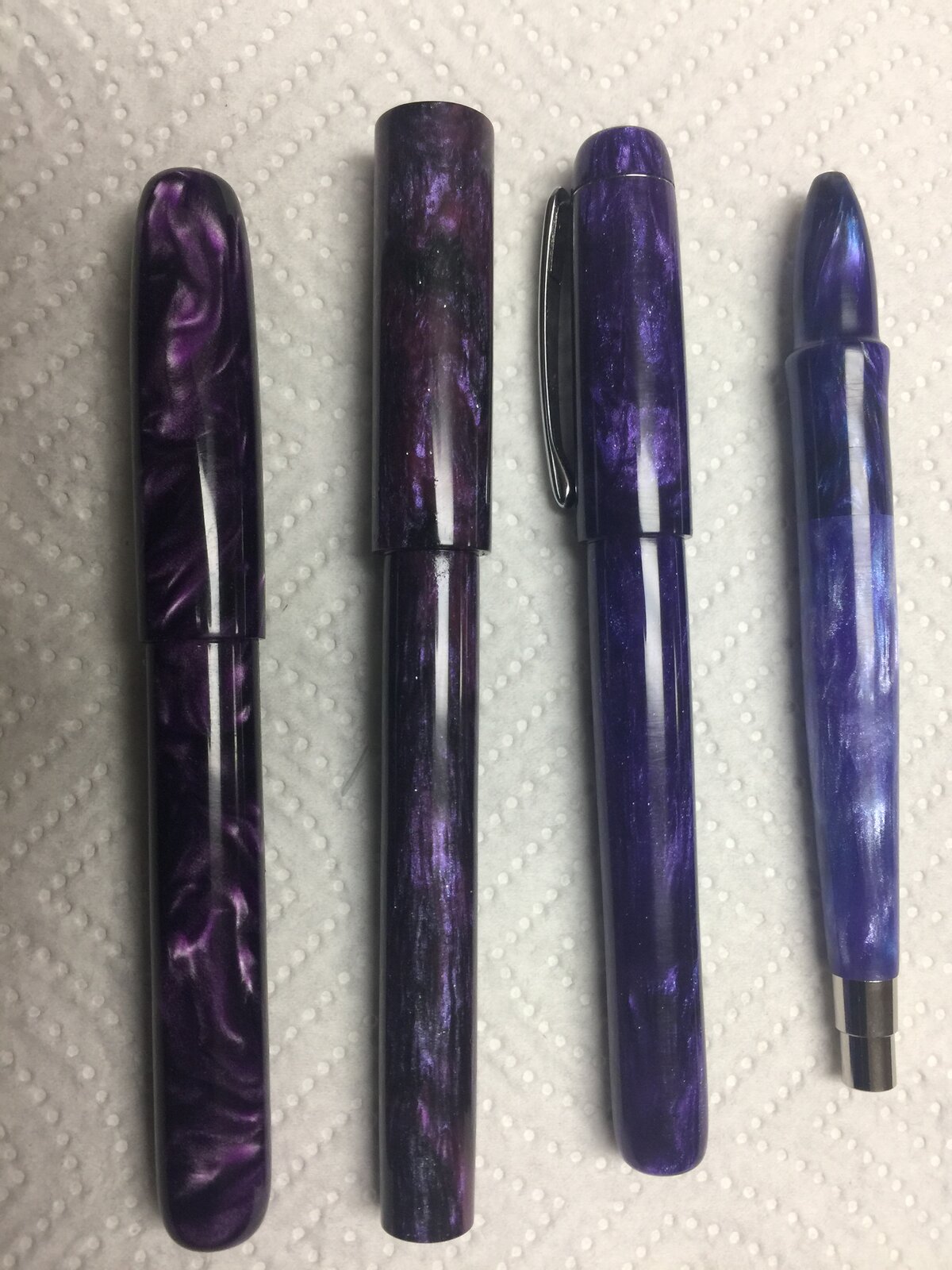

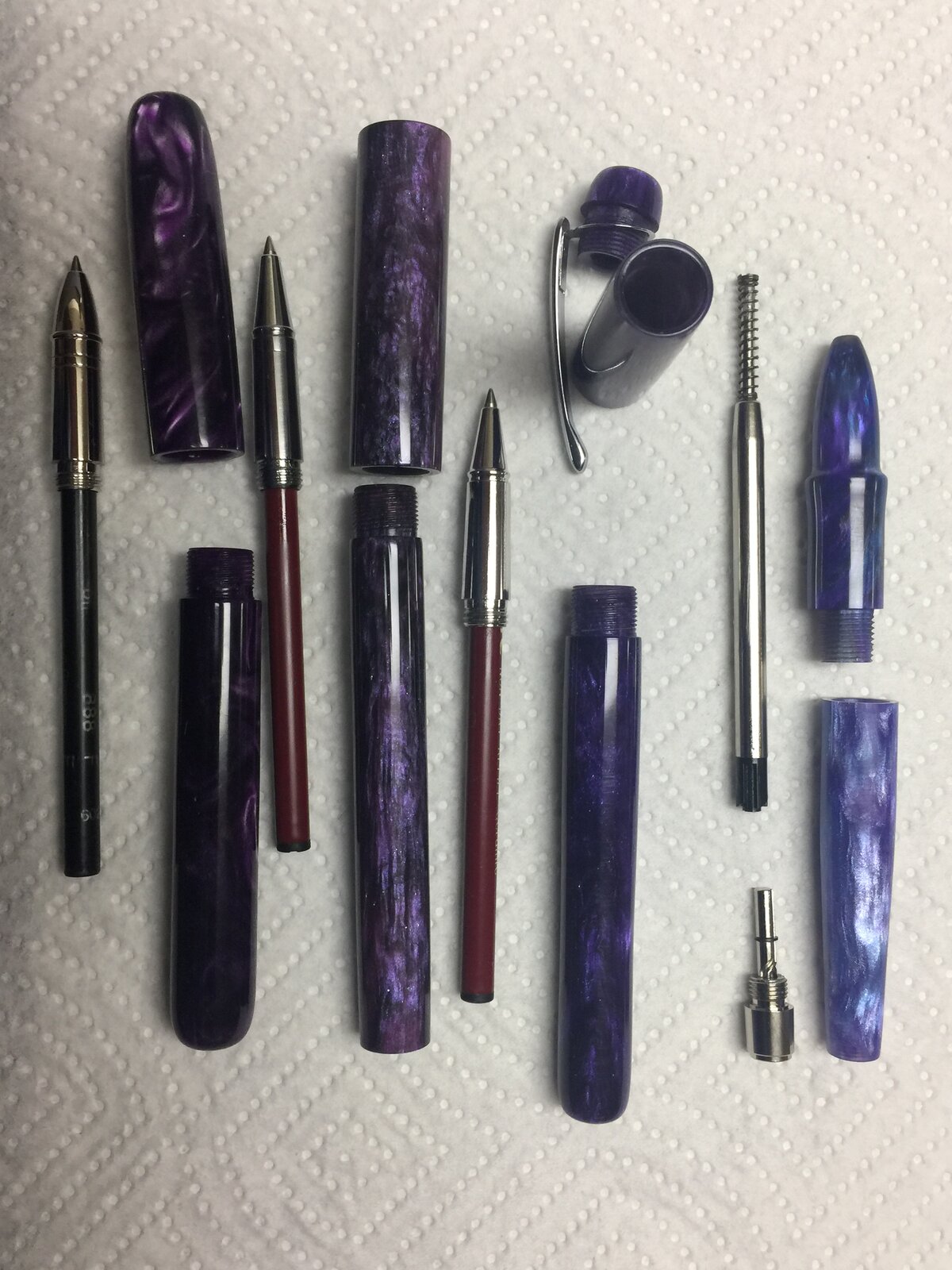

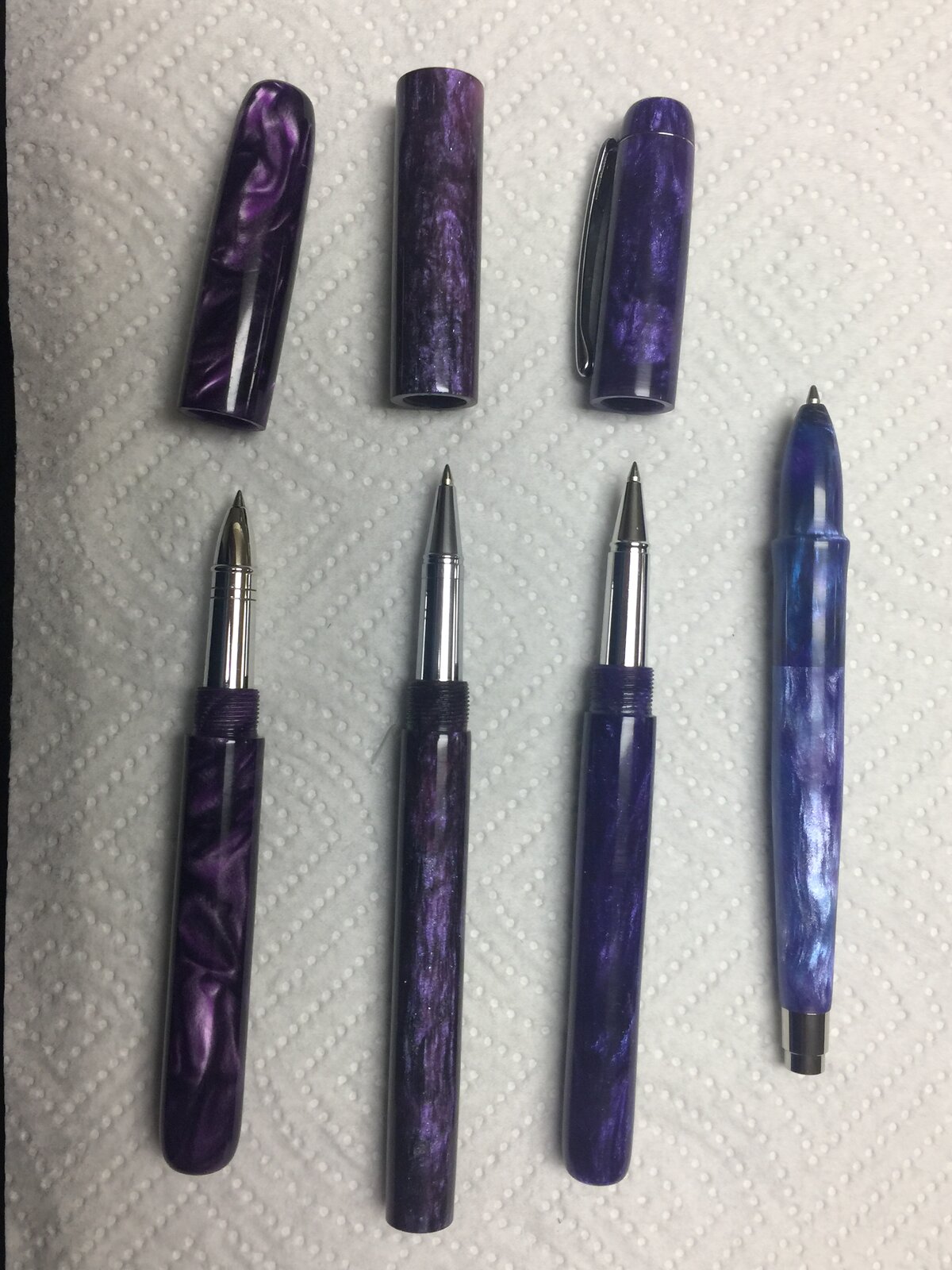

4 Bespoke. 3 Rollerballs with caps. One cap has a clip. Clicker is a parker with a Schmidt SKM-88 transmission and a turned nib. Rollers are 12Mx.8Mx3. C and C welcome. Thank you.



[SteveJ]

Nice!



[Dalecamino]

Time well spent, with good results.



[magpens]

EXCELLENT !!

Admirable work !!!

I especially love the Clicker and how you have turned the nib !!!



[leehljp]

Excellent, and agree with Mal on the clicker. Well done. You make it look simple although I know it took some fine measurements, calculations and experience. Thanks for posting.



[eteska]

I really like them! Can you share what kind of clip you used and what the thread size is at the clip?



[RichAldrich]

Nice!

Thank you.



[RichAldrich]

Time well spent, with good results.

Thanks. The challenge is awesome. The freedom to create is hard to describe.



[RichAldrich]

EXCELLENT !!

Admirable work !!!

I especially love the Clicker and how you have turned the nib !!!

Thanks. Next one I am going to try a flat top with a larger diameter and see if I can use 12M clip off a Jr. Gent.



[RichAldrich]

Excellent, and agree with Mal on the clicker. Well done. You make it look simple although I know it took some fine measurements, calculations and experience. Thanks for posting.

Excellent, and agree with Mal on the clicker. Well done. You make it look simple although I know it took some fine measurements, calculations and experience. Thanks for posting.

Thank you. A bit of luck on this one.



[RichAldrich]

I really like them! Can you share what kind of clip you used and what the thread size is at the clip?

It does not have a clip. A nib and body connected by 10Mx1x1. Clip is the next try.



[CjG78]

They look awesome mate! Fountain pens next!



[RichAldrich]

It does not have a clip. A nib and body connected by 10Mx1x1. Clip is the next try.

Whoops. 10Mx1x.8



[RichAldrich]

They look awesome mate! Fountain pens next!

Thanks. I love fountain pens. I am surrounded by lefties and click pen addicts. Ha!



[RichAldrich]

I received some questions. I thought it would be ok to post;


In your recent thread, titled "Bespoke Pens" .....
I'd like a few more details about the blue click pen on the right side, please.

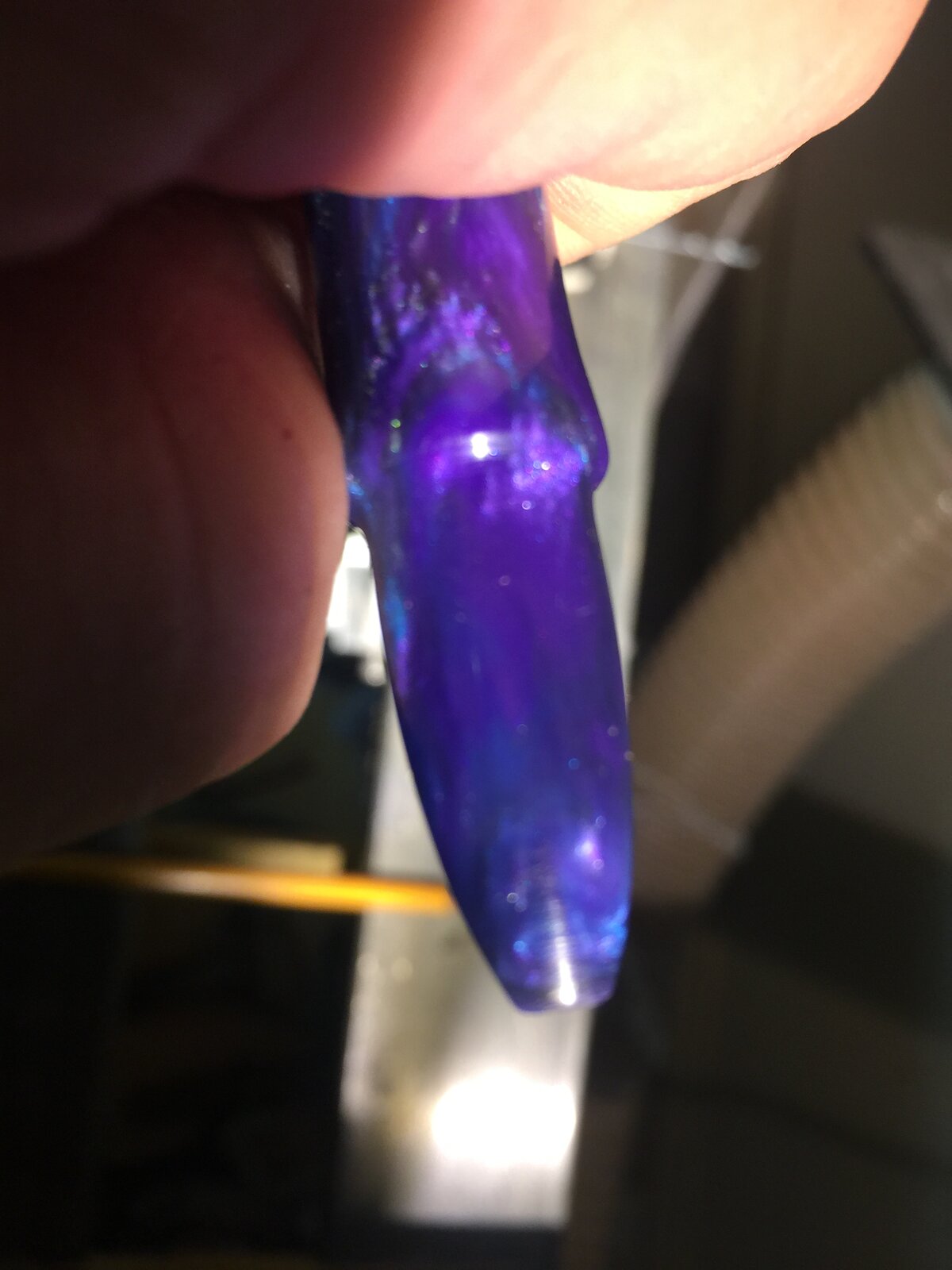

1) What diameter hole is at the tip, allowing the refill through ..... ?
2) How long is that drilled portion ..... ?
3) What size is the next drilling ..... ? . . That drilling has to accommodate the spring ... might even be of a size that the full diameter of the refill would fit into.



[RichAldrich]

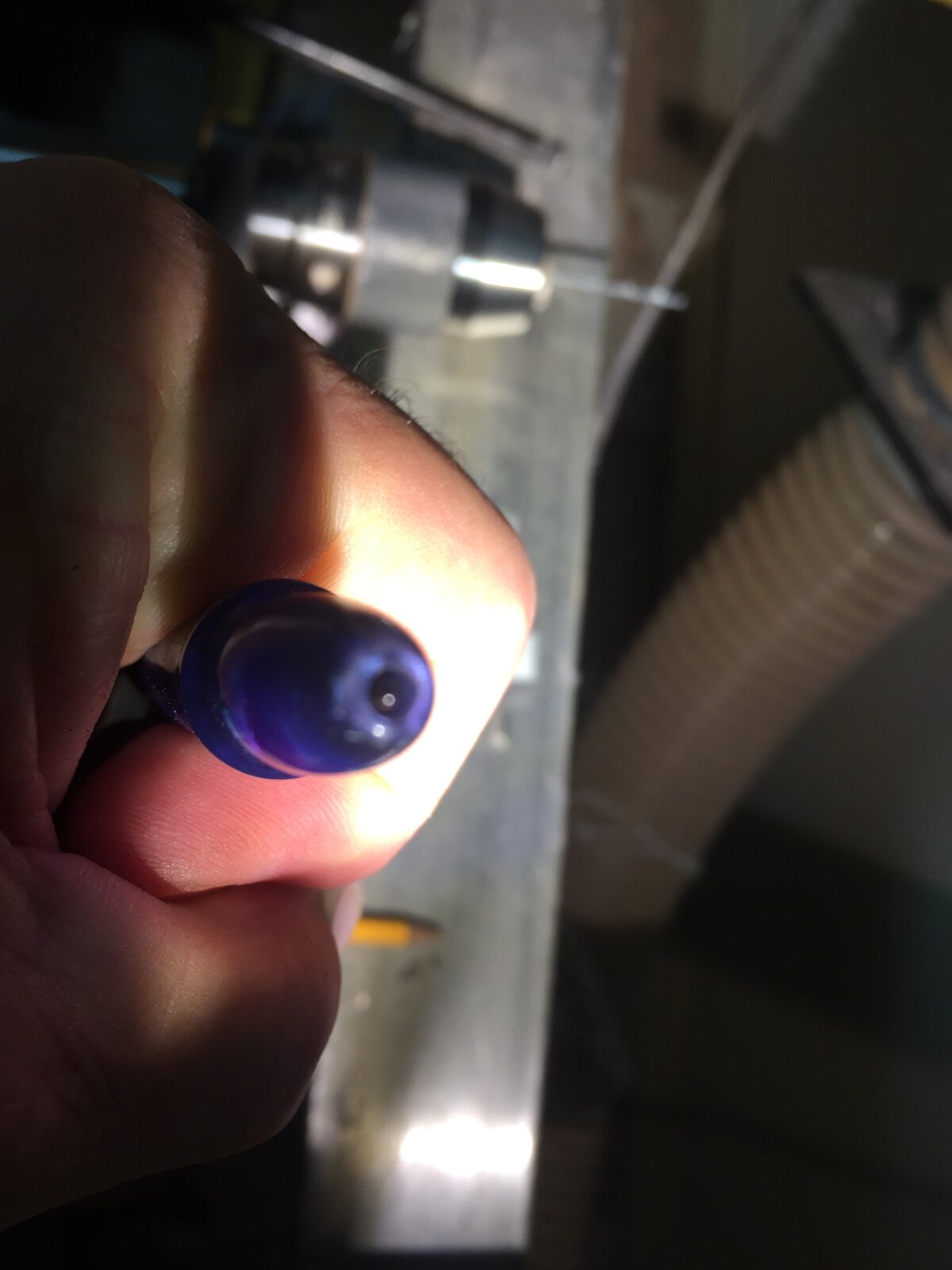

I used a #37 (.104 or 2.66mm) for the parker refill tip.
I used a B for the rest of the body (.238 or 6MM).
The SKM-88 has a 7MM tap. I used an approx equivalent of 6.2MM for alumilite.
The length of that thread is twice the length of the thread on the SKM-88.
The spring will go to the bottom of the B hole.
The narrow portion of the parker is about an inch long.
I made the #37 hole around 1/4 deep. After turning to fit it ended up about .15.

I think I answered all of them. Let me know how you do. Any improvements you can see let me know.
Rich
