Beginner, what to start out with?

Signed-In Members Don't See This Ad

SuzukiGS750EZ

Member
Joined
Feb 2, 2020
Messages
22
Location
CT
Hey guys. I'd like to get a basic setup together.

What lathe do you recommend that I could grow into and not need to buy another for a while? I don't mind buying new. Also, what tools should I get? Extras will come with time I'm sure as I figure things out.

Signed-In Members Don't See This Ad

ed4copies

Local Chapter Manager
Joined
Mar 25, 2005
Messages
24,040
Location
Racine, WI, USA.
Do you know how to turn with any tools? If not, the easiest is to start with carbide (Easy Wood is one trade name).
Use a mini-lathe--Jet. Rikon, Delta are all respected, many are less expensive and will work well. Lots of people will chime in, I am sure!!

Good luck and ENJOY!!!


jamfishpens

Member
Joined
Jul 31, 2020
Messages
22
Location
Twin Cities, Minnesota, USA
Basics for me?
- Benchtop wood lathe (Ed recommendations are great, but specficially you want a Variable speed lathe...will give you more time to turn). You want to make sure its MT2 as most tooling supports this (and as the 1x8 taper you'll see everywhere)
- Bandsaw - So you can cut blanks and tubes
- Carbide Tools (Rockler has one specifically for pen making, but you can also go for their mini carbide tool kit instead. I did the latter as I didnt want to deal with sharpening the skew in the pen kit )
- Tailstock Drill Chuck (to save on having to get a drill press)
- Chuck with regular and pen jaws - Used it for on-lathe drilling but this is also standard and something you should have just in general too. Would recommend the Barracuda or Nova G3 (they have a set specifically for pens, which I bought and is wonderful, requires one hand to tighten, and will be a more stuck Chuck proof than the two hand C Series Chuck Penn State Industries sells).
- pen mandrel and pen saver for the tailstock. If you get the Nova Pen Chuck Set, the pen saver is included so you just need to get the mandrel, which you can find everywhere.
- Drills - For drilling the holes for tubes. For wood, I have these:
- Oh, and don't forget super glue (aka CA) glue!

Hope this helps.


Penchant 4

Member
Joined
Jun 23, 2018
Messages
149
Location
Great Lakes Area
  • Patience.

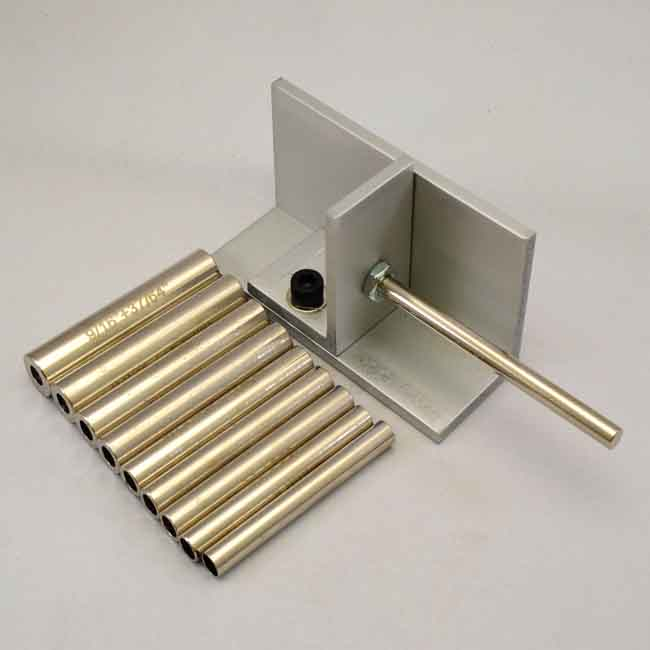

  • A means of squaring the ends of drilled and tubed blanks. While it will require a sanding set-up that allows holding the jig square to the face of the sanding media; sanding is the most reliable, i.e. least likely to damage or break the ends of the blank material. TIP: IF you do not have a disk sander already, look for one with clockwise rotation as you look at the disk. It means that the hand closest to the disk (assuming user to be right-handed) is in free air, rather than close to the spinning disk. It can save knuckle skin. Left-handed? Vice-versa.

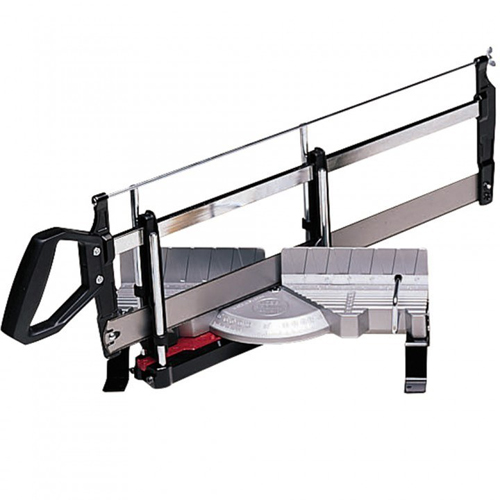

  • Nobex Proman Miter Saw is an acceptable, less expensive and more space saving option to a bandsaw. Requires elbow grease as it is manual. This is what I use, lacking space for even a small benchtop bandsaw.
  • Have to second the above suggestion regarding Morse Taper #2 head and tailstocks. Ditto 1"-8 TPI headstock threading. These seem to be the most common sizings for mini/midi lathes.
  • An option for holding blanks to be drilled is: https://www.arizonasilhouette.com/c...arch_Begin_Only=&sort=&range_low=&range_high=
  • Patience
  • Richard Kleinhenz's The Pen Turner's Bible.
  • Barry Gross' Pen Turner's Workbook 3rd Edition
  • Patience
  • Consider epoxy (30 minute is my go to, and then letting it cure overnight) for bonding the tubes in the drilled blank. Yes, it takes more time; but after CA sets up too soon and leaves one with a tube only partly in the blank for the second or third time; the time is well worth the savings in frustration and blue air.
  • Patience
Good luck!

Last edited:

SuzukiGS750EZ

Member
Joined
Feb 2, 2020
Messages
22
Location
CT
Awesome! Thanks. So for a mini lathe (as that's what was mentioned), what's a good name/model? I don't mind spending the money if it's worth it over a cheapie in the long run.


DavidD

Member
Joined
Oct 4, 2017
Messages
253
Location
Boulder, Colorado

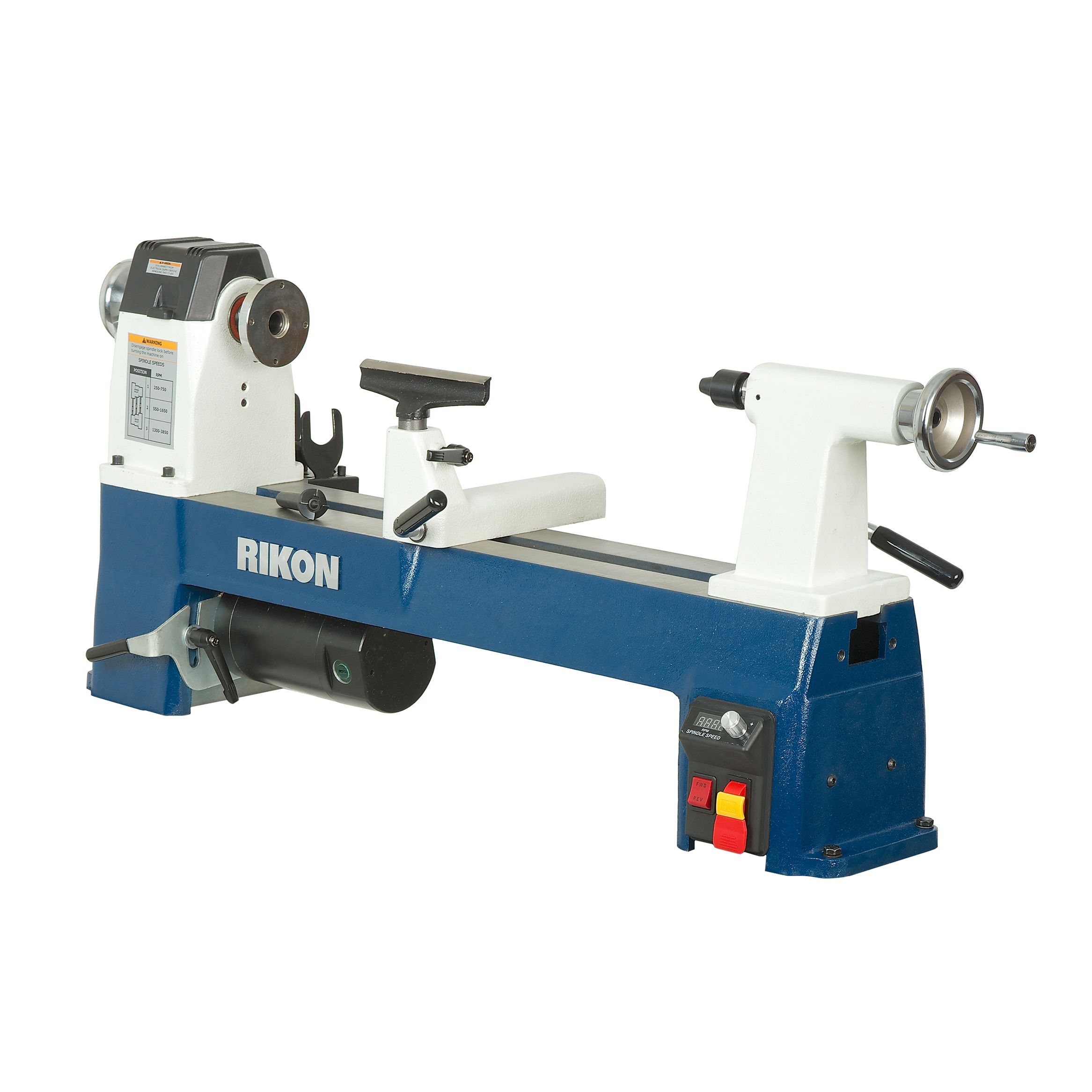

Hi there! From what you've described, I'd recommend this 70-220VSR lathe from Rikon:


I have smaller minis and full sizes, and this to me is the sweet spot for making pens. I've actually purchased four of this particular model myself (two for me, two for gifts) and have never had any problems with any of them (they get a lot of use)

But I think the really important part, as mentioned above, is to have a variable speed and the morse taper 2. This lathe satisfies those two requirements, as do many others that people will invariably suggest :)

David


SuzukiGS750EZ

Member
Joined
Feb 2, 2020
Messages
22
Location
CT
I've been recommended laguna, jet, rockler, delta, now Rikon. Lol. In the world of wood working, I'm uneducated as far as tools, I have no experience besides with Milwaukee, skil, Dewalt , etc


mmayo

Member
Joined
Jan 12, 2013
Messages
1,690
Location
Tehachapi, CA
I recommend skipping a mandrel, go straight to TBC bushings made by Brian Nikitas. Drill on the lathe too.
