atomizer pen kit RZ463 penkitsmall

[peter1958]

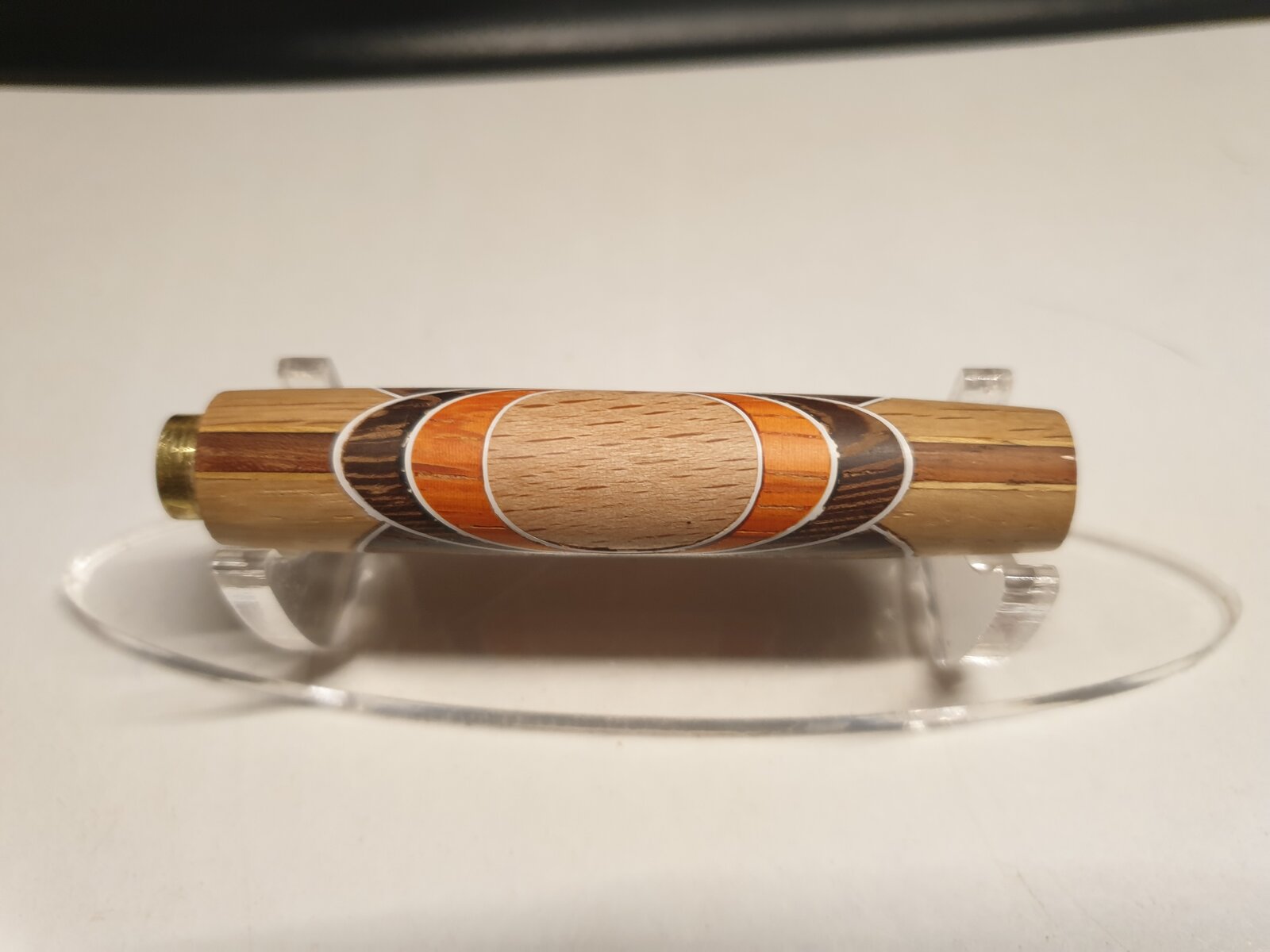

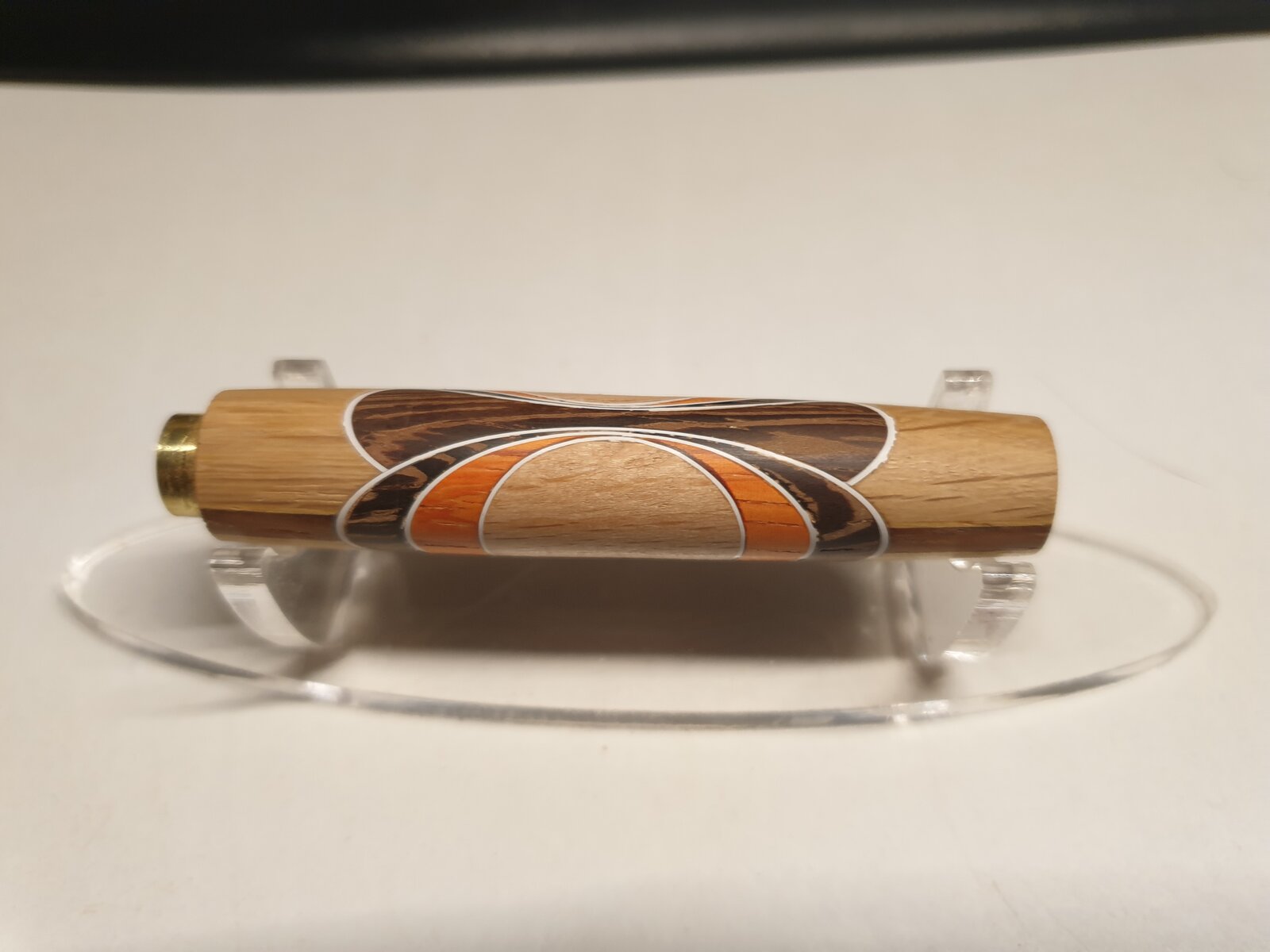

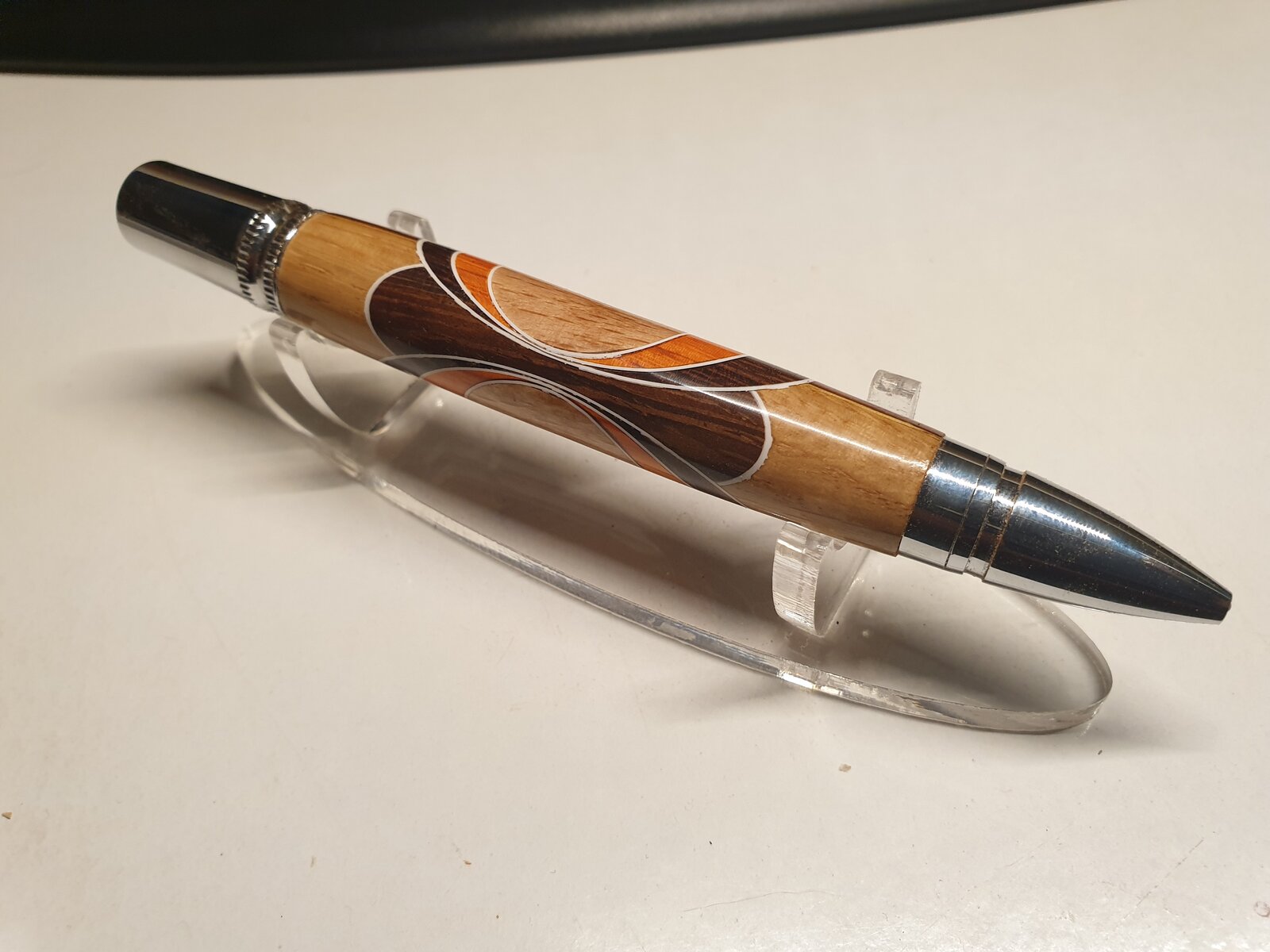

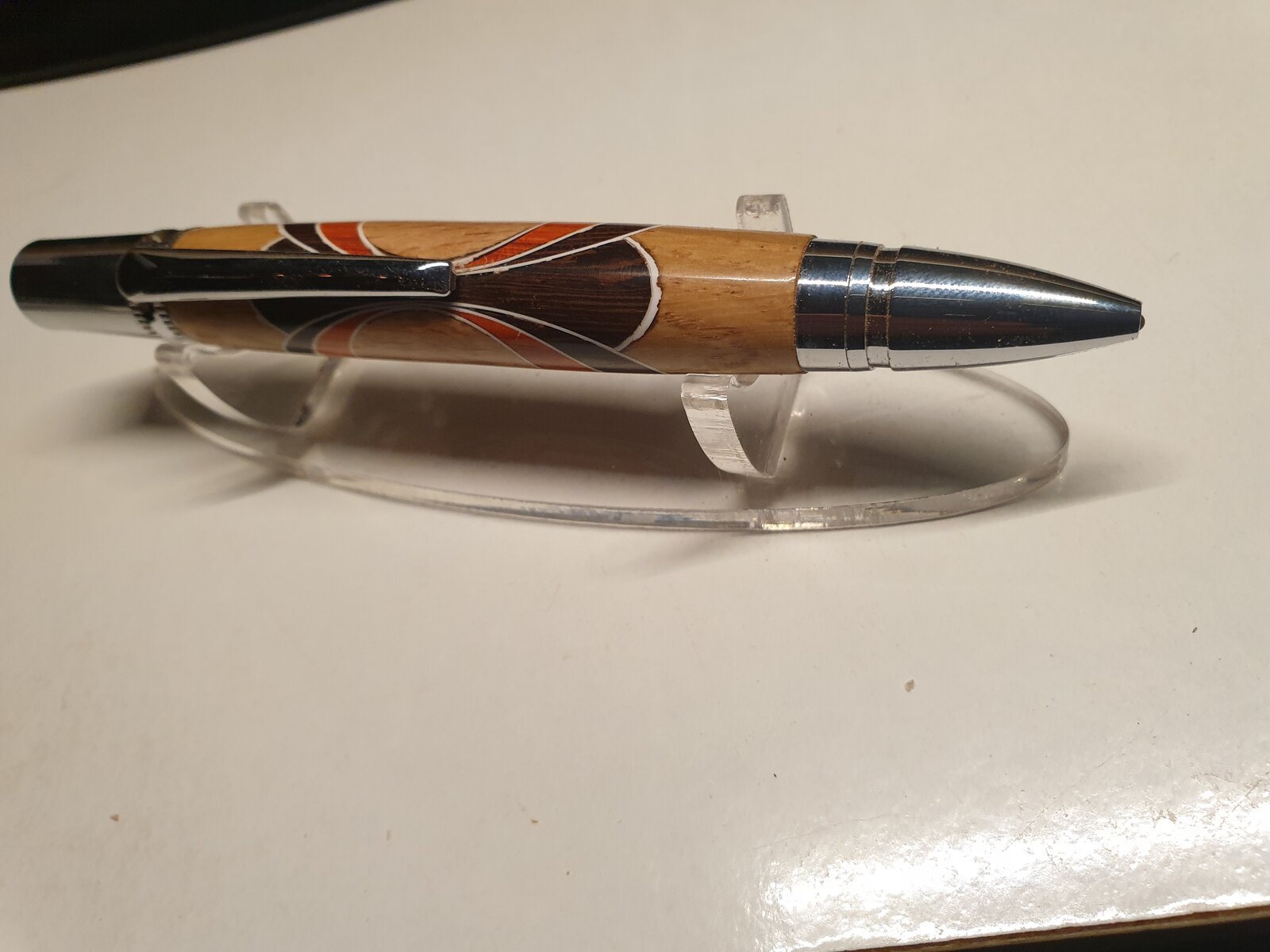

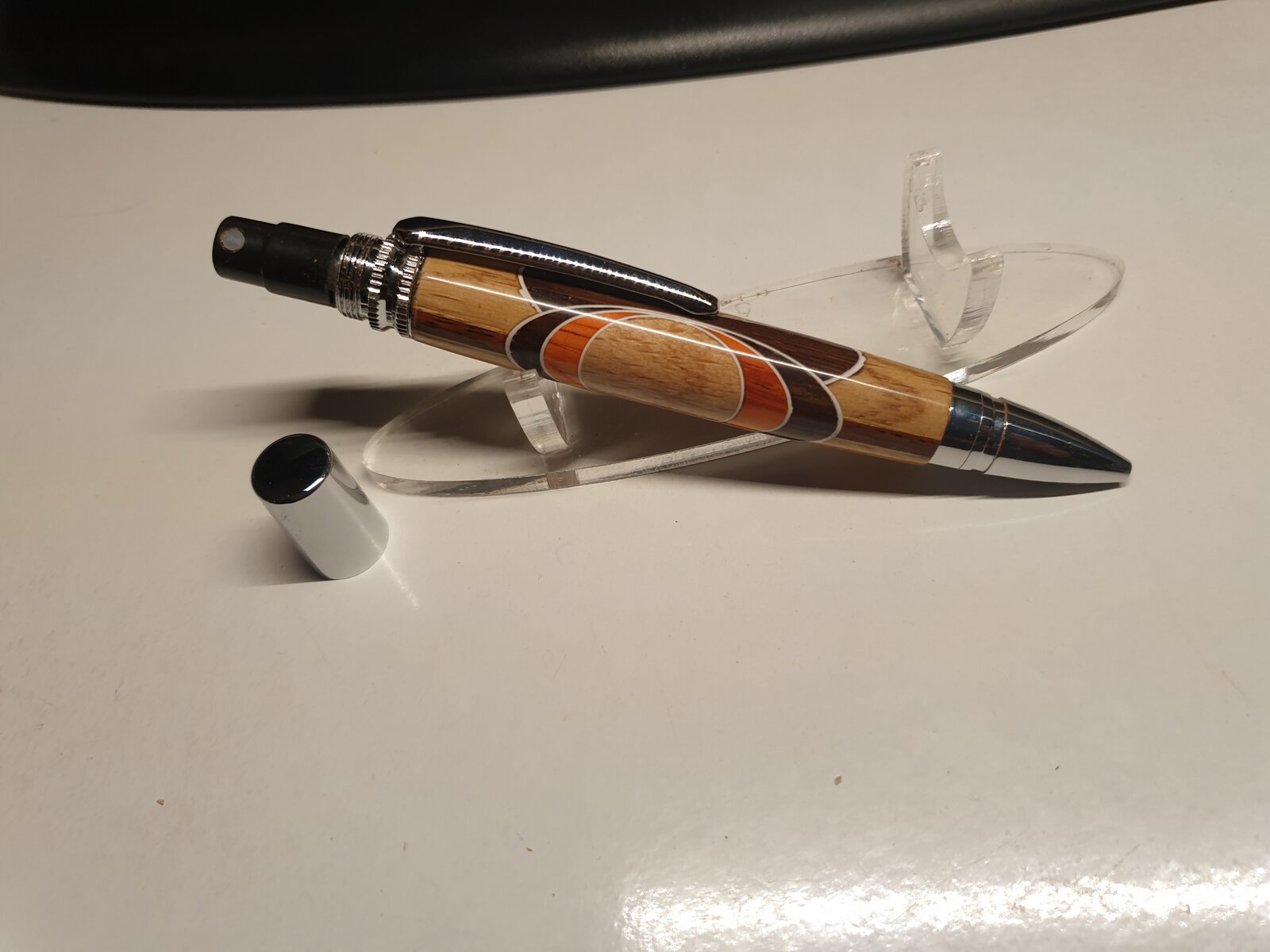

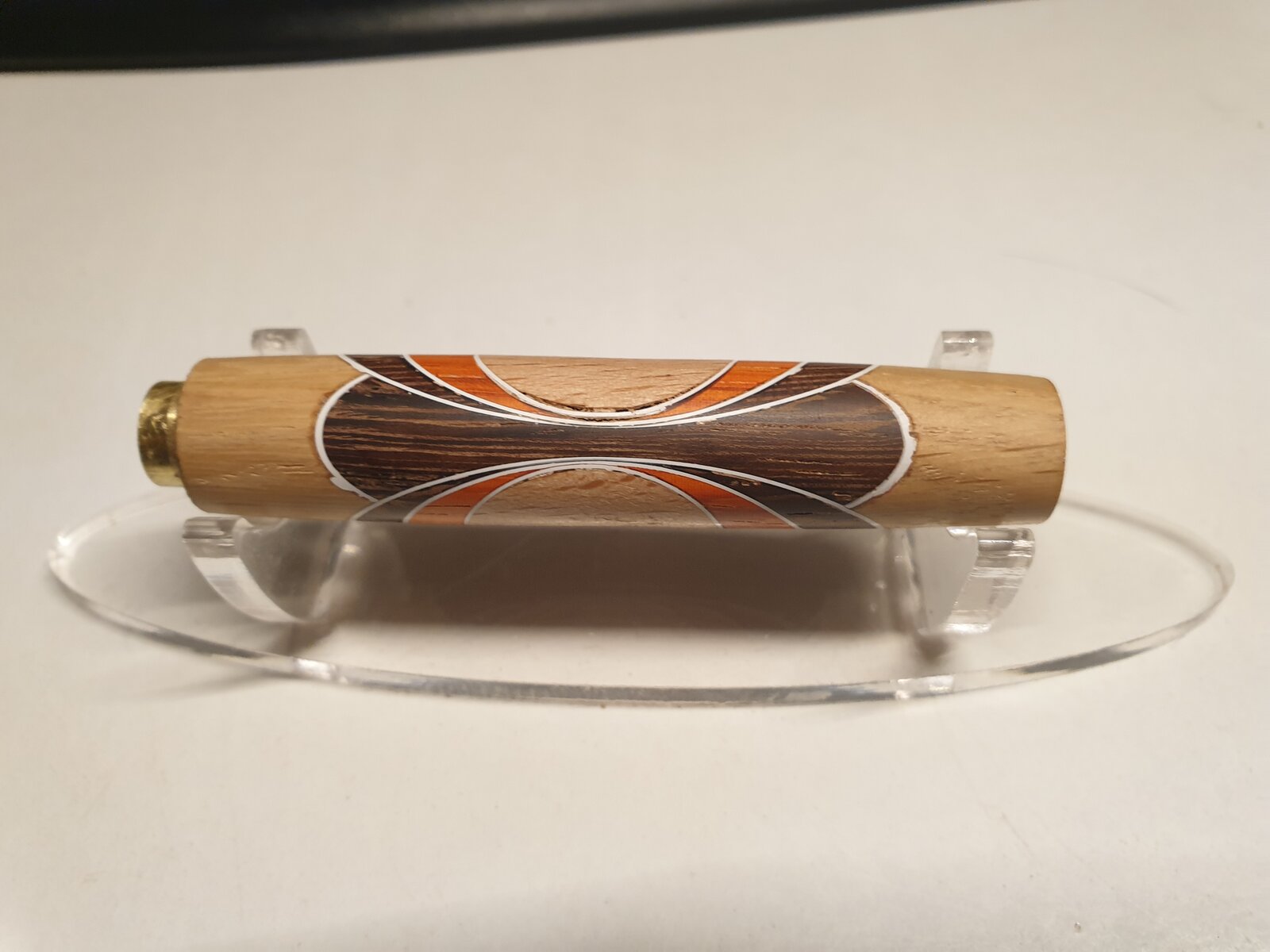

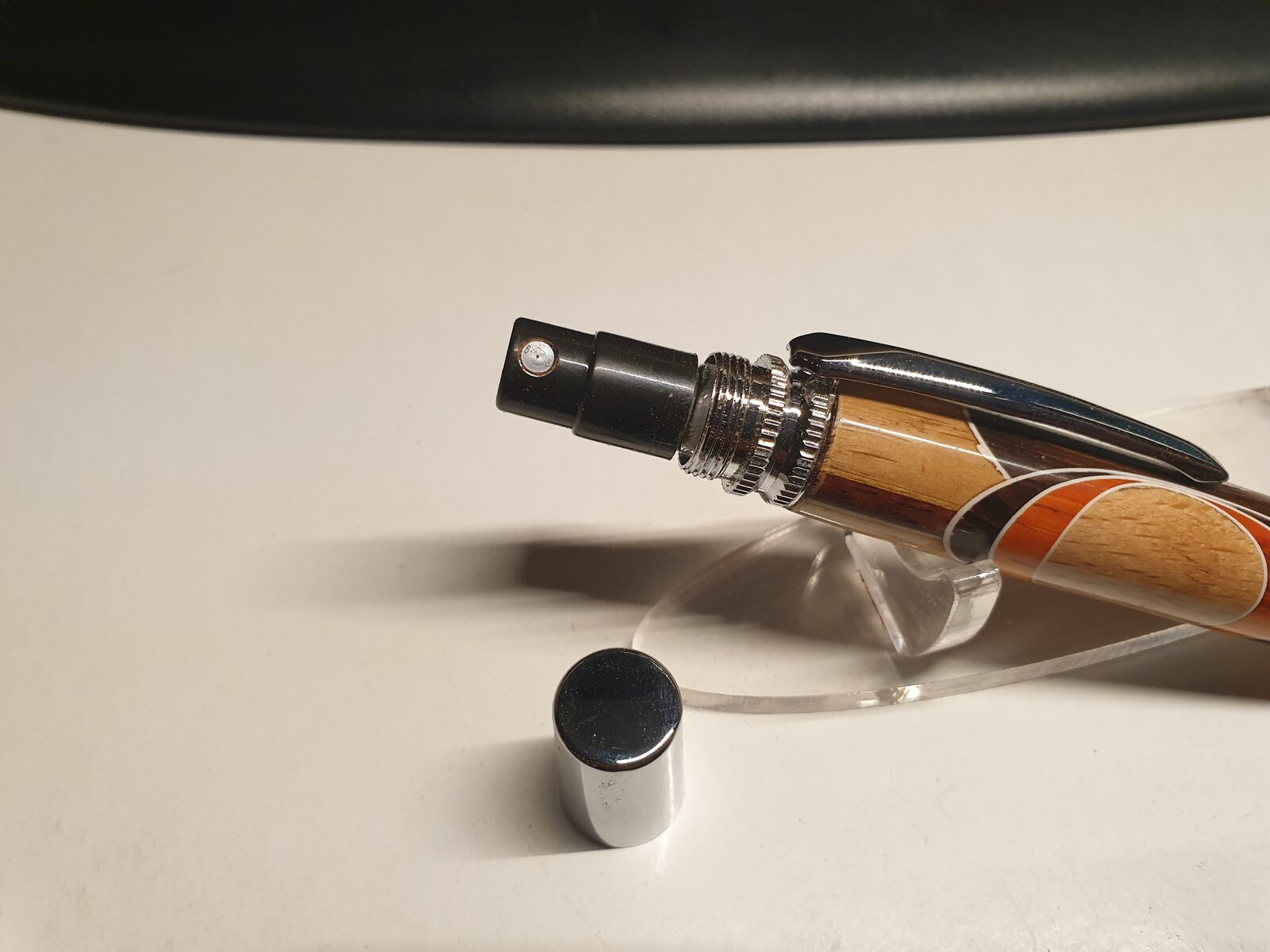

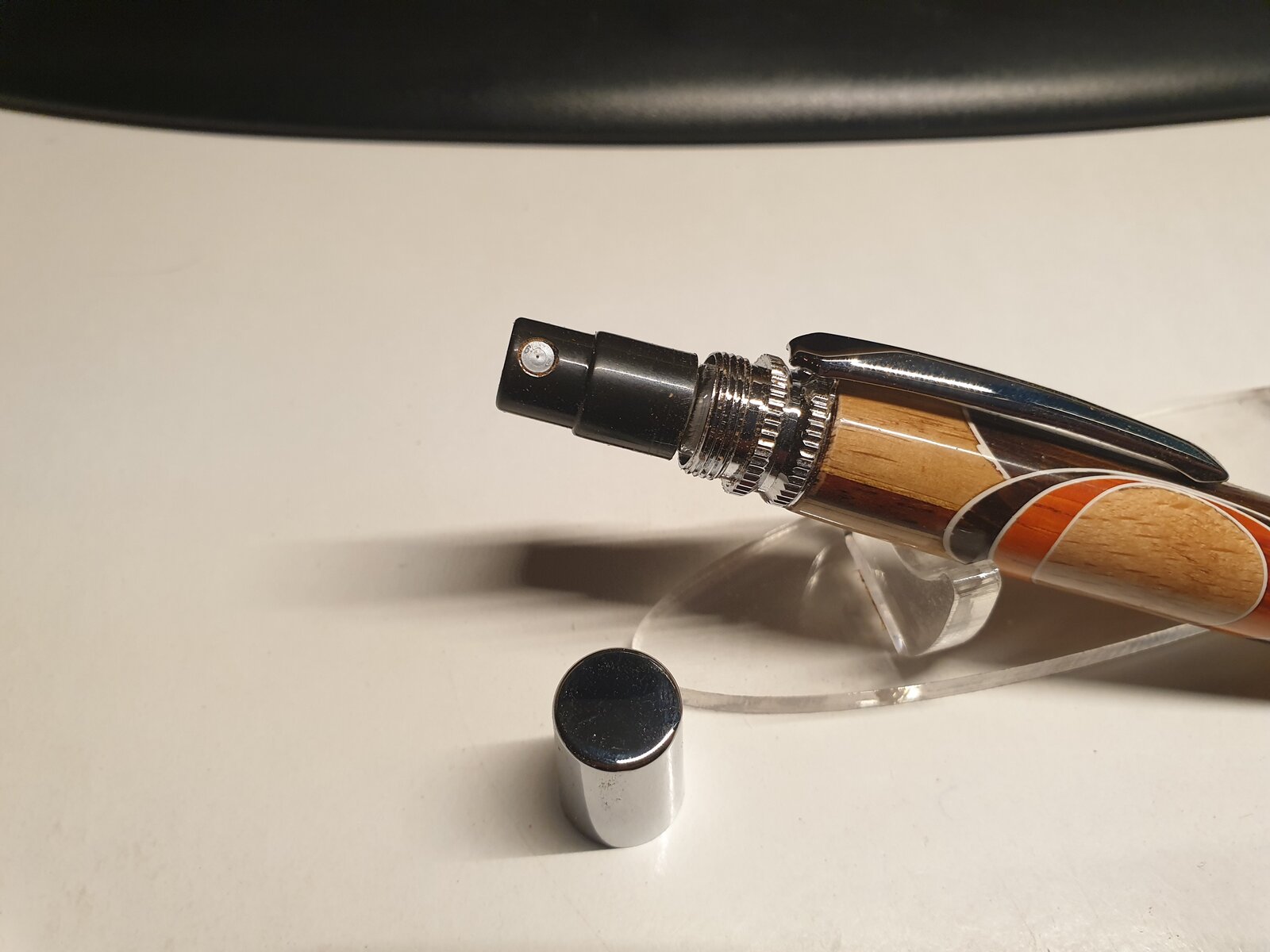

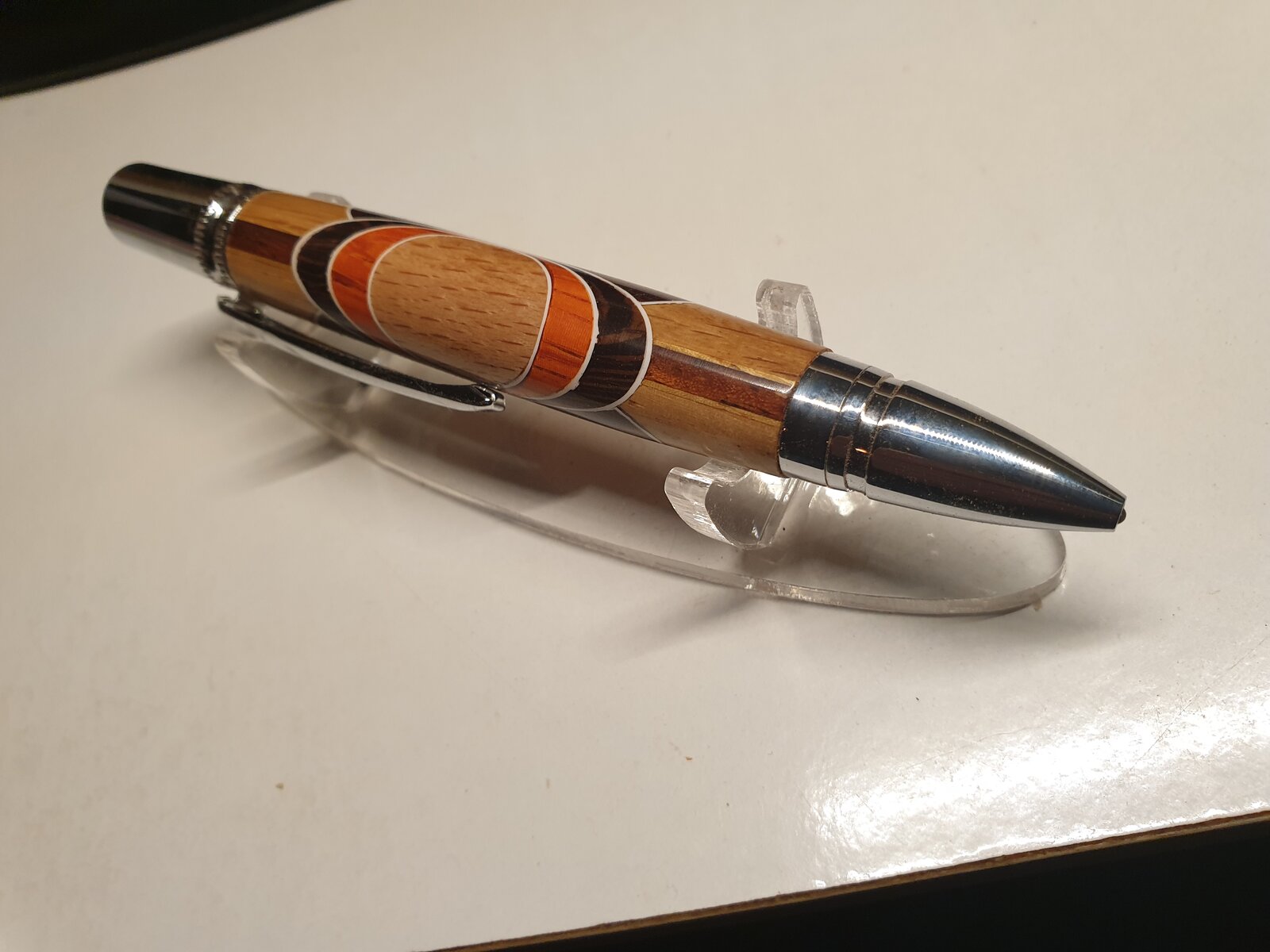

I made a atomizer pen. Oak and merbau with veneer blank was the base, Then the holesaw method used to finish the design of the blank.
Thin pvc strips, wenge, padouk and beech. Turned out nicely. Like the design.



[magpens]

VERY nicely done ! ! !



[Jim15]

Awesome work.



[sorcerertd]

Love the concentric pattern and the colors!



[Stubach]

One day I can only hope to be as talented, that is amazing.



[Sly Dog]

Very very attractive design and choice of materials.



[peter1958]

And it was just a attempt to see if i can cut just along the pvc strips.
The kerf of the holesaw is different each size. the 29 mm has a kerf of 1.88 mm average, the 65 mm has a kerf of 2.05mm and the 100mm has a kerf of 2.60 mm
The pieces that must go in the blank with a strip between are not easy to sand accurately, so i'm making a jig on the lathe, i'll show it when ready.



[JohnU]

Colors and pattern flow very well together. It would have been a great entry for the segmented contest. Keep up the great work!



[Fine Engineer]

Your segmenting is just brilliant with this pen shape. Nice design, and great execution.
