Haynie
Member
I am looking for measurements of the individual squares and game area minus.
Anyone do chess boards?
- Thread starter Haynie
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
kirkfranks
Member
I did one many years ago. Best advice I can give is to get your chess men (pieces)first and make the board squares to a size that matches by eye. I made mine to a plan and the squares were so large that any chess men seemed too small.
There is a trick so you don't have to glue up squares but rather planks. Let me know if you need more info.
There is a trick so you don't have to glue up squares but rather planks. Let me know if you need more info.
Rmartin
Member
cut strips of black and white, glue together. Cut the strips you glued together into strips, inverse each one and glue together.
StephenM
Member
Squares are 2" x 2", 1/4" black border, 2" border, finished with walnut panel molding. All veneer (walnut burl and red maple burl) on 1/2" baltic birch plywood.
GaryMGg
Member
Haynie
Member
Egads gary that is complicated.
No way I can make the pieces so will have to buy. Wonder where a nice not insanely expensive set can be had?
No way I can make the pieces so will have to buy. Wonder where a nice not insanely expensive set can be had?
snyiper
Member
It is not that hard we did those in High school!!
JCochrun
Member

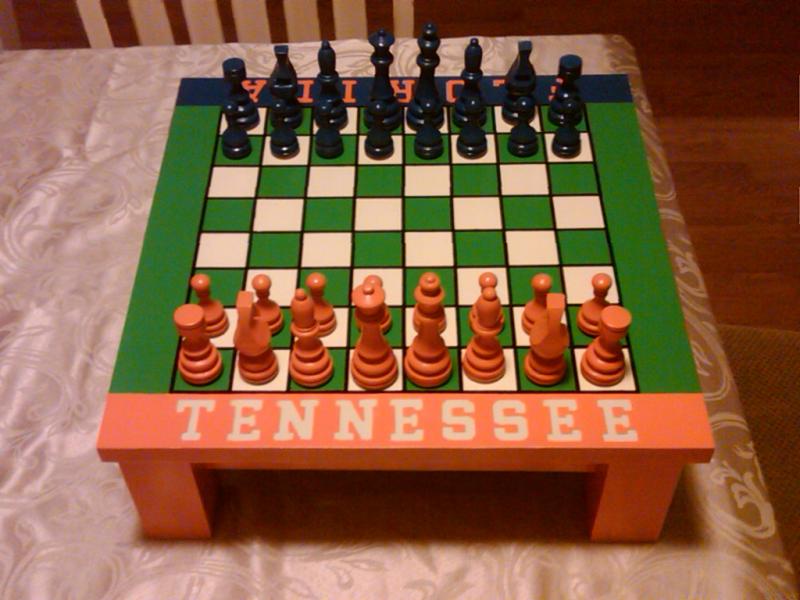

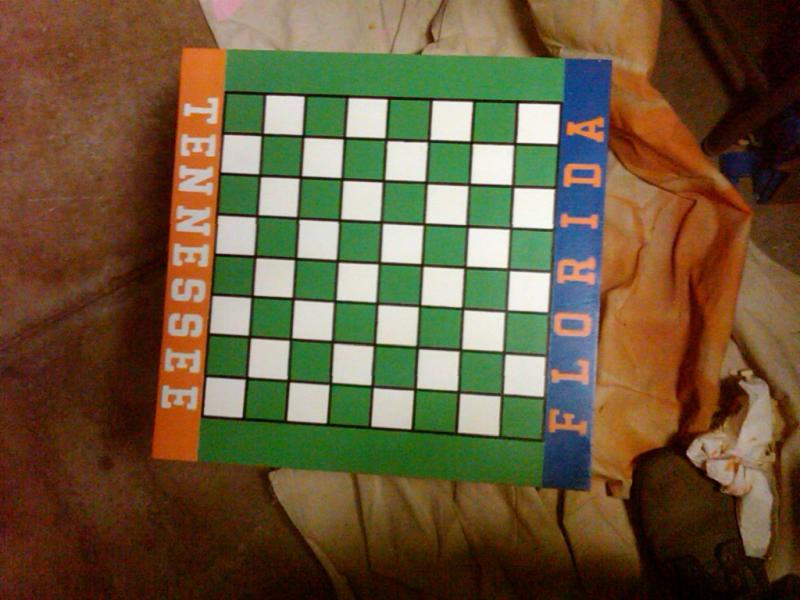

I did this one a couple of years ago. I used cheaper wood since it was painted. I'm an Ohio State fan so it was really difficult for me to do this with two SEC teams. Made the pieces on my lathe with a duplicator and templates from Penn State. Charged $250 for it.
Jim
Jim
Attachments
Rick P
Member
Size of the squares is irrelevant. I made a ceramic set in college that used 6x6 tiles, the king was a foot tall. Friend of mine in Ann Arbor used 12x12 paving stones for his garden set, the king is nearly 3 feet tall! Make the pieces then figure out what looks right.
JCochrun
Member
Sorry, I lost track of the main point of the original post. I agree with Rick. Make the pieces then determine the checkerboard size based on the pieces.
randyrls
Member
Penn State Industries has both the board parts, and a lathe duplicator to make the pieces. Search for "Chess"
Sylvanite
Member
According to the rules of the World Chess Federation, the size of a square should be twice the diameter of a pawn's base. It is recommended that a side of the square should measure 5 to 6.5 cm (roughly 2-2.5 in).
If you really want to get fancy, make the "squares" slightly rectangular - a bit longer than they are wide. That creates the optical illusion of them being square when you sit at the end.
Regards,
Eric
If you really want to get fancy, make the "squares" slightly rectangular - a bit longer than they are wide. That creates the optical illusion of them being square when you sit at the end.
Regards,
Eric
