Another Fat pen and question

Signed-In Members Don't See This Ad
See more from KMCloonan

KMCloonan

Member
Joined
Jun 13, 2017
Messages
127
Location
Fox Lake, Illinois

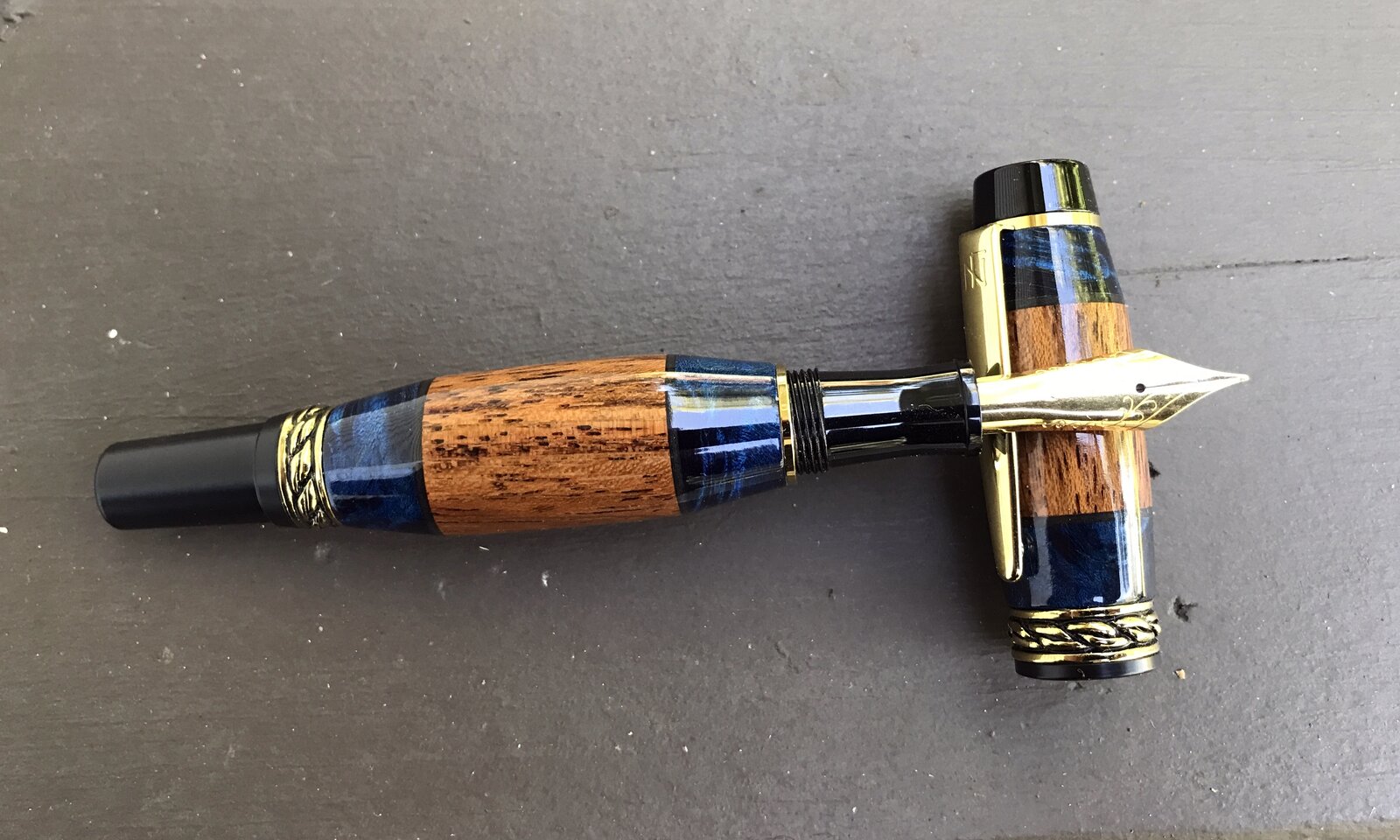

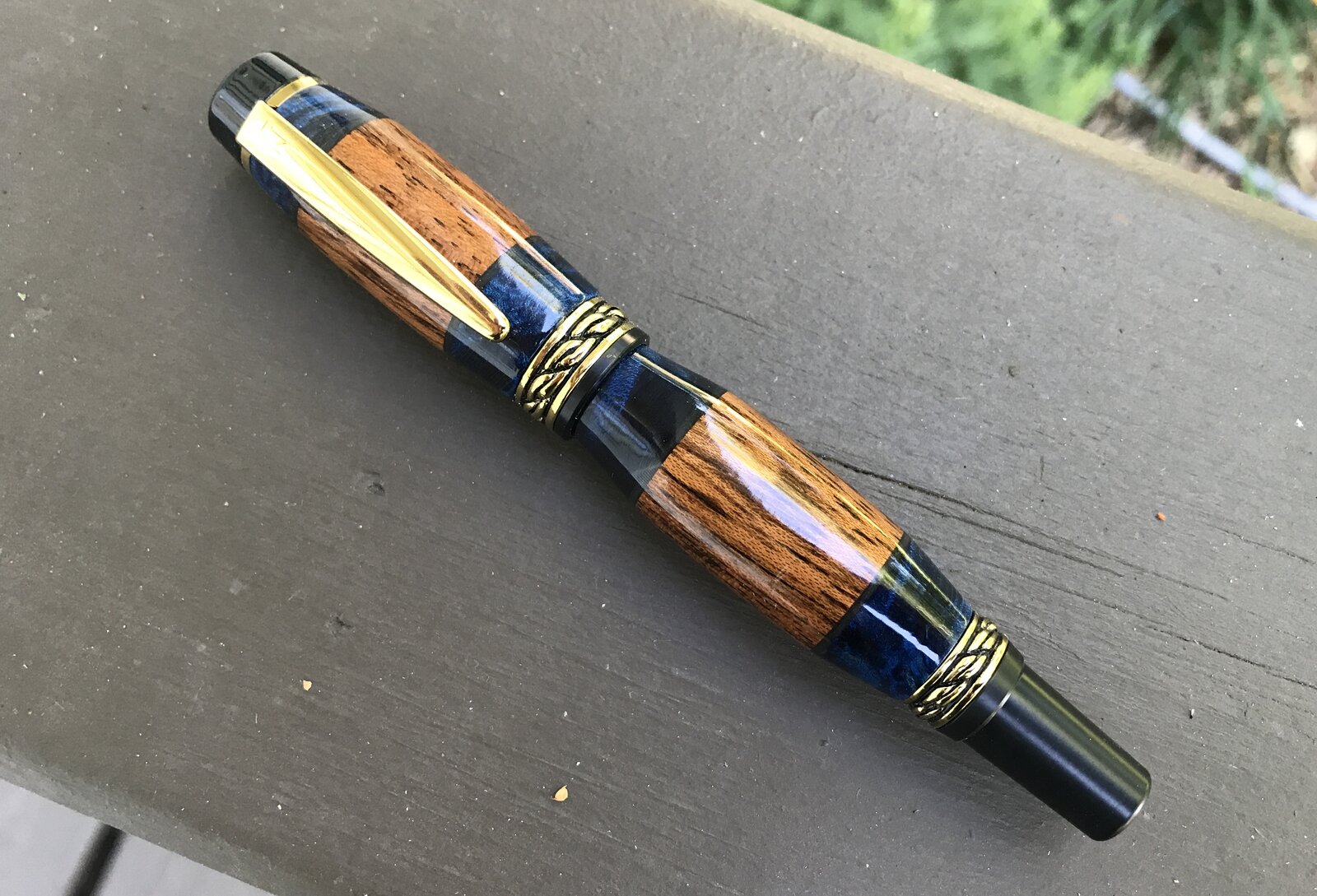

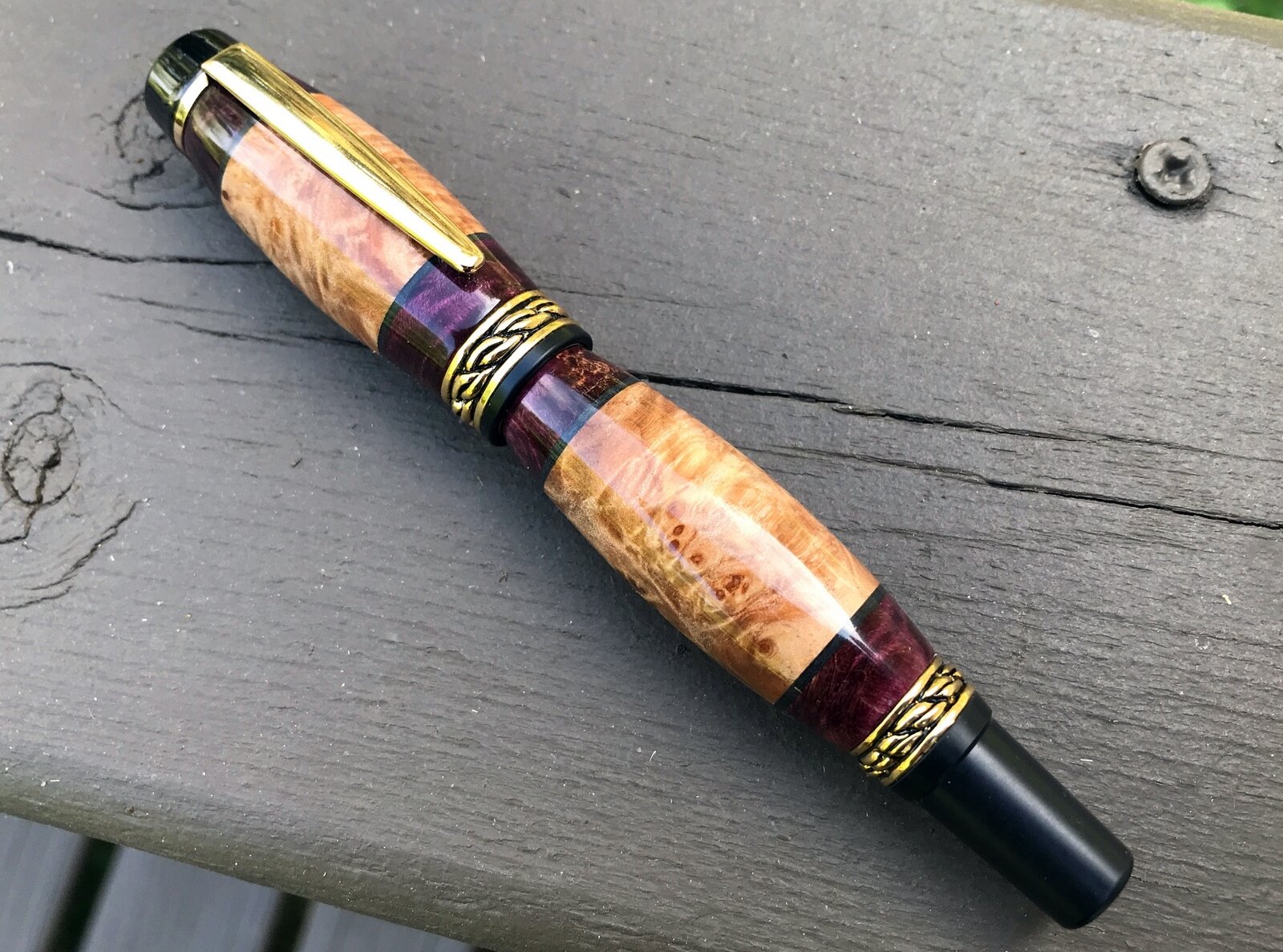

I posted a couple weeks ago about a customer who ordered a fat Olympian pen - Photo is attached below (the one with reddish purple segment on tan burl). Well, he ordered another one (this time Padauk with dark blue segments. He really liked this as well. Photos are attached.

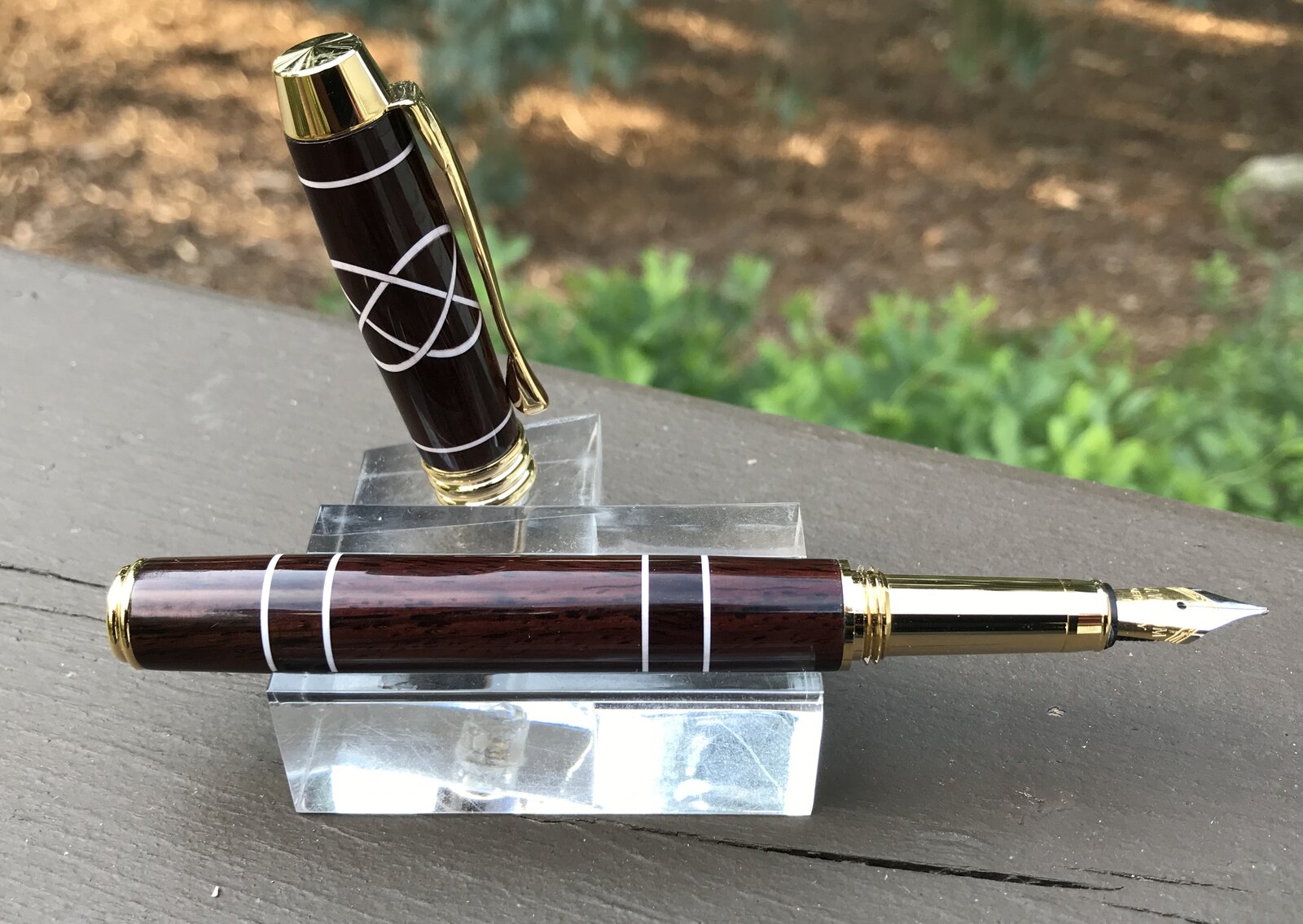

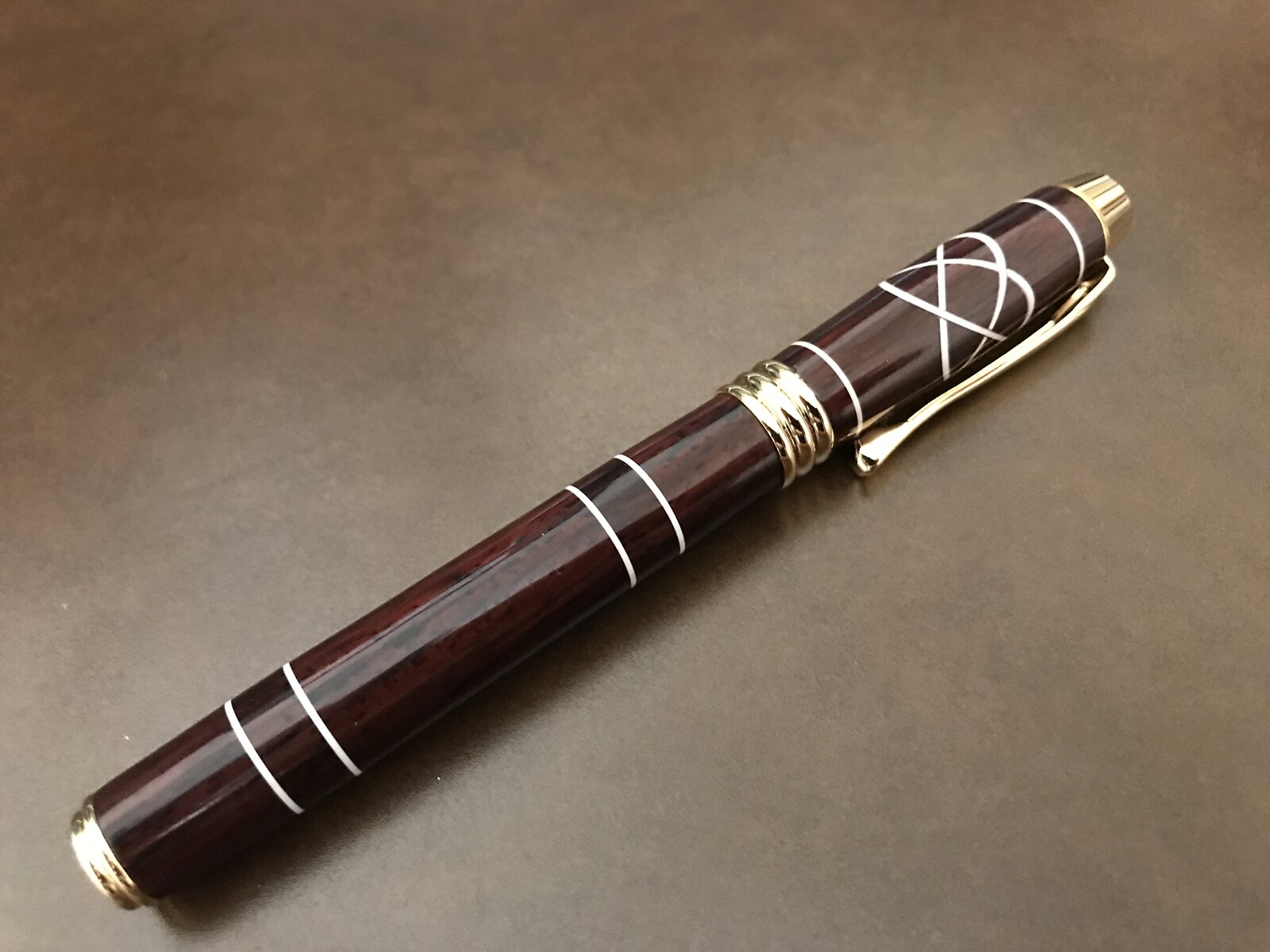

My customer just noticed another pen I have, which is an Executive Fountain pen made with Brazilian Rosewood with a white Celtic knot. (see photo). Now my customer would like me to make him another swollen Olympian, with the Brazilian Rosewood, and a Celtic knot. So here's my question: will a Celtic knot even look like a Celtic knot on an oval/fat barrel? I think the knots look best when they are on a constant diameter barrel. I don't want to experiment if someone here already has some knowledge of what this would look like.

Thanks, Kevin


Signed-In Members Don't See This Ad

jttheclockman

Member
Joined
Feb 22, 2005
Messages
15,517
Location
NJ, USA.
It would look the same providing that the blank is wide enough. That blank will have to be at least 1-1/8" or better depending if you are cutting all the way through when cutting for veneers. What happens if you cut to about 1/16" or 3/32" in a 3/4" blank the knot will not connect all the way around. You need a wide blank


KMCloonan

Member
Joined
Jun 13, 2017
Messages
127
Location
Fox Lake, Illinois
It would look the same providing that the blank is wide enough. That blank will have to be at least 1-1/8" or better depending if you are cutting all the way through when cutting for veneers. What happens if you cut to about 1/16" or 3/32" in a 3/4" blank the knot will not connect all the way around. You need a wide blank
Great point John. I have had several knots that did not connect because I ran out of wood before I got to the diameter I needed to turn to. So the blank needs to start larger, and I need to make sure the knot slices go as far through as possible. But you think the oval shape of the turned barrel will still show a decent knot, if I take care of the above?

PS - I don't cut all the way through. I have a stop on my bandsaw, and I set it to leave about 1/16" on the blank to keep orientation.


Brian G

Member
Joined
Jul 2, 2013
Messages
1,494
Location
Bloomington, MN
I think you'll want to make sure the center of the knot is at the center of the barrel, and the taper of the barrel from the center to the ends is the same. The blue segmented pen you showed above is a good model. Otherwise, the knot won't look symmetrical at the top and bottom.


KMCloonan

Member
Joined
Jun 13, 2017
Messages
127
Location
Fox Lake, Illinois
I think you'll want to make sure the center of the knot is at the center of the barrel, and the taper of the barrel from the center to the ends is the same. The blue segmented pen you showed above is a good model. Otherwise, the knot won't look symmetrical at the top and bottom.
Great advice. Thanks!


KMCloonan

Member
Joined
Jun 13, 2017
Messages
127
Location
Fox Lake, Illinois
It would look the same providing that the blank is wide enough. That blank will have to be at least 1-1/8" or better depending if you are cutting all the way through when cutting for veneers. What happens if you cut to about 1/16" or 3/32" in a 3/4" blank the knot will not connect all the way around. You need a wide blank

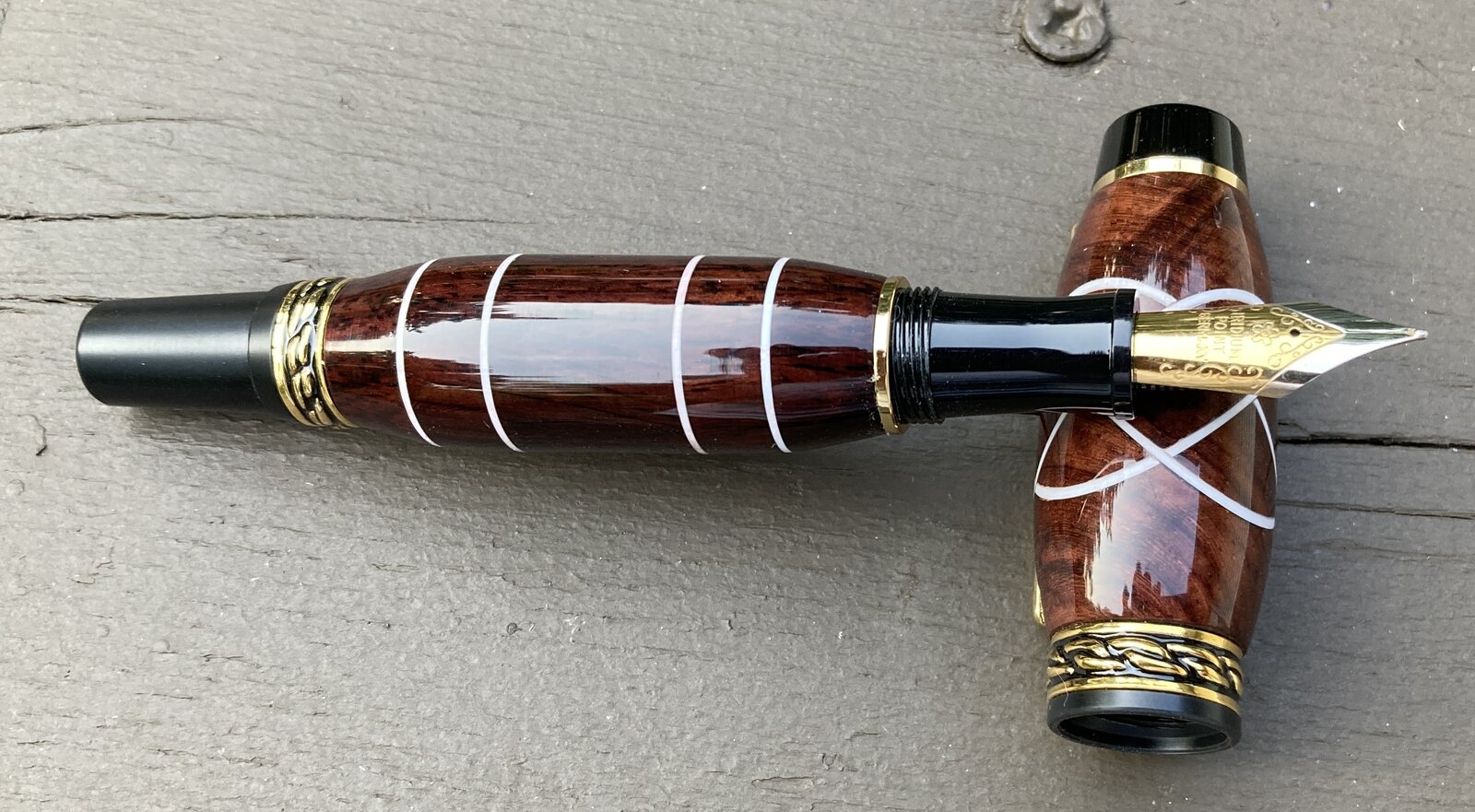

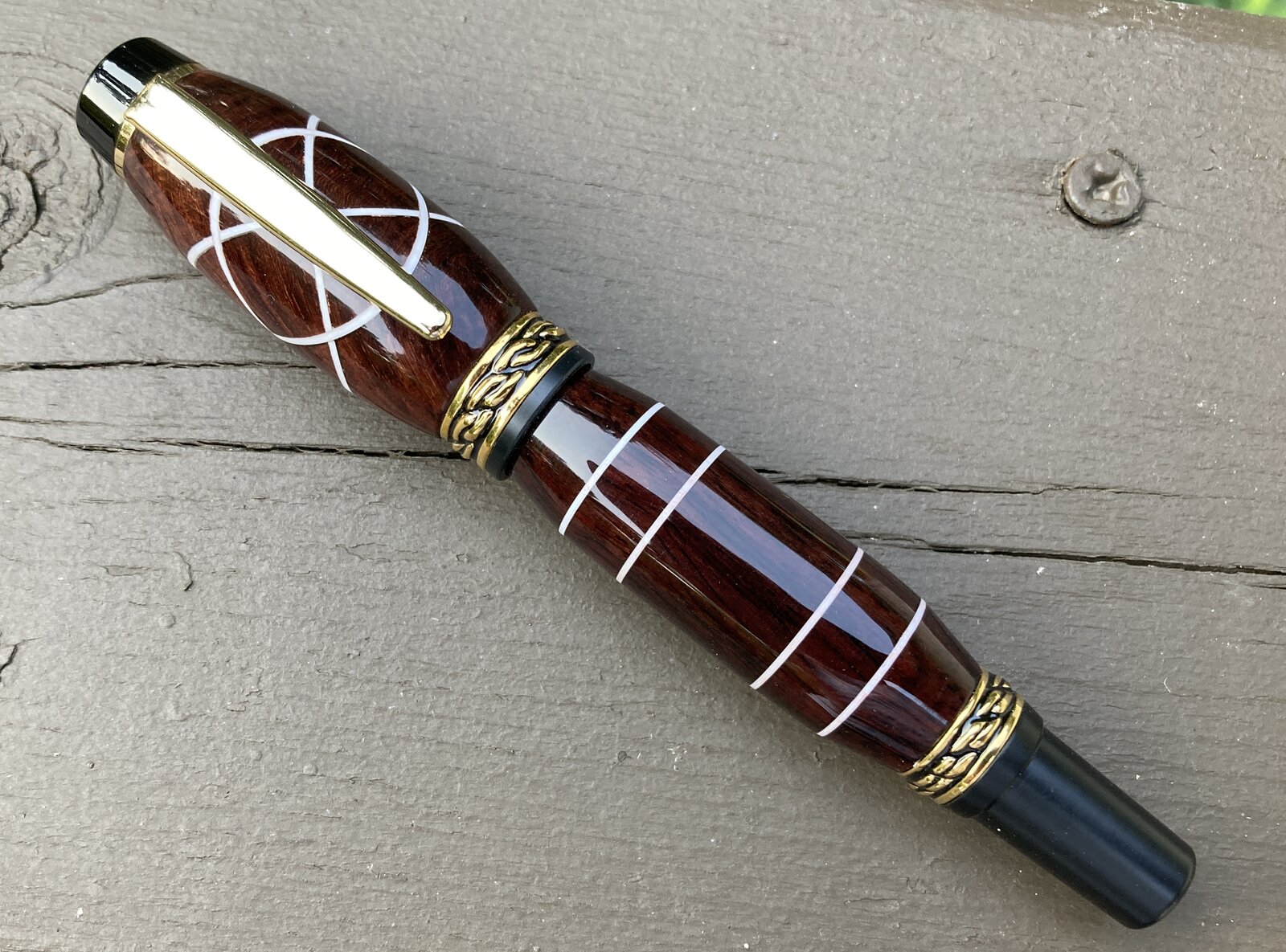

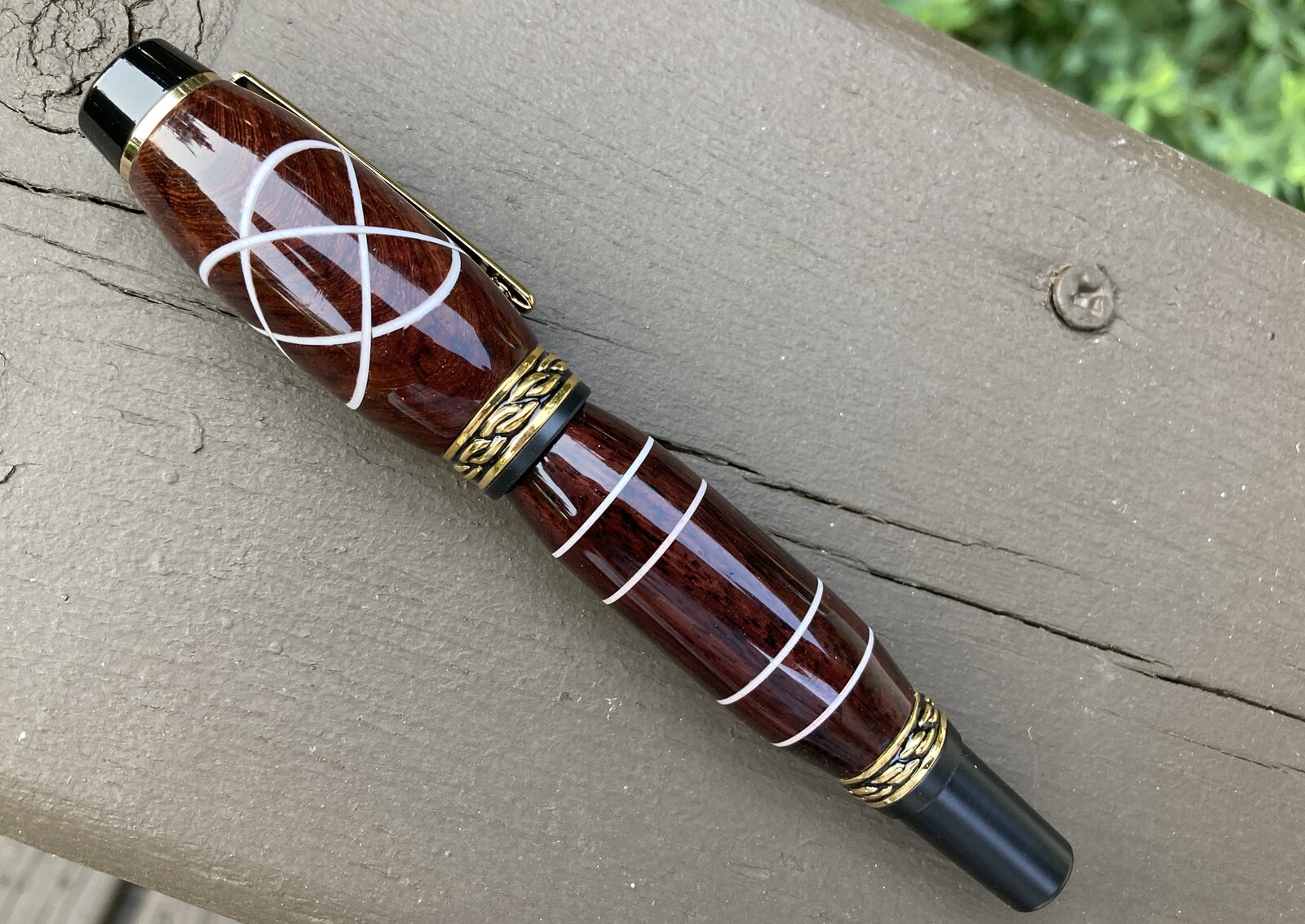

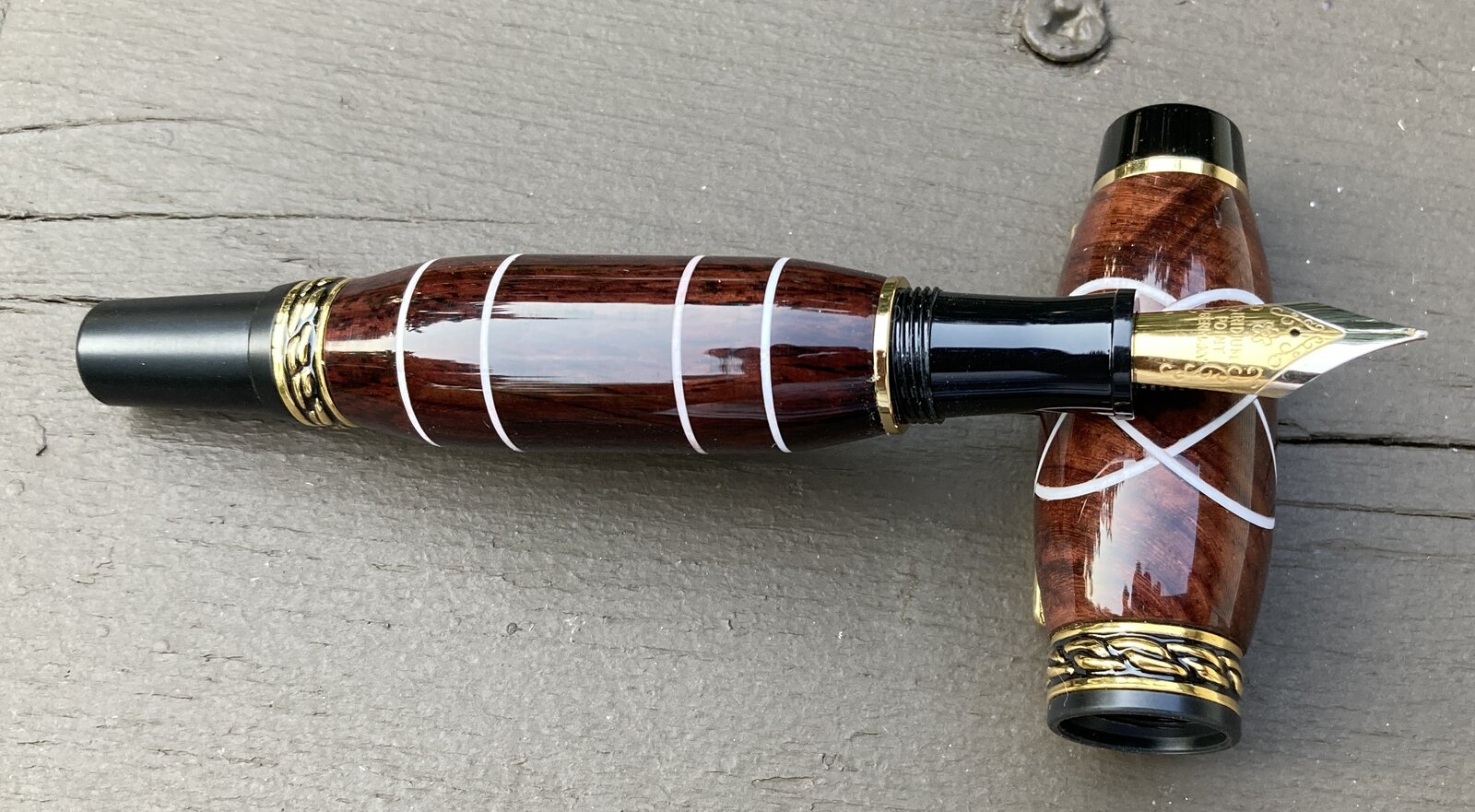

So I finished the latest "Fat" pen, an Olympian with Brazilian Rosewood and the Celtic Knot. I took your advice and started with a much larger blank for the Celtic knot (1-1/8"), and it turned pretty well, and the knot turned out ok. Thanks again for the advice!
