Another Box Illusion Finished

[SteveJ]

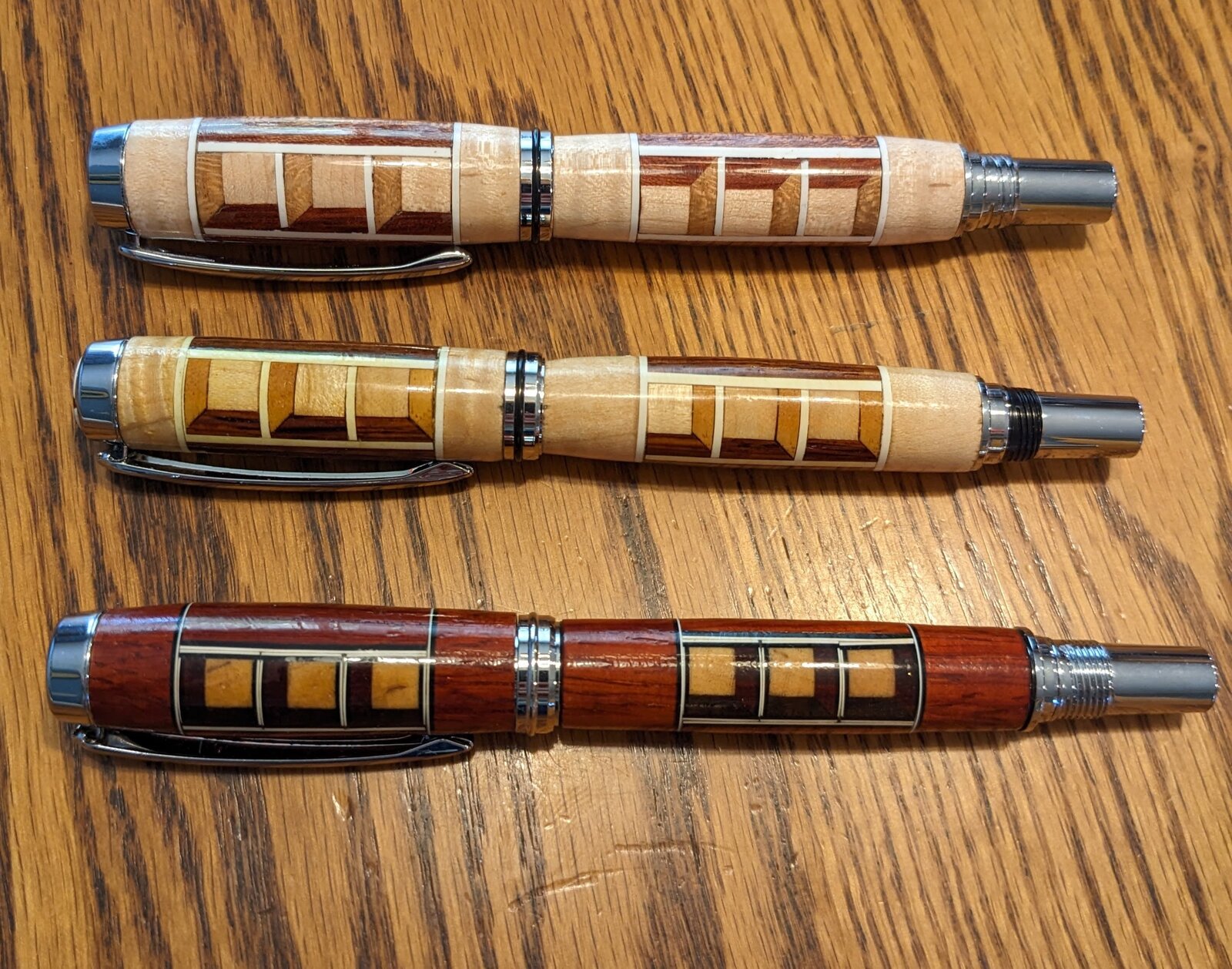

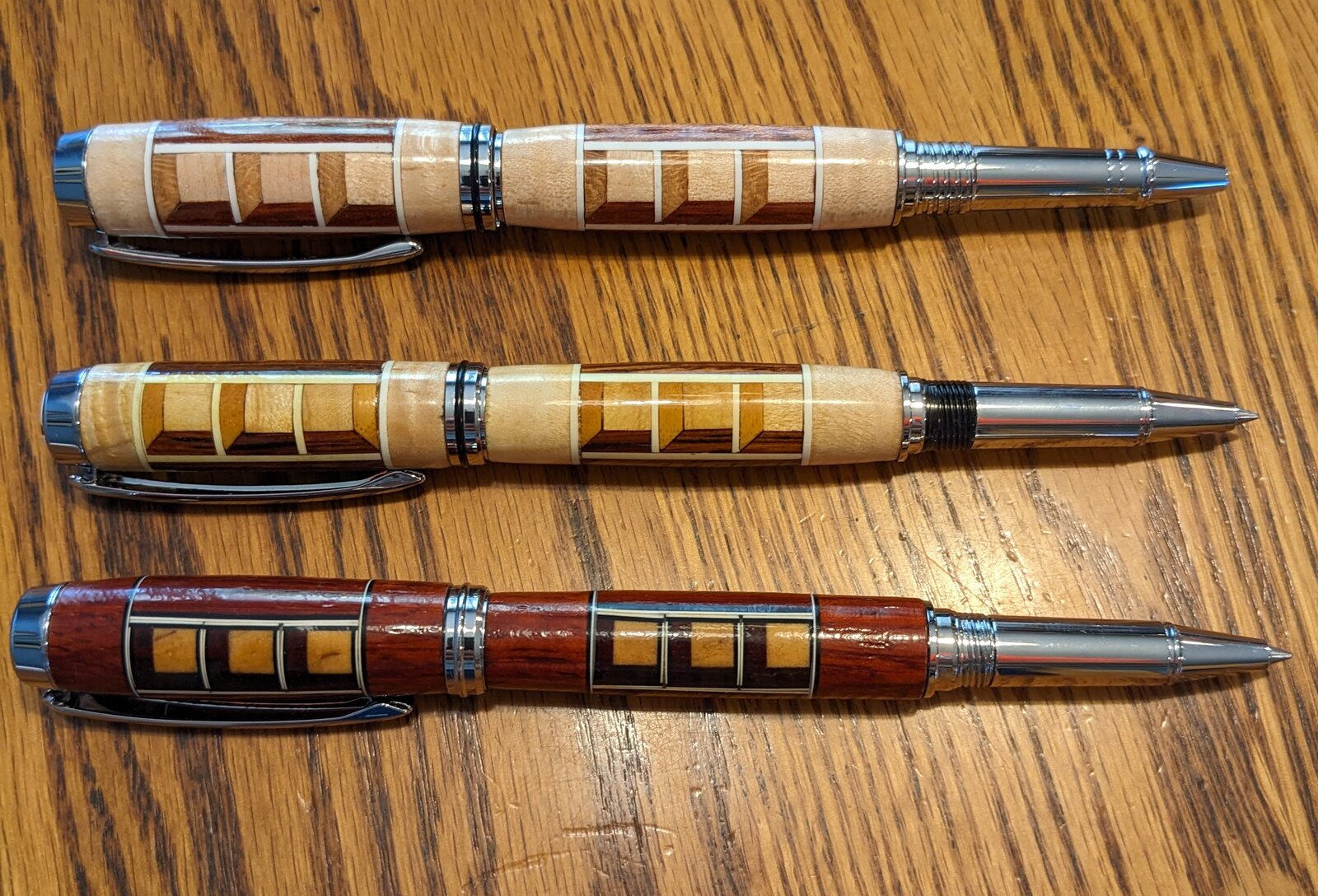

I finished my fourth box illusion yesterday. The first was really bad! Shown with the other two I've completed.

Newest at the top,

Bloodwood, Maple, mystery yellow wood, bubinga and white plastic.

Cocobolo, maple, mystery yellow wood, maple and white plastic.

Purple heart, rosewood, maple, black and white accent strips, padauk.

I like the lighter ones best, I did the third one both because of the mistake in the cap of the middle one and a request (which may not come to fruition) that I do a class on making this particular pen. The class lasts 4 hours and although it is possible to get a double barrel pen like this done in that time, if the class does take place I'll insist on using single barrel kits.

For the latest version, I hand cut the boxes using a homemade jig and a Japanese pull saw. It made the process safer, faster, and more accurate than the method I showed in the tutorial in the library.

Comments welcome.
