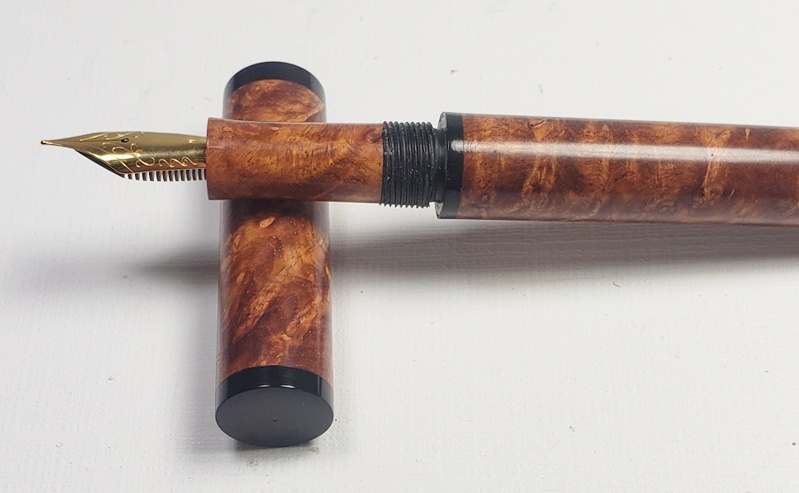

Stabilized amboyna burl. Acrylic acetate sleeves. Cap/body threads are M13 x .8 triple lead, the section/body threads are M10 x 1.0 single start, and the nib unit threads are for the JoWo nib unit are M7.4 x .5
Do a good turn daily!

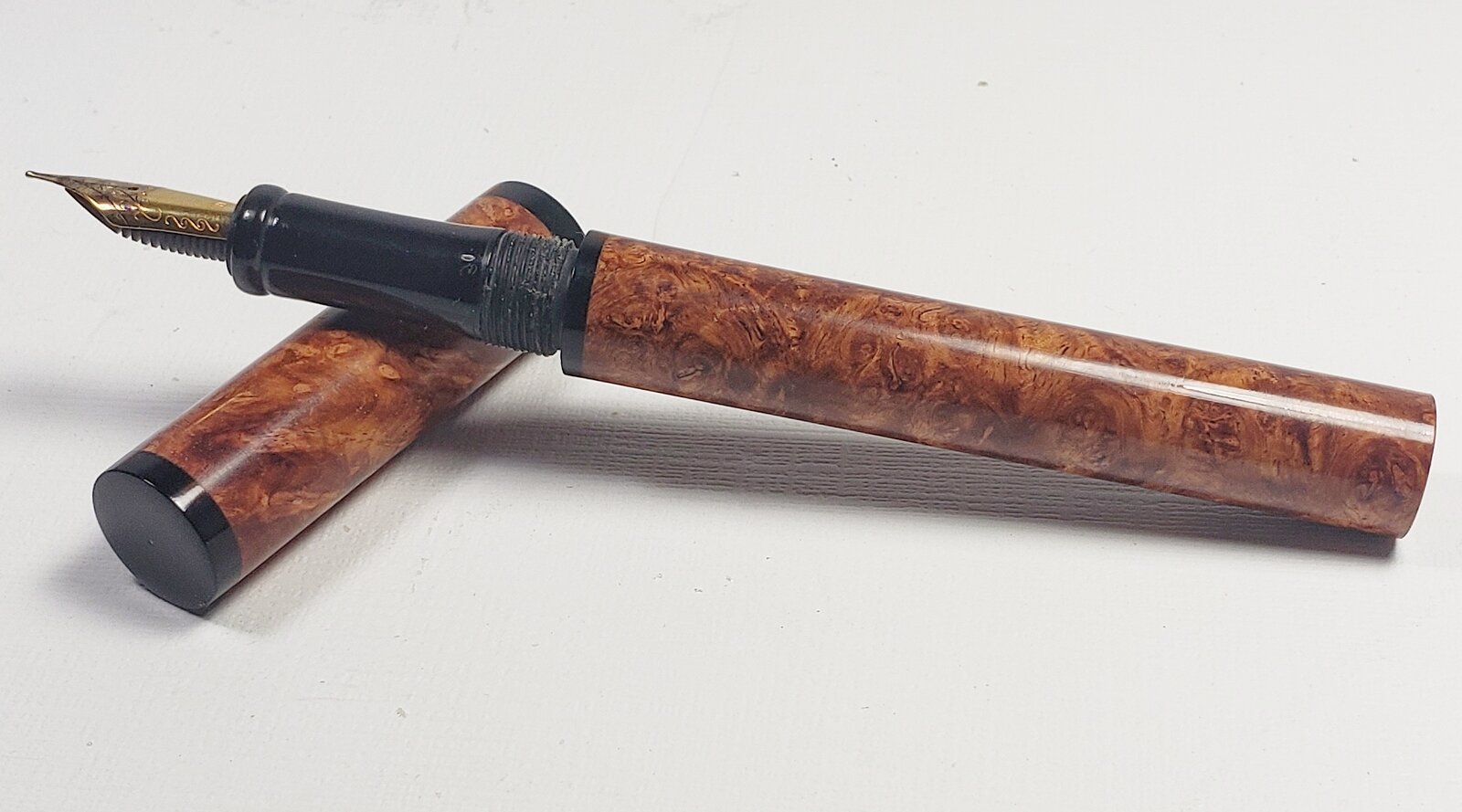

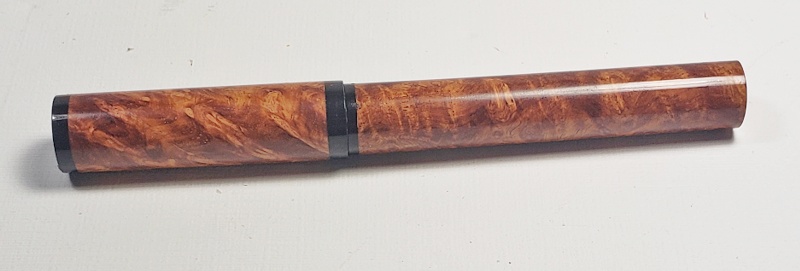

Don 20210725_194841-02.jpeg20210725_195024-02.jpeg

Signed-In Members Don't See This Ad

Larryreitz

Member
Joined
Feb 8, 2015
Messages
702
Location
Salem, CT USA
While, as I've said before, I'm not a big fan of kitless pens, I am a huge fan of the workmanship that you put into this pen. The Amboyna is incredible and I dare say many would not have the guts to try a kitless with such an expensive piece of timber. Very, very nice job and thanks for showing.


its_virgil

Member
Joined
Jan 1, 2004
Messages
8,101
Location
Wichita Falls, TX, USA.
While, as I've said before, I'm not a big fan of kitless pens, I am a huge fan of the workmanship that you put into this pen. The Amboyna is incredible and I dare say many would not have the guts to try a kitless with such an expensive piece of timber. Very, very nice job and thanks for showing.
Thanks Larry. Ten yrs ago (or longer) a knife maker friend told me he was ordering some stabilized amboyna burl knife scales. Each scale was large enough to yield two pen blanks. I told him yes and go ahead and get me a pair. I should have asked the price. They were $32 each. I have looked at those pieces for years and could not bring myself to using them...until now. That is the rest of the story.
Do a good turn daily!
Don


RichAldrich

Member
Joined
Nov 26, 2007
Messages
1,040
Location
Colorado Springs, CO
Thanks Larry. Ten yrs ago (or longer) a knife maker friend told me he was ordering some stabilized amboyna burl knife scales. Each scale was large enough to yield two pen blanks. I told him yes and go ahead and get me a pair. I should have asked the price. They were $32 each. I have looked at those pieces for years and could not bring myself to using them...until now. That is the rest of the story.
Do a good turn daily!
Don
Do you have any pictures of your sleeves used?


its_virgil

Member
Joined
Jan 1, 2004
Messages
8,101
Location
Wichita Falls, TX, USA.
Do you have any pictures of your sleeves used?

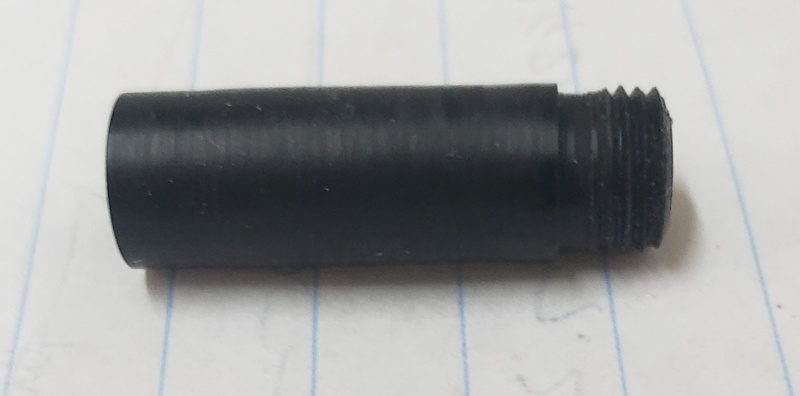

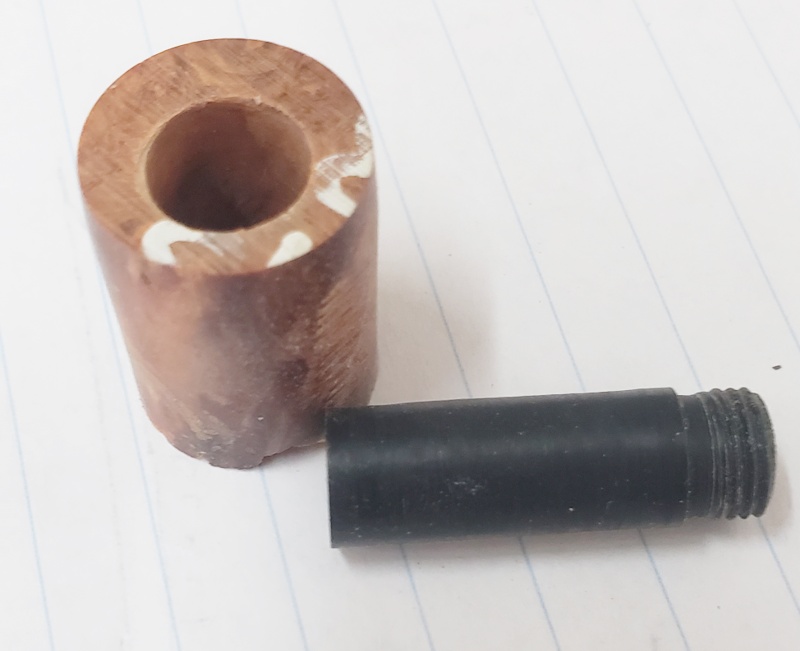

Sorry, I do not. I meant to take pictures but was working on several projects and I failed to take pictures. Basically I drilled and threaded the sleeve material as if it were the pen blank. I then screwed it onto the mandrel and turned it down to a diameter I thought was small enough. Drilled the blank and glued the sleeve in place. I left the ends large enough to form the black rings. I do remember the cap piece of amboyna was drilled to 14.5mm and the cap sleeve was turned to fit the 14.5mm hole. I do not recall what bit I used for the barrel. I will take pictures next time.
Do a good turn daily!
Don


RichAldrich

Member
Joined
Nov 26, 2007
Messages
1,040
Location
Colorado Springs, CO
Sorry, I do not. I meant to take pictures but was working on several projects and I failed to take pictures. Basically I drilled and threaded the sleeve material as if it were the pen blank. I then screwed it onto the mandrel and turned it down to a diameter I thought was small enough. Drilled the blank and glued the sleeve in place. I left the ends large enough to form the black rings. I do remember the cap piece of amboyna was drilled to 14.5mm and the cap sleeve was turned to fit the 14.5mm hole. I do not recall what bit I used for the barrel. I will take pictures next time.
Do a good turn daily!
Don
Thanks great info


aRMdaMAN

Member
Joined
Jul 23, 2021
Messages
65
Location
DURBAN, SOUTH AFRICA
Thanks aRM. The threads were indeed cut with taps and dies and on my wood lathe. I have a powermatic 3520B.
Do a good turn daily!
Don
Hello there Mr WARD
Thanks for the response
Will have a look see of Your Lathe.
Coincidentally, had downloaded and hard copied Your "CA Finish for Pens"
Much appreciate Your time and effort in Sharing Your expertise.
LORD Bless
ATB & TC
aRM
