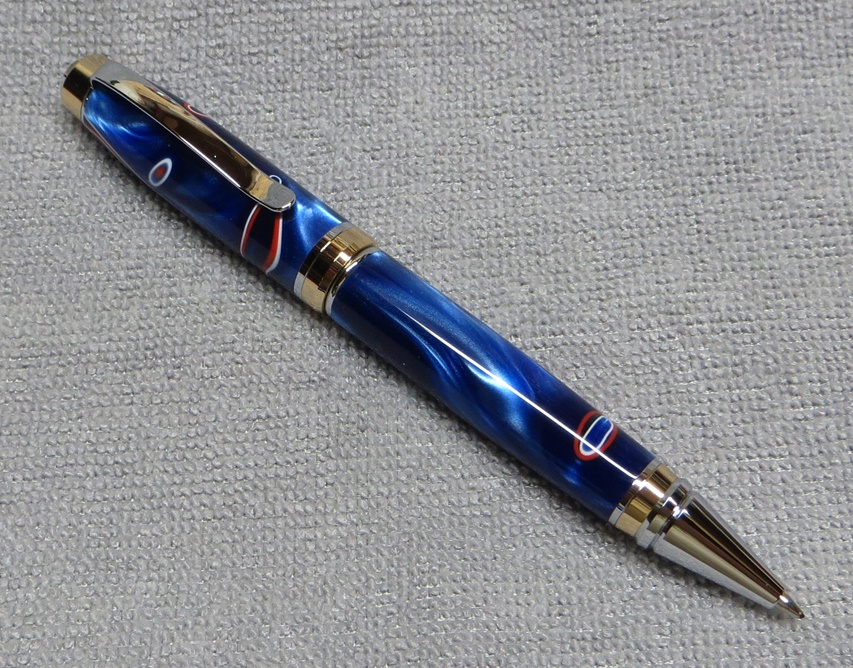

I have been making a few of the Berea Cigar pens with the "double twist" transmission, which I do NOT like.

With this transmission, while twisting in one sense (either clockwise or counter) you go from a fully extended refill, to fully retracted, and back to fully extended.

I don't like that operation and would prefer a transmission that has extending and retracting the refill associated with opposite senses of rotation.

Is there an alternative transmission that can be substituted ?? . It must be fully compatible physically .... same length, same diam., same mounting threads.

Does anyone know, please ?? ... Or maybe a "Cigar-like" pen kit from a different manufacturer ?

Signed-In Members Don't See This Ad

qquake

Member
Joined
Feb 8, 2004
Messages
3,760
Location
Northern California

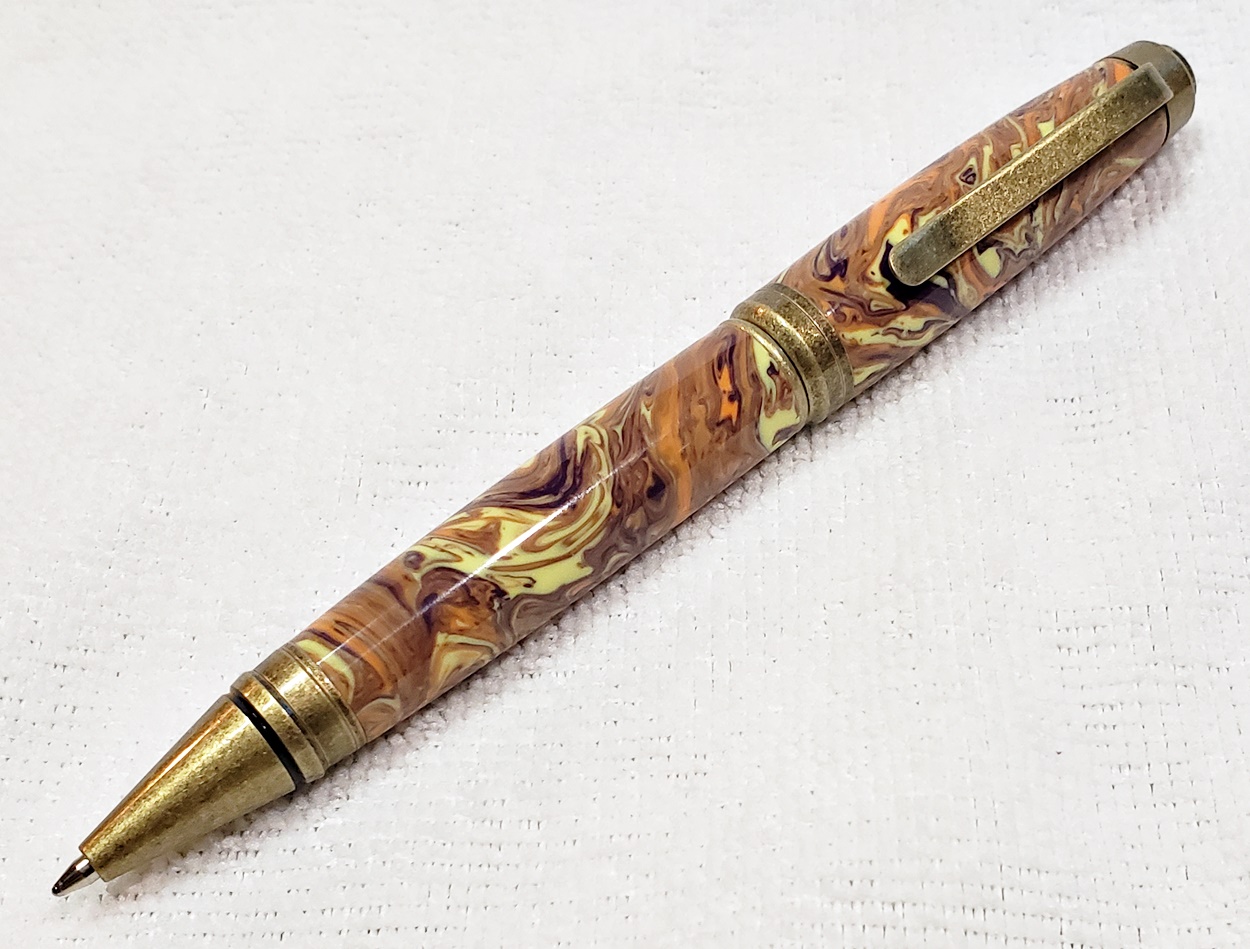

The Woocraft kits used to be double twist, which were made by Berea, I believe. But I think they're all single twist now. I know for sure this kit from Bear Tooth Woods is single twist. I might have an unassembled Woodcraft kit, I'll see if I can find one.


Attachments

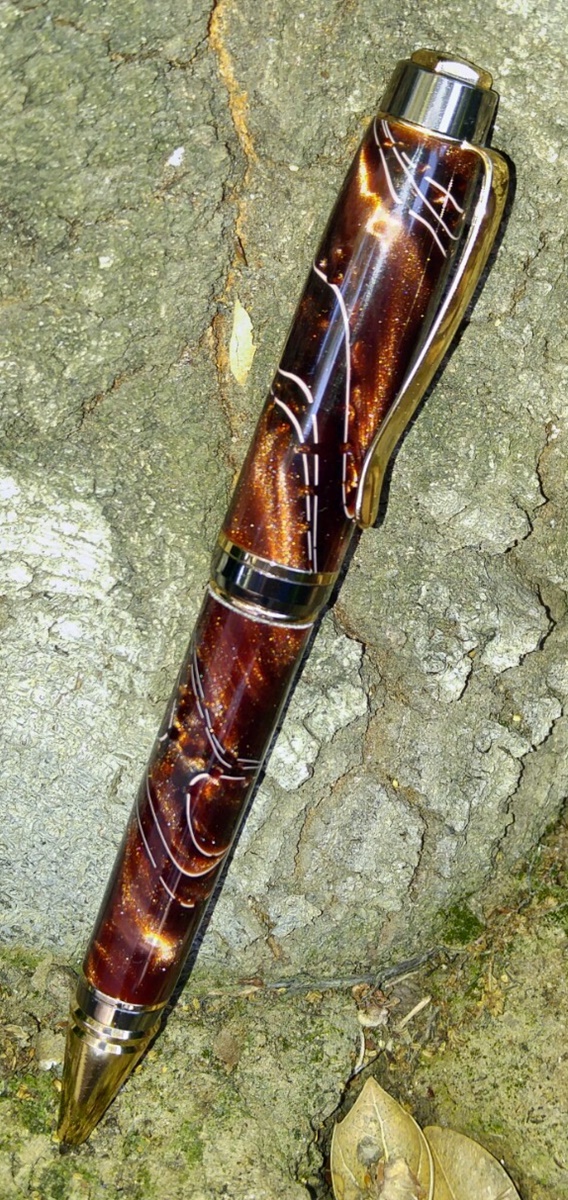

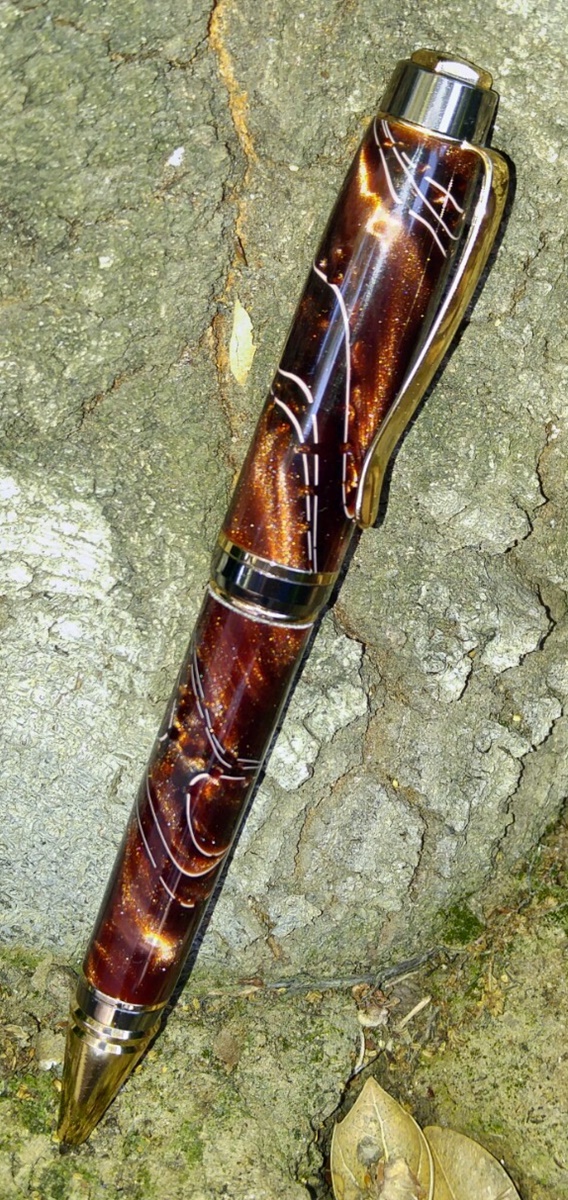

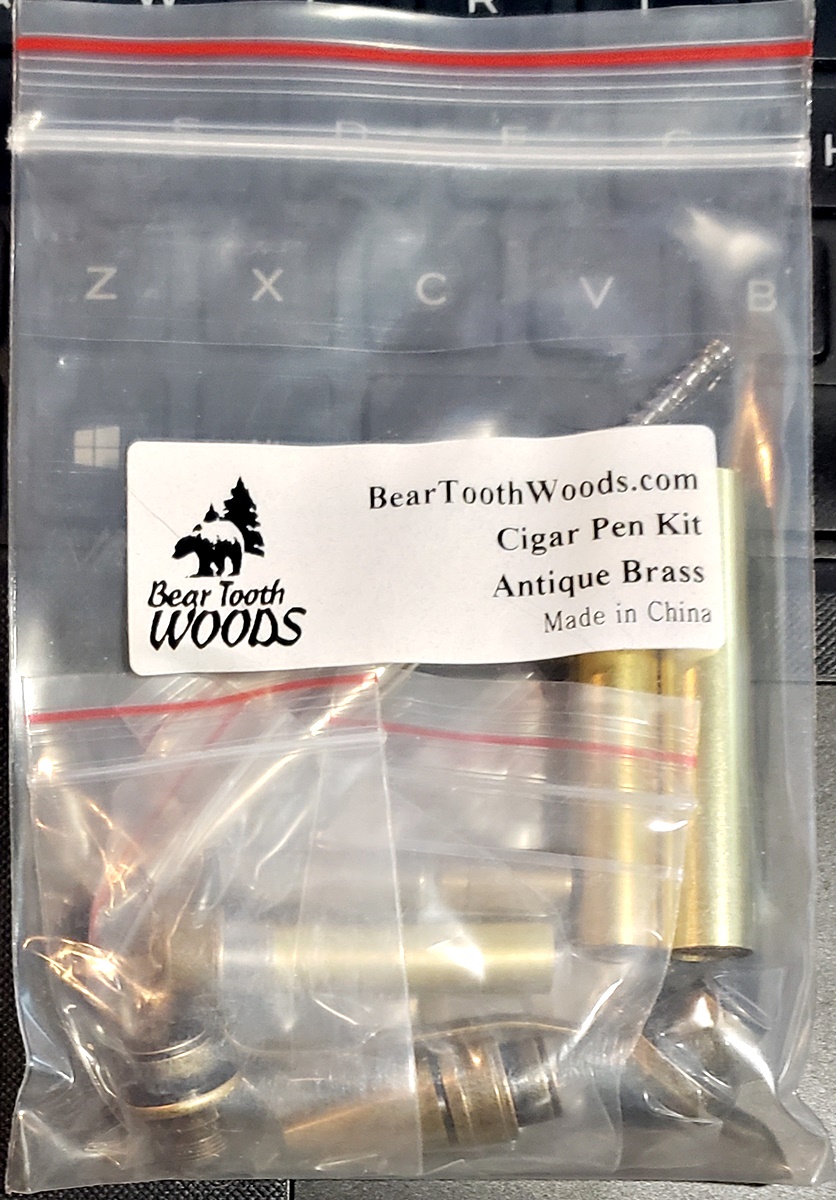

  • 001.jpg
    321.9 KB · Views: 67

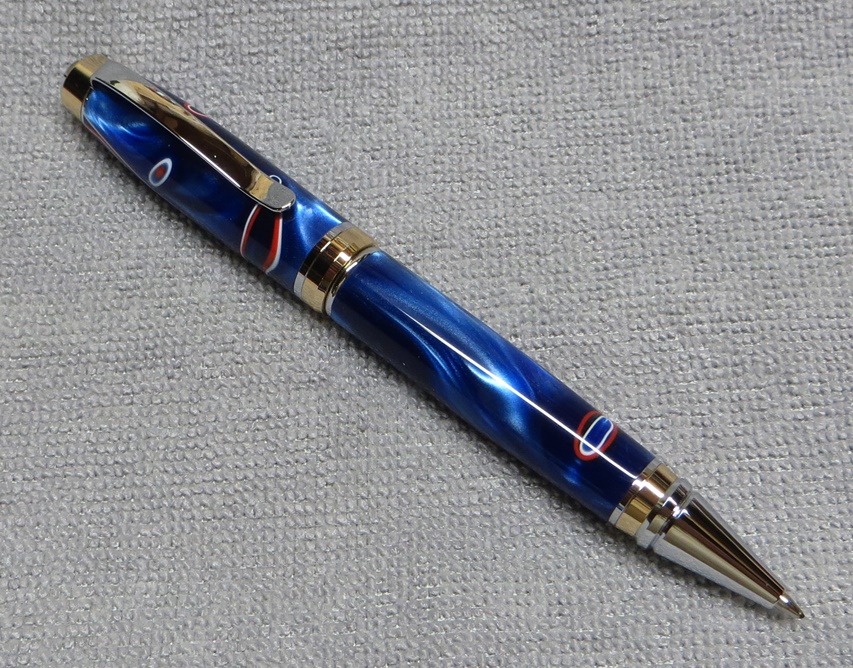

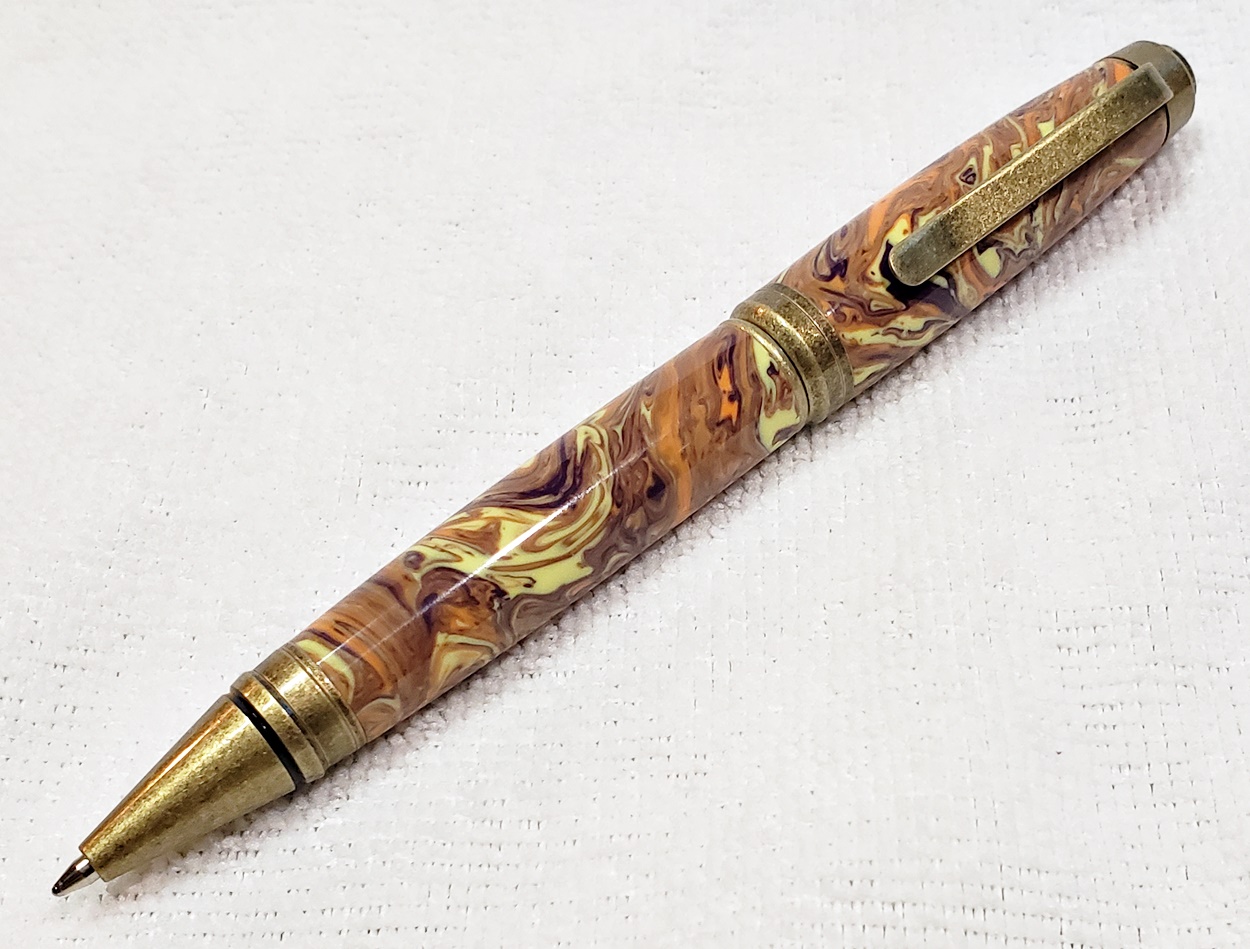

  • 102.jpg
    314.3 KB · Views: 74

magpens

Member
Joined
Feb 2, 2011
Messages
15,116
Location
Coquitlam, BC, Canada
@qquake

Jim, You showed a pic of the BTW Antique Brass kit.

I looked at that on the BTW site ... the instructions are the actual Berea instructions which apply to the Berea Cigar pen kits that I am working with.
That makes me think that these BTW kits in fact use double twist transmissions.

And yet you say ... " I know for sure this kit from Bear Tooth Woods is single twist. "

So I am a bit puzzled.

Anyhow .... I'll wait for your response. . Thanks again.


magpens

Member
Joined
Feb 2, 2011
Messages
15,116
Location
Coquitlam, BC, Canada
@qquake

I just looked at the Woodcraft site ... their blurb (at least for the kits I looked at) specifically says "double twist" transmission.

Their pics seem to indicate their kits are identical to the Berea kits. . . Hmmmm ..... puzzling also.

Last edited:

greenacres2

Member
Joined
May 2, 2017
Messages
1,402
Location
Northwest IN
Mal--Exotic Blanks Cigars with the plated center bands are single twist, at least the ones i have are. Just checked and it interchanged with 3 of the Berea's i pulled out to check. Length seems to be spot on as well. Might want to check with Ed Brown to see if they're available separately. I believe it's this hardware: https://www.exoticblanks.com/cigar-hybrid-pen-kit-chrome-and-satin-chrome.html
earl


ed4copies

Local Chapter Manager
Joined
Mar 25, 2005
Messages
24,124
Location
Racine, WI, USA.
All of the cigar pens we have made for us (product number starts with EK-c) have a single direction transmission.

Yes, they are (usually) available separately, presently out of stock. But our transmissions are interchangeable with Berea, same threading.


magpens

Member
Joined
Feb 2, 2011
Messages
15,116
Location
Coquitlam, BC, Canada
@greenacres2

Thanks for this info, Earl !! :D

If I can buy just the single twist transmissions that would be great. . I will check with Ed.

I see that he does list the "double action" on his website, but that's what I am trying to get away from .... he just might have the single action also.


magpens

Member
Joined
Feb 2, 2011
Messages
15,116
Location
Coquitlam, BC, Canada
All of the cigar pens we have made for us (product number starts with EK-c) have a single direction transmission.

Yes, they are (usually) available separately, presently out of stock. But our transmissions are interchangeable with Berea, same threading.

@ed4copies

Ed ..... THANK YOU SO MUCH for this information !!!

I will get my thoughts together after looking at your website and then fire off any questions !!


qquake

Member
Joined
Feb 8, 2004
Messages
3,760
Location
Northern California
@qquake

Jim, You showed a pic of the BTW Antique Brass kit.

I looked at that on the BTW site ... the instructions are the actual Berea instructions which apply to the Berea Cigar pen kits that I am working with.
That makes me think that these BTW kits in fact use double twist transmissions.

And yet you say ... " I know for sure this kit from Bear Tooth Woods is single twist. "

So I am a bit puzzled.

Anyhow .... I'll wait for your response. . Thanks again.
I have the BTW pen here, and it's definitely single twist. I just double checked.


magpens

Member
Joined
Feb 2, 2011
Messages
15,116
Location
Coquitlam, BC, Canada
@qquake

Thank you for the assurance re: single twist, Jim !!

However, it would be good to know if the Big Ben from PSI has a single twist transmission which is physically compatible as a drop-in replacement for the Berea double twist transmission in their Cigar pen kits. . ( I am not expecting you to know that. )

@ed4copies

Thanks, Ed. . But does the actual part number always make it through ... in an obvious way ... to the buyer ? . ( for kits not actually sold by Berea ) .... Ans :- .... I don't think so, but I will keep my eyes open for the WCO145 number you gave.

Last edited:

darrin1200

Member
Joined
Mar 17, 2010
Messages
1,477
Location
Lyn, Ontario, Canada
@qquake

Thank you for the assurance re: single twist, Jim !!

However, it would be good to know if the Big Ben from PSI has a single twist transmission which is physically compatible as a drop-in replacement for the Berea double twist transmission in their Cigar pen kits. . ( I am not expecting you to know that. )

@ed4copies

Thanks, Ed. . But does the actual part number always make it through ... in an obvious way ... to the buyer ? . ( for kits not actually sold by Berea ) .... Ans :- .... I don't think so, but I will keep my eyes open for the WCO145 number you gave.
It appears Bill at Wood-Write carries them.


magpens

Member
Joined
Feb 2, 2011
Messages
15,116
Location
Coquitlam, BC, Canada
It appears Bill at Wood-Write carries them.

@darrin1200

Thank you for this info, Darrin ..... a "close to home" (possible) solution that I overlooked ..... I will follow up on this !!! :D

EDIT :- I don't know if the Budget Cigar from WWW is compatible with the Berea Cigar. . They look close but if you compare the bushing sizes shown in the WWW bushing table, there are some differences. . The WWW table shows 2 sets of Cigar bushings: bushings 106A for the Budget Cigar and bushings 11A for the "Cigar" (possibly the Berea kit). . I know that the transmissions could be compatible even if the bushings aren't.
So I'll have to ask Bill if he can help clarify.

Last edited:
