A Spenner.....

[skiprat]

I haven't been here since this post I made in May. I've lurked, but decided I wouldn't post again until I in some way could properly thank Peter ' Penpal' Hay for his wonderful gift he sent to me. :redface:

Well Peter, my friend , this is what I came up with. Not much I'm afraid, but I think it's pretty unique and really made my old grey matter work overtime to put my idea into reality.

I have just this minute got it back from the engraver and took the last pic before wrapping it up and sending it on it's way.

I hope you like it Peter !! :biggrin:

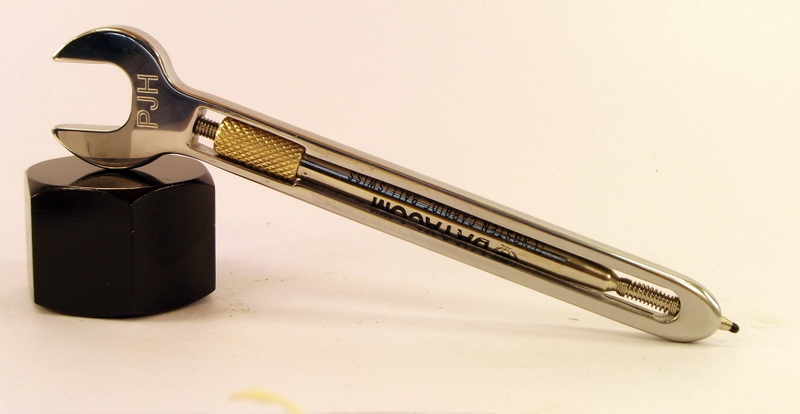

I call it a Spenner.... a cross between a pen and a spanner..

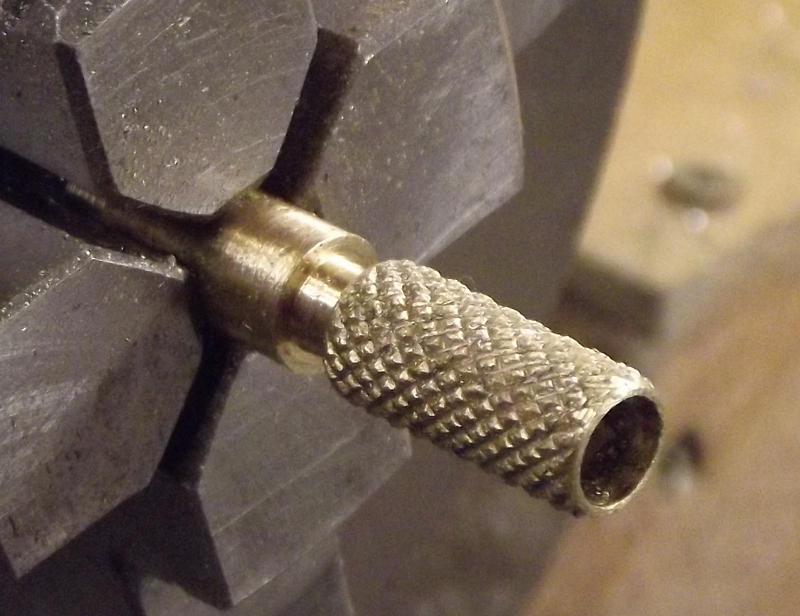

It is made from 6mm thick stainless steel flat bar, a bit of brass knurled for the 'mech' and two 4mm Allen Grubscrews and of course a parker style refill.
It is actually the correct size for an 8mm nut/bolt...13mm

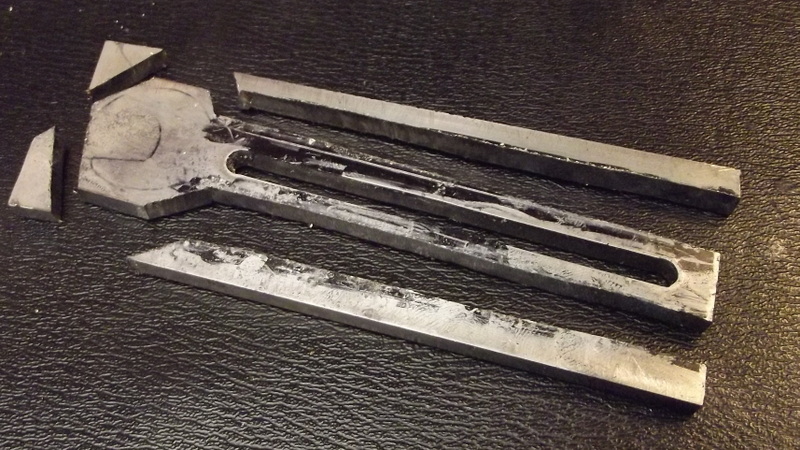

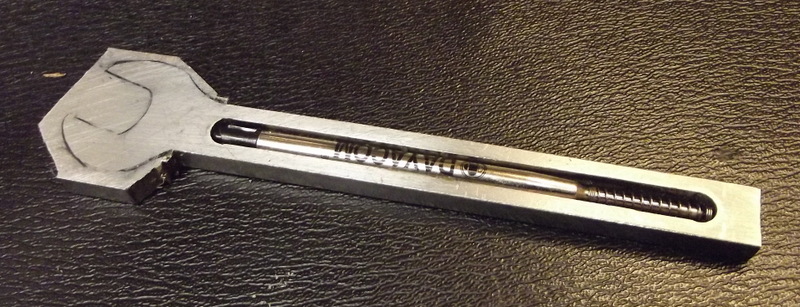

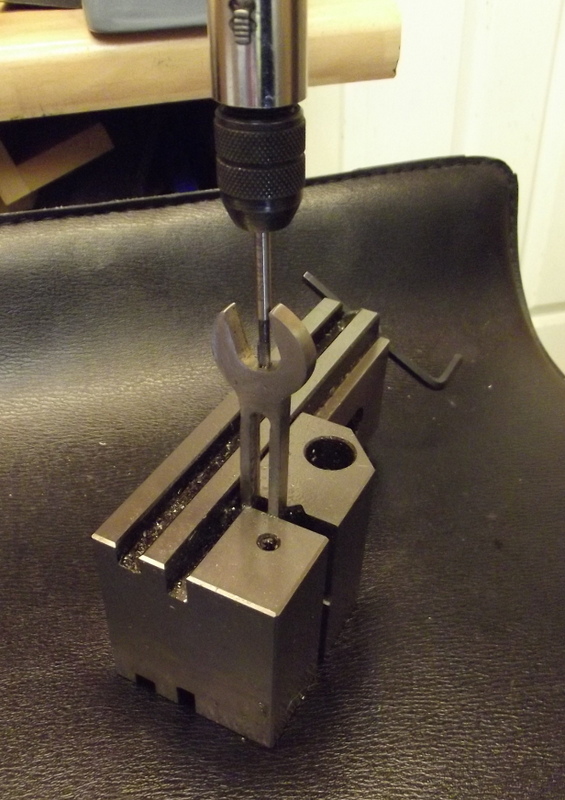

Some of the progress pics as well.
No blood making this one....but plenty of blisters.....:biggrin:



[lorbay]

Wow very nice Skip
Lin



[skiprat]

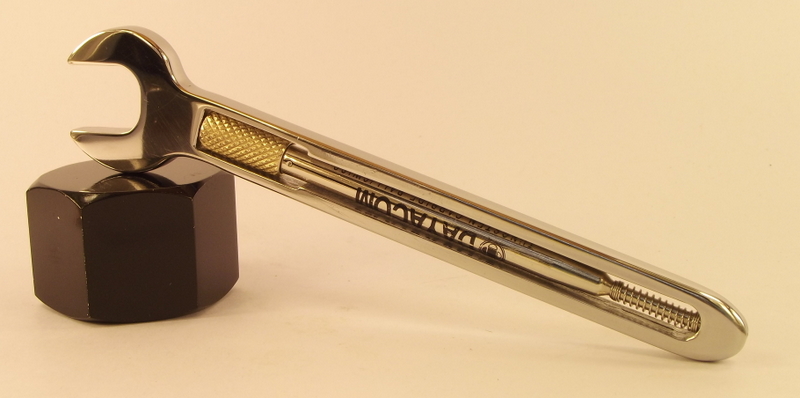

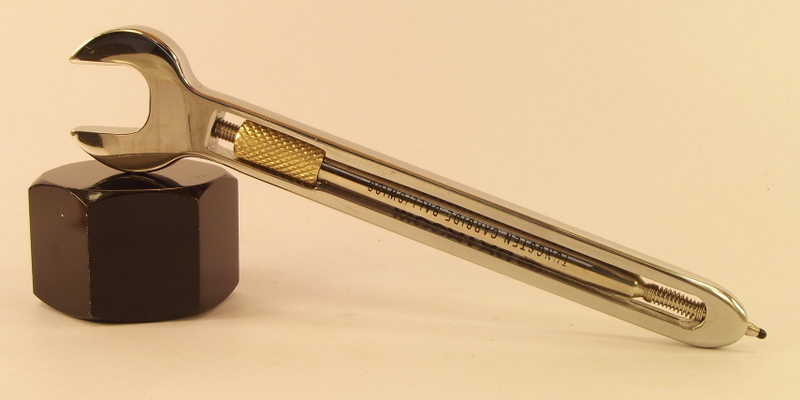

These two pics show the mech in and out. ( before engraving ):wink:



[RKB]

Get Out! That is freaking awesome. :biggrin:

Rod



[gtriever]

Love it! That's definitely unique!



[wood-of-1kind]

Very creative pen done for a fine 'gent'. Thanks for sharing.



[Mr Vic]

Just wrenched my neck doing a double take. Simply awesome job Skip



[Ambidex]

WOW



[PatrickR]

Very cool! Awesome idea! You should make more.



[thewishman]

Thanks for the photos! Great work!



[qquake]

Oh my gosh, that is beyond amazing! WOW!!!



[SteveG]

Hey Skip,
Can I order up a full set of "Spenners" in both Metric and SAE sizes? :biggrin:
And try to keep it under $100, although I will understand if it is more.

Now, to get serious...

This type of project, an ultimate Steampunk perhaps, is one of the many facets of the art of pen making where you excel. From concept to execution, and all the steps in between, performed with excellence. Great job once again!



[philb]

Awesome



[skiprat]

Thanks for the comments, guys. If Peter likes it as much, then I'll be one happy camper..:biggrin:



[eharri446]

If he doesn't I take it off your hands. (lol)



[magpens]

Hey Skip,

This type of project, an ultimate Steampunk perhaps, is one of the many facets of the art of pen making where you excel. From concept to execution, and all the steps in between, performed with excellence. Great job once again!

Steve said it well !!!!! . Congratulations on the design and execution ..... and ..... presentation !!!!! . Wonderfully unique !!!!!

Now, to get serious...
Skip, I think you should patent that ... otherwise PSI will copy and offer it as a kit ! . And it would sell well !



[Pierre---]

You did not mention the spring. But where are the two Allen screws?



[Hubert H]

WOW! Talent plus ingenuity produces an amazing piece. Thanks for sharing.



[stonepecker]

One of a kind just like the creator.

Wonderful idea and the finished piece is beyond words.
Very well done Skippy.



[fiferb]

I see you're still making awesome works of art. Love it!



[TattooedTurner]

That's awesome!



[Jim15]

That's outstanding work. Thank you for sharing.



[skiprat]

You did not mention the spring. But where are the two Allen screws?

Pierre, I'll gladly tell you why two grubscrews, but perhaps you or someone else can figure it out.:biggrin:

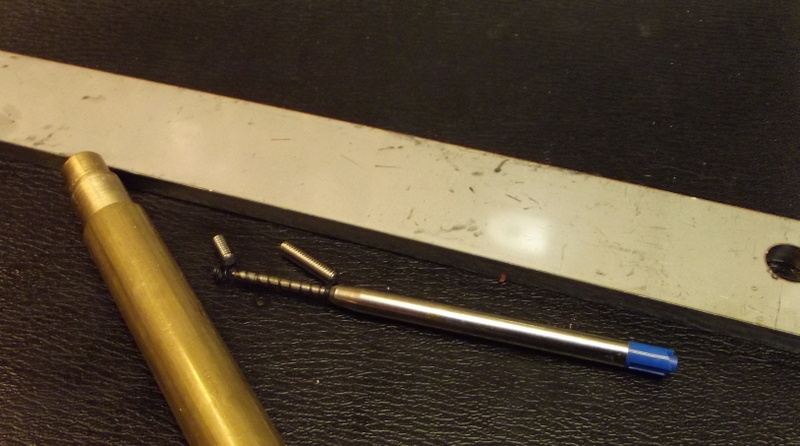

Look in the first set of pics....there are two grubscrews, one long and one short.
Although they are in the same threaded hole, they each serve a different purpose.......:wink:

I'll pop back and see who gives the reason...no prizes tho...it's actually a common engineering practice:biggrin:

Thanks again for all the cool comments. Always appreciated:biggrin:



[Silver]

Simply Stunning Skip.

You did not mention the spring. But where are the two Allen screws?

Pierre, I'll gladly tell you why two grubscrews, but perhaps you or someone else can figure it out.:biggrin:
Look in the first set of pics....there are two grubscrews, one long and one short.
Although they are in the same threaded hole, they each serve a different purpose.......:wink:

I'll pop back and see who gives the reason...no prizes tho...it's actually a common engineering practice:biggrin:

Thanks again for all the cool comments. Always appreciated:biggrin:

I know, you can see one of them..:biggrin:but I won't spoil it for Pierre..



[PenPal]

Hi Skippy knock me over with a feather mate,your as mad as a two bob watch.Up a Gum Tree how to respond,I remain your good friend, cannot wait for the mailman.I will try to load a few pics including one of yours I lightened up showing the map of Wales the burl (Brown Mallee) was cut to.

Sorry mate some mongrel from some obscure place stuffed up my provider so I will reply in two days when I am assured all will be well.

In the meantime awaiting the mail man, what a smashing pen mate.

Kind regards Peter.



[papaturner]

Boy you sure set the goal high for us.........................AWESOME JOB.



[scotian12]

Super job!. You knocked this one out of the park. Darrell



[Rounder]

Your imagination and then the execution of said imagination are just astounding. True art very well executed. Beautiful.



[eldee]

This is the kind of thing that results from a combination of great imagination and tremendous skill. Keep 'em coming Skip!



[lorbay]

The reason is. The short one locks the long one in place in the same hole. So the thumb screw can go back and forth without the long screw moving.
Lin



[BRobbins629]

You're still king of the pen making mountain! Miss you.



[skiprat]

Lin, of course you are perfectly correct. :wink:I suspect Silver knew as well :biggrin:

The brass thumb screw travels up and down the long grubscrew. Although the steel/steel grip is slightly more than the brass/steel grip, there could be a tendancy for it to unscrew. As Lin said, the short one simply bears against the long one and holds it in place.

If/when Peter needs to change the refill, he will remove the short one and back off the long one while holding the thumbscrew. Then the refill along with the thumbscrew comes out.
I packed in an Allen key and a couple spare grubscrews.....just in case..:biggrin:



[magpens]

Yup, I knew the functions of the two grubscrews !!!!! :wink: :biggrin::biggrin:



[Curly]

Brilliant!!!!!



[Pierre---]

Thanks for the explanation Skip!



[Charlie_W]

A truly fantastic Spenner Skip! The finished product as well as your creativity and execution are always a treat.

Thanks once again for showing us that penturning is an "open ended" craft and there is always something new around the corner!



[ldb2000]

Hey Skippy
You have always been and always be my Hero !!!



[stuckinohio]

WOW!



[lorbay]

Hey Skippy
You have always been and always be my Hero !!!

He may be your hero but do you have one of his pens. I do
Lin



[magpens]

I am jealous, Lin !!!!!
