A Segmented Panache Pen

Signed-In Members Don't See This Ad
See more from jttheclockman

jttheclockman

Member
Joined
Feb 22, 2005
Messages
18,957
Location
NJ, USA.
Here is a segmented Panache pen with a black chrome kit, holly and gabon ebony blank with aluminum rings and black and white plastic dots. Finished in CA and polished. I also included a couple photos of the blank parts before glued together to get an idea how the design looks before turned. The design lends itself to many combinations of woods and layout. Any questions or comments are always welcomed.

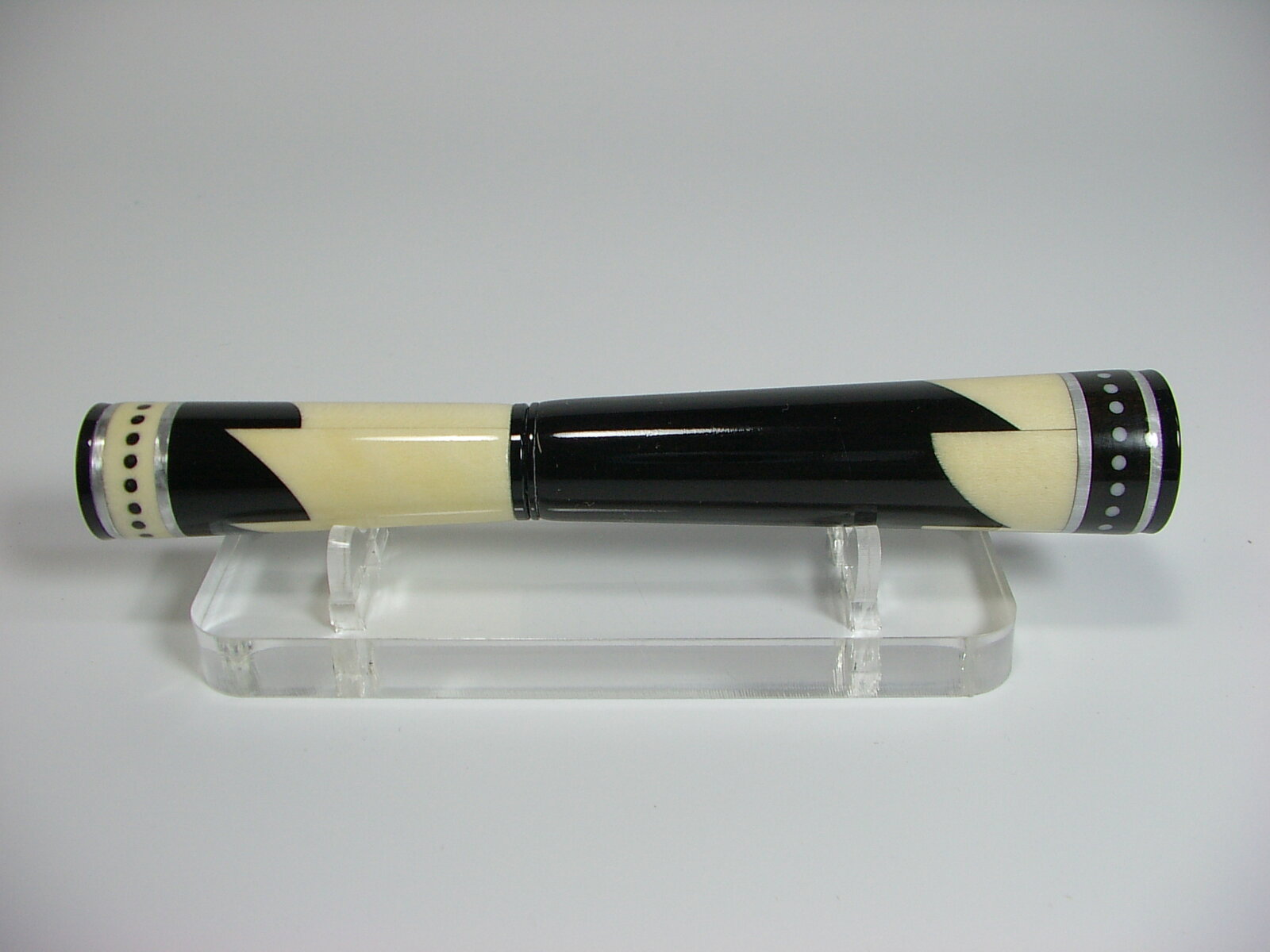

Copy (2) of IMGP0246.JPG
Copy of Copy of IMGP0261.JPG

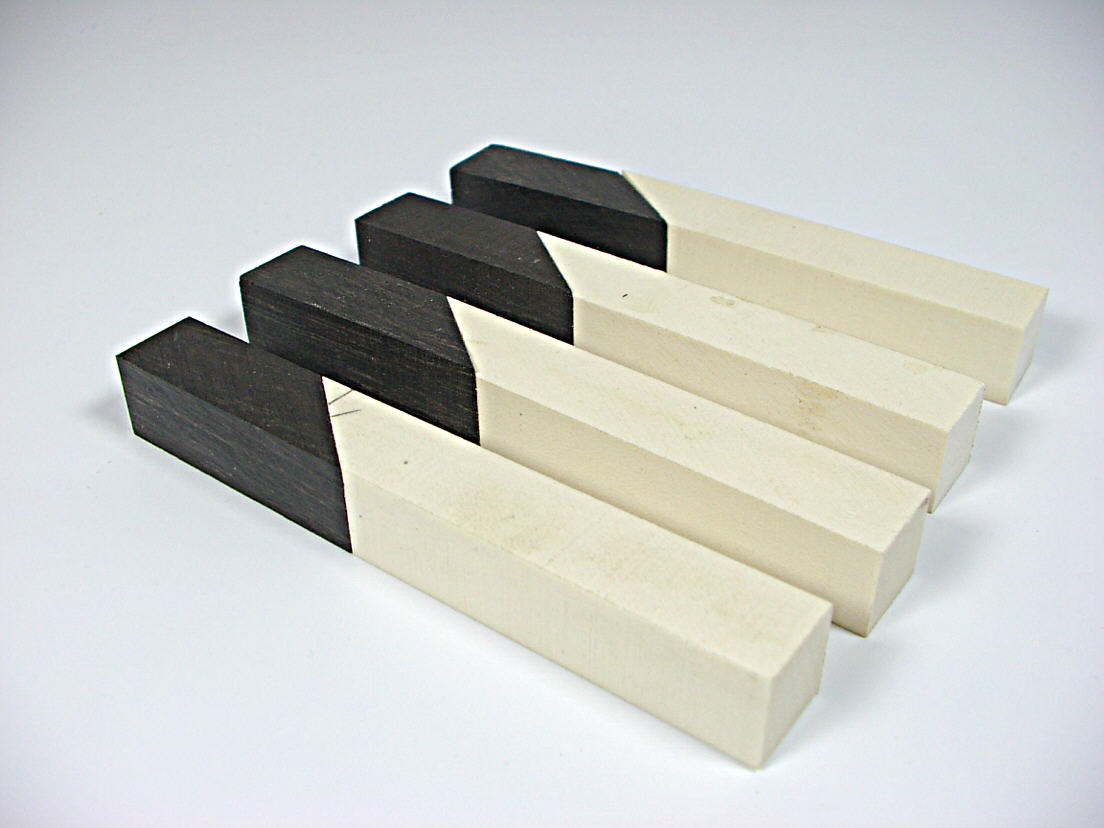

Copy of IMGP0252.JPG

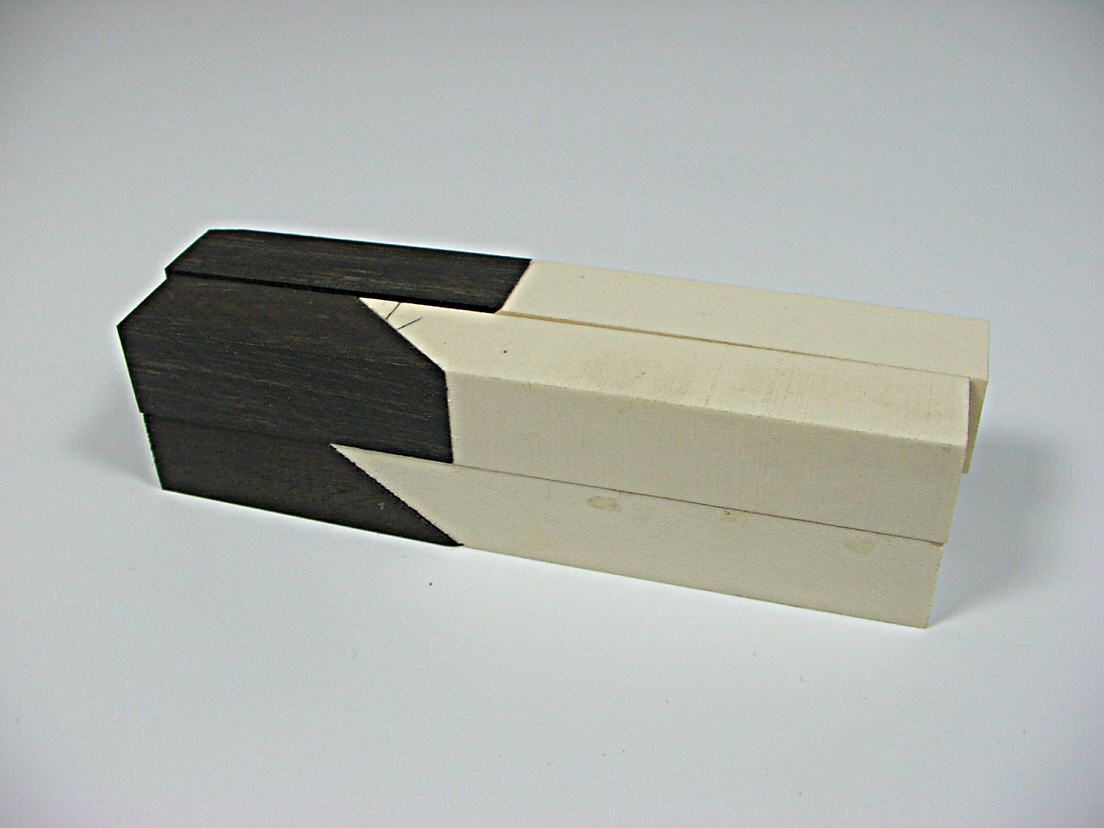

Copy of IMGP0253.JPG

Signed-In Members Don't See This Ad

Alan Morrison

Member
Joined
Jan 15, 2019
Messages
3,013
Location
N Ireland
Brilliant John. I keep looking at your pen and seeing possibilities based on this design.
I wouldnt have dared put holly beside ebony. You have no colour transfer, I assume skew and no sanding?
What width is the aluminium?
Congratulations John.
Alan


jttheclockman

Member
Joined
Feb 22, 2005
Messages
18,957
Location
NJ, USA.
Brilliant John. I keep looking at your pen and seeing possibilities based on this design.
I wouldnt have dared put holly beside ebony. You have no colour transfer, I assume skew and no sanding?
What width is the aluminium?
Congratulations John.
Alan
You are correct. I used a skew to get to final size. Would have had a mess with the aluminum and or the ebony on the holly. The aluminum rings are 1/16" as well as the dots. As I said so many variables can be done with this such as to hide the glue lines better on the holly, use some colored paper or thin plastic to highlight the lines and celebrate them. You can never hide glue lines on light colored woods easily. You could layer the angled cuts with different woods. Have at it and love to see others designs from the same concept. all is good. Have nothing to hide.


Alan Morrison

Member
Joined
Jan 15, 2019
Messages
3,013
Location
N Ireland
John, are the glue lines in the holly are more noticeable on the photograph than they are in the hand?

I keep coming back to your pen. The panache would not be my favorite kit but it's your design that attracts me.


KMCloonan

Member
Joined
Jun 13, 2017
Messages
1,424
Location
Round Lake, Illinois
I have a bad habit of not reading posts in the order they were posted. :confused: My comments on the other ebony/holly pen apply to this as well (although now I know how you avoided the color transfer from ebony to holly!)

I really admire the precision of the dots on the ends. They add tremendous detail to the pen.


leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
9,284
Location
Tunica, Mississippi,
Excellent and beautiful.

I will note that a finely sharpened scraper can also leave it baby's behind smooth and then the aluminum/holly/bloodwood/ebony will not leave a messy smear.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
18,957
Location
NJ, USA.
John, are the glue lines in the holly are more noticeable on the photograph than they are in the hand?

I keep coming back to your pen. The panache would not be my favorite kit but it's your design that attracts me.
Alan as with all photos they become more magnified but you can see the glue lines in the hand as well. But that is the nature of using light colored woods next to each other. You do not see the glue lines in the black ebony at all. Even the black against the holly you can not see a glue line. By the way these were glued with CA and not epoxy. CA is more clear than just about any other glue. But CA will also add a slight tint of yellow color to holly. I am going to try Aspen on a few pens to see if there is a difference. I did not bleach the holly on this pen which at times I do to keep that pure white color. Thanks for the kind words.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
18,957
Location
NJ, USA.
That is very nice. How did you index to drill the holes.
Thanks for the kind words. The dots were done using my drill press and a 5C spin indexing fixture https://www.shars.com/5c-spin-index-fixture. I tried using my lathe and router that I usually use but just a slight movement off center and the hole gets oblonged so went to the drill press and worked alot better.


sorcerertd

Member
Joined
Sep 30, 2019
Messages
2,599
Location
North Carolina, USA
Beautiful and unique. I like the way you alternated the colors between the body and cap.

Question: When I have done aluminum inlay (basically just have used soda cans so far), it always seems even coming off the lathe, but after sitting for a while I can feel a slight "bump" where it seems like the metal is sticking out, even though it's just barely noticeable. Is there a trick to using metals with wood like this?


TDahl

Member
Joined
Dec 11, 2019
Messages
1,872
Location
Brentwood
Absolutely incredible John. I really love the combinations of all the materials and especially the pins. Your craftsmanship is absolutely impeccable.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
18,957
Location
NJ, USA.
Beautiful and unique. I like the way you alternated the colors between the body and cap.

Question: When I have done aluminum inlay (basically just have used soda cans so far), it always seems even coming off the lathe, but after sitting for a while I can feel a slight "bump" where it seems like the metal is sticking out, even though it's just barely noticeable. Is there a trick to using metals with wood like this?
As far as trick, there is no trick. One thing you have to remember is wood moves and it will expand and contract with moisture. Getting a seal coat like CA on it will prevent this. Also if you are sanding, wood will sand faster than metals. That is why I do not sand when segmenting different materials. I just use the skew to get me to final dimesions and then CA. I do like to use acrylics with metals more than woods for the above reasons because then both materials do not expand and contract.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
18,957
Location
NJ, USA.
Just wanted to close this out and say a collective big Thank You to all that hit the like button and also added a few nice comments. This along with the Zen with the same style design I shown were the last pens that came out of my shop. Hopefully I will be able to do a few more this coming winter. Have a few neat ideas. My bath and kitchen remodel has been delayed and could very well wind up during winter months but with so many delays who knows. That would deter from shop time. Anyway thanks again.
