I hope everyone has a Great 4th,
🇺🇸 Happy Independence Day 🇺🇸


Here are a few kitless pens I made recently.

Thanks for looking !

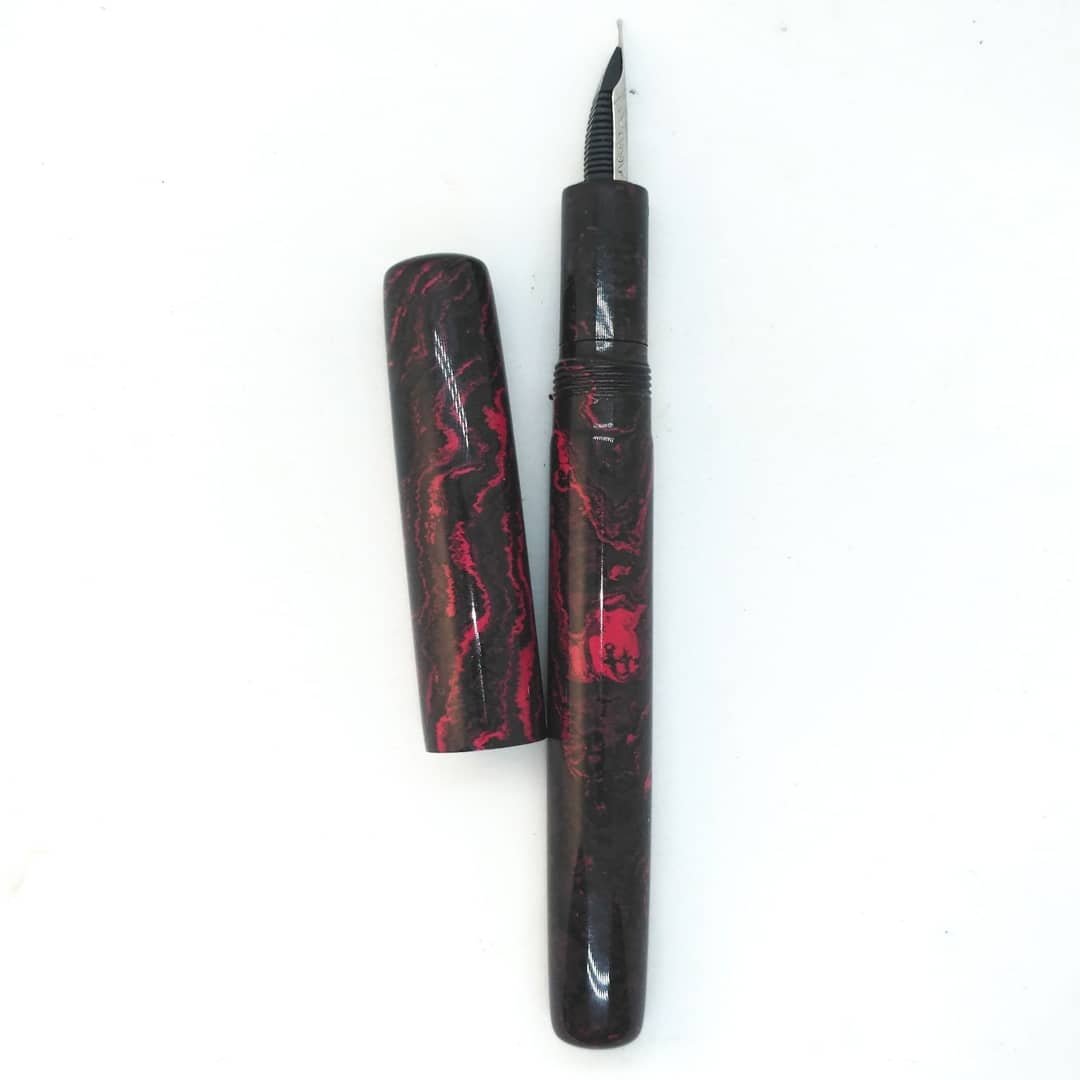

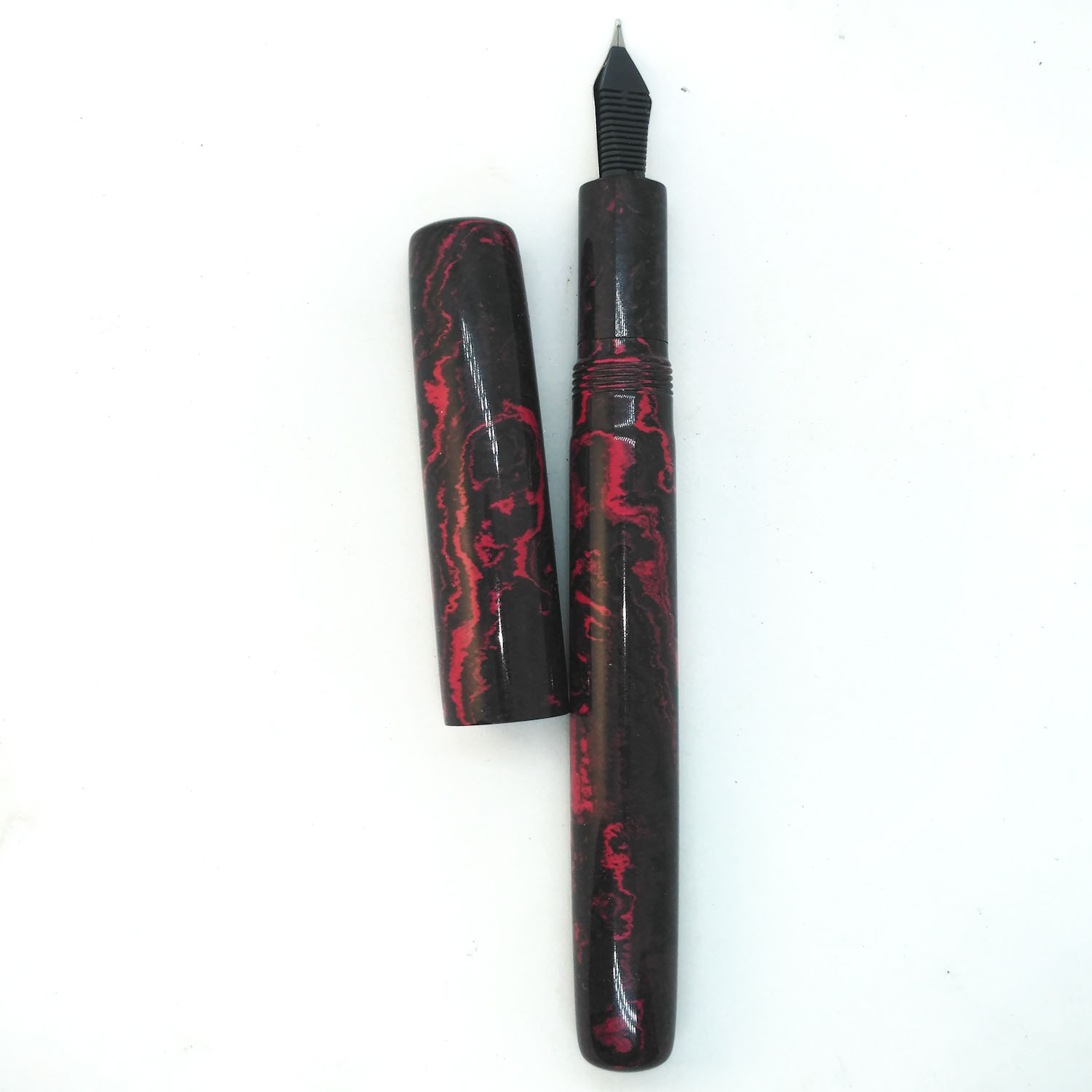

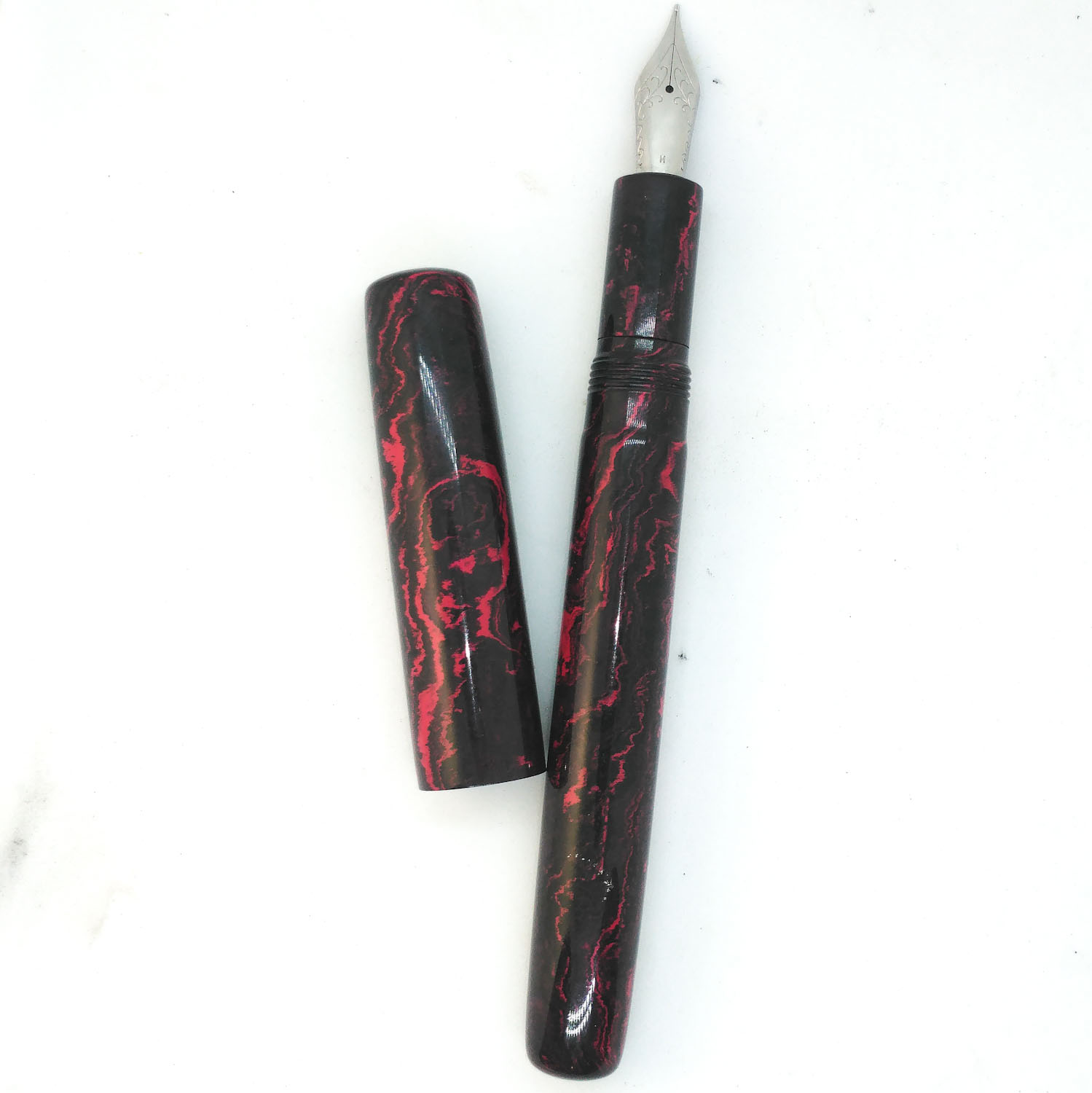

1st. Red & black ebonite.
Body to cap uses M14 x 1.0 single start tap & die
Section uses M10 x 1.0 tap & die
Body width 14.5mm
Cap width 17mm
Length closed 147mm
Uses Jowo #6 nib

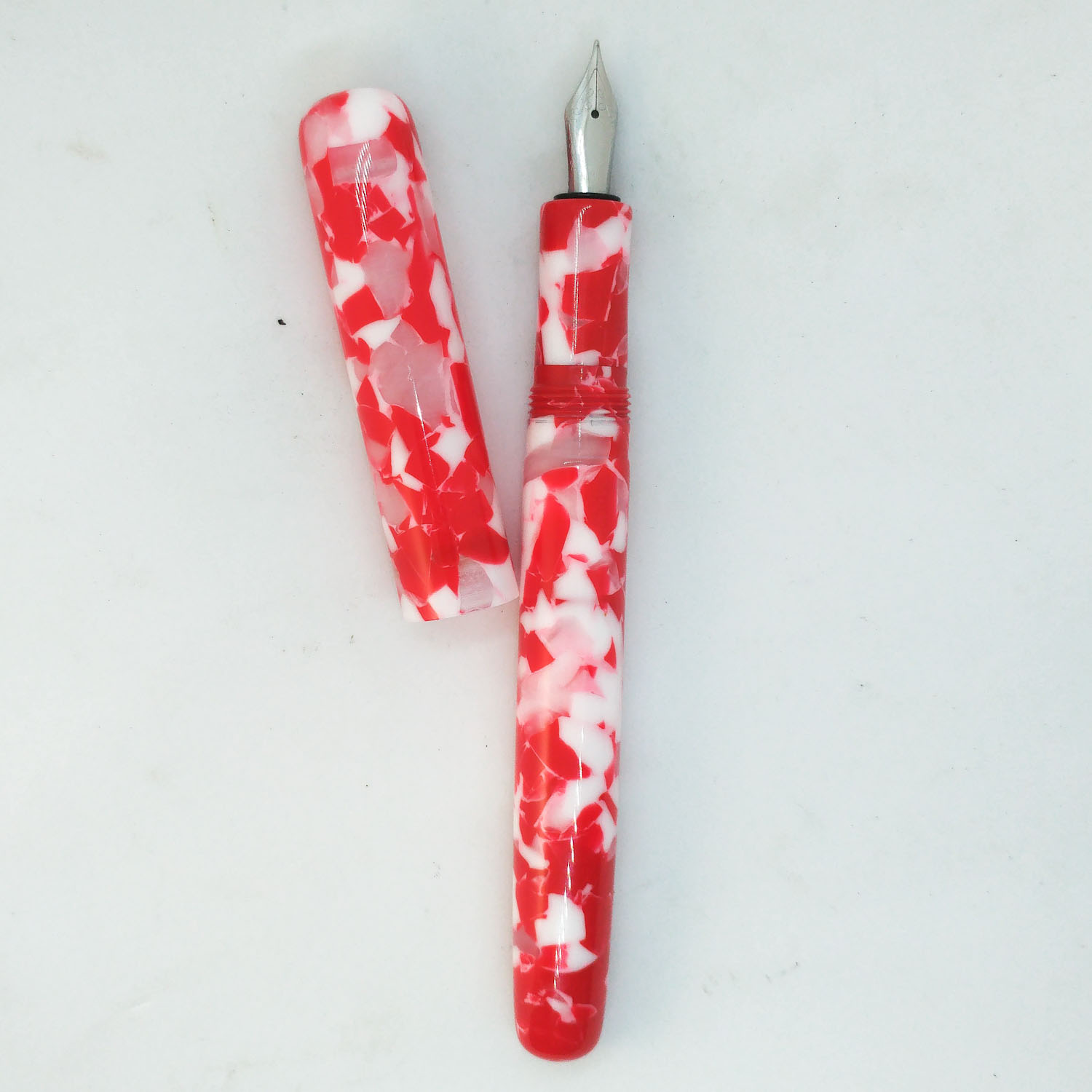

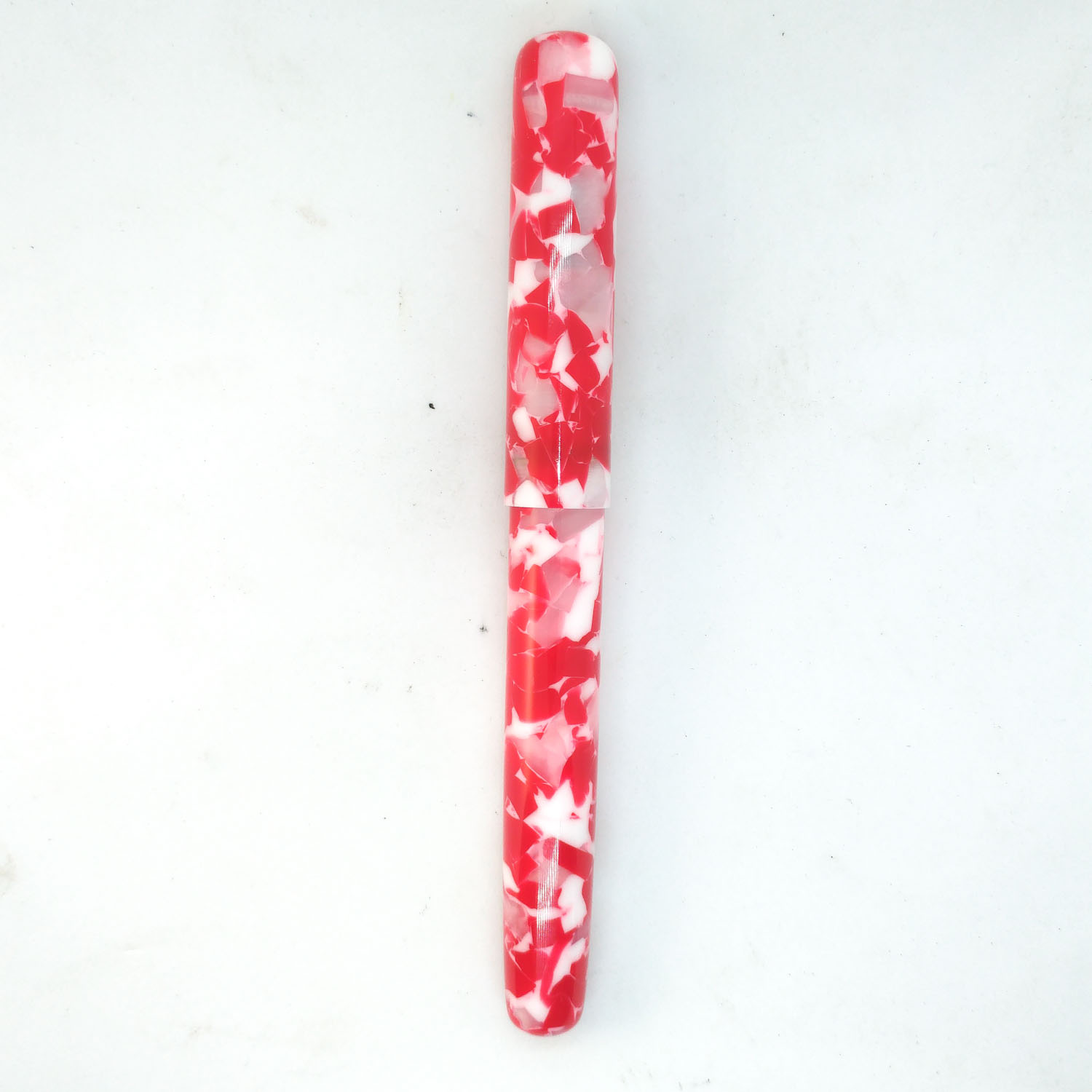

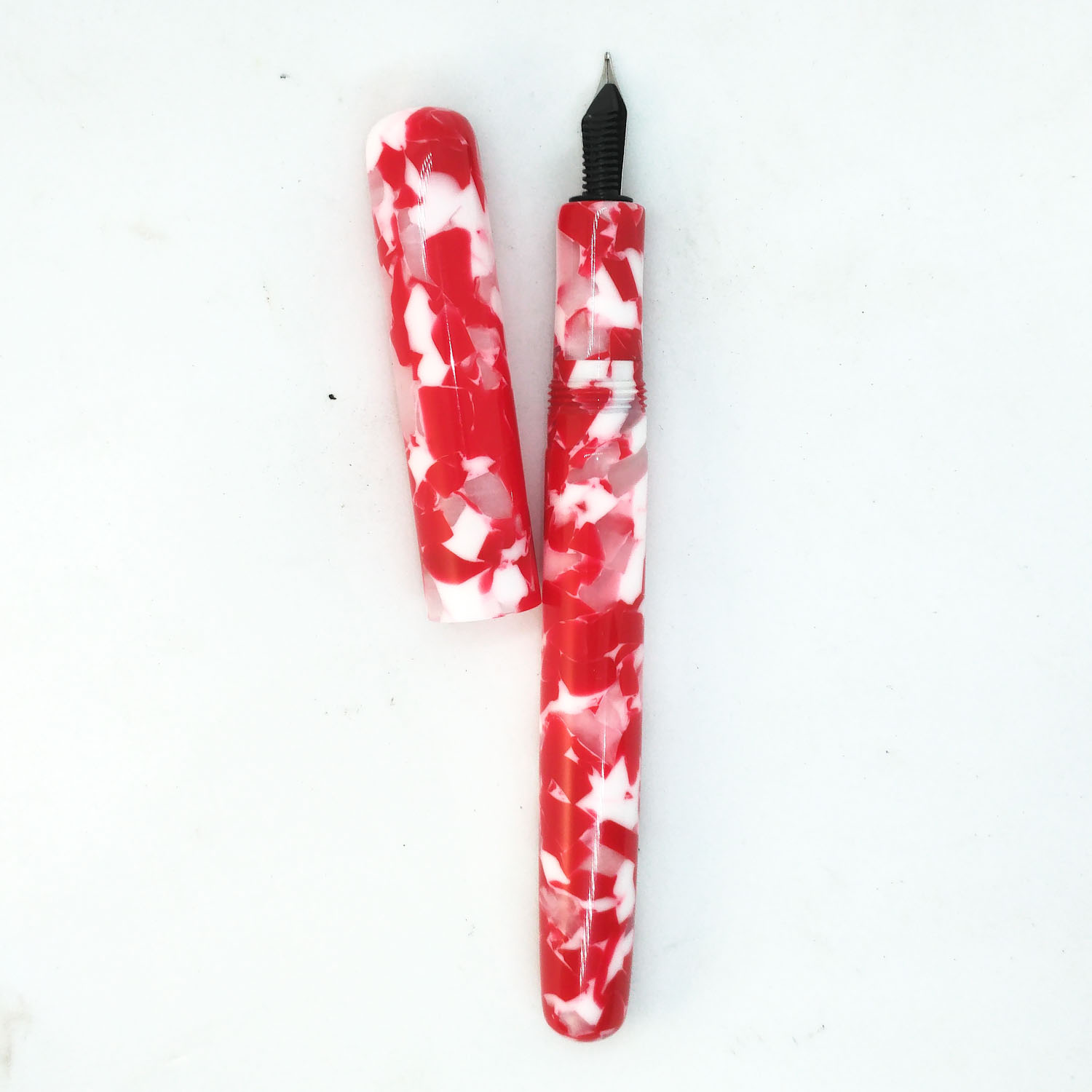

2nd. Red & white acrylic.
Body to cap uses M14 x 1.0 single start tap & die
Section uses M10 x 1.0 tap & die
Body width 14.1mm
Cap width 15.5mm
Length closed 145mm
Uses Jowo #5 nib

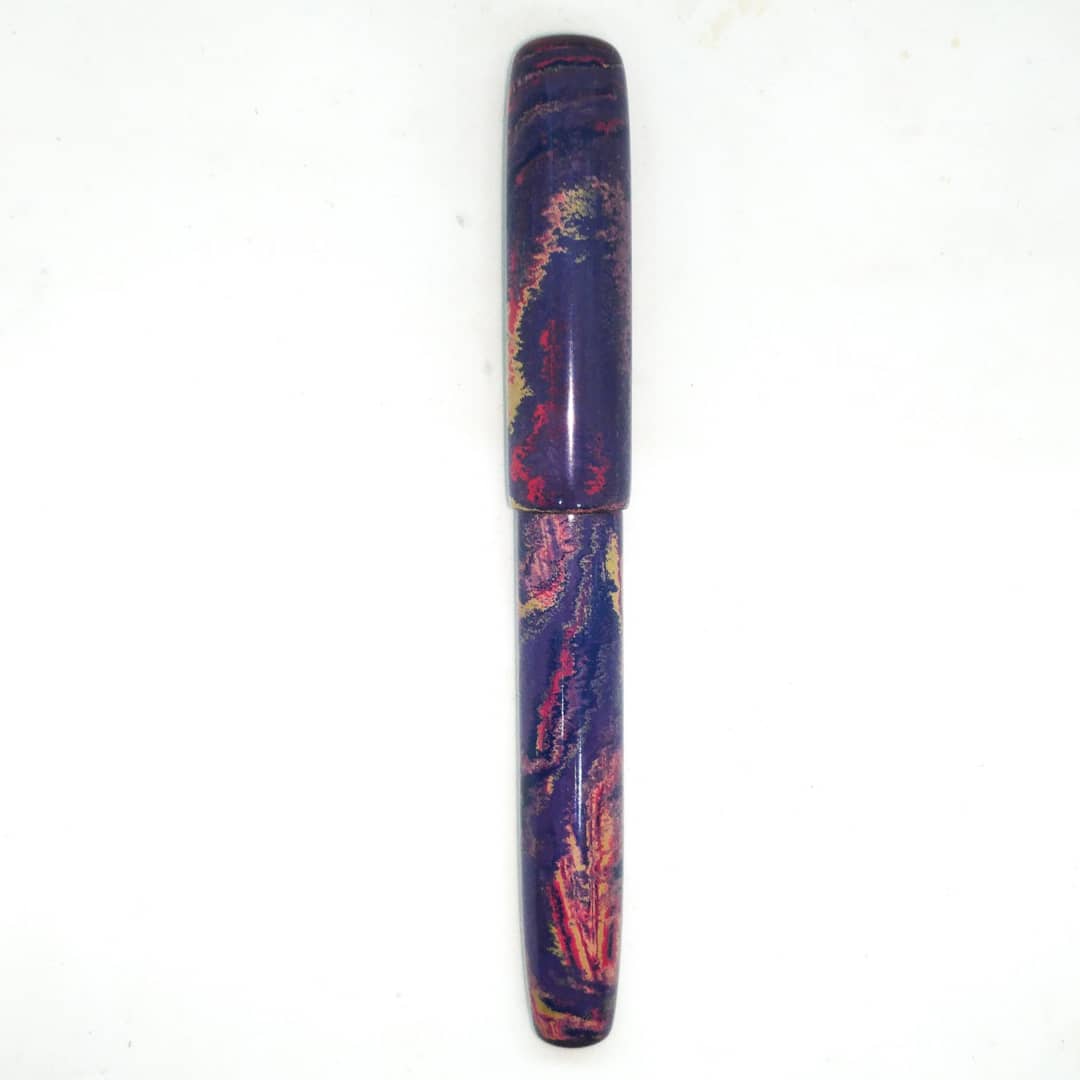

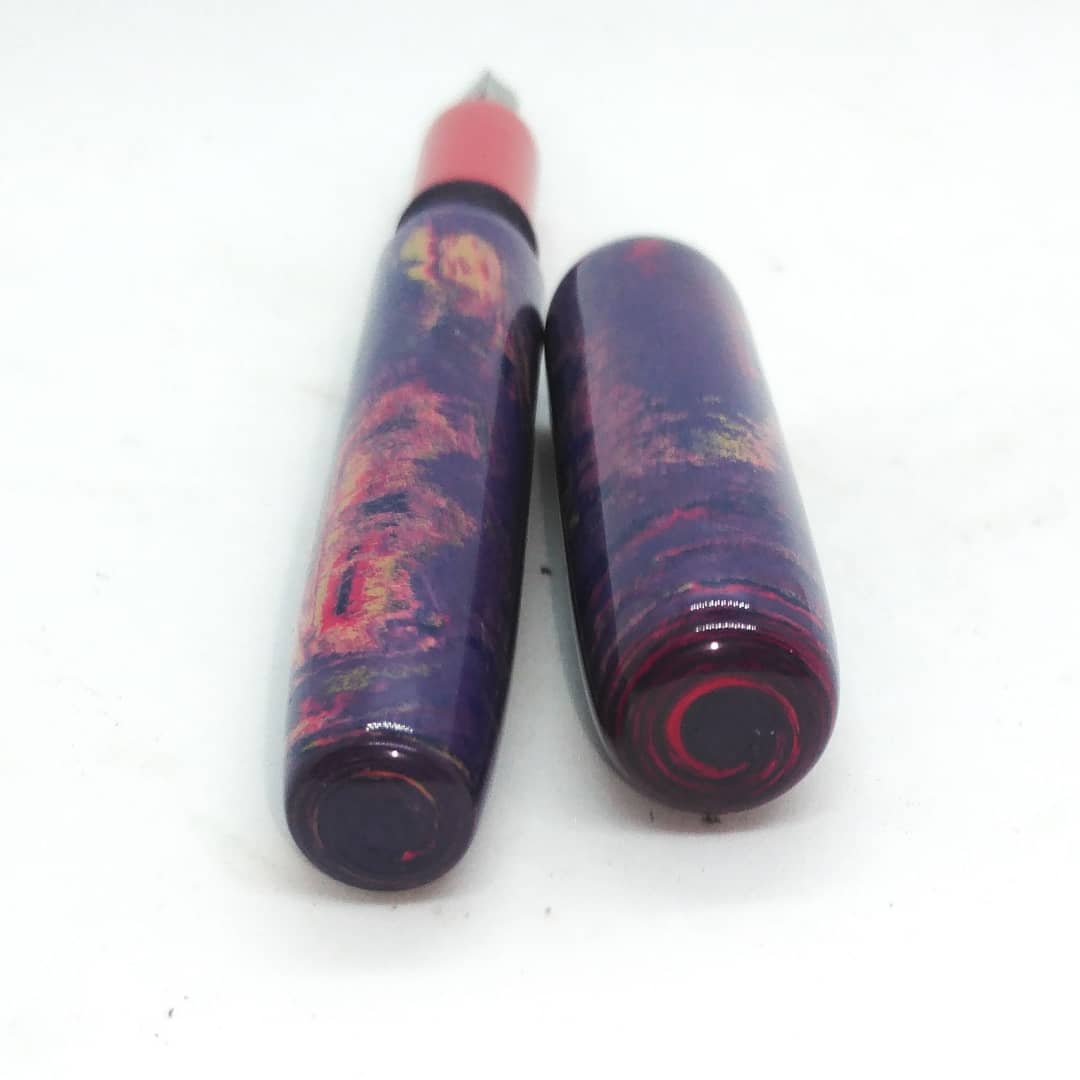

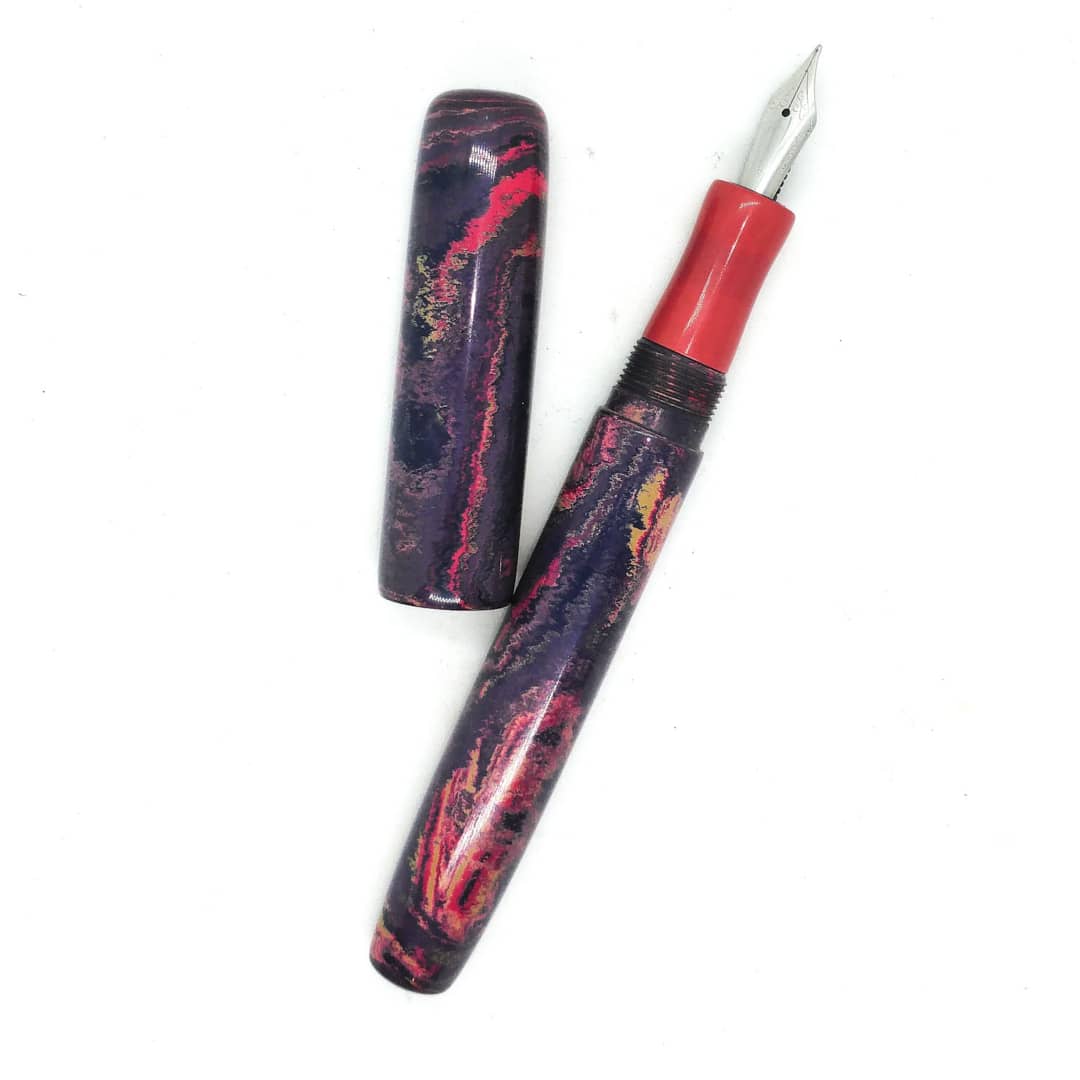

3rd. Purple , red & white ebonite.
Body to cap uses M13 x .8 triple start tap & die.
Section uses M10 x 1.0 tap & die
Body width 14.9mm
Cap width 17.3mm
Length closed 138mm
Uses Jowo #5 nib

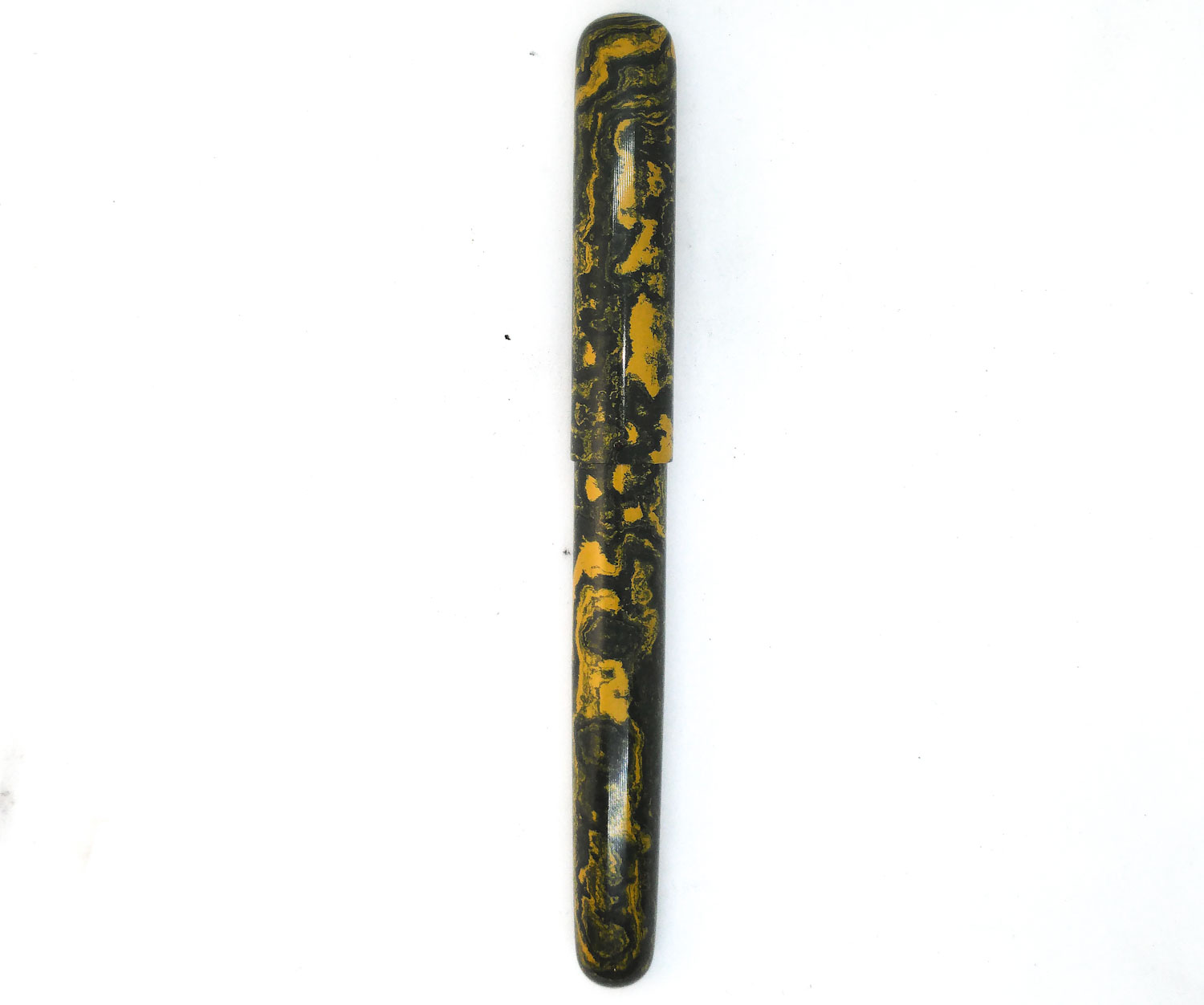

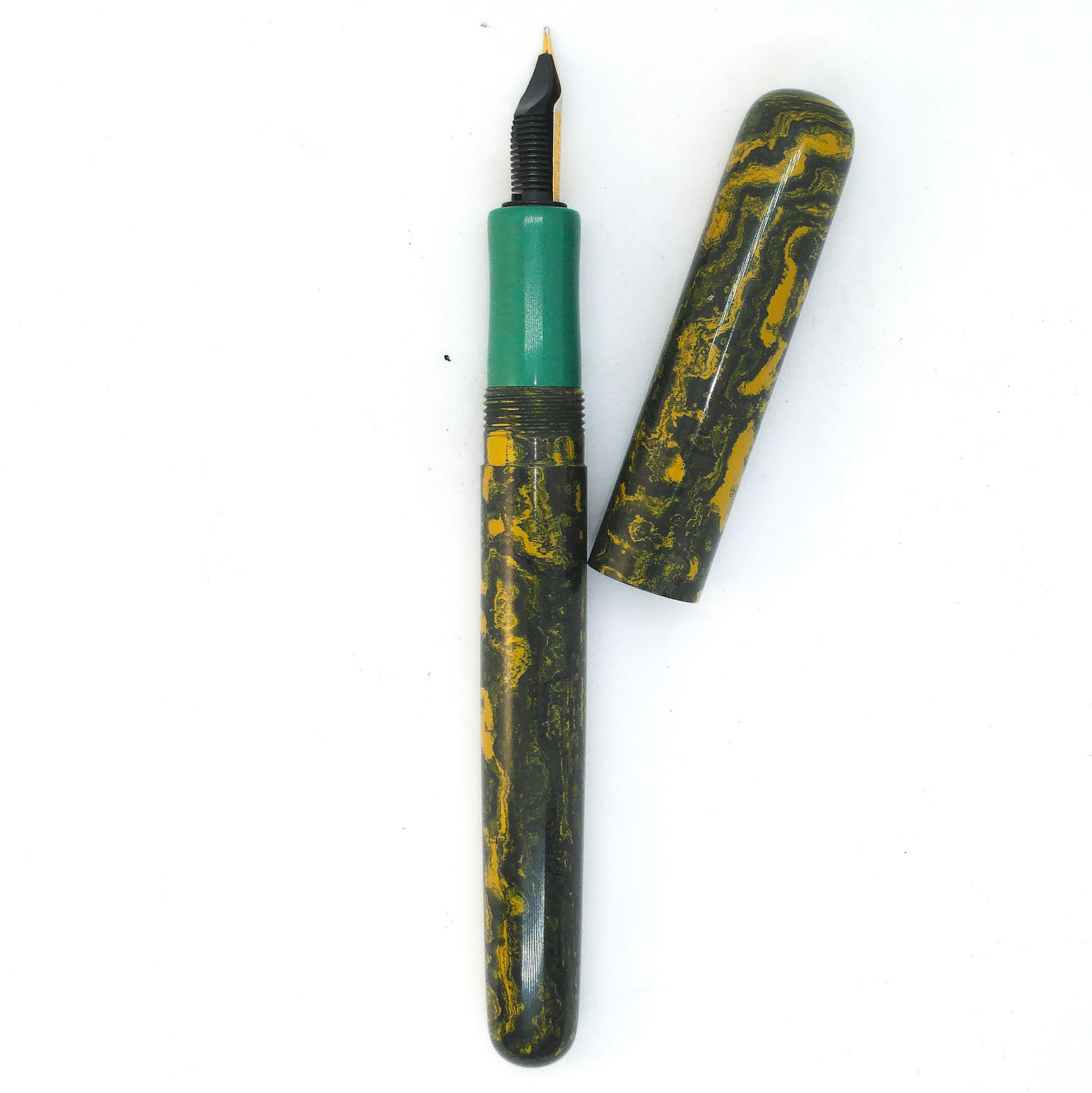

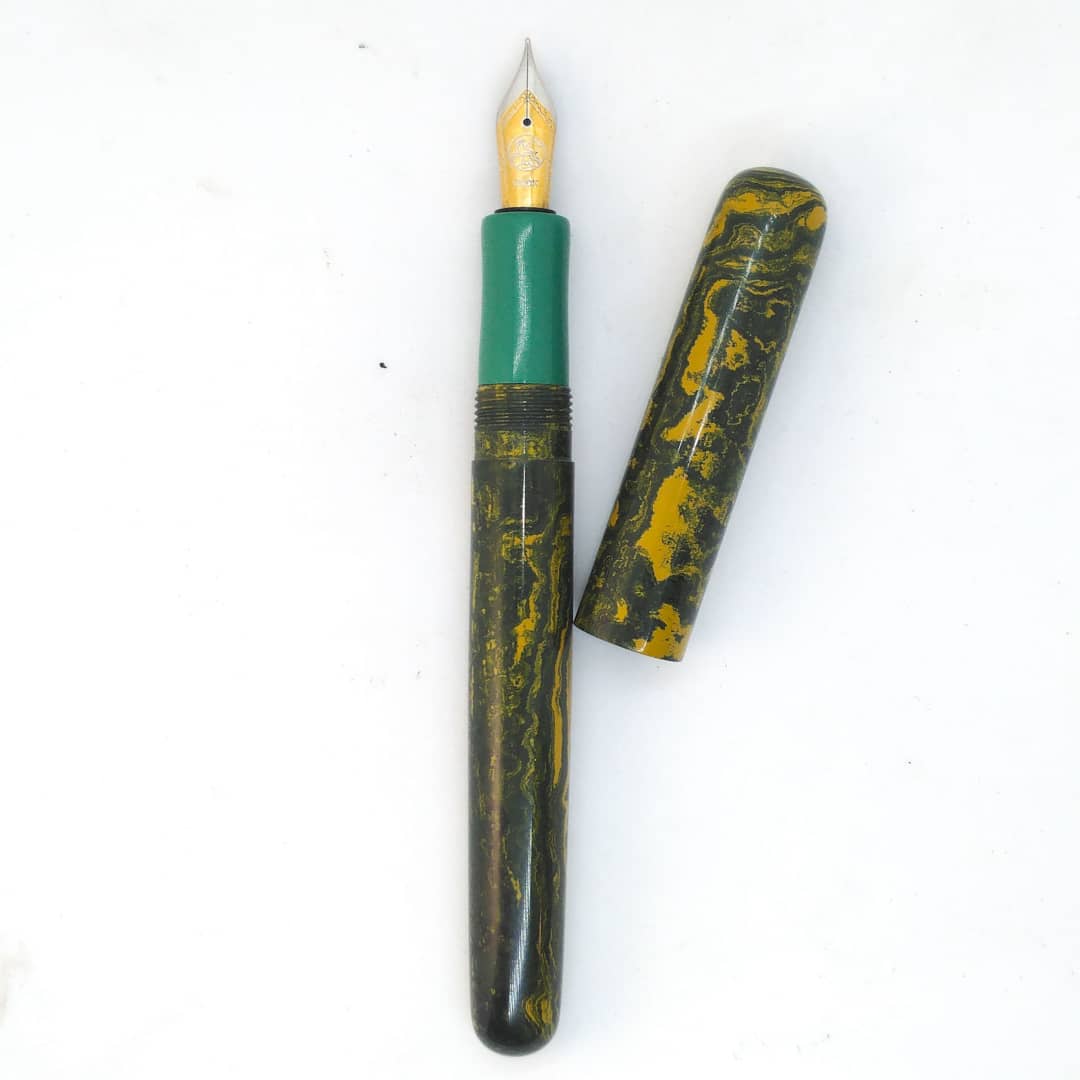

4th. Green & yellow ebonite.
Body to cap uses M14 x 1.0 single start tap & die.
Section uses M10 x 1.0 tap & die
Body width 14.3mm
Cap width 15.6mm
Length closed 147mm
Uses Bock. #6 nib

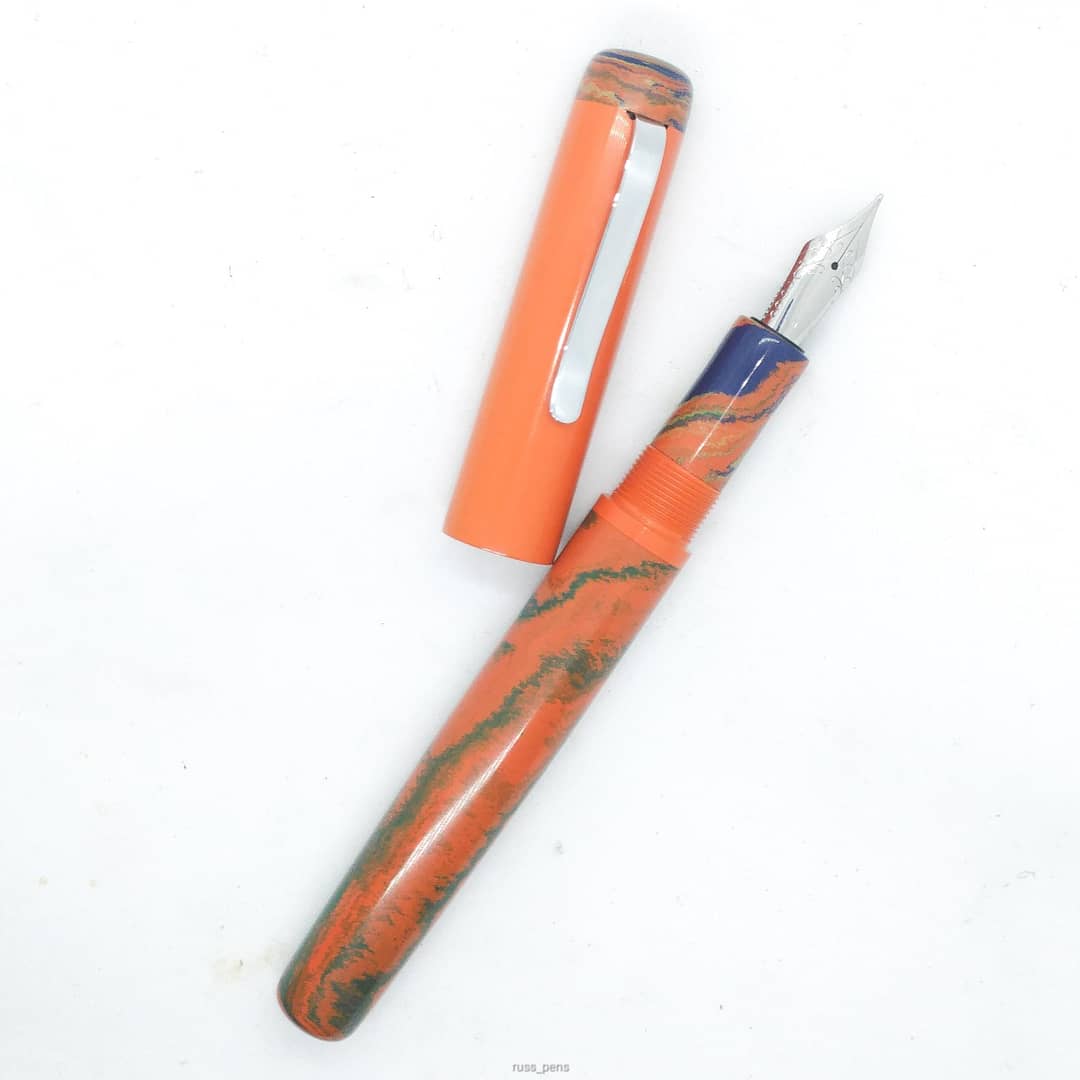

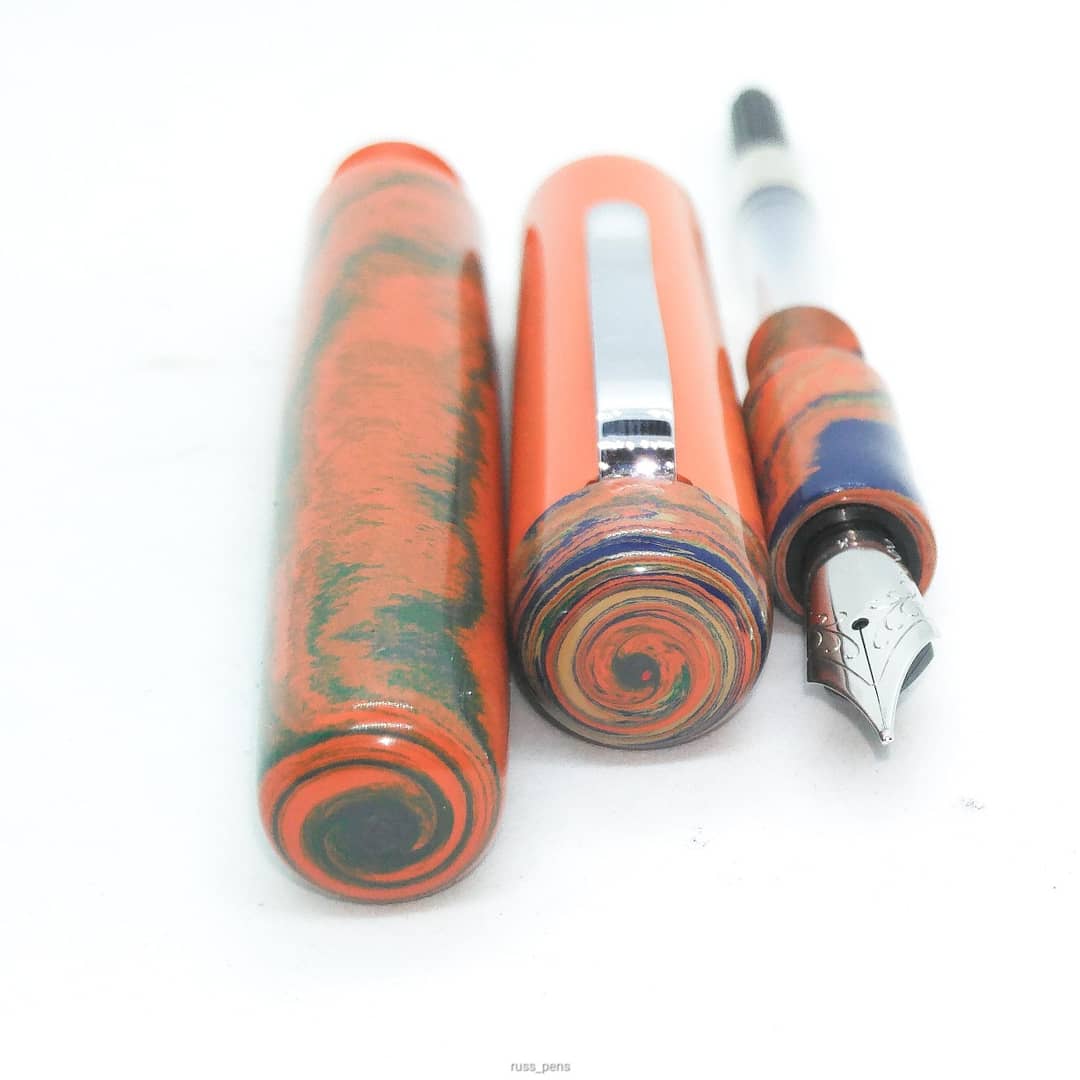

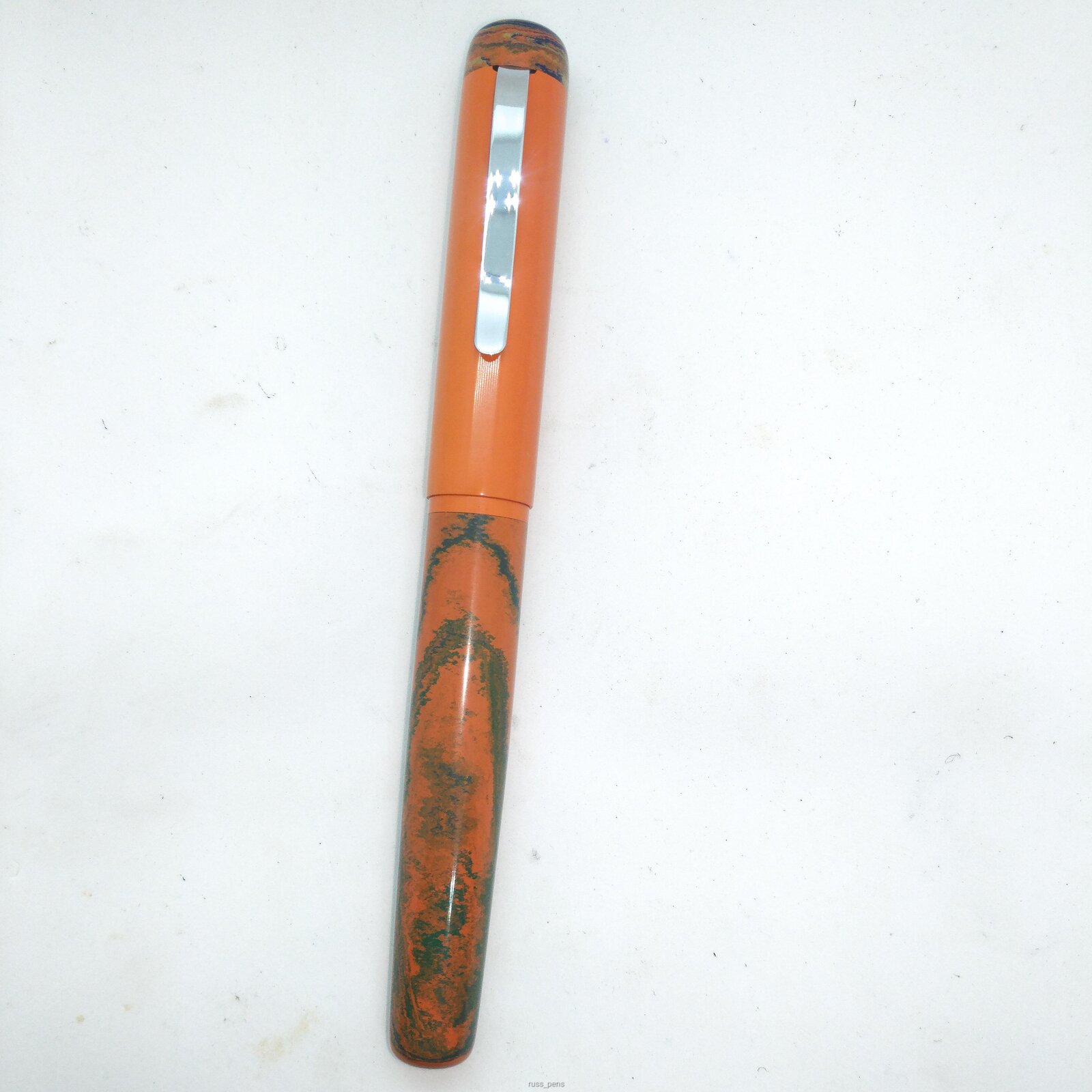

5th. Orange, orange & blue green ebonite.
Body to cap uses M13 x .8 triple start tap & die
Section uses M10 x 1.0 tap & die
Body width 15mm
Cap width 16mm
Length closed 154mm
Uses Jowo #6 nib


Attachments

  • PSX_20200702_232204.jpg
    141 KB · Views: 158
  • PSX_20200702_225251.jpg
    126.9 KB · Views: 145
  • IMG_20200703_001328_544.jpg
    25.7 KB · Views: 150
  • PSX_20200702_232912.jpg
    159.5 KB · Views: 154
  • PSX_20200702_232422.jpg
    135.1 KB · Views: 153
  • PSX_20200702_232559.jpg
    145.9 KB · Views: 138
  • IMG_20200704_004910_216.jpg
    35.6 KB · Views: 154
  • IMG_20200704_004910_232.jpg
    24.3 KB · Views: 133
  • IMG_20200704_004910_212.jpg
    30.6 KB · Views: 144
  • PSX_20200702_223959.jpg
    126.2 KB · Views: 138
  • IMG_20200703_001959_895.jpg
    35.1 KB · Views: 137
  • PSX_20200702_224259.jpg
    172.5 KB · Views: 139
  • PSX_20200623_025611.jpg
    178.8 KB · Views: 148
  • IMG_20200623_125218_142.jpg
    28.2 KB · Views: 143
  • IMG_20200623_125218_154.jpg
    45.9 KB · Views: 132
Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
13,654
Location
Coquitlam, BC, Canada
What an appropriate presentation for Independence Day !!!!!

With a little help from "those that be" it should be renamed "Inspiration Day" !!!!!

All very nice, indeed !!! . Thanks for showing !!!
