Segmenting 3D Printed Molds

Signed-In Members Don't See This Ad

Rangertrek

Member
Joined
Sep 10, 2008
Messages
2,104
Location
Bossier City, Louisiana, USA
Just wanted to let everyone know that I have a Forum in the Vendors Forums area for 3d Printed molds. Listed under PenBlanks, I will be desiging and selling.


Attachments

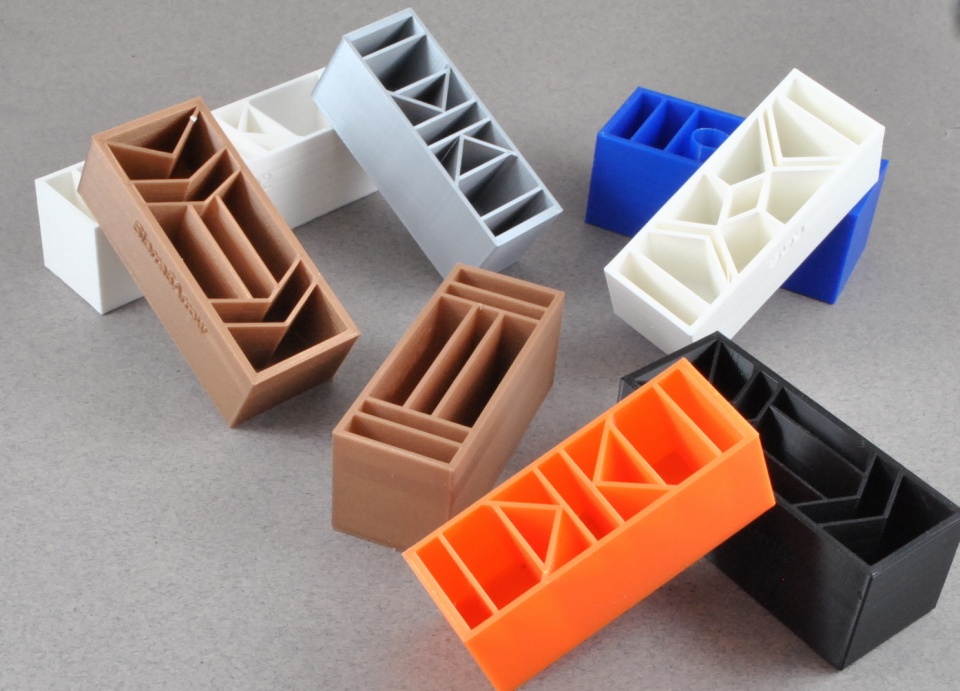

  • Molds1.jpg
    183.3 KB · Views: 361

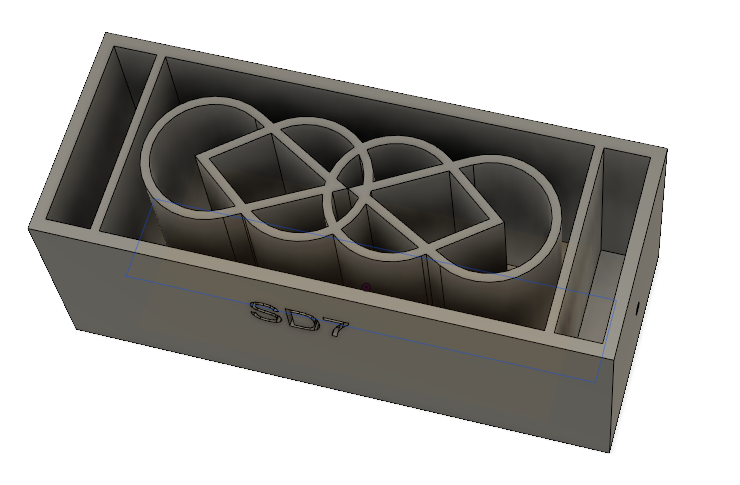

  • SD7.PNG
    152 KB · Views: 352

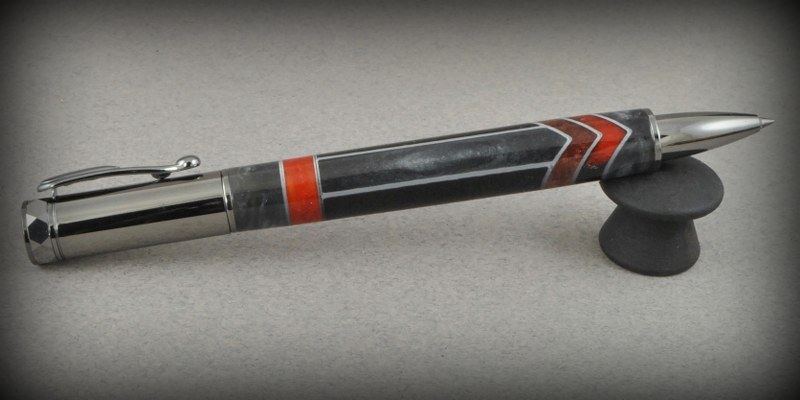

  • R3384cw.JPG
    55.5 KB · Views: 359
Signed-In Members Don't See This Ad

Mr Vic

Member
Joined
Aug 11, 2008
Messages
1,865
Location
Falcon, CO
Interesting! Does the mold become part of the pen blank or are the segments removed and glued up?


More4dan

Member
Joined
Mar 17, 2016
Messages
2,102
Location
Katy, TX
Just an idea but not sure if it would work, the the outside edge were higher than the inside, you could pull it out in one piece. Then turn over and pour the lines in a second pour.


Sent from my iPhone using Penturners.org mobile app


Rangertrek

Member
Joined
Sep 10, 2008
Messages
2,104
Location
Bossier City, Louisiana, USA
The material costs will vary with each mold and design based on the amount of filament used. The filament is about $20 per kilogram spool. The printer will take about 3-4 hours to print a mold. If you are asking about the cost to buy a mold, I sell them for about $4 and up.


Lucky2

Member
Joined
Mar 2, 2012
Messages
1,502
Location
New Brunswick/ Canada
Neat idea John, but just so I understand this completely. I need to ask, is this more or less a disposable mold that gets turned away to make the blank? And to achieve the different colors in the blank, you pour them at the same time as your pouring the main color?

Len


jttheclockman

Member
Joined
Feb 22, 2005
Messages
19,082
Location
NJ, USA.
Sort of on the same line of question as Len, will all resins adhere to that plastic or better to use epoxy resin?? Does the plastic needed to be treated such as sanded to give tooth or some chemical to give tooth?? I know not all plastics like to be glued together and takes a special adhesive. Also resins such as Silmar41 has a tendency to shrink when curing. Have you tried these using different resins?? Thanks.


mecompco

Member
Joined
Apr 24, 2015
Messages
1,607
Location
Fairfield, Maine
Sort of on the same line of question as Len, will all resins adhere to that plastic or better to use epoxy resin?? Does the plastic needed to be treated such as sanded to give tooth or some chemical to give tooth?? I know not all plastics like to be glued together and takes a special adhesive. Also resins such as Silmar41 has a tendency to shrink when curing. Have you tried these using different resins?? Thanks.

I've not tried casting them yet, but there are a couple of free versions of similar molds on thingiverse.com that you can download and print. The 3D printers I've used leave a rather rough finish, unless you slow them way, way down. So, plenty of grain for the casting media to bite into. Not sure about the best printer media--there are several kinds, PLA, ABS, etc.

One reason I've not got around to trying it is that I use PR with no pressure. Knowing that PR tends to shrink a bit, I'm not sure that it would work. I'm thinking Alumilite or epoxy in a pot would be the best bet.

Looking forward to hearing from those who have tried this.


Rangertrek

Member
Joined
Sep 10, 2008
Messages
2,104
Location
Bossier City, Louisiana, USA
Len, yes this is one time use mold. You can use all the same color for all cells in the mold, or you can fill certain cells with different colors. I make the molds 2mm taller than they are square, so you stop the pour short of the top, and not have colors run together. You can also pour one color, let cure, them pour another color.
