A few firsts for me. Not my best work but I learned a bit.

Both are Rollester kits. Finish was abranet through the grits followed by zona paper, then CA > micromesh > Zona down to 1 micron > Novus 3,2, and 1

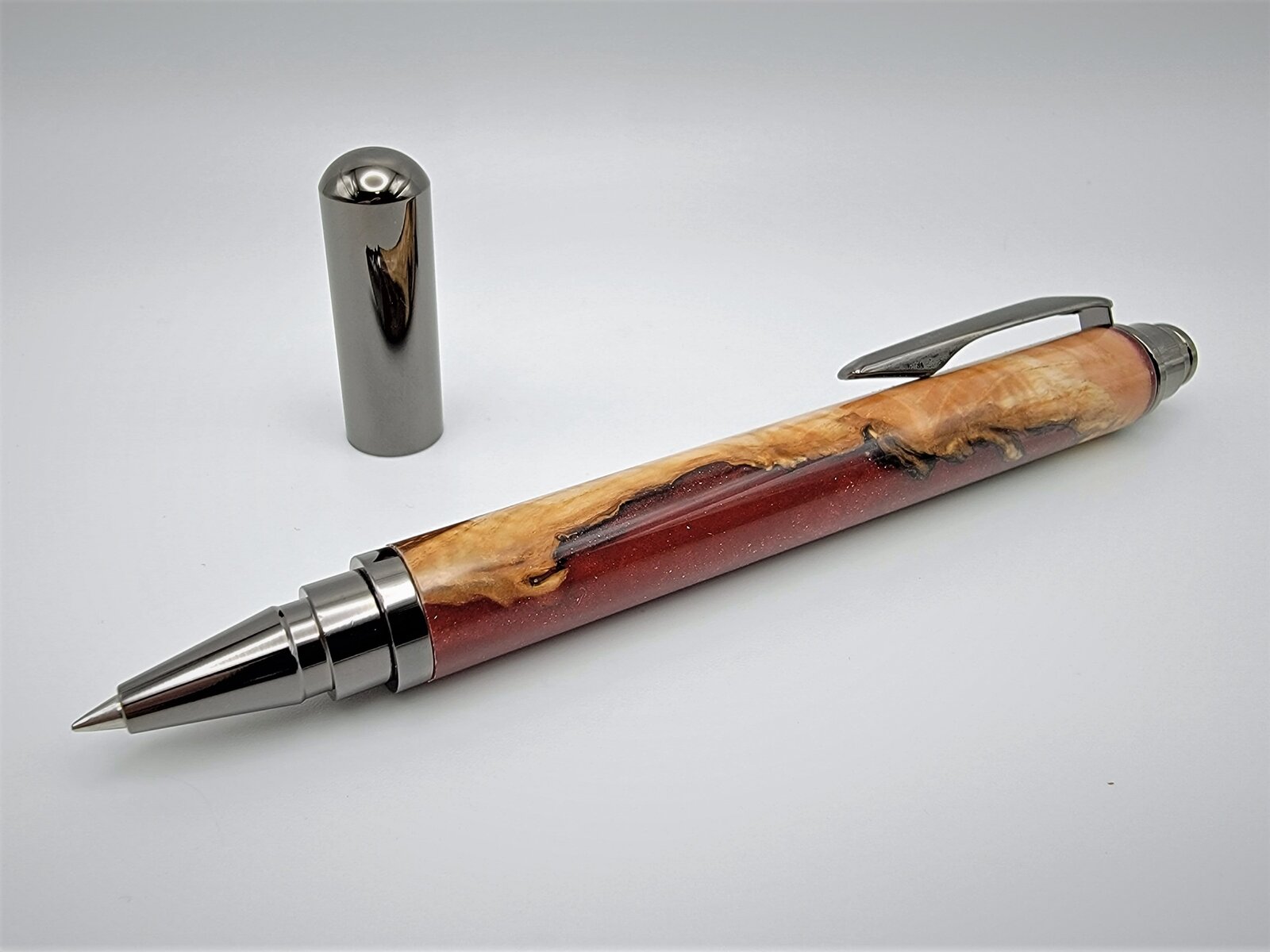

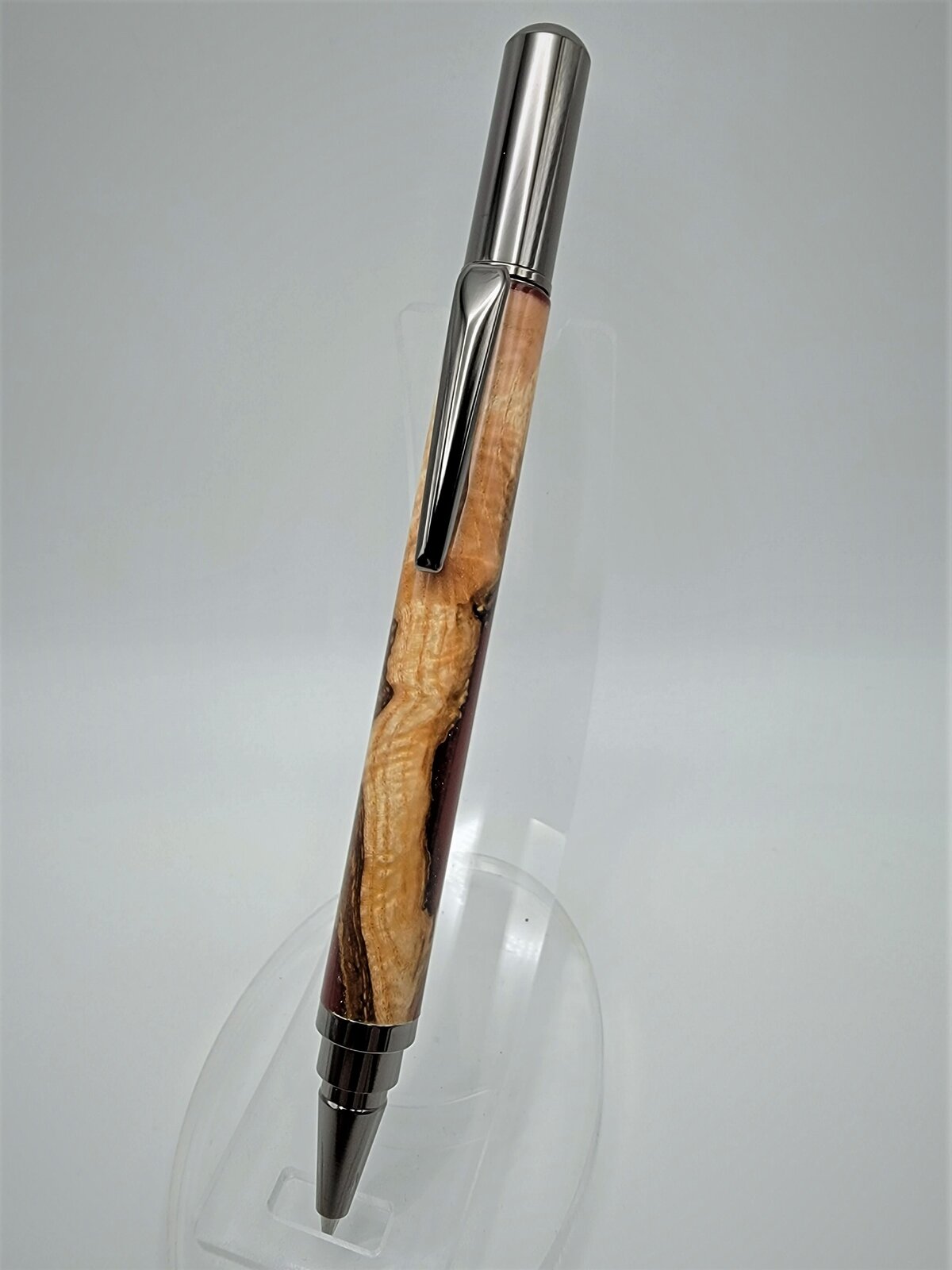

#33 was my first time casting a hybrid blank. I purchased some black ash burl bits from @exoticwo and finally got around to casting some in alumilite with red mica and some gold flake.

I learned that I need to allow for a little more material on the ends of these blanks. There is a solid red band up by the clip from where the resin got behind the burl piece when casting. I should have cut that off before measuring the blank. Also, I need to pay more attention to rounding the edges of the finished tube. There is a very harsh edge by where the tip coupler is pressed in.

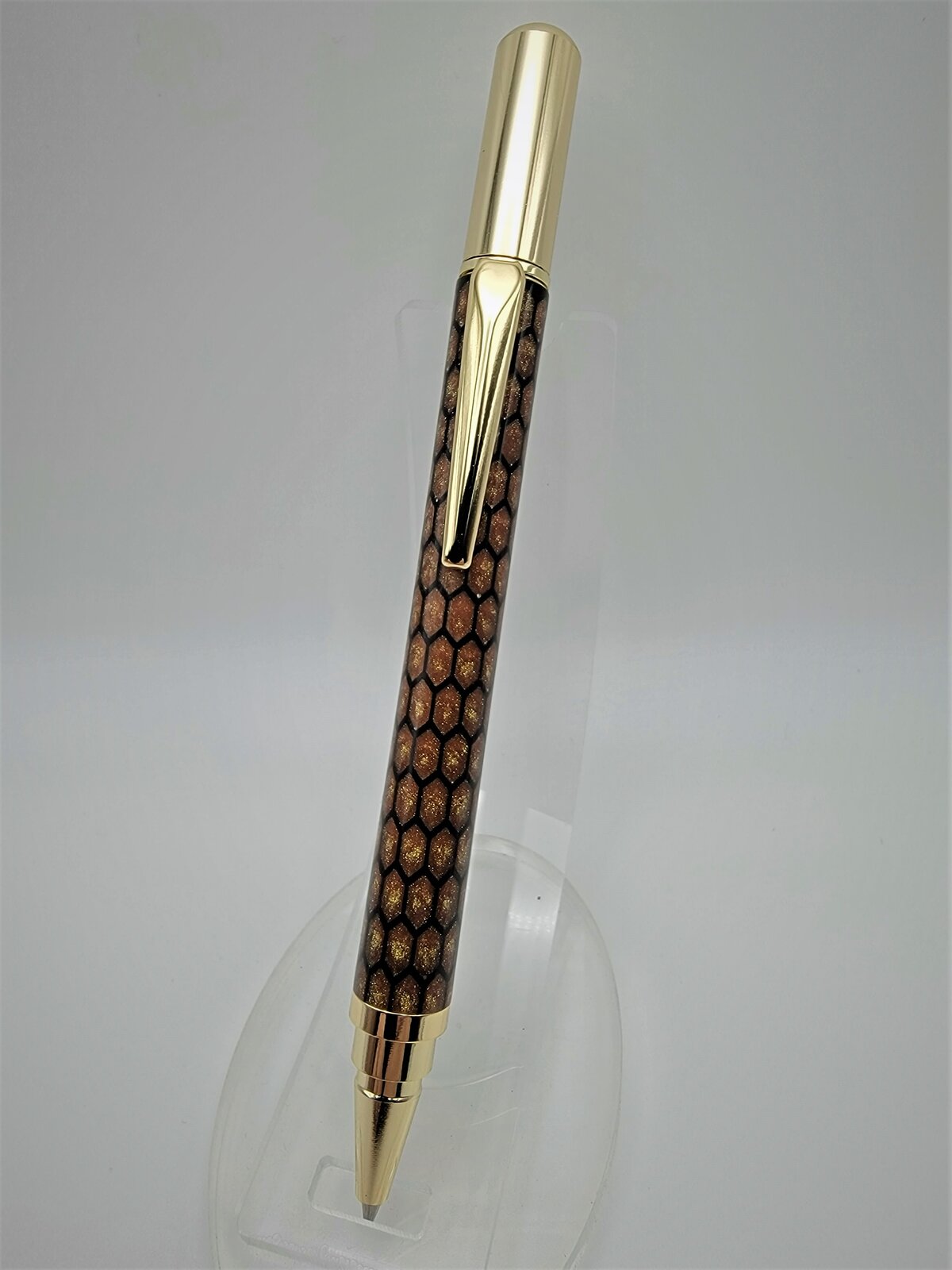

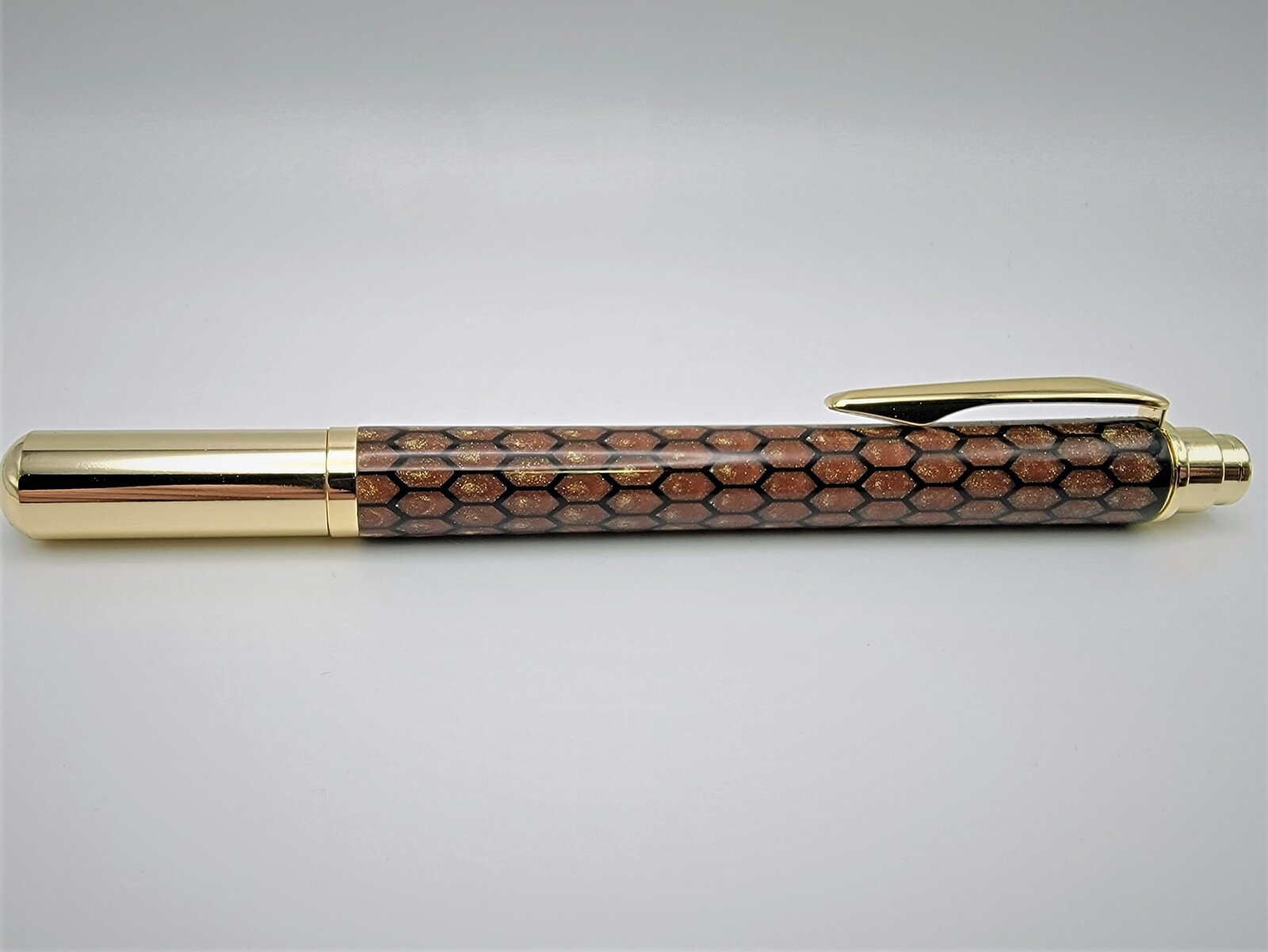

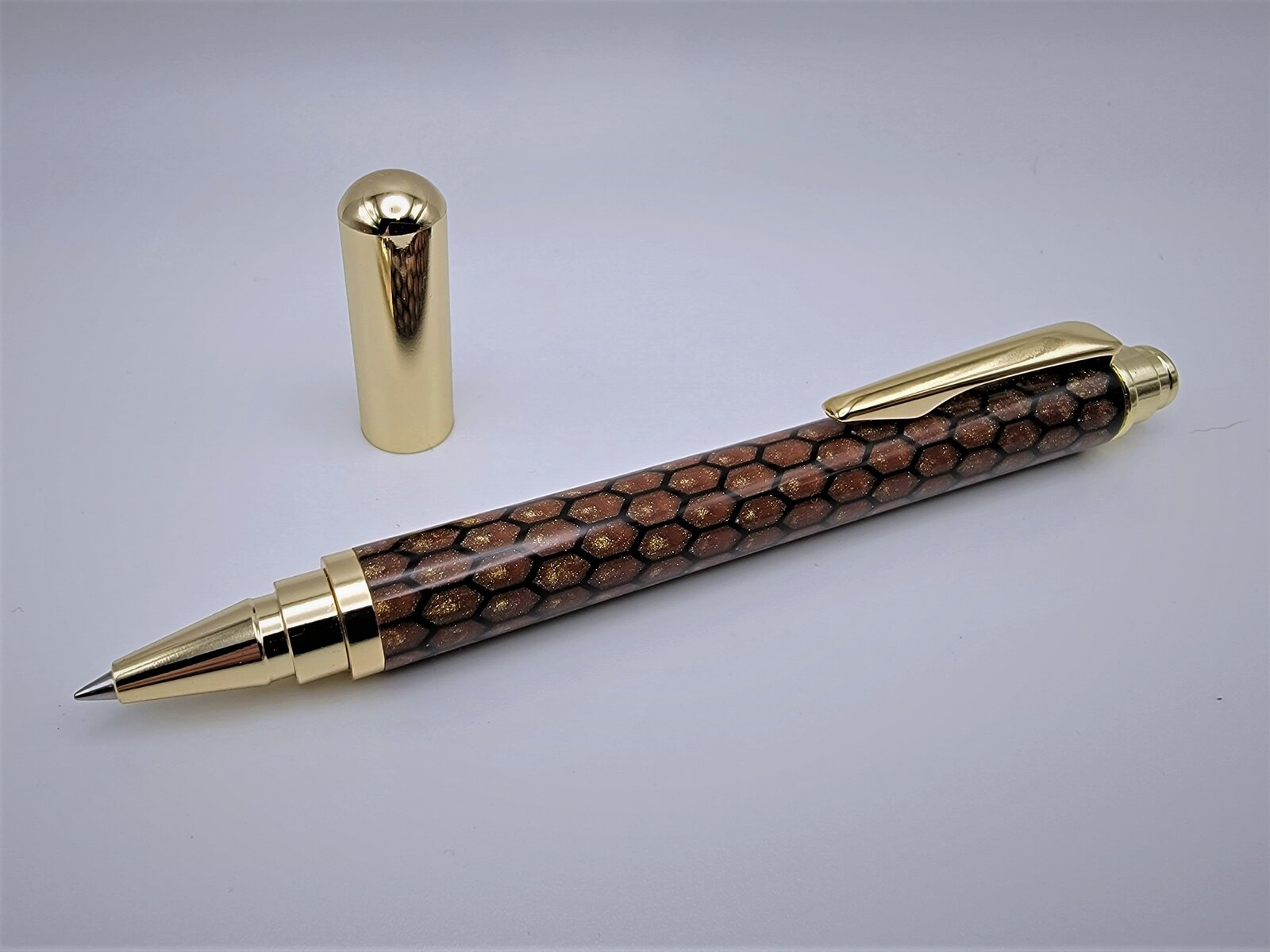

#34 is a blank that I cast using a 3D printed honeycomb skeleton which I purchased from @Marko50 . The pictures don't really do this one justice. I used color-shifting chameleon mica powder which changes color depending on how the light hits it from red > gold > yellow. For some reason, it just looks like a kind of reddish brown in the pictures but it is a lot more dynamic in person.

On this one I learned that I need to be more precise with drilling as the honeycomb pattern shifts slightly due to my crappy drill press and its inability to drill a straight hole. Something that will be fixed when my new lathe arrives.

Also, I need to move more quickly when casting these and agitate them a bit more to remove air pockets. I had cast this blank with a few others, one of which I was going for color separation so the resin had already started to kick by the time I put it in the pressure pot which reduced the ability for air to be removed from the blank. It sounds far worse than it is. There were only a few very small pinholes at the top of the hexagonal pockets where air got captured. Some CA removed these pockets quite nicely and you cannot even tell in the finished product.





Signed-In Members Don't See This Ad

leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
8,842
Location
Tunica, Mississippi,
IF you sell those blanks, you are going to make some money.
. . . BUT, warning - there are those who will copy and sell. A big pen company did that shortly after a guy here showcased the first circuit board pen that he made/cast himself.

For this reason, some great pen makers who sell in stores do not post their best or most unusual pens.

NOW, on to yours; Excellent, Excellent, Excellent! Thanks for letting us see this! Great imagination and vision to see it through!

I can see a whole new realm of pen blanks with various colors becoming available.


Painfullyslow

Member
Joined
Mar 5, 2022
Messages
378
Location
Connecticut
IF you sell those blanks, you are going to make some money.
. . . BUT, warning - there are those who will copy and sell. A big pen company did that shortly after a guy here showcased the first circuit board pen that he made/cast himself.

For this reason, some great pen makers who sell in stores do not post their best or most unusual pens.

NOW, on to yours; Excellent, Excellent, Excellent! Thanks for letting us see this! Great imagination and vision to see it through!

I can see a whole new realm of pen blanks with various colors becoming available.
Thanks for the feedback!

I assume you are referring to the honeycomb blank? I really have no intention of selling blanks and I believe that the person I purchased the honeycomb from (@Marko50 ) already sells the blanks through his ETSY shop

He also sells just the 'core' of the blank which is what I purchased so that I could cast my own colors. It does make for a cool looking pen and I encourage those interested to hit him up.

So, while I appreciate the enthusiasm for the style, you should really be sending those kudos to Marko šŸ˜

I do have a 3d printer myself, and have been messing with a few different styles but have yet to come up with something that I really like so out of lack of patience, I just bought some from him.


Painfullyslow

Member
Joined
Mar 5, 2022
Messages
378
Location
Connecticut
The more that I look at these the more I wish that I had put the hybrid blank on the gold and the honeycomb on the gunmetal :cool: I guess my wife really is right; I am never happy.


Fine Engineer

Member
Joined
Nov 17, 2021
Messages
245
Location
Carson City, NV
Once you are satisfied, you stop progressing. I don't think any of us are 100% satisfied with anything we do. Happy, yes, but not completely satisfied.

That said, both of these are really nice pens with some excellent craftsmanship.
