1205mm vs. 0.492"

Signed-In Members Don't See This Ad

qquake

Member
Joined
Feb 8, 2004
Messages
1,946
Location
Northern California

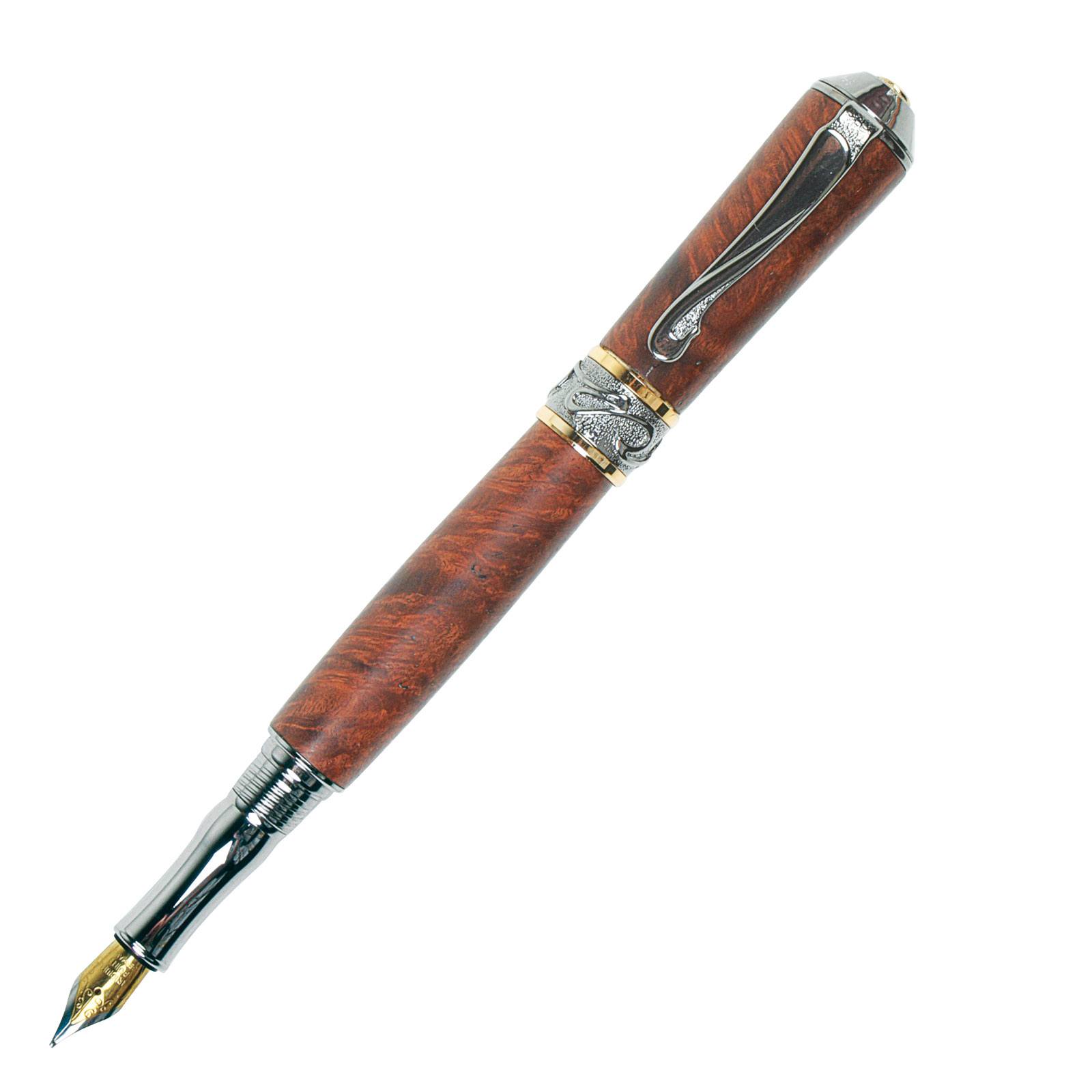

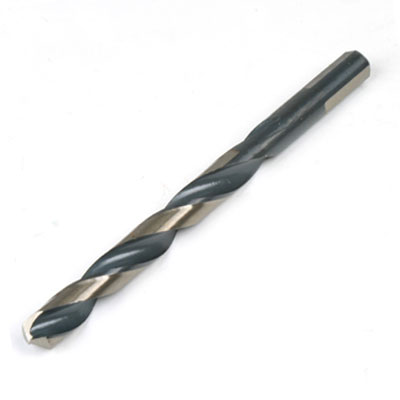

I've been looking at the Nouveau Sceptre kits. The description calls for a 12.5mm drill bit. But the instructions call for a 0.492" bit. I looked it up, and 12.5mm is 0.4921". Does 0.0001" really make a difference? I already have a 12.5mm bit, I'd hate to have to buy an expensive 0.492" bit.



Signed-In Members Don't See This Ad

Mach4

Member
Joined
Dec 13, 2016
Messages
35
Location
Boise, Idaho
I routinely drill blanks where the pen kit calls for a .375 drill with a .394 drill. And have even done some at .394 where the kit calls for .360. That’s .020 to .030 oversized with no ill effects. I’m not recommending this, but just using it as an illustration that .0001 is not relevant (and with wood, likely not even measurable). Normally you need a precision reamer to get a hole within .001.


More4dan

Member
Joined
Mar 17, 2016
Messages
1,723
Location
Katy, TX
I believe the 0.492 is just the conversion of the 12.5mm dimension to inches. Your inch options are either 31/64” or 1/2” with the former too small and later too big. The 12.5mm is the “Goldilocks” one that is just right.


Sent from my iPhone using Penturners.org mobile app


Edgar

New Member Advocate
Joined
Feb 6, 2013
Messages
5,768
Location
Alvin, TX 77511
I believe the 0.492 is just the conversion of the 12.5mm dimension to inches. Your inch options are either 31/64” or 1/2” with the former too small and later too big. The 12.5mm is the “Goldilocks” one that is just right.


Sent from my iPhone using Penturners.org mobile app
0.492 bits are available though. I bought one for this size kit before I finally bought a set of metric bits. Now I use either the .492 or the 12.5, whichever is closer at hand at the time.


budnder

Member
Joined
Dec 28, 2015
Messages
516
Location
Chicago/Tucson
In this video, there's a comment that runout measured on a drill press of .001 or .002 is "pretty good"... meaning it's often worse. That implies a hole made by a bit marked .492 may vary between .490 and .494 anyway...


But you probably can't see that extra couple thou from the road :)


ed4copies

Local Chapter Manager
Joined
Mar 25, 2005
Messages
23,860
Location
Racine, WI, USA.
IF your bit is truly .492", your hole will be a MINIMUM of .492. Wobble may INCREASE a hole, it will never decrease the size of the hole.


qquake

Member
Joined
Feb 8, 2004
Messages
1,946
Location
Northern California
0.492 bits are available though. I bought one for this size kit before I finally bought a set of metric bits. Now I use either the .492 or the 12.5, whichever is closer at hand at the time.
Yes, PSI has them listed, but they're out of stock. Like I said, I already have 12.5 and 10.5 bits, I'll use those.



frank123

Member
Joined
Feb 5, 2012
Messages
601
Location
Colorado
A tenth (of a thousandth) precision is beyond the capability of any woodworking and most metal working tools. Also beyond the ability of most of their operators to achieve even when the tools can.
