i am considering an outboard tool rest setup for my old rockwell/delta lathe (pic in album) and would appreciate any plans/thoughts/ideas/advice you experts have on the matter. thanks
outboard toolrest?
- Thread starter nwcatman
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
jjudge
Member
I've got an older Rockwell/Delta lathe, also -- similar/different than yours.
I have seen outboard toolrests on ebay, but very very expensive.
The ones I've seen look like cast iron pipe.
So, I've always thought to make one some day.
-- joe
I have seen outboard toolrests on ebay, but very very expensive.
The ones I've seen look like cast iron pipe.
So, I've always thought to make one some day.
-- joe
jharvey1309
Member
I have a vicmarc outboard tool rest it's amazing but it's expensive.
Gary Max
Member
I used a 150 lb.-- 6 x6-- heavy wall square steel tubing with a 12 inch sq base that is 2 inchs thick.
Works great and doesn't move around.
Works great and doesn't move around.
nwcatman
Member
got a pic by any chance? i am thinking about filling a 5 gallon bucket w/cement with a big pipe coming out of it.
Randy_
Member
Don't forget that the outboard thread on your spindle will probably be a reverse thread so you will need a special faceplate and your scroll chucks won't fit.
Gary Max
Member

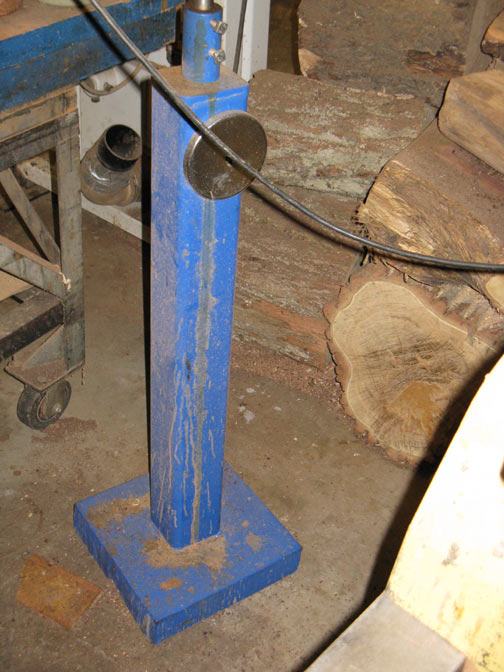

I will post a pic for you later today.---Most of the home made ones I have seen----use a old tire rim for a base.
Rifleman1776
Member
Huh? Same spindle, same thread. What are you trying to say?
Rifleman1776
Member
That is what I am considering doing. The wheel with a vertical steel tube fitted with a handle threaded so I can adjust height then a modified banjo for the actual rest. Might be awkward for foot placement but will be inexpensive and will work.
TellicoTurning
Member
Gary,
I'll be interested to see your picture... I used an old cat litter bucket filled with gravel and Qwikcrete to make a stand to hold my DC intake hose and was thinking of the same thing for an outboard tool rest... My Jet has an outboard 'extension' to the tool rest, but it's pretty punky and flexes some, plus you have to take the tool rest off the right side of the headstock and move it to the left side to get proper leverage on an outboard turning.
nwcatman
Member
i have a grinding wheel/wire wheel set up on a tire rim but it rocks a little so i don't think it would be a good thing for a toolrest.
Gary Max
Member
nwcatman
Member
you are RIGHT! back to the drawing board i guess. dam.
Gary Max
Member
Heck I just run the lathe in reverse---they also make left handed treads.
Don't give up so fast.
Don't give up so fast.
nwcatman
Member
nope, not giving up, just taking another look. my motor doesn't run in reverse, just my finances.
DocStram
Member
There were plans for building your own .... and anchoring it to your lathe .... in an older issue of WD. We talked about this a while back. Let me check the archives.
Here it is ...... http://www.penturners.org/forum/showthread.php?t=34090&highlight=outboard
WD Winter, 2008
Here it is ...... http://www.penturners.org/forum/showthread.php?t=34090&highlight=outboard
WD Winter, 2008
Last edited:
nwcatman
Member
there was no link
marcruby
Member
This is when the Jet 1642 and mustard monster owners smirk. I just run the head to the other end of the lathe, move the chip can and start turning..
nwcatman
Member
i hope ur JET freezes up this winter.
Gary Max
Member
Machines that run don't freeze--they just cool off until they are needed.
They aren't like key boards
They aren't like key boards
marcruby
Member
I think I've figured out how to run water pipes through the headstock and heat my workshop this winter. Just think a winter when I won't have to show up in the emergency ward with frostbite...
>
>
TellicoTurning
Member
Randy,
I'm being a little dense right now, so you'll have to explain this.... The headstock on my lathe rotates outboard and turns the same way outboard as it does over the ways... I just have to step left a little and move the tool rest to the left side of the headstock, otherwise, nothing has changed...... what am I missing??
marcruby
Member
Most headstocks don't rotate. Or slide to the other end of their bed either. For those lathes the only choice is to switch to the other side of the headstock.... Or buy another lathe.
Marc
Marc
nwcatman
Member
exactly. and i can switch to the other side of the headstock, but the shaft has a left hand thread on that end. i guess i could rig up a fan to run on that end since its always hot here.
marcruby
Member
Teknatool (the Nova folks) and Oneway do make LH thread chuck inserts. I have a Oneway Stronghold chuck that I really like. Buy two inserts and you'll have one of the best chucks you can own.
Randy_
Member
I think I mentioned this earlier, perhaps without enough emphasis. If you have one of the standard spindle threadings, it should not be difficult to find a faceplate with reverse threads.
Try looking in the Grizzly catalog or do a simple general Internet search and you should be able to find one.
Chuck Key
Member
Harbor Fright has one advertised as Item Number 98757 They call it 1" RH/LH Screw Chuck. Take the screw out and you are left with a 2 1/2 inch diameter face plate. Howerver keep reading!
I have had three of these trying to get one to work this week. Finally got one where the 1 x 8 RH threads would fit my lathe. None of them had left hand threads just a line where it looks like that tried to thread with a broken tap or something. The right hand threads on two of them had so much power coat on the threads that I could not screw the chuck on my lathe.
I took the screw out and redrilled and tapped for 3/8 x 16 and made a dedicated bottle stopper chuck out of it.
Would still like to have another on but will not buy until they get the thread issues fixed. I tried to explain these problems to the guys at HF and mentioned they should not even have them out for sale. The said they would talk to the Manager of the store.
Last edited:
