Need Help on Bad controller on a Jet Mini lathe

[Mennis]

Does anybody have a recommendation on how to replace the controller box on a Jet JML-1014VSI? The controller box is no longer available and there is no replacement from Jet. Even the parts inside the box are no longer available. Has anyone been able to use a third party controller for the motor? I am looking for a used controller box as well but have not found one. Any help is greatly appreciated.

Just to add, the motor will still run but only at high speed. The speed knob does nothing when turned.



[Drewby108]

Jet CONTROL POTENTIOMETER ASSEMBLY JWL1220VS-196

Jet CONTROL POTENTIOMETER ASSEMBLY JWL1220VS-196

www.mmtoolparts.com

I would look at replacing the potentiometer to see if that helps. I know that says 1220, but they are the same part.



[Curly]

This guy repairs circuit boards for mini mills and lathes. Contact him and see if he will take a crack at fixing it.

Olduhfguy.com

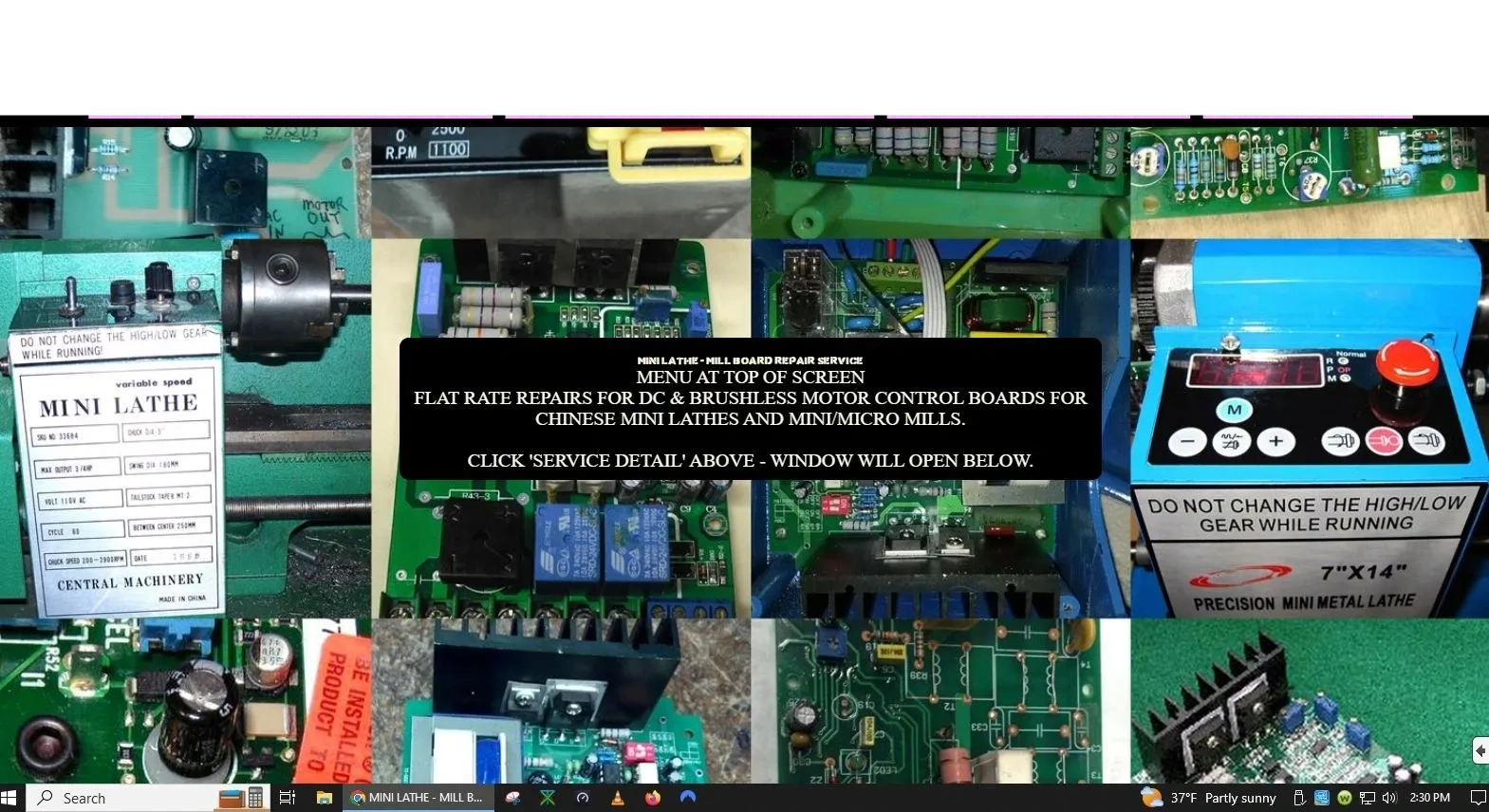

Repair Service for Mini Lathes and Mini Mills

olduhfguy.com



[rixstix]

This PSI part makes a 1014i into a 1014vsi. There's a printable template to verify motor mount fit. Been working on my 1014 for years.


https://www.pennstateind.com/store/TCLVSKIT2.html



[Mennis]

This guy repairs circuit boards for mini mills and lathes. Contact him and see if he will take a crack at fixing it.

Olduhfguy.com

Repair Service for Mini Lathes and Mini Mills

olduhfguy.com

I found Peter on another post and contacted him. He fixed it and returned in less than a week. Works great. Thanks for the info. Anyone with a variable speed control should keep the URL you listed above.



[Mennis]

This PSI part makes a 1014i into a 1014vsi. There's a printable template to verify motor mount fit. Been working on my 1014 for years.


https://www.pennstateind.com/store/TCLVSKIT2.html

Thank you. I was able to get it repaired. Olduhfguy.com



[Mennis]

Also the cost was $50.00 plus shipping. Very reasonable imo.



[Curly]

That's good to hear Mennis. I have a board for a grizzly that has a duff rpm display.
