Looking for a spindle adapter

Signed-In Members Don't See This Ad
T

Texatdurango

Member
Joined
Apr 23, 2007
Messages
4,649
Location
Show Low, Arizona
I have a Grizzly G4000 that has 39mm x 4mm threads on the headstock spindle. I also have several tools and chucks with 1" x 8tpi threads and have searched high and low and no one has an adapter. Lots of 33mm x 3.5mm adapters but no 39mm!

My question, does anone have any idea who might carry a 39mm x 4mm to 1" x 8tpi adapter? Grizzly is closed 'till monday, MSC is offline, KBC, Little Machine Shop have nothing and my Google searches are coming up empty handed.

If I can't find one, I think my only solution would be to insert a mt-3 spindle with a 1" x 8 tpi end and use a drawbar to hold it in.

Signed-In Members Don't See This Ad
randyrls

randyrls

Member
Joined
Feb 2, 2006
Messages
4,829
Location
Harrisburg, PA 17112
Originally posted by Texatdurango

I have a Grizzly G4000 that has 39mm x 4mm threads on the headstock spindle. I also have several tools and chucks with 1" x 8tpi threads and have searched high and low and no one has an adapter. Lots of 33mm x 3.5mm adapters but no 39mm!

If I can't find one, I think my only solution would be to insert a mt-3 spindle with a 1" x 8 tpi end and use a drawbar to hold it in.
Click to expand...
I wanted to find something line this to use my Oneway 4 jaw self-centering chuck on my G4000, but have been unable to find one. Internal threading a 39 x 4mm is a bit beyond my comfort level.

If anyone knows where these can be have, please pipe up!

Tex; LMS sells an MT3 taper with a blank end on it. The end is 1.5" x 1.5". You should be able to turn it down and put whatever thread on it that you want. The part below takes a 3/8 x 16 drawbar. A long bolt with 2 or 3 finder washers works well.


http://www.littlemachineshop.com/products/product_view.php?ProductID=2393&category=10

Rifleman1776

Rifleman1776

Member
Joined
Dec 18, 2004
Messages
7,330
Location
Mountain Home, Arkansas, USA.
PSI carries a lot of adapters. Amazon often also has them at lower prices. One of the higher end woodturning catalogs has a big selection of adapters. I do recall they were quite expensive, like $40.00 to $60.00. Downside, I can't recall the name of the supplier. Will post if it comes to me. Keep searching.

T

Texatdurango

Member
Joined
Apr 23, 2007
Messages
4,649
Location
Show Low, Arizona
Originally posted by Chuck Key

Maybe http://bestwoodtools.com/ under Woodturning Tools and Accessories then about half way down the page. Pick up a PenPal while you are at it.

The page says:

Special thread sizes available on request. Please call us at 931-788-0429 for a quotation.

Chuckie
Click to expand...
Well it's getting ugly! It appears that no one is going to have this particular adapter.

I called bestwoodtools Monday and they returned my call Tuesday giving me a quote of $170! So much for that! I also got with JohnnyCNC last week and he said he would entertain the notion of making a few if I could get a few other takers from various metal lathe sites I belong to but so far I see no other interest, just talk.

That said, I think I will revert to plan B. I ordered an MT3 collet chuck and draw bar so at least I can use all my collets to hold various size blanks for working on nibs and other tiny pen parts.

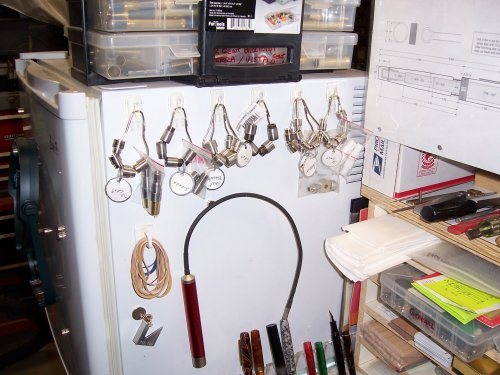

John, look closely at the photo below and see if you can find the penpal!:) I bought this last year and use it to mark every pen I make. It and my spring loaded center punch get a lot of use when making pens.
