Pentel Conversion Clip

[montmill]

Love making Pentel conversions but struggle with the clip. Both taking them off the original and putting them on the conversion. Any tips or tutorials you might suggest? Thank you,



[Mike8850]

I take a spare pen tube that just fits over finished pencil and put the clip on it.
Then place the tube with the clip on it on the pencil to where I want it and slip it off.
I forget where I saw it but it works really well
Taking it off is still a pain
Mike



[Mike8850]

Here's a few pics to explain

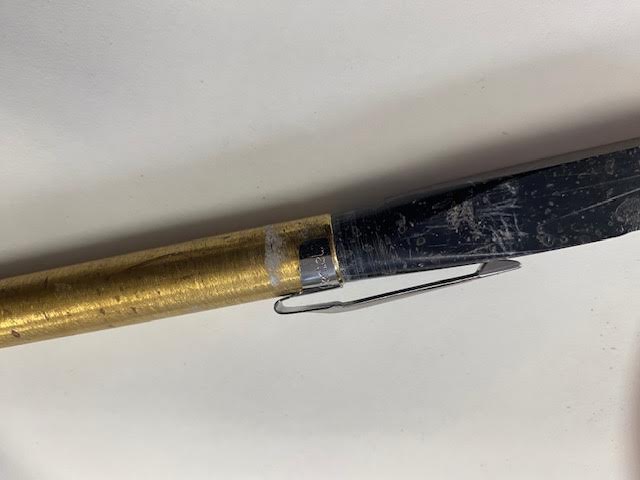

I turned a piece of corian with a taper to help get clip on tube

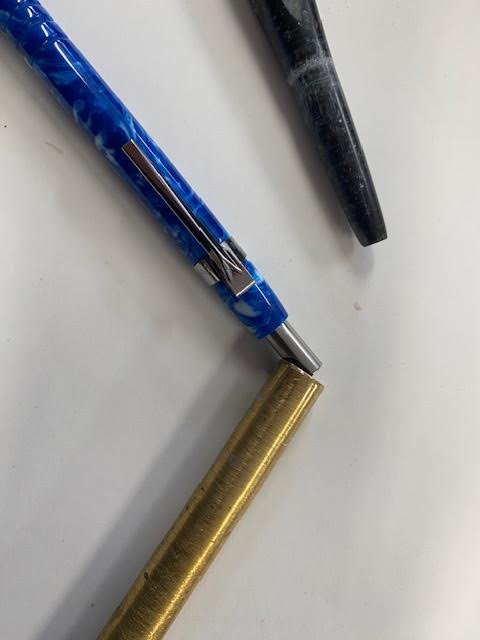

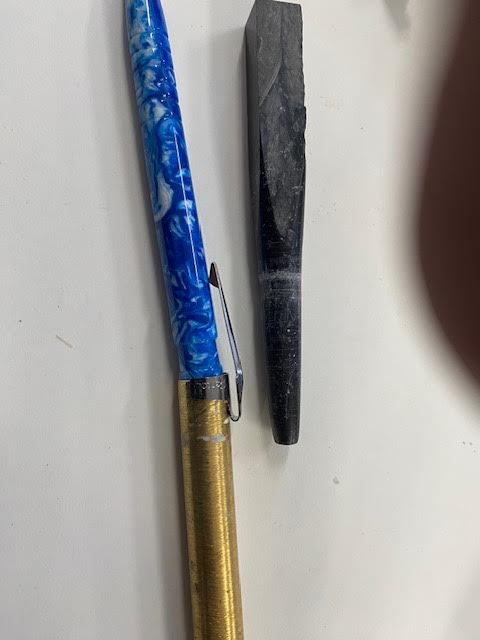

Slip it over pencil and slip off

Hope this helps
Mike



[BHuij]

Smart - I might try that technique.

I find getting the clip off the original plastic pencil body is pretty easy - you're not prying it off laterally, you slide it up past the click button at the top and it comes off no problem.

Getting it on the new wooden pen body is harder. I've had good luck with using needlenose pliers as "jaws of life" to expand the clip "wings" and force it onto the wood body, then letting it rebound back to close to its original shape. Works fine for the most part, as long as the diameter of the turned area for the clip is very close to the diameter of the original clip area on the plastic pencil body.



[d_bondi]

Here's a few pics to explain
View attachment 391566
I turned a piece of corian with a taper to help get clip on tube
View attachment 391565
Slip it over pencil and slip off
View attachment 391564
Hope this helps
Mike

This is Brilliant!!
