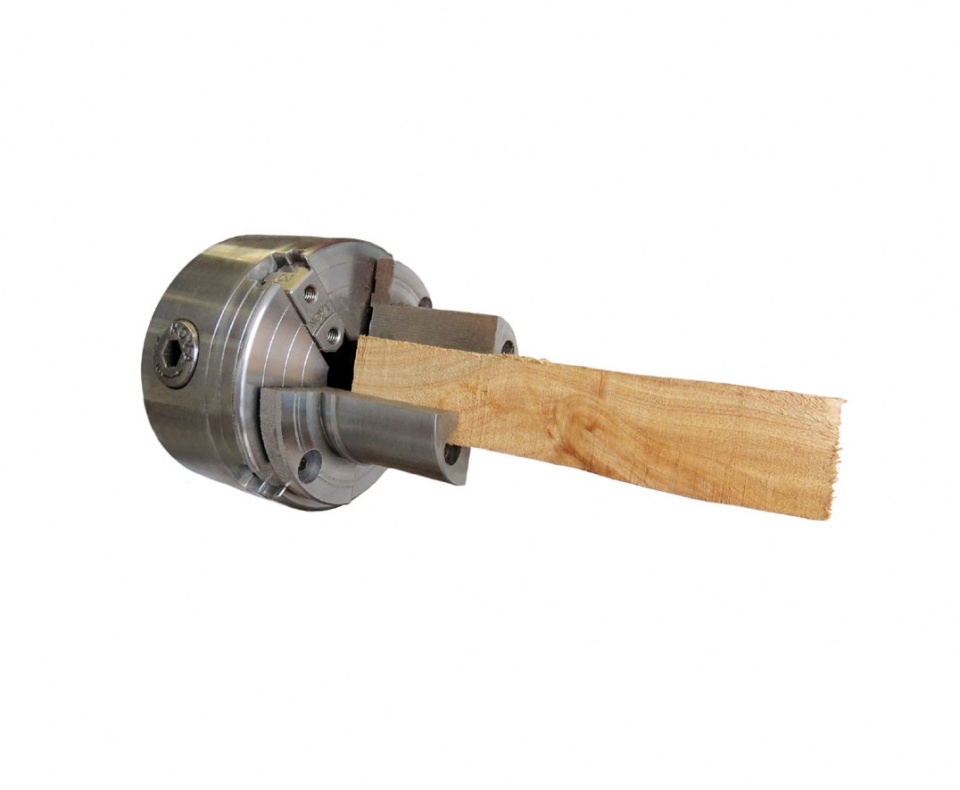

Nova Pen Plus Jaws

[sschering]

I noticed the other day that the Pen plus jaw set I have is numbered 1 and 4
If I were to mount them on the numbered jaws they would be right next to each other.

Do the stamped position numbers matter for the Pen plus jaws?



[robersonjr]

Yes, and the # 1 and #4 would be next to each other.



[greenacres2]

So...somebody has a 2-3 set and can't figure out why the center drilling is off??? :>)
earl



[sschering]

Yeah that is a problem I guess. Not much I can do about it now since I've had them for 2 years and didn't notice till now.



[bsshog40]

Thats odd as the nova website pictures them opposite each other.



[greenacres2]

Not really all that odd Bobby. Vast majority of their jaws are 4 piece and cut from a single billet so they'll align correctly. The pen jaws, being just a pair it isn't necessary to get a close minimum fit, so the numbering doesn't matter--but they must be cut from billets that are numbered anyway. I'm not taking mine off to check!!
earl



[MRDucks2]

I found the alignment to be slightly adjustable using the mounting screws and running them together before tightening.


Sent from my iPhone using Penturners.org mobile app



[TattooedTurner]

Mine aren't numbered and truthfully I see no reason why it would matter with only the 2 jaws.



[bsshog40]

I found the alignment to be slightly adjustable using the mounting screws and running them together before tightening.


Sent from my iPhone using Penturners.org mobile app

This is the method they recommend for all thier jaws. I make it a habit also to keep the screws a little loose, run the jaws all the way in and then tighten.



[Dale Allen]

I believe they have to be opposing numbers because of the way the scroll part matches.


Call Nova and explain it to them.


I had a scroll body for a few years until I discovered the jaw carriers were too loose in the ways and the pen jaws would not clamp correctly.
They sent me a new scroll body at no charge.
