I didnt invent or design this jig but thought I would share it with you. its made of 3/4 in plywood and will take 1 piece about 3 ft x 2ft. the over all dimensions are 12in x 24in.
Cut
1ea-12x24x3/4
2ea-2x24x3/4
2ea-9x24x3/4

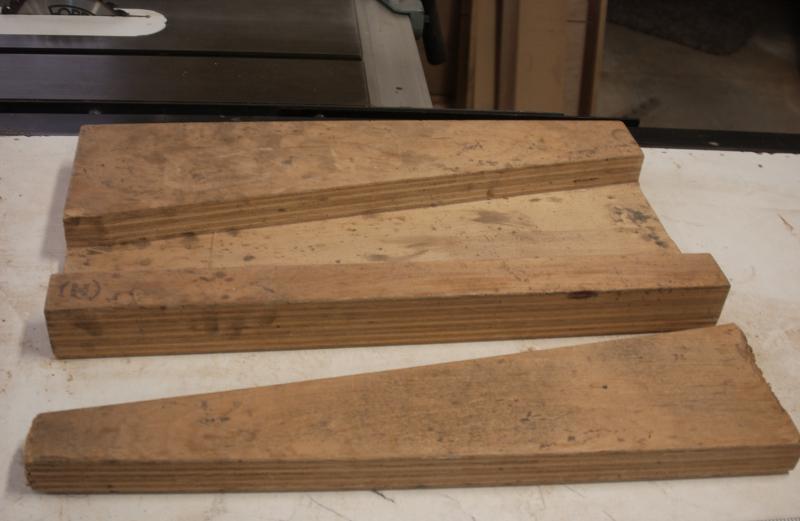

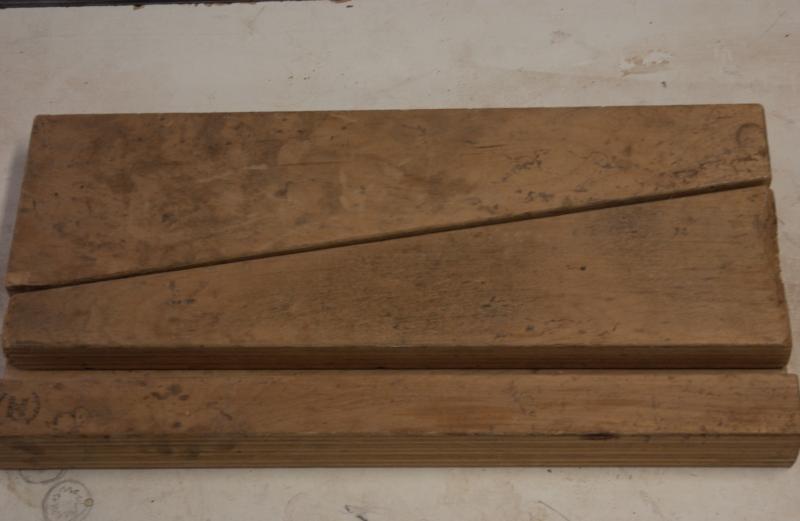

Glue the 2- 2x24x 3/4 togther and attach it to the bottom 12x24 piece.

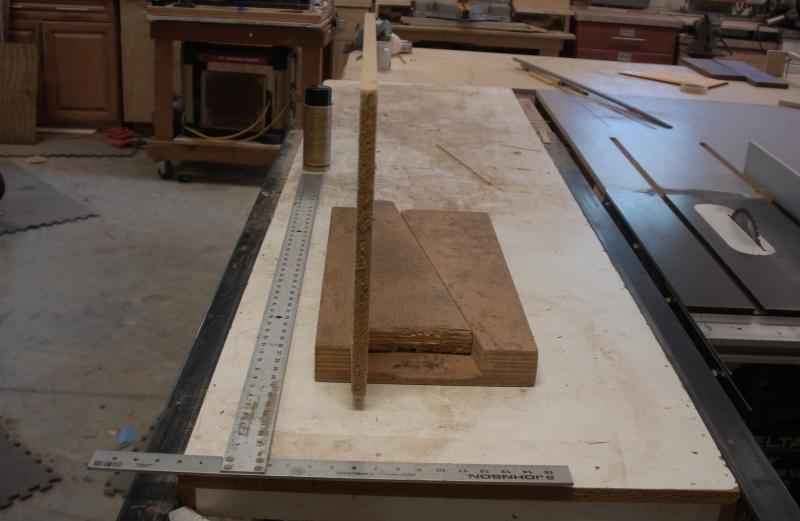

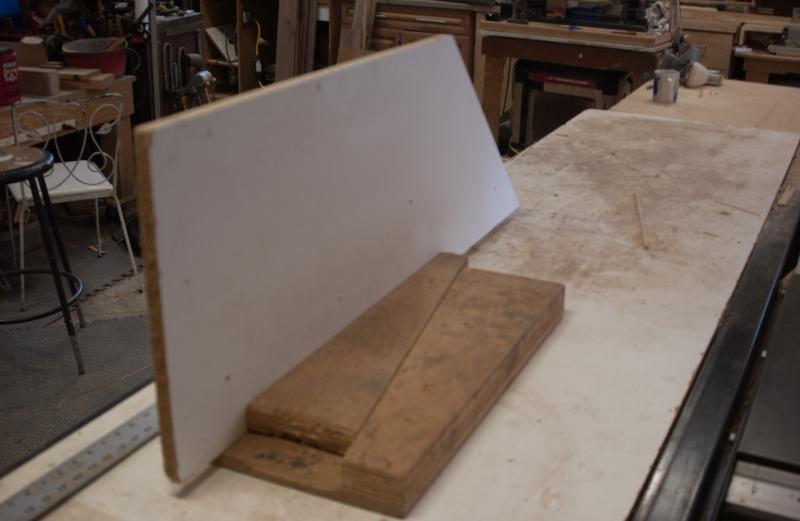

glue the 2 9x24 pieces together, measure up 2in on one side and down 3in on the other. Draw a cut line between and this defines your wedge pieces. attach the larger piece to the base. This jig helps me a lot when doing flat work, cabinet doors, edge banding, etc. I hope the instructions are easier to understand than the china rendition.
