In keeping with Ian's question

[TellicoTurning]

I didn't want to hijack Ian's thread, but have a question on the bullets used in cartridge pens...

What do you guys use to hold the bullet to drill it out as a nib... I don't have a collet system and if that's what's needed, guess I need to get one.



[jttheclockman]

I didn't want to hijack Ian's thread, but have a question on the bullets used in cartridge pens...

What do you guys use to hold the bullet to drill it out as a nib... I don't have a collet system and if that's what's needed, guess I need to get one.

That is what I use and makes easy work of it. But you can make one. Look in the library and there is some good tutorials.

http://content.penturners.org/articles/2007/tn_streamlinedcartridgepen.jpg



[fernhills]

I didn't want to hijack Ian's thread, but have a question on the bullets used in cartridge pens...

What do you guys use to hold the bullet to drill it out as a nib... I don't have a collet system and if that's what's needed, guess I need to get one.

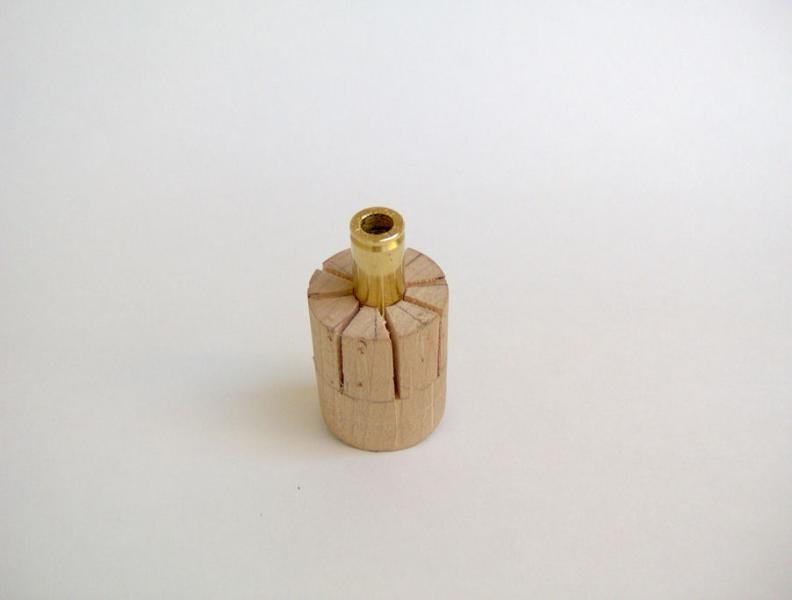

This is what i used before i had a collet. I used it in my 4 jaw chuck. it is easy to make. Carl



[Sylvanite]

When I first started making rifle cartridge pens, I used homemade wood collets in a scroll chuck to grip the case and bullet when drilling. They worked, but not nearly as well as steel collets in a Beall chuck.

Regards,
Eric



[papaturner]

Chuck, It appears my way is the simpliest. I take the waste from a very hard (wood) blank, I drill a hole the size of the bullet then split it corner to corner and then drill on my drill press. Using the wood to secure the bullet in my blank drilling gig. Hope this helps and doesn`t confuse.



[TellicoTurning]

Thanks, probably won't be doing any soon, but good info.
