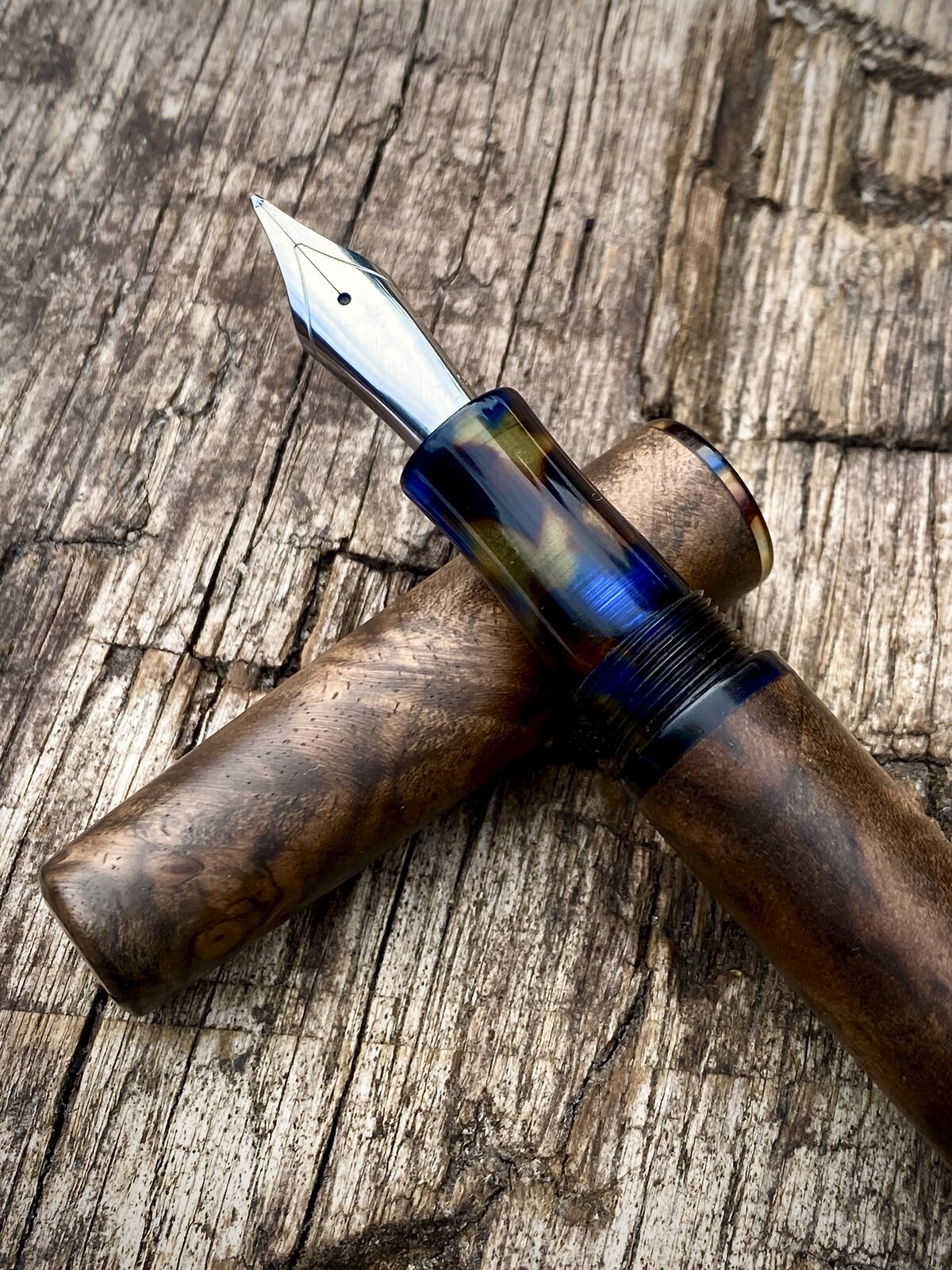

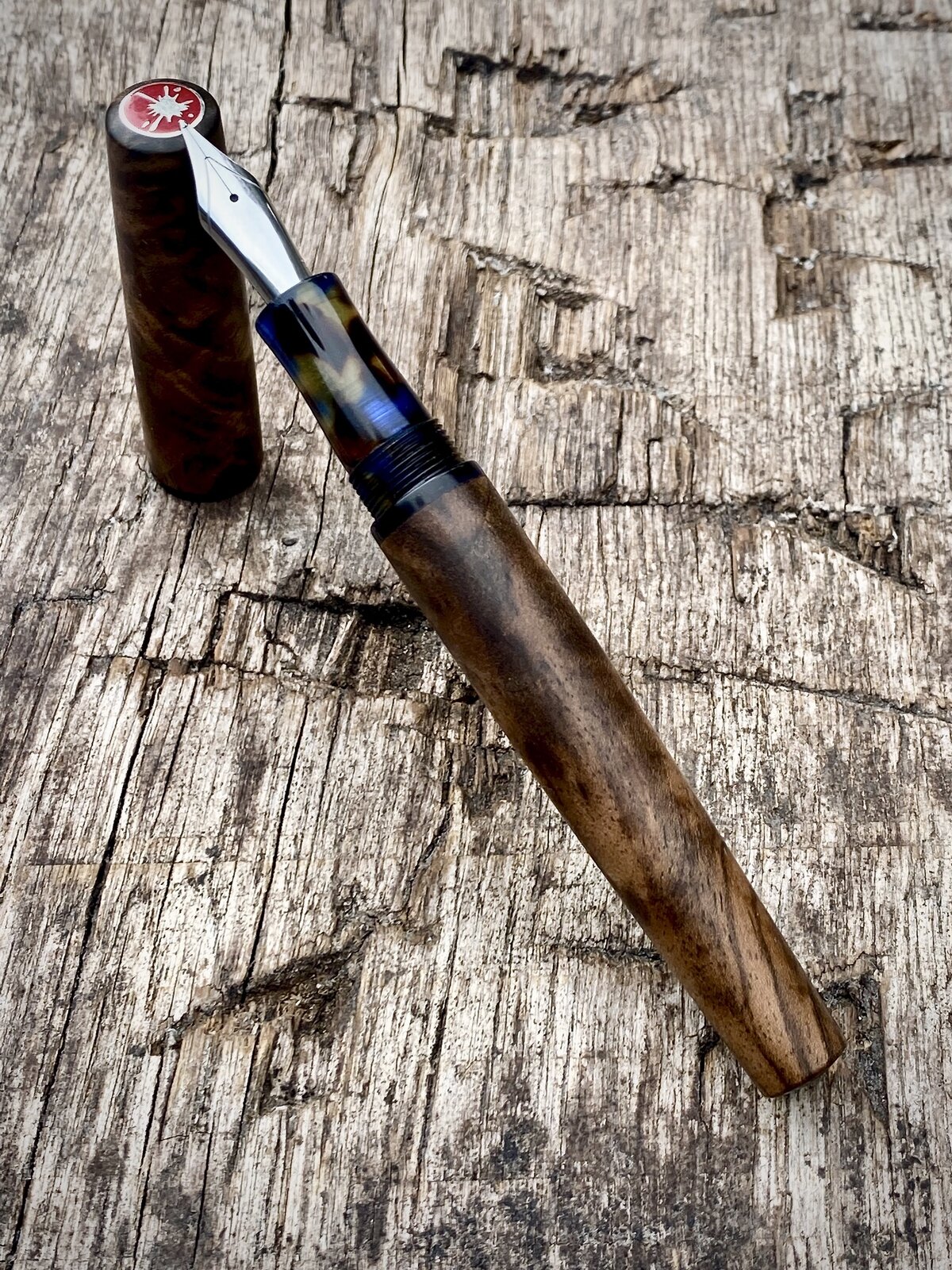

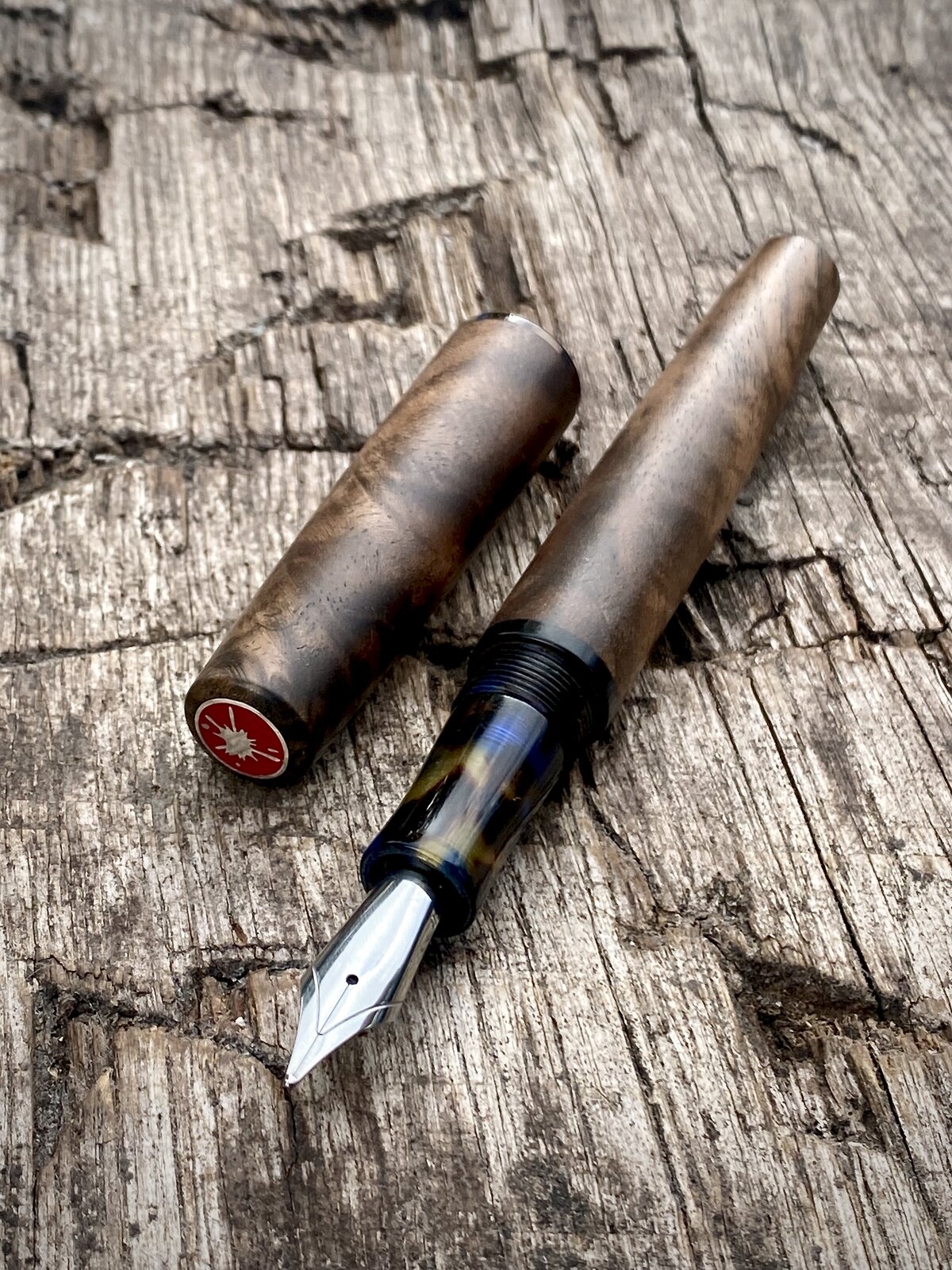

This is Bolivian rosewood and I’ve used a blue cellulose for the threads and section.

I’ve used 13mm triple start threads for the cap and the overall length is around 140mm when closed.
The barrel is 15mm diameter at its widest. Nib is a Jowo no6.

cheers
Ash
2B3EDED2-1953-439E-8E76-2F83F82DC7F8.jpegFB9F4E2E-5FA3-46CE-8943-C061F50E264A.jpeg1B6D15C0-F423-4841-BB92-3709490D621B.jpeg1EBCFE06-46FB-4F15-A5BC-4B15C27C3372.jpeg

Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
15,073
Location
Coquitlam, BC, Canada
Very nice !!!!

Thanks for showing !!!!

Couple of questions, please ....
1) What is the finish ?
2) Is there any tubing insert (eg. brass), inside the length of the barrel and cap, to add reinforcing strength to the Bolivian Rosewood ?


magpens

Member
Joined
Feb 2, 2011
Messages
15,073
Location
Coquitlam, BC, Canada
Oh, one other question ... you say you used "blue cellulose for the threads and section."

Is it actually "cellulose" ? . Would acrylic acetate (the pen turners AA blank material) work equally well ?


Valleyboy

Member
Joined
Jul 2, 2019
Messages
91
Location
Wales
Very nice !!!!

Thanks for showing !!!!

Couple of questions, please ....
1) What is the finish ?
2) Is there any tubing insert (eg. brass), inside the length of the barrel and cap, to add reinforcing strength to the Bolivian Rosewood ?
Thanks Mal
1) The finish on this is oil and then hard wax. I explain to any potential owner that this is a more “natural”’finish and is not as robust as a lacquer (or CA) finish which I sometimes use.
2) no tubes are used here. The cellulose is rebated into the wood and glued in place. The wall thickness of the wood is a round 2mm so it’s pretty strong and I always do a fairly tough snap-test on them just in case there is any weakness that may be hiding in the wood.
Cheers
Ash


Valleyboy

Member
Joined
Jul 2, 2019
Messages
91
Location
Wales
Oh, one other question ... you say you used "blue cellulose for the threads and section."

Is it actually "cellulose" ? . Would acrylic acetate (the pen turners AA blank material) work equally well ?
I should have been clearer. It’s cellulose acetate, so it’s a bioplastic that is manufactured from organic matter, such as wood pulp, and acetic acid.
I have used acrylic for the same purpose but much prefer the warm and soft feel of the cellulose acetate in the hand compared to acrylic.
Cheers
Ash


CjG78

Member
Joined
Feb 2, 2020
Messages
556
Location
Australia
Ash your pens are absolutely inspirational. Everything is perfect. I'd love to pick your brain about how to sleeve timber for kitless when you get some time mate


NJturner

Member
Joined
Dec 4, 2006
Messages
44
Location
New Jersey, USA.
Count me in with the folks who want to know how you sleeve the wood blank. I'm waiting on my tap and die order from the IAP group buy to get going on bespoke pens. My goal with this is to stick with wood for blanks wherever possible, but I am concerned with the strength and ability to hold the threads of the wood, so have been looking at ways to do a sleeve or insert into the wood for strength and tap-ability. I know Ryan Krusac has been doing this for some time with much success.....
