Biggest mod to one of my lathes

Signed-In Members Don't See This Ad
A

apple320

Member
Joined
Feb 2, 2008
Messages
372
Location
Orangeville, Ontario, Canada.

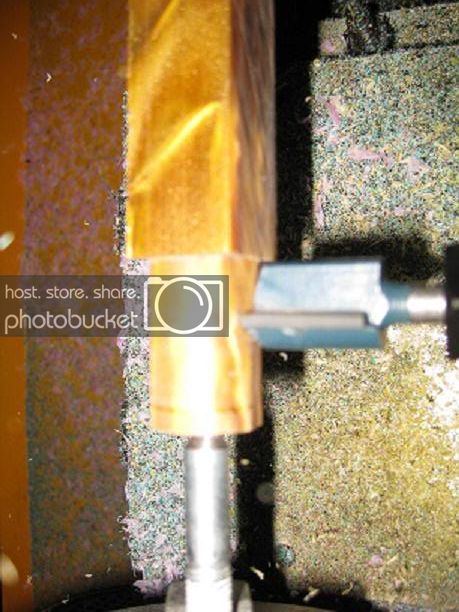

This is wrong in so many ways but it works like a charm.
I can go from 3/4 square to 1/2 round in one pass.




It is a small hand held router mounted on the tool holder.

Last edited:
Signed-In Members Don't See This Ad
Nothing scary or cheating about it. It's using your tools to get the most out of them. A lot of folks adapt trim routers to their lathes. Besides what he's doing with it, you can use it for things like cutting flutes. PSI makes a sled type setup for doing the same thing on wood lathes.


Attachments

  • trmrtrlathe.jpg
    56.6 KB · Views: 492
  • trmrtrlathe1.jpg
    57.3 KB · Views: 435
bluwolf said:
Nothing scary or cheating about it. It's using your tools to get the most out of them. A lot of folks adapt trim routers to their lathes. Besides what he's doing with it, you can use it for things like cutting flutes. PSI makes a sled type setup for doing the same thing on wood lathes.
Click to expand...
HEY! I've NEVER seen this in your shop. AND, why don't I have one?:mad:

LOL!! This is so scary it looks like there is blood on the yellow nobs to tighten the strap clamps down:eek::biggrin:

bluwolf said:
Nothing scary or cheating about it. It's using your tools to get the most out of them. A lot of folks adapt trim routers to their lathes. Besides what he's doing with it, you can use it for things like cutting flutes. PSI makes a sled type setup for doing the same thing on wood lathes.
Click to expand...

Very nice setup!
Curious on how you mounted the router to the plate.
Any chance of a pic of the detail?

Thx

dalecamino said:
bluwolf said:
Nothing scary or cheating about it. It's using your tools to get the most out of them. A lot of folks adapt trim routers to their lathes. Besides what he's doing with it, you can use it for things like cutting flutes. PSI makes a sled type setup for doing the same thing on wood lathes.
Click to expand...
HEY! I've NEVER seen this in your shop. AND, why don't I have one?:mad:
Click to expand...

Cuz I only use it once in a while. When you're here just go through the drawers. If you see anything interesting just ask. Buy a trim router and we'll make it work somehow:biggrin:

Gregf said:
bluwolf said:
Nothing scary or cheating about it. It's using your tools to get the most out of them. A lot of folks adapt trim routers to their lathes. Besides what he's doing with it, you can use it for things like cutting flutes. PSI makes a sled type setup for doing the same thing on wood lathes.
Click to expand...

Very nice setup!
Curious on how you mounted the router to the plate.
Any chance of a pic of the detail?

Thx
Click to expand...

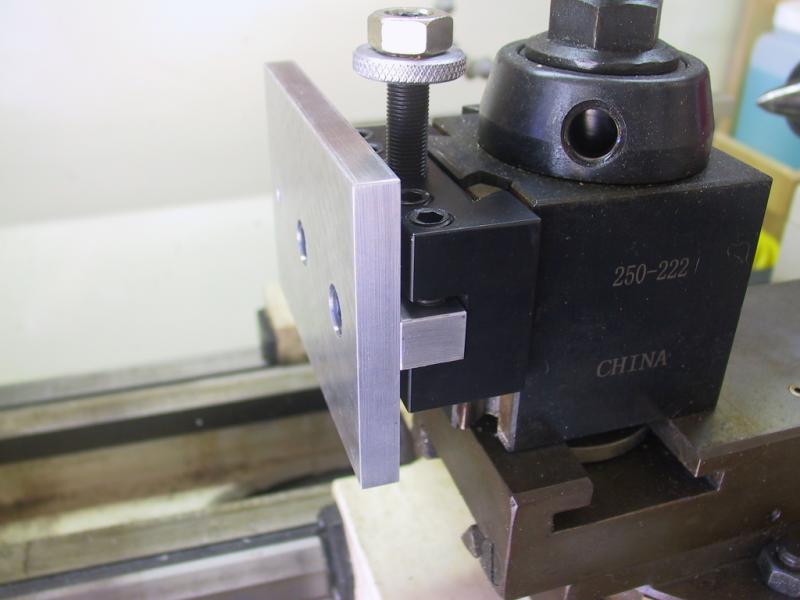

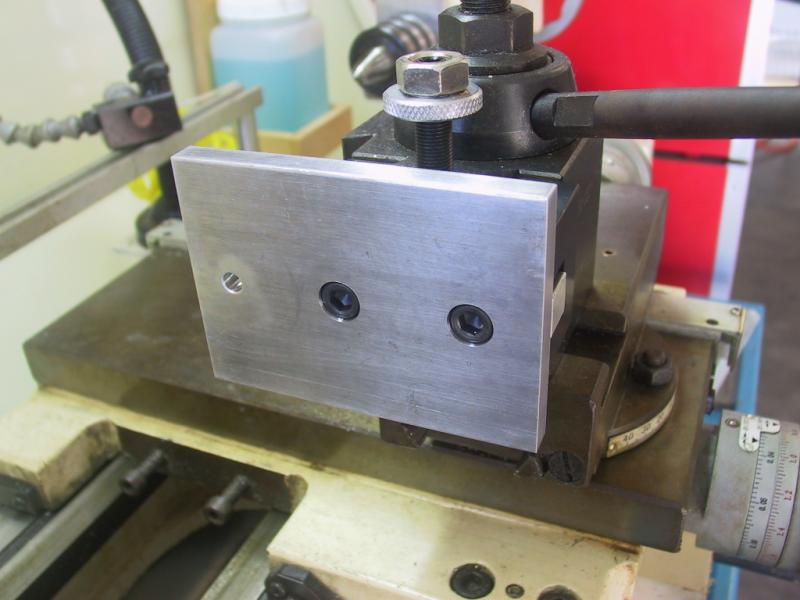

Here ya go. Nothing fancy. Just a plate bolted to a piece of square bar stock that gets held in a quick change toolholder. I use the bolt that holds the router to the base plate.


Attachments

  • trmrtrplt.jpg
    49.4 KB · Views: 332
  • trmrtrplt1.jpg
    39.7 KB · Views: 323
I actually have something similar for my wood lathe.
Did you ever run with the lathe ON?
I always turn the blank by hand while advancing the router with the othet

I don't think it is that dangerous. Your hands wouldn't be anywhere close to the bit and you could even use an auto feed if you wanted. The only thing that would be bad is if the router came loose but I am sure that it is nice and tight:biggrin:

bluwolf said:
apple320 said:

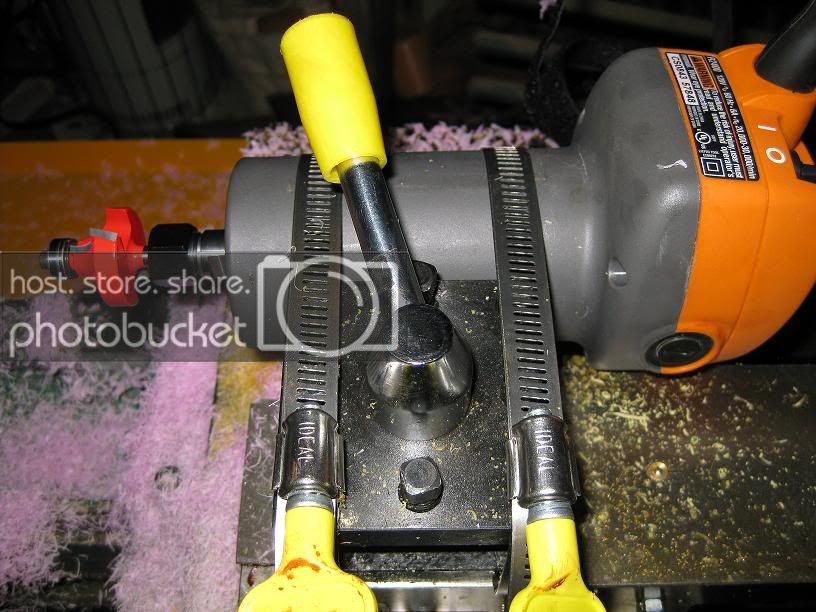

A better pic

http://gecikaknits.blogspot.com/2011/10/when-we-knit-we-do-it-right.html
Click to expand...

Looks good. It looks like you modified it to be more of a quick change. Does it feel more rigid with the shorter hose clamps?
Click to expand...

Yes now it comes off as one unit so I can use other tooling.

Rigid never had any problem with either setup but the second allows adjustment via the tool post to get angles and sharpen my pencils when they need it lol

See that other plug down there to the right? That was the block heater from my VW that I used to have to turn on for 15 min to heat up the oil in the head of my lathe.

Last edited:
I'm thinking the block heater for the oil is a good idea up north in the winter. Did you actually install it in the lathe or do you just stick it down in the headstock for a little bit?

I know this will sound stupid, relatively speaking considering where you are, but even when it gets cold here in Florida(hey, we have days that start out in the high 30s, low 40s down here occasionally) I feel better starting the lathe in a low speed for a few minutes just to get the oil slinging around before I crank up the speed. Kinda like stretching before running.

Guys, that looks like a great idea, and I really don't see much safety issue, I'm sure OSHA would have a hissy fit. But for the most part I like Bluwolf's idea the best.

bluwolf said:
I'm thinking the block heater for the oil is a good idea up north in the winter. Did you actually install it in the lathe or do you just stick it down in the headstock for a little bit?

I know this will sound stupid, relatively speaking considering where you are, but even when it gets cold here in Florida(hey, we have days that start out in the high 30s, low 40s down here occasionally) I feel better starting the lathe in a low speed for a few minutes just to get the oil slinging around before I crank up the speed. Kinda like stretching before running.
Click to expand...

This block heater epoxies to the oil pan so I just mounted it to the side of my lathe.
When it is really cold I always start off am bit slow as well just to get the oil splashed around the head of the lathe.

bitshird said:
Guys, that looks like a great idea, and I really don't see much safety issue, I'm sure OSHA would have a hissy fit. But for the most part I like Bluwolf's idea the best.
Click to expand...

(Bluwolf's idea the best) me too lol that will be my next mod. I had the routher for free because the base was missing so that is why I have the clamps and a welded up bracket to hold it all together. When it ever dies then I will buy a new one and make up a proper bracket for it. But for a temp solution it is now going on 3 years. Die bugger Die.

Last edited:
nice job. we used to make set ups like that all the time in the machinist world. most of the time they were commercially available stuff but basically the same thing.
looks great to a machinist.

cwolfs69 said:
nice job. we used to make set ups like that all the time in the machinist world. most of the time they were commercially available stuff but basically the same thing.
looks great to a machinist.
Click to expand...

Thank you very much.
My only machine training was a class back in grade 9 so it has been a long self taught road. I am sure lot of what I do is wrong or there is an easier way to do it, but at the end of the day I have something I seen in my mind in my hand so all is good.

Chris,
It now makes perfect sense. You mentioned this type of setup a while back, possibly on another forum, but now I get it. Pretty cool, I like the way you sharpened up the knitting needles. I get a kick out of that.

joefyffe said:
Darn You, Chris! When I first opened that site and saw Gecika Knits, I thought I had been hacked!! :eek::biggrin:
apple320 said:
A better pic

http://gecikaknits.blogspot.com/2011/10/when-we-knit-we-do-it-right.html
Click to expand...
Click to expand...

Sorry but it was the latest pic of the lathe setup.
This child has been working my old 1941 South Bend of my grand fathers when she had to stand on a milk create to see the cutting tool. She used to make a pen for her teachers every year for Christmas as we have always encouraged them to make their Christmas gifts.


5th picture down
http://appleman-pens.blogspot.com/2011/10/studio-area.html
