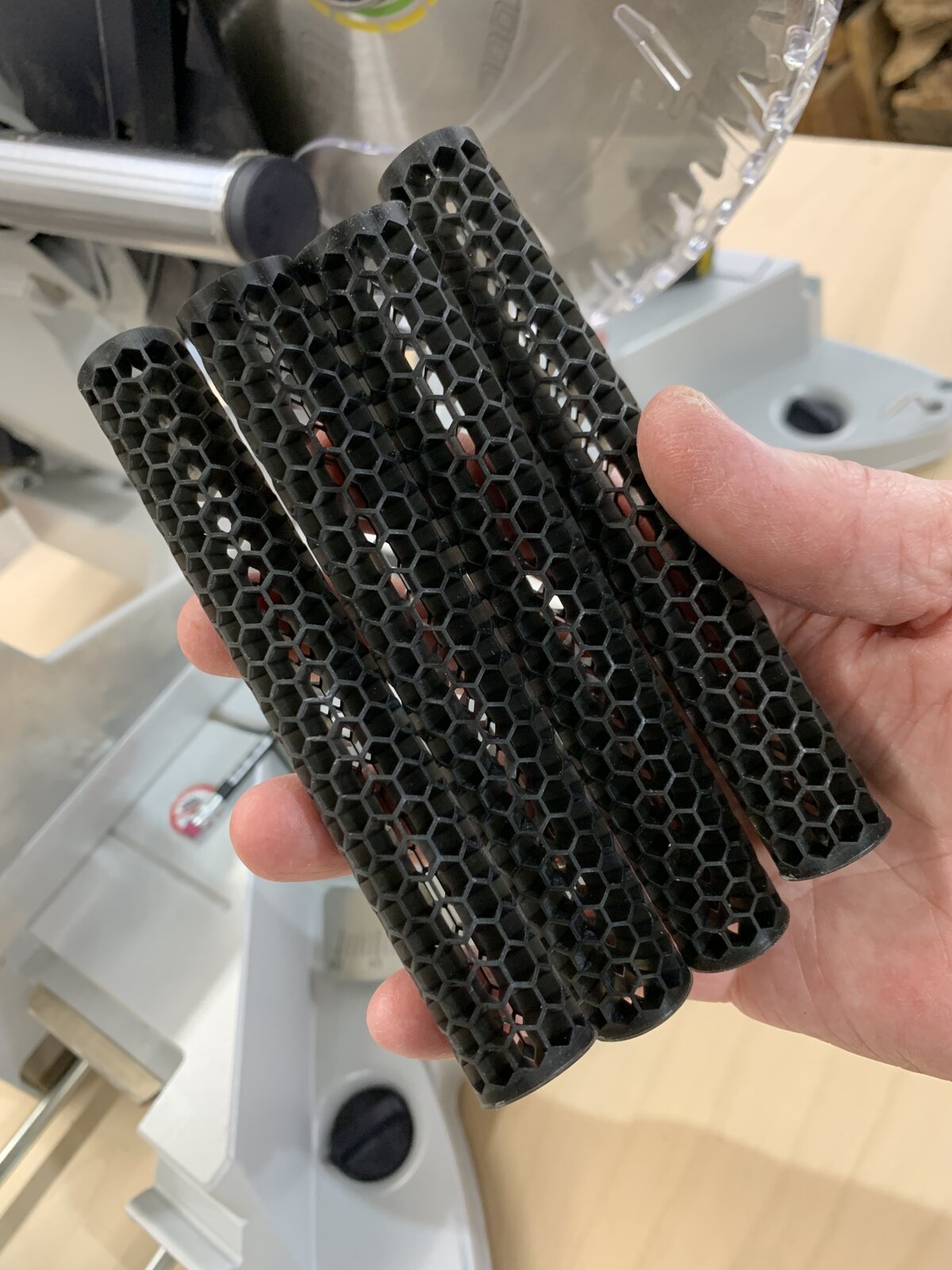

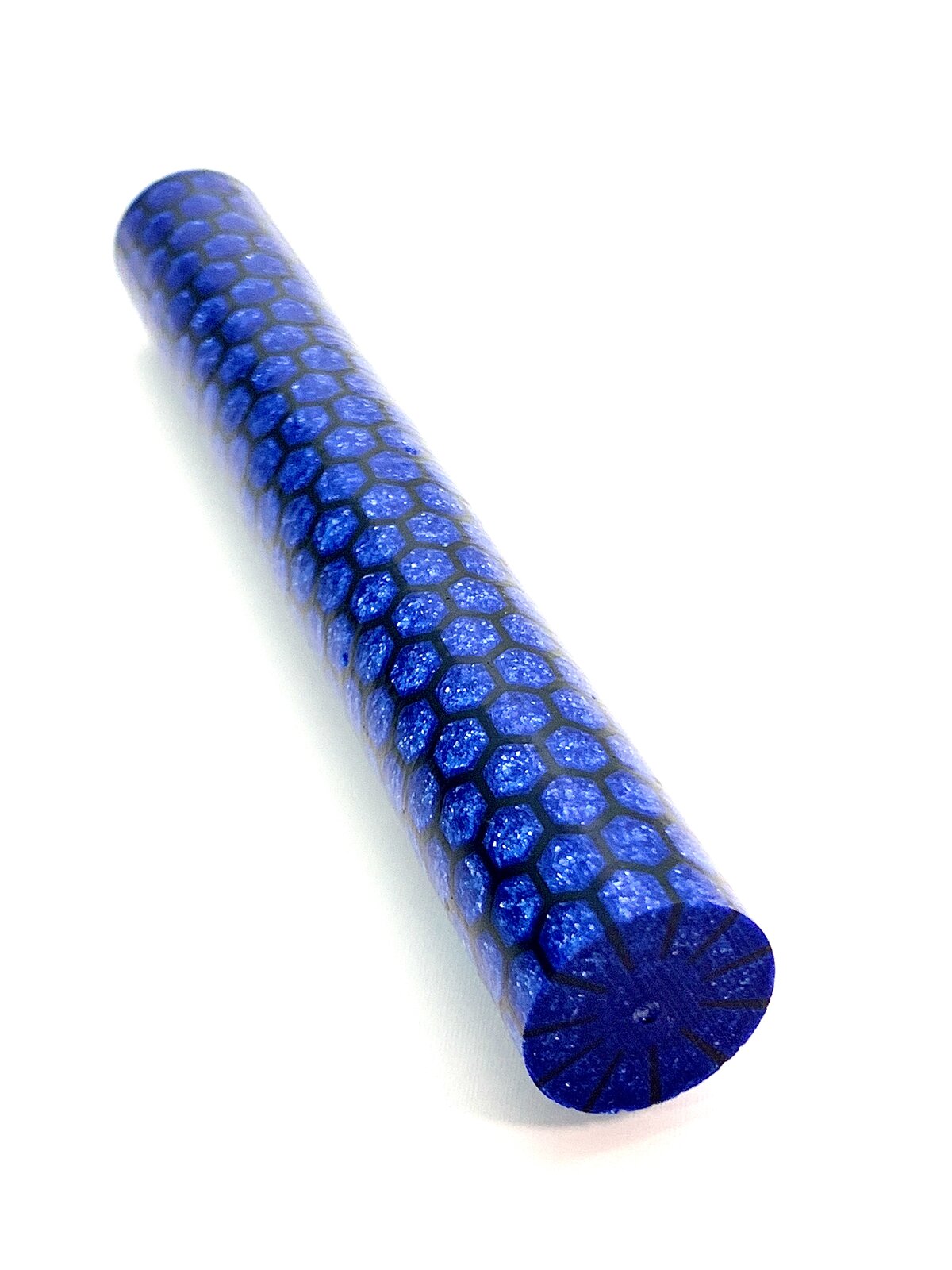

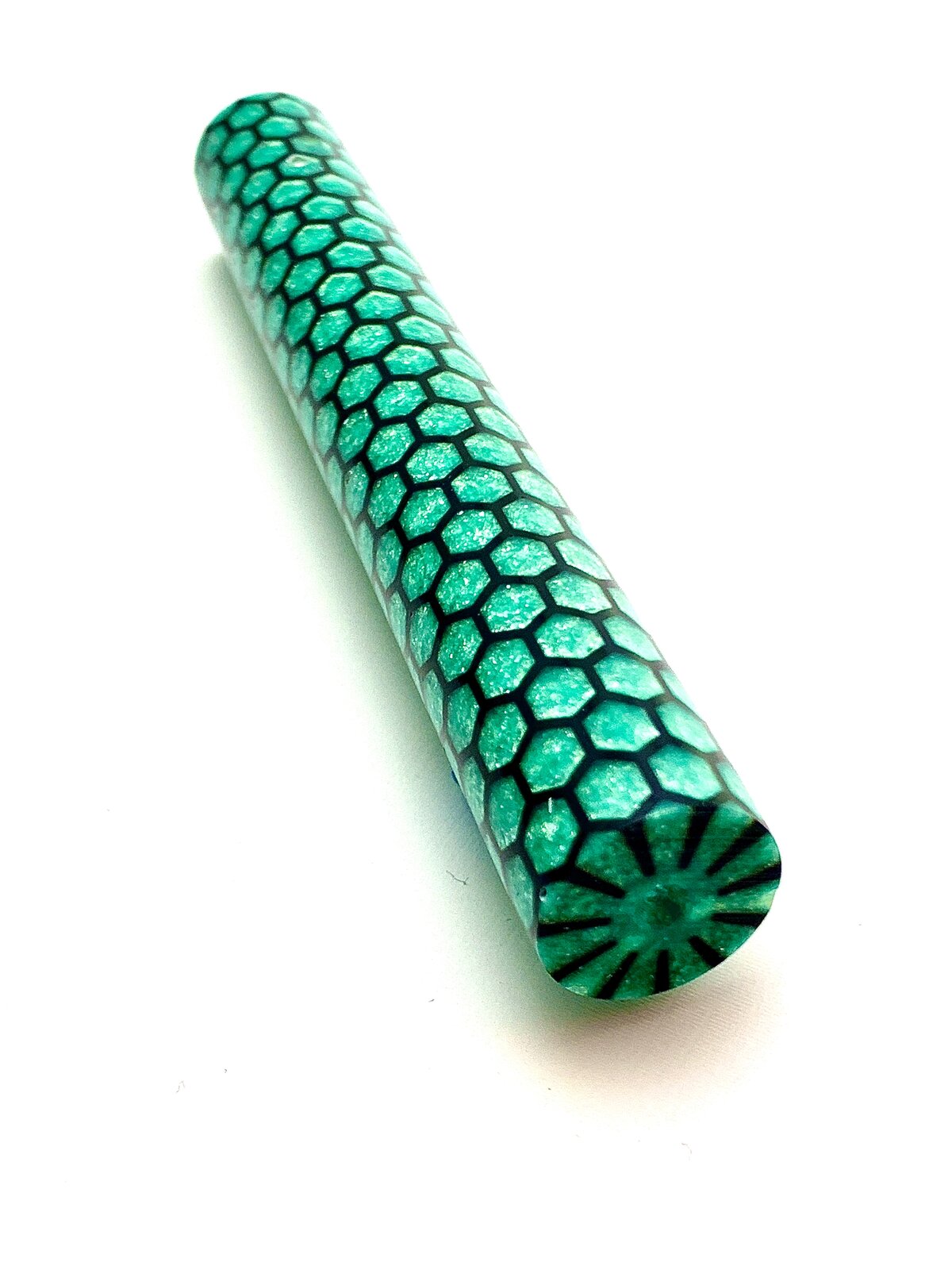

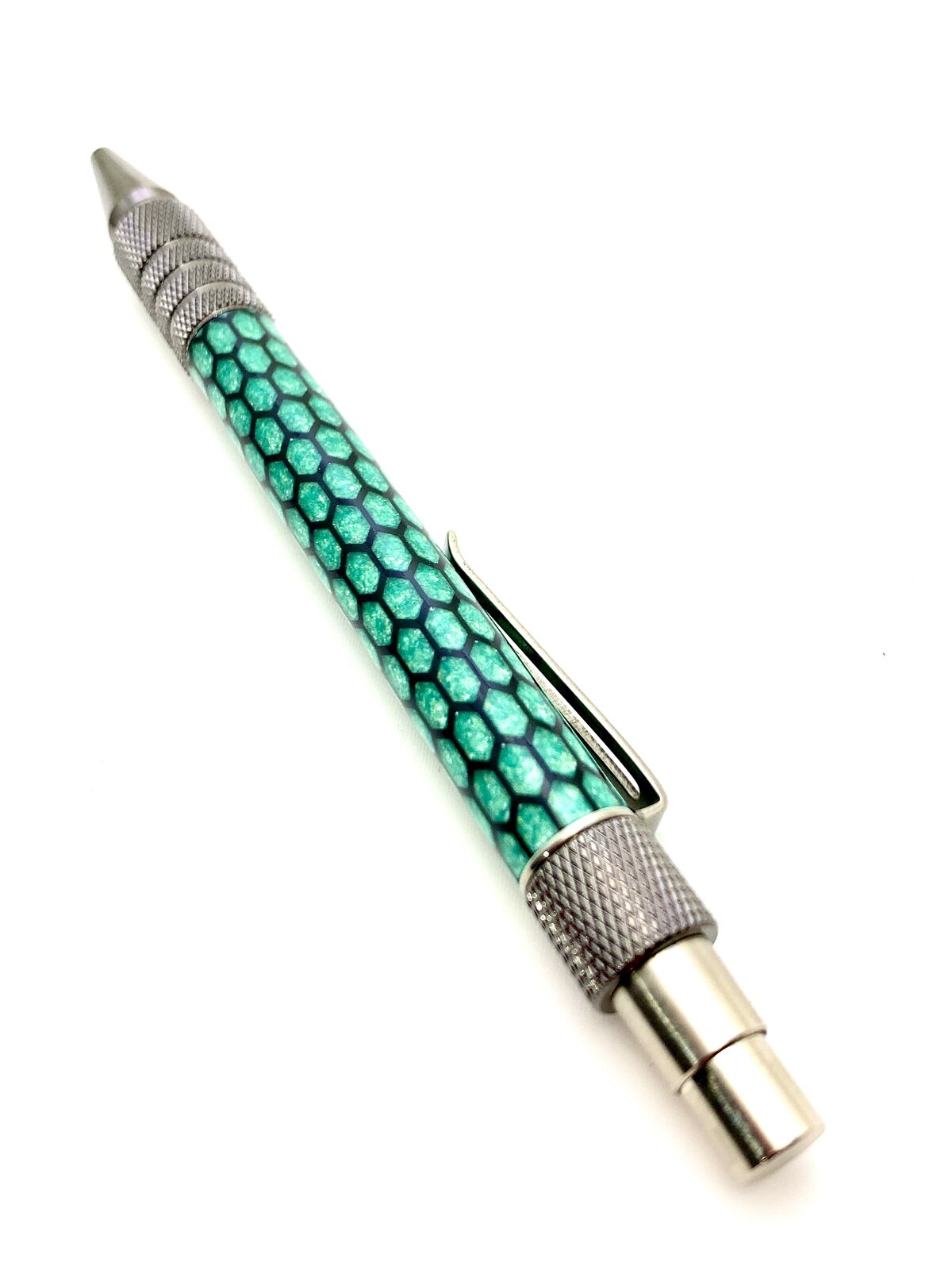

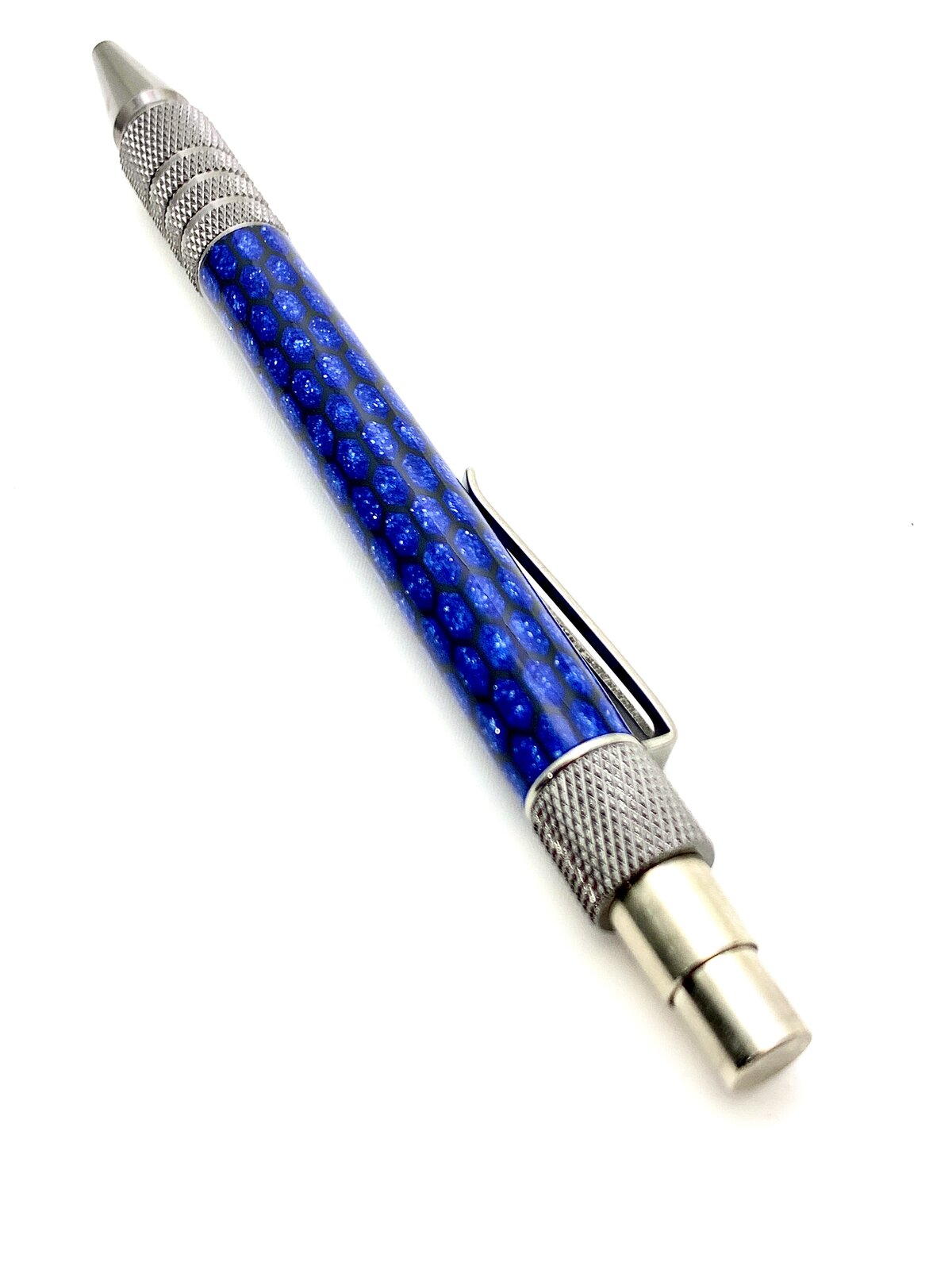

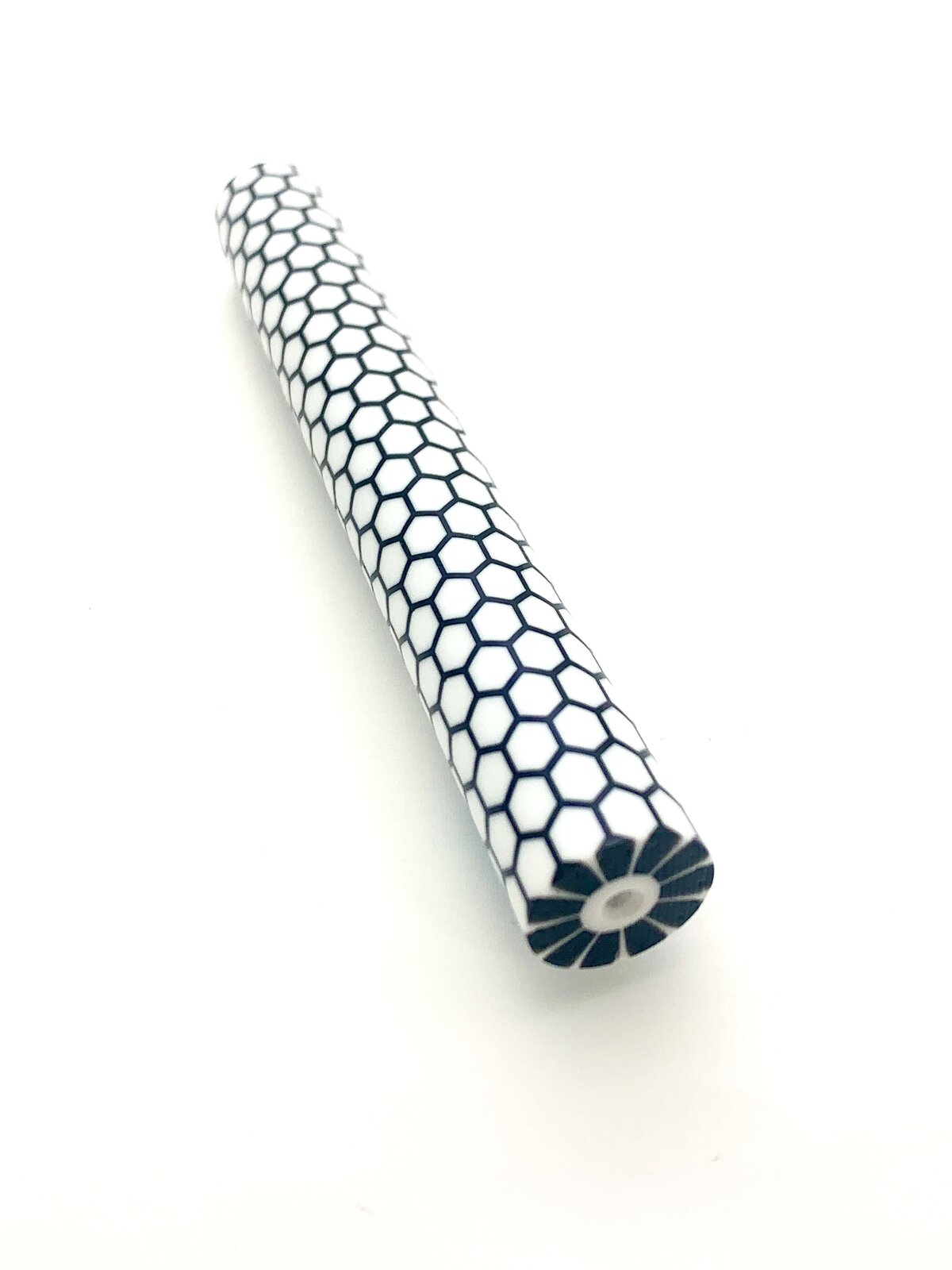

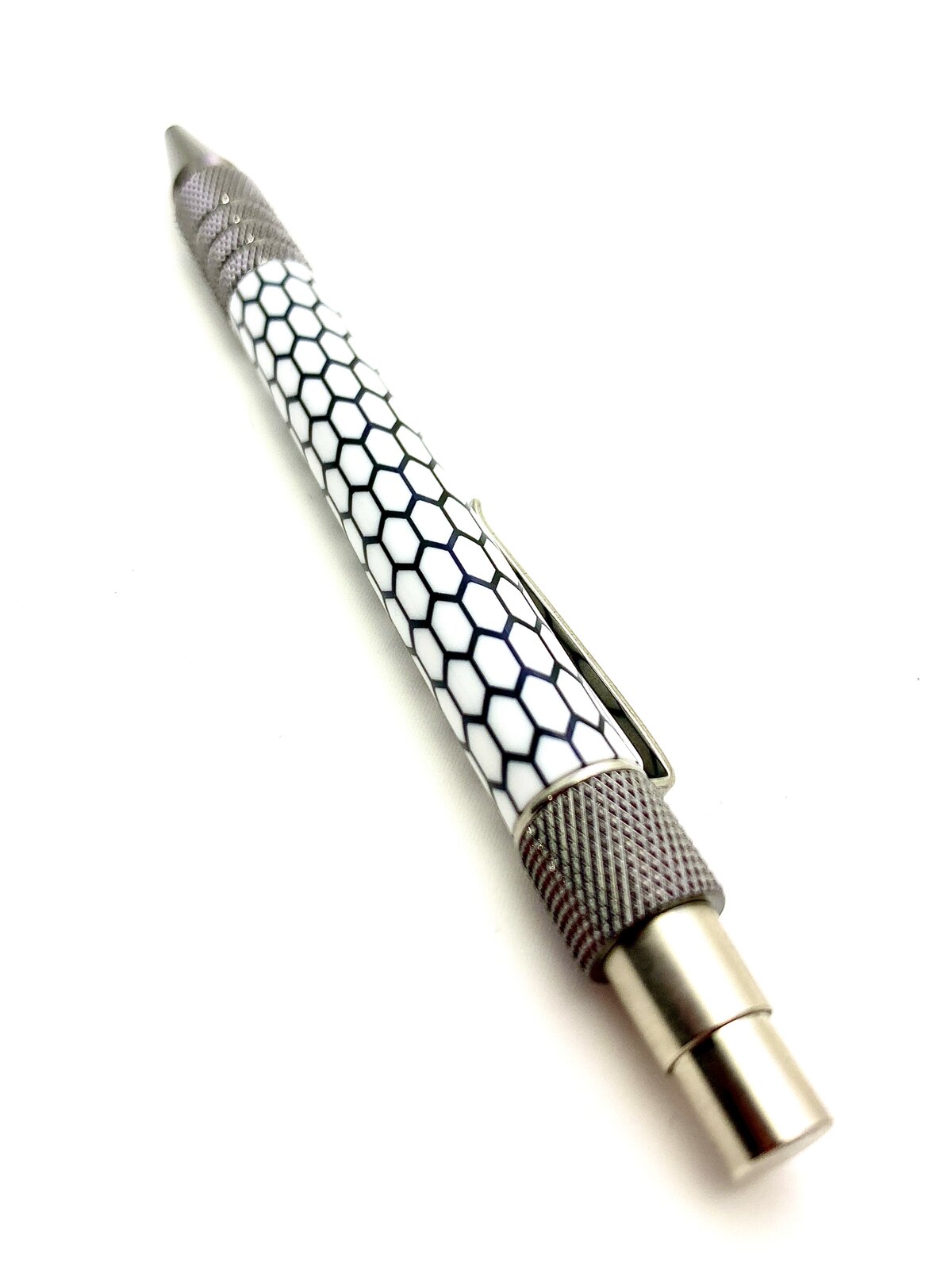

A few 3D UV resin printed honeycomb pens I cast a few days ago and turned this afternoon. The kits are PSI DuraClick. The honeycomb structure has been made with UV resin, NOT typical PLA filament. There's a huge difference. To make sure I didn't get any chipping or bonding issues, I custom mixed the UV resin, combining a flexible engineered resin with a machinable resin, which made a very strong, flexible and machinable structure. Once the honeycomb was printed, cleaned and cured, I pressure cast it with Alumilite resin @ 80 psi. There were zero bonding issues. These were a bit time consuming but fun to make!


Attachments

  • 006B9BFD-4BF8-4B44-AD14-141704ADFF5E.jpeg
    101.8 KB · Views: 124
  • 6DF04E28-FE84-4D3C-A5DC-3DAAD7B0CDEA.jpeg
    164.2 KB · Views: 106
  • 52D908B8-F9F1-482F-9211-18091A6F1CCF.jpeg
    109.8 KB · Views: 100
  • B324442D-BB0D-42CE-BBFF-7BEAEF28E6D2.jpeg
    151.9 KB · Views: 97
  • A578A8E0-9DDC-4DCE-A9A2-48A944771A40.jpeg
    97.1 KB · Views: 97
  • B425C719-A114-41AC-8AE8-9EF7BB23EA0F.jpeg
    86.7 KB · Views: 107
  • 71520A21-DD2C-4D89-81CC-AEC76E52104E.jpeg
    246.7 KB · Views: 125
Signed-In Members Don't See This Ad

KenB259

Member
Joined
Dec 24, 2017
Messages
2,960
Location
Michigan
These are the best honeycomb blanks I've seen. I am a fan of these, not so much the traditional ones, because the design is not consistent all the way aroid, as yours are.
