survival, key chain whistle

how to make one

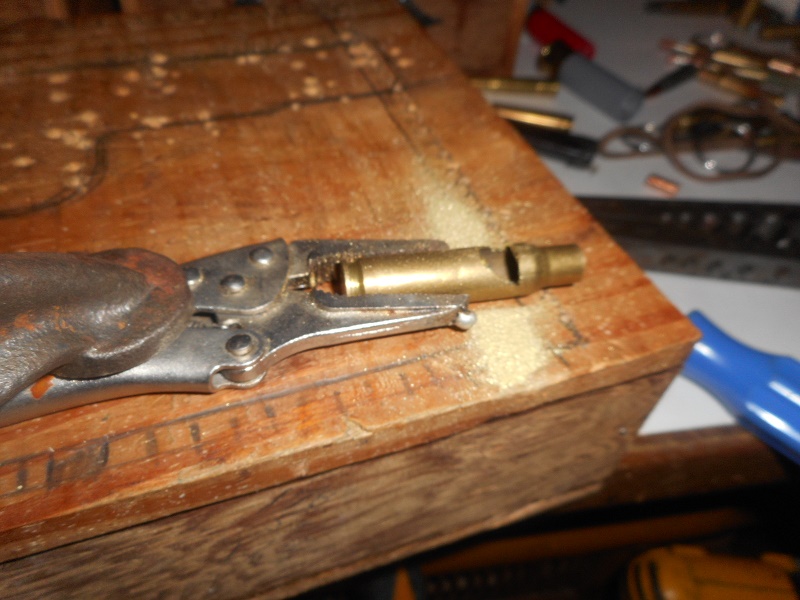

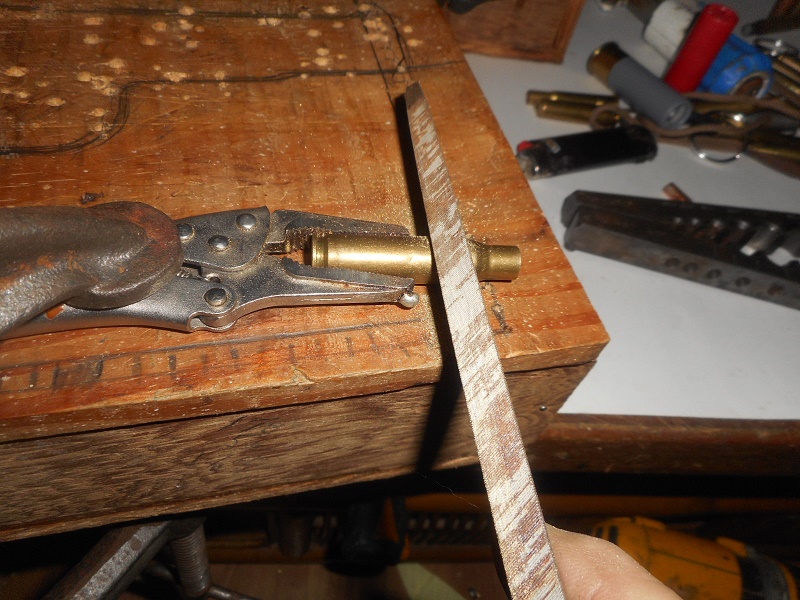

using a 1/4'' file. cut a air hole in the brase,the debth of the file
as shown

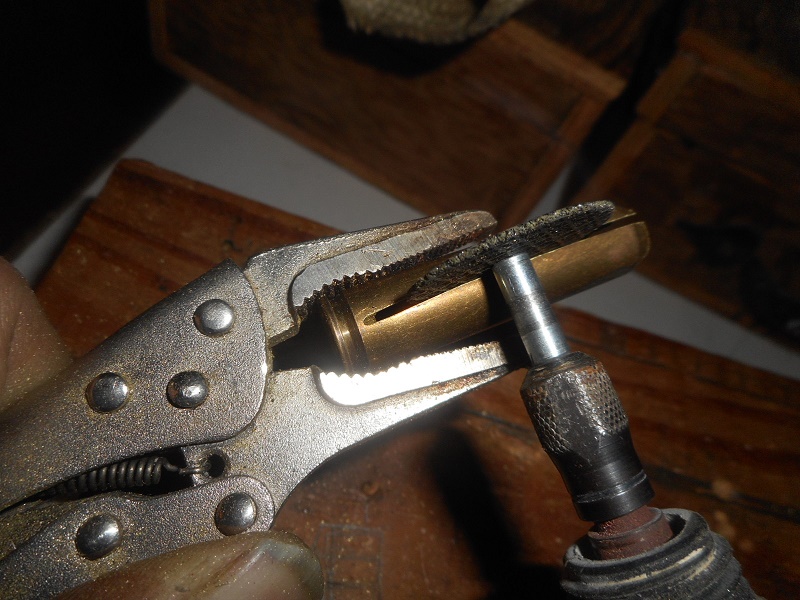

cut an old case in half, beat flat,

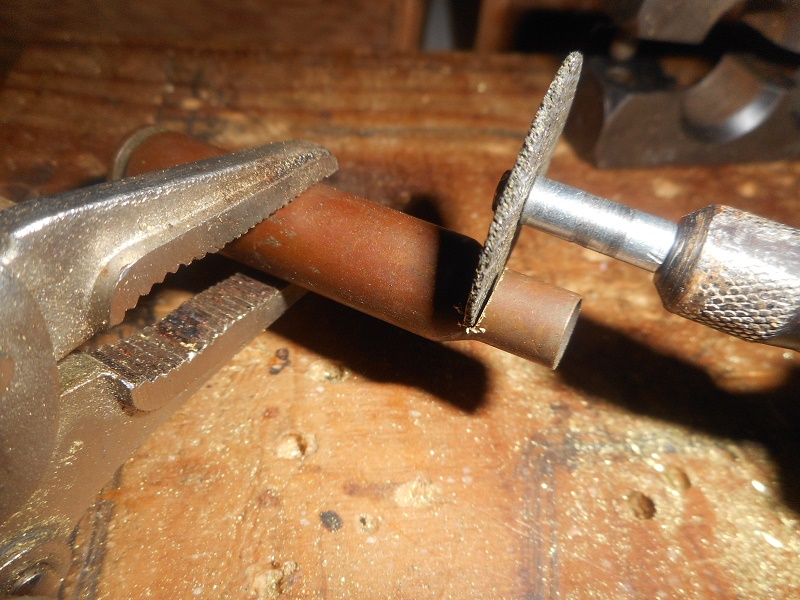

i needed a spacer, ut the neck off of old brass.

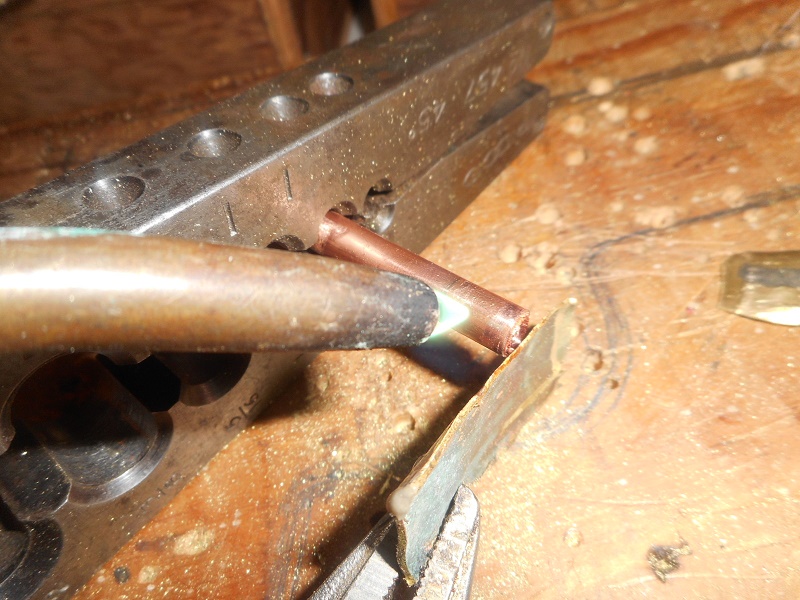

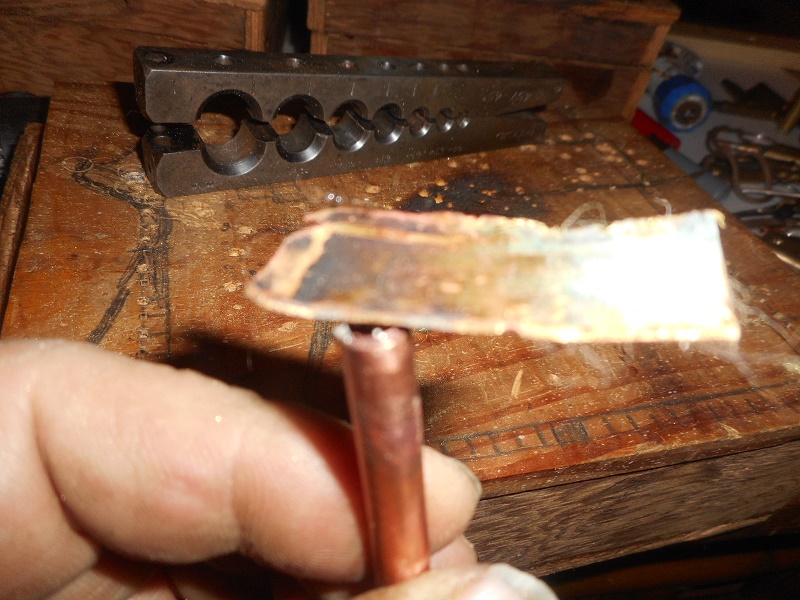

solder the flatened brass onto a 1/4'' copper tube half way

cut off all the excess brass from the tubing

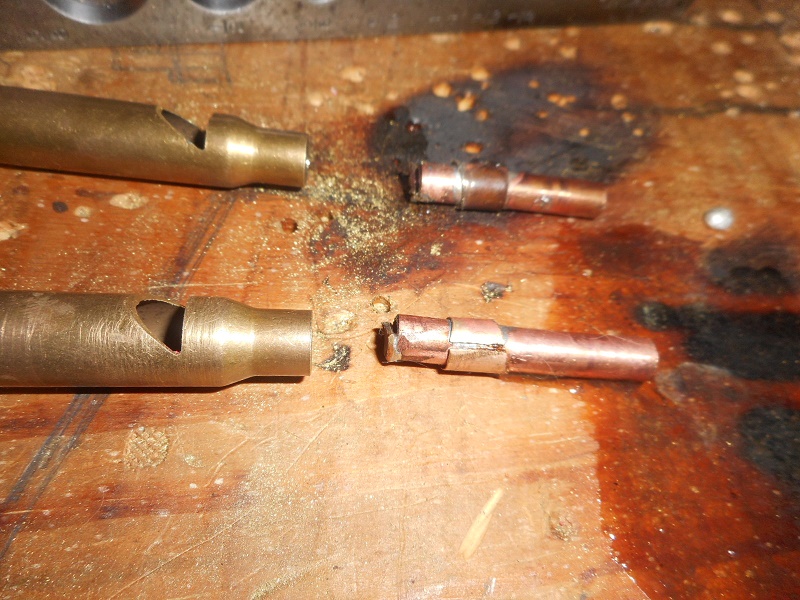

slide onto spacer

into the whistle

ck that it whistles, make air adjustments solder all

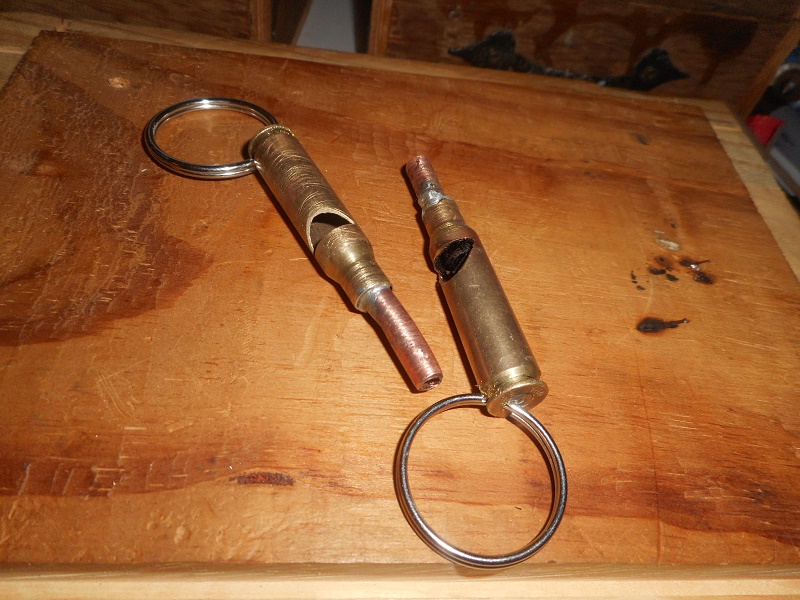

these are VERY loud, give them to your wife and kids, to use in case of an emergency to alert for help


Attachments

  • 8 mm whistles 001.JPG
    8 mm whistles 001.JPG
    261.9 KB · Views: 248
  • 8 mm whistles 002.JPG
    8 mm whistles 002.JPG
    206.3 KB · Views: 234
  • 8 mm whistles 003.JPG
    8 mm whistles 003.JPG
    231.9 KB · Views: 172
  • 8 mm whistles 004.JPG
    8 mm whistles 004.JPG
    255 KB · Views: 168
  • 8 mm whistles 005.JPG
    8 mm whistles 005.JPG
    244.8 KB · Views: 230
  • 8 mm whistles 006.JPG
    8 mm whistles 006.JPG
    240.7 KB · Views: 211
  • 8 mm whistles 007.JPG
    8 mm whistles 007.JPG
    270.5 KB · Views: 224
  • 8 mm whistles 008.JPG
    8 mm whistles 008.JPG
    260 KB · Views: 210
Last edited:

PapaTim

Member
Joined
Dec 24, 2008
Messages
449
Location
Gainesboro, TN
Nice tutorial Frodo, thanks.
Two more suggested steps.
Tell the kids to stop running around the house blowing their whistles.
Tell the wife to stop running around the house blowing her whistle.:rotfl:
