Dalecamino
Local Chapter Leader
Does anyone know what size threads are on the full size Gentlemens FP front section? I need a tap for this pen I'm making. Thanks in advance!
What size tap?
- Thread starter Dalecamino
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
I saw "what size tap" and thought "what size is the keg?"
IPD_Mr
Member
Chuck are you talking about the nib holder or are you talking about the the nib feed? If it is the holder I can check the different taps I have tonight, but I would guess that it is an odd size. That means custom size.
I don't mind one or two custom sizes but right now I am looking at about ten different custom sizes for projects I have in the works. Prices have gone up on custom taps since my last order in Jan.
I don't mind one or two custom sizes but right now I am looking at about ten different custom sizes for projects I have in the works. Prices have gone up on custom taps since my last order in Jan.
Dalecamino
Local Chapter Leader
:biggrin:I saw "what size tap" and thought "what size is the keg?"
arty: Should have been more specific.....but since you brought it up....are you buying?:biggrin:
Dalecamino
Local Chapter Leader

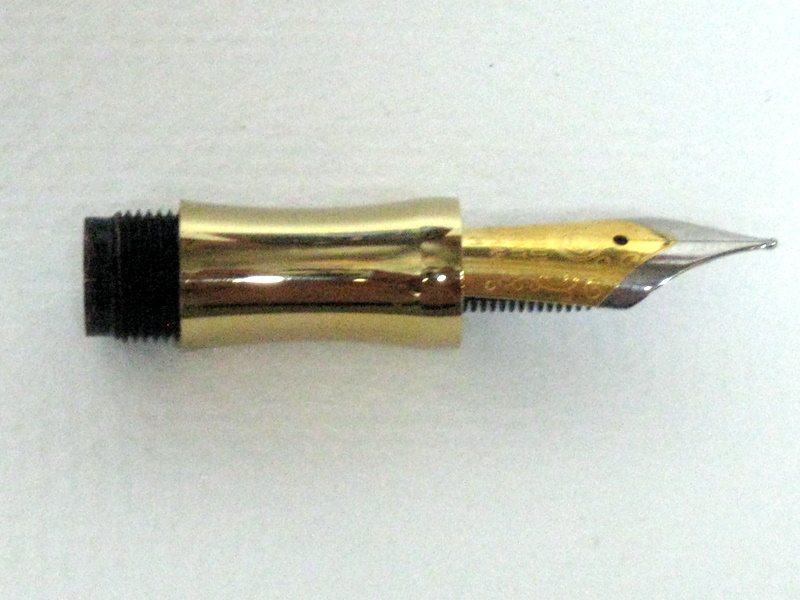

Here's a quick picture of what I need a tap for. Probably custom. Thanks for any help Mike!Chuck are you talking about the nib holder or are you talking about the the nib feed? If it is the holder I can check the different taps I have tonight, but I would guess that it is an odd size. That means custom size.
Attachments
Chuck I have I believe its a Majestic NIb assemblylike that. It is m9.75 x.75 I would bet that you could use a 10x.75 in its place and it would still work. Might be a little slop
http://www.victornet.com/cgi-bin/victor/subdepartments/Metric-Taps/1310.html
scroll down they are Under $6.00
Mike
http://www.victornet.com/cgi-bin/victor/subdepartments/Metric-Taps/1310.html
scroll down they are Under $6.00
Mike
Last edited:
Paul in OKC
Member
1mm difference is .039 in US measure. Would be pretty sloppy.
The overall would be .25mm difference in diameter thats about .010 divided in half.
Paul in OKC
Member
OOps, didn't see that it is 9.75mm, just saw the 9. As a machinist, an extra .01 in small threads is too much, but.........................
CREID
Member
I saw "what size tap" and thought "what size is the keg?"
Thats what we need, an online kegger.:bananen_smilies046:
Curt
Dalecamino
Local Chapter Leader
Thanks fellas!
