Skippy's O-Ring pinchuck improved

[BRobbins629]

Over the years I have made several pin chucks like the one Skippy invented a few years ago.

http://content.penturners.org/library/tools_and_jigs/pinchuck.pdf

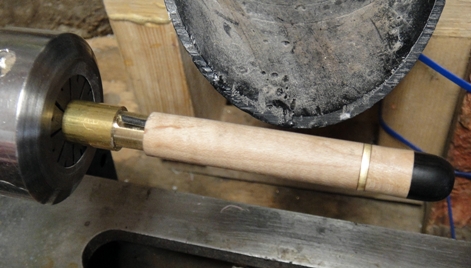

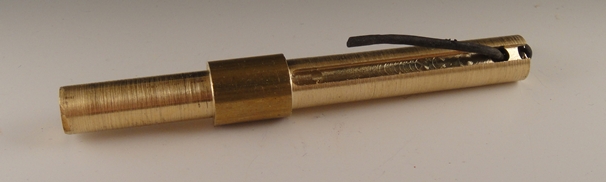

I recently needed another diameter and wanted to make a few modifications. Rather than filing a flat, I decided to mill a slot to fit the rubber O-ring and also got tired of losing the O-ring. For this one I drill a hole in the end to fit the cut O-ring and milled a deeper slot near the end that went through to the hole. Then I could thread the O-ring through the holes, tie a knot on the end and it stays in place.



[skiprat]

That is brilliant Bruce!!! The slot is a fantastic improvement and thanks kindly for the mention!:wink:



[gwilki]

Great improvement, Bruce. I'm always losing the pins on mine.



[alphageek]

Great design!!



[alamocdc]

Nice design change, Bruce!



[IPD_Mr]

Bruce - Very nice design, especially for the O ring hole. Looks like this was made of brass, if so is there a chance of issues down the road with a soft metal? In basic operation I don't see how there could be, but for example a heavy catch, is there a risk of bending? I am sure there are days that one of these made of titanium would be too soft for me. :redface:



[skiprat]

Bruce - Very nice design, especially for the O ring hole. Looks like this was made of brass, if so is there a chance of issues down the road with a soft metal? In basic operation I don't see how there could be, but for example a heavy catch, is there a risk of bending? I am sure there are days that one of these made of titanium would be too soft for me. :redface:

Watcha saying there Mikey, bit ham fisted?? Are we going to have to add another nickname?? Tam the Ham perhaps, or how about Ham-o-Tam?:laugh:
Just kidding of course:wink:



[BRobbins629]

Bruce - Very nice design, especially for the O ring hole. Looks like this was made of brass, if so is there a chance of issues down the road with a soft metal? In basic operation I don't see how there could be, but for example a heavy catch, is there a risk of bending? I am sure there are days that one of these made of titanium would be too soft for me. :redface:

Watcha saying there Mikey, bit ham fisted?? Are we going to have to add another nickname?? Tam the Ham perhaps, or how about Ham-o-Tam?:laugh:
Just kidding of course:wink:

Most of the mandrels and chucks I make are from brass and I've had pretty good luck. I also do most of my turning on the metal lathe, so perhaps that's why I have fewer catches. No bent ones so far. If it did bend, I think I could make 3 or 4 in brass in the time it would take me to make 1 in titanium. That stuffs too hard for me.



[bluwolf]

Nice Bruce, I like it!

Mike
