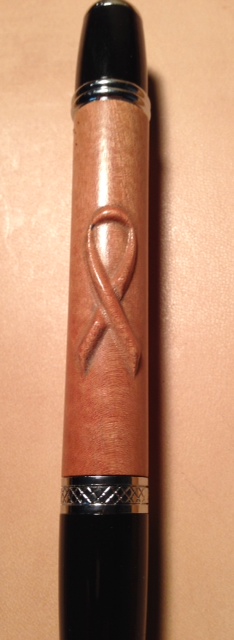

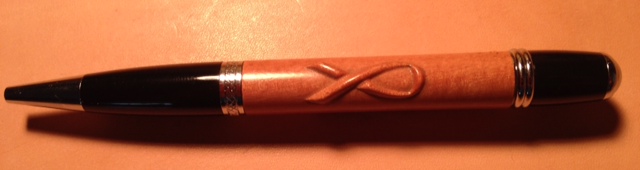

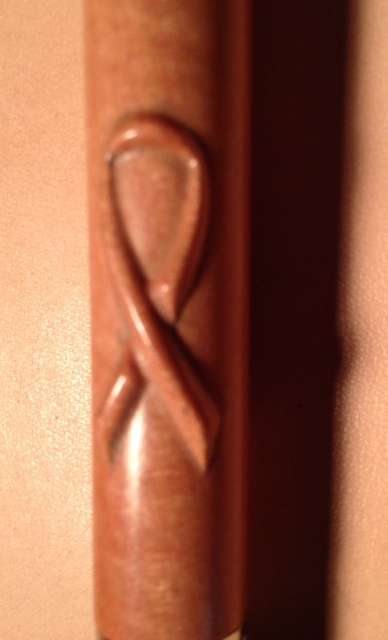

Rotary turned pen with raised support ribbon
- Thread starter Studio-N
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
thewishman
Member
That's cool!
KenV
Member
Has the appearance of hand carved rather than CNC. Nice!
oneleggimp
Member
Beautiful piece of work.
Studio-N
Member
thank you all. it is in fact done on a CNC machine using the lathe attachment.
the ribbon is a 3d model create in Aspire.
the ribbon is a 3d model create in Aspire.
JimB
Member
Very nice.
Eye popping!
Well done Nick! I haven't seen this type of work done on such a small scale as a pen tube. You're definitely on to something!
What type of laser engraver do you use and what kind of knowledge does one have to possess to operate one? Your design possibilities are limitless and the niche for custom work is virtually untapped! Go for it! Beautiful work
Well done Nick! I haven't seen this type of work done on such a small scale as a pen tube. You're definitely on to something!
What type of laser engraver do you use and what kind of knowledge does one have to possess to operate one? Your design possibilities are limitless and the niche for custom work is virtually untapped! Go for it! Beautiful work
Tom T
Member
Really beautiful. It has looks like old world quality look to it. Great work.
Studio-N
Member
Well done Nick! I haven't seen this type of work done on such a small scale as a pen tube. You're definitely on to something!
What type of laser engraver do you use and what kind of knowledge does one have to possess to operate one? Your design possibilities are limitless and the niche for custom work is virtually untapped! Go for it! Beautiful work
well I do have a 45 watt ULS laser, but this was done on a Shark CNC with the 4th axis rotary attachment. Rotary turning is a little more difficult than traditional CNC work, because you have to convert your thinking to Radius, Diameters and Degrees. The ASPIRE software has a bit of a learning curve (and is expensive) since you have to learn to do 3d modeling. Fortunately, the company has lots of training videos on their website.
I have tried to do stuff like this on the laser, but they don't really do 3d. they use a graduated grey scale to simulate the art, but they come out much too 'bumpy' and the height is not always consistent. cheers!
