Prototype Bolt Puzzle

[skiprat]

This is my first puzzle and I'm now hooked:biggrin:

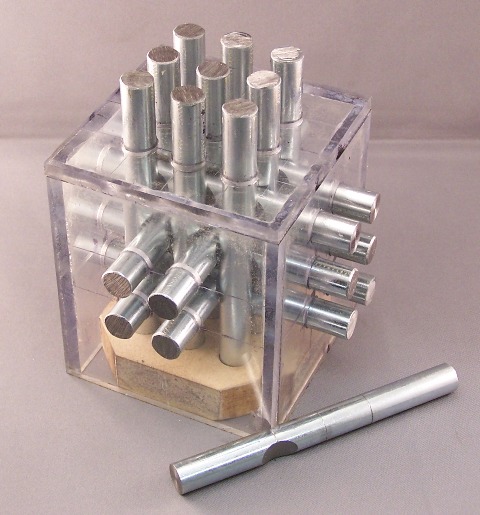

This is a working prototype for a swap on Eagles site. It has 19 x 12mm MS bolt shafts interlocked inside a clear polycarb box. Now that I know it works, I will make a solid block from wood or probably PR and copy the shafts using stainless steel bolts. The shafts are removed by rotating or pulling some to release another. It was fun to make, but I have blisters from filing the notches in each shaft. I only used a hacksaw and a half round file to make it. :biggrin: The spare ( mistake ) shaft in the foreground shows the round notch.



[GoodTurns]

very cool, skippy! I'm waiting for you to make something simple...then I'll be amazed :wink:



[chriselle]

That's very cool.....something new to throw against the wall in frustration..:biggrin:



[jackrichington]

wow, how intriguing



[BigShed]

Great idea Skippy, if you're going to continue doing this you will need a mill!

Very inventive!



[LEAP]

That is incredible cool, I am addicted to puzzles. do you have a source for plans?



[arioux]

There you go Phil

http://www.johnrausch.com/PuzzlingWorld/contents.htm
http://www.craftsmanspace.com/Free projects/Knot Burr Puzzle.pdf
http://www.craftsmanspace.com/Free projects/Fun/Logical Game.pdf
http://www.wikihow.com/Make-a-Chinese-Puzzle
http://www.homemadebanjo.org.uk/Puzzles.htm

With agoogle search on "wood puzzle plan", you will find many more

By the way, good job Skip !



[workinforwood]

Very nice work Steve. You must have quite a stainless steel bolt stockpile!



[ldb2000]

Allright Skippy , Playing with your Nuts
.... errr .... bolts again :biggrin:
It's Awesome , I love it .



[arjudy]

You are amazing.



[skiprat]

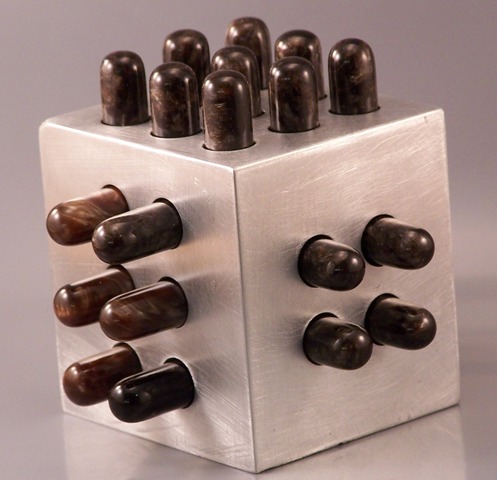

Eventually!!!!!! Just need some polish for the aluminium block and it done. These bolts drove me nuts!!!!! :biggrin:

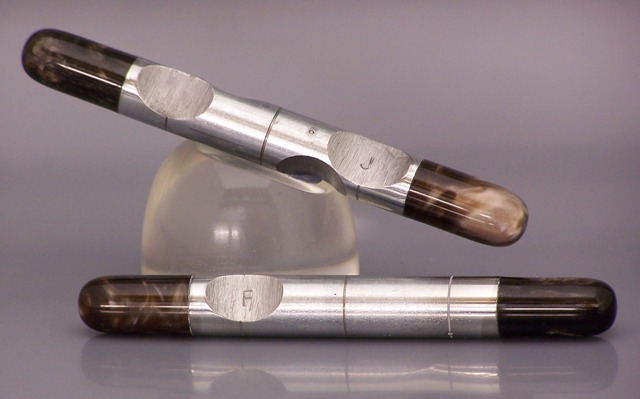

I didn't use Stainless after all, but trimmed the ends of the MS rods with PR instead. The rods were trimmed from 12mm to 6mm at the ends to reinforce the PR. The rods are stamped incase the new owner wants the code to rebuild it.

This puzzle is up for grabs if you know where to look. Nudge nudge,:wink: :wink:



[OKLAHOMAN]

You puzzle guys are a puzzlement to me!!!!!!!!



[DCBluesman]

Great multimedia puzzle, Steven. And thanks for making it part of the wordwide swap! Will you be adding to the worldwide raffle? :biggrin:



[skiprat]

Great multimedia puzzle, Steven. And thanks for making it part of the wordwide swap! Will you be adding to the worldwide raffle? :biggrin:

Gee!!!!!! There is just no satisifying some people!!!!!!

You'll be wanting some of my Blue Blood next!!!!:biggrin:



[DCBluesman]

Aw, Steven. I'd never ask for a drop of yer blood, mate. But I have sent a pretty for your missus. (blantant bribe!)



[skiprat]

Aw, Steven. I'd never ask for a drop of yer blood, mate. But I have sent a pretty for your missus. (blantant bribe!)

My missus doesn't make pens OR puzzles, so how the he.... is your bribe gonna work?????? When she went to bed tonight, she stuck her head in the door to my shop and I showed her the puzzle. Guess what she said??
'' You spent the WHOLE weekend making THAT?????'''' She closed the door without even saying goodnight:redface:

However, just cos you're a buddy, IF I get some free time before the raffle closes, then I'll TRY and add something (else):biggrin:
