tommyd
Member

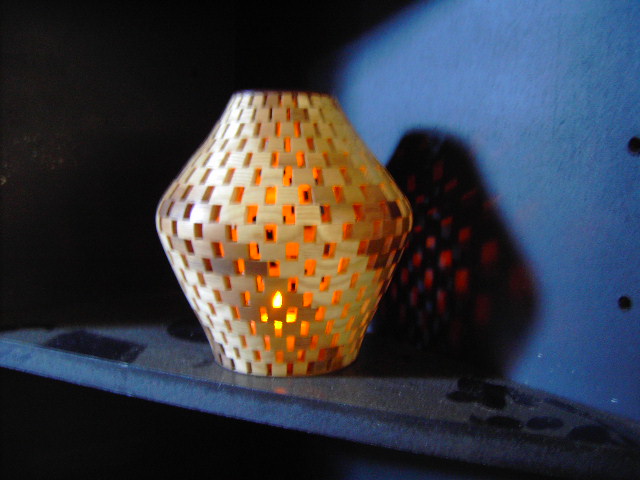

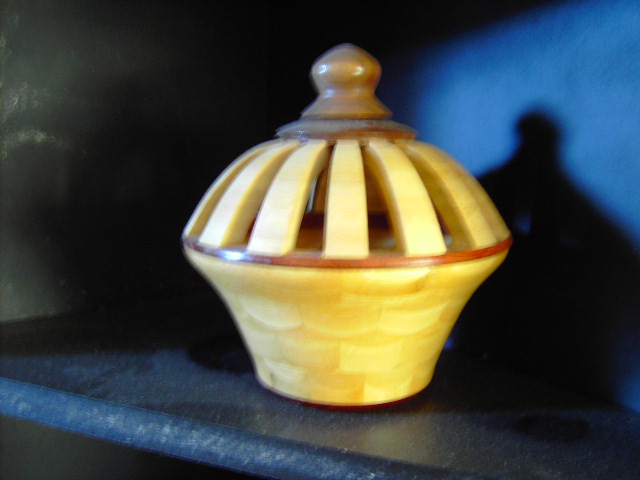

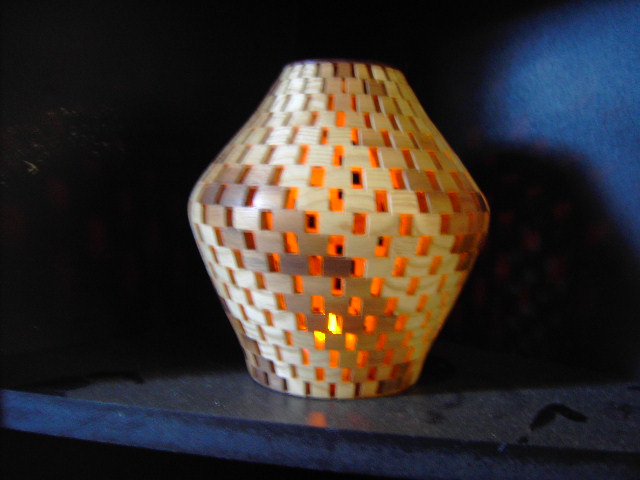

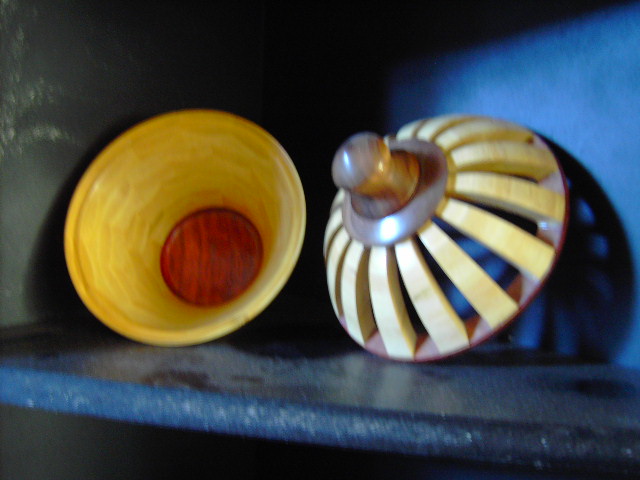

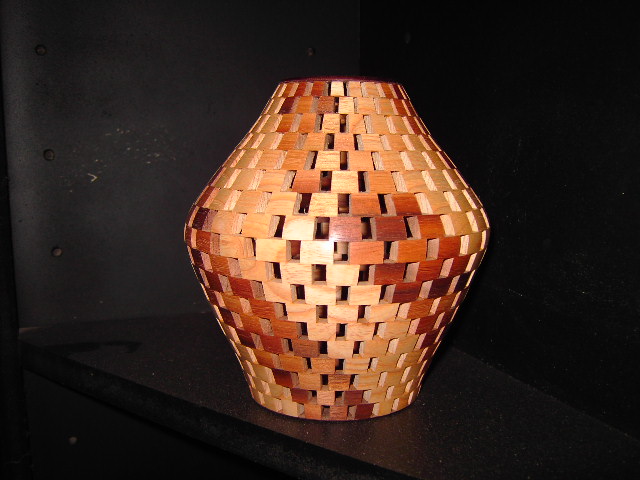

here are a couple of open segmented turnings I have done, the first one is made of bambo and walnut consit of 354 pieces the second one is also bambo and walnut closed bottom and open top.
open segmented turnings
- Thread starter tommyd
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
stoneman
Member
Very nice.Well done.
jjenk02
Member
reddwil
Member
Great looking pieces. well done
PaulDoug
Member
Holly Molly, those is nice. Just looks like too much work!
hehndc
Member
Nice work. I have done some segmented bowls. I still struggle with the settings on the sled to get the angles right. I lot of trial and error getting the set up right.
Steve
Steve
Rojo22
Local Chapter Leader
Nice Job
Tommy
I have done some segmented but never open segmented! Those are extremly nice!
Robert
Tommy
I have done some segmented but never open segmented! Those are extremly nice!
Robert
bitshird
Member
those look way too complicated fot my feeble little mind, very nice work, the math looks like it was quite a challange
I am always amazed when I see these sort of turnings. I have yet to try a segmented bowl let alone an open segmented hollow form. Very well done! The first one looks like a tremendous amount of work, but something about the slightly simpler second lidded one really appeals to me.
el_d
Member
Wow....... hope to someday be able to make stuff like that...
devowoodworking
Member
Very nice segmented turnings
, I'd like to get into that eventually
, I'd like to get into that eventually
Glenn McCullough
Member
very nicly done. The second one is my favorite, though not by much.
badger
Member
Great Googly Moogly!
Those are amazing!
Those are amazing!
Fred
Member
Here is a link to one of many segmented design programs. This one requires purchasing, but it does all the calculations you would ever need.
http://www.turnedwood.com/software.html
Just do a Google search for segmented bowl design and you will be given several ideas. Here is a link to the design for an angle cutting sled. It appears to allow the cutting of many different angles and makes cutting them accurate (a must have) and fairly easy to do. http://www.segmentedturning.com/plans.htm. Be sure to look at their home page for an index of many other excellent write-ups. http://www.segmentedturning.com/index.
Hope this helps some of you out if you decide to work on one of these rather intricate projects.
http://www.turnedwood.com/software.html
Just do a Google search for segmented bowl design and you will be given several ideas. Here is a link to the design for an angle cutting sled. It appears to allow the cutting of many different angles and makes cutting them accurate (a must have) and fairly easy to do. http://www.segmentedturning.com/plans.htm. Be sure to look at their home page for an index of many other excellent write-ups. http://www.segmentedturning.com/index.
Hope this helps some of you out if you decide to work on one of these rather intricate projects.
Last edited:
hehndc
Member
Fred:
Thanks for the link to the sled...another project for me. The segmented stuff is a good way to get rid of scrap wood with style), as are pens.
Steve
Thanks for the link to the sled...another project for me. The segmented stuff is a good way to get rid of scrap wood with style
), as are pens.Steve
kent4Him
Member
Very nice. I've done a couple, but your's are much nicer.
tommyd
Member
here is another site where I got all my info from his book is really good shows how to make all the jigs you need and all the angles. http://www.smithart.us/
and thanks for all the complements.
and thanks for all the complements.
bad
Member
Those are amazing. I've only had my lathe for about a month now. I'm still learning the intracies of segmented pen making. OK, I've only made about 10 pens, 2 of which I tried putting in small bands of different wood. Boy, do I ever have a lot to learn. But once I get that mastered I eventually want to try segmented bowls and vases. Of course I probably need to learn how to make regular bowls and vases first. All of that should keep me off the streets and out of mischief for a while.
Bruce
Calgary, Alberta
Bruce
Calgary, Alberta
BigRob777
Member
Bravo,
I really like the candle pot thing. I'm going to be getting some bamboo that's almost an inch thick at the walls. I hope I can do it some justice, as you did. Ever since Gilligan's island, I've wanted to make a set of cups from bamboo. Now I can go one step farther and turn it.
I'll even (for the first time ever) reveal my supplier, since I'm not planning to sell blanks from the material. It's NCWoods. He's on ebay, but he also has a web site.
Rob
I really like the candle pot thing. I'm going to be getting some bamboo that's almost an inch thick at the walls. I hope I can do it some justice, as you did. Ever since Gilligan's island, I've wanted to make a set of cups from bamboo. Now I can go one step farther and turn it.
I'll even (for the first time ever) reveal my supplier, since I'm not planning to sell blanks from the material. It's NCWoods. He's on ebay, but he also has a web site.
Rob
Last edited:
TellicoTurning
Member
workinforwood
Member
Pretty awesome stuff, especially the one with the lid.
desertyellow
Member
great work
Øistein
Member
Hi, here is a few of my segmente works. both close and open.

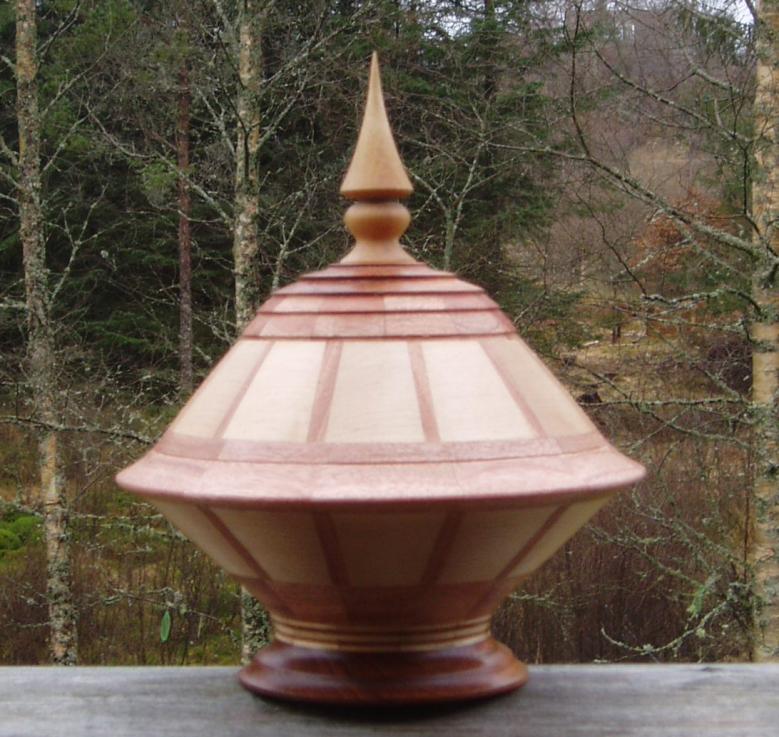

No 1 is named UFO bowl. 116 pieces. The material is: Oak, Bog Oak, Birch, Jatoba and Mahogany.

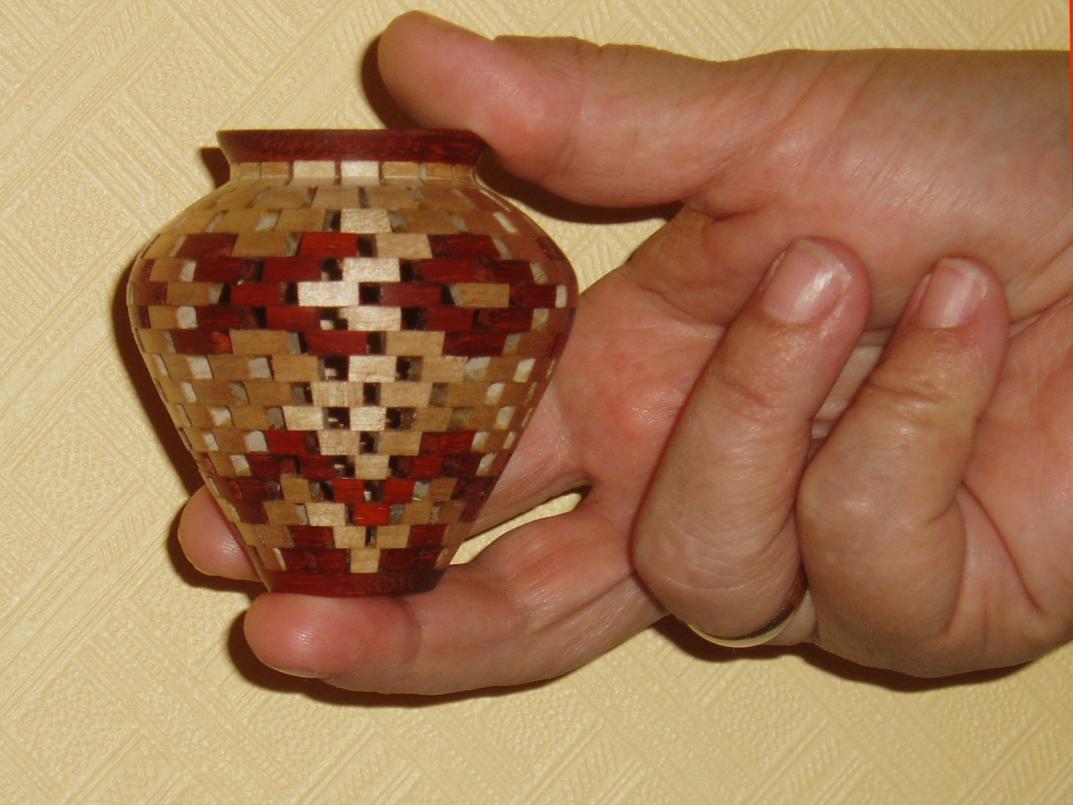

No 2: Miniature vase 68 mm high, all pieces is 3.5 mm high, built of African Padauk and Norwegian Birch.

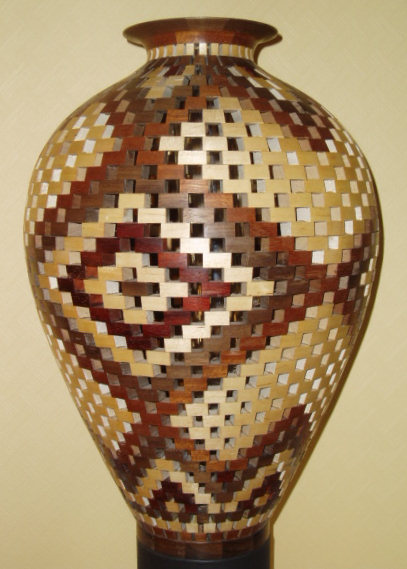

No 3: 420 mm vase 280 mm wide, 1221 pieces, all pcs 10 mm high. The wood is Norwegian Birch, Black Walnut, Merbau and African Padauk. Building time: 250 hours.
You can see more at www.flisespikkeriet.biz (The Woodpecker´s Workshop).
____________
Øistein
www.norpen,biz
No 1 is named UFO bowl. 116 pieces. The material is: Oak, Bog Oak, Birch, Jatoba and Mahogany.
No 2: Miniature vase 68 mm high, all pieces is 3.5 mm high, built of African Padauk and Norwegian Birch.
No 3: 420 mm vase 280 mm wide, 1221 pieces, all pcs 10 mm high. The wood is Norwegian Birch, Black Walnut, Merbau and African Padauk. Building time: 250 hours.
You can see more at www.flisespikkeriet.biz (The Woodpecker´s Workshop).
____________
Øistein
www.norpen,biz
Attachments
tommyd
Member
nice work! very time consuming but the end results are worth all the time.
