So I was eager to have a go with my new Customised Woodchuck from Bob and Ken:biggrin:. But as a complete novice with this kind of tool, of course there was a little learning curve. Here's how I got on.

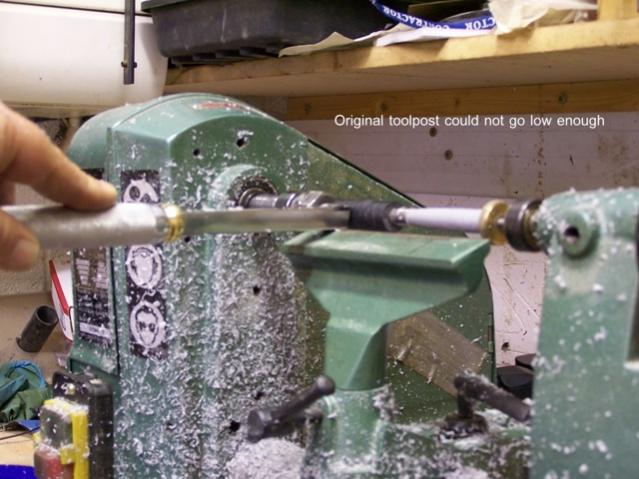

The very first thing I discovered was my original small toolrest on my poxy lathe wouldn't go low enough to get the cutter anywhere near the centre line

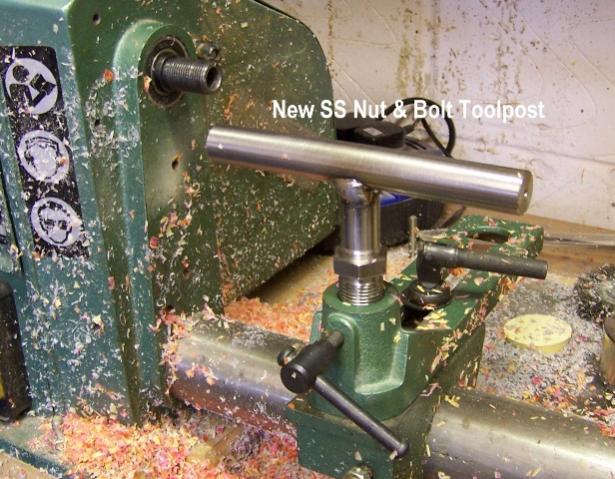

Ok, so I've wanted to make a nice round stainless one for years, so knocked one up from some pretty big bolts ( ignore my version of Bird Poop' welding)
I set this up to the instructions from Ken, but as you will see in the pics, I couldn't get a nice crater free surface. I'm sure as I practice, that I'll get nice long ribbons when I lower it. Or maybe someone can see what I was doing wrong from these pics But I do get short ribbons:biggrin:
I tilted the cutter to give a bit of a positive rake, above the centre line and the result was fantastic. I could easily start sanding from at least 600grit.
There are captions on the pics.
This little tool can eat blanks for breakfast, but I soon got over my nerves and eventually held it quite lightly. When I started, it was white knuckle time:redface:. For someone like me that has never learned to use a skew, it's a Godsend and I love it:biggrin::biggrin::biggrin:
If I can, then ANYONE can
The very first thing I discovered was my original small toolrest on my poxy lathe wouldn't go low enough to get the cutter anywhere near the centre line
Ok, so I've wanted to make a nice round stainless one for years, so knocked one up from some pretty big bolts ( ignore my version of Bird Poop' welding)
I set this up to the instructions from Ken, but as you will see in the pics, I couldn't get a nice crater free surface. I'm sure as I practice, that I'll get nice long ribbons when I lower it. Or maybe someone can see what I was doing wrong from these pics But I do get short ribbons:biggrin:
I tilted the cutter to give a bit of a positive rake, above the centre line and the result was fantastic. I could easily start sanding from at least 600grit.
There are captions on the pics.
This little tool can eat blanks for breakfast, but I soon got over my nerves and eventually held it quite lightly. When I started, it was white knuckle time:redface:. For someone like me that has never learned to use a skew, it's a Godsend and I love it:biggrin::biggrin::biggrin:
If I can, then ANYONE can
Attachments
-
1OriginalToolPostTooTall.jpg50.6 KB · Views: 238
-
2NewToolPost.jpg65.2 KB · Views: 232
-

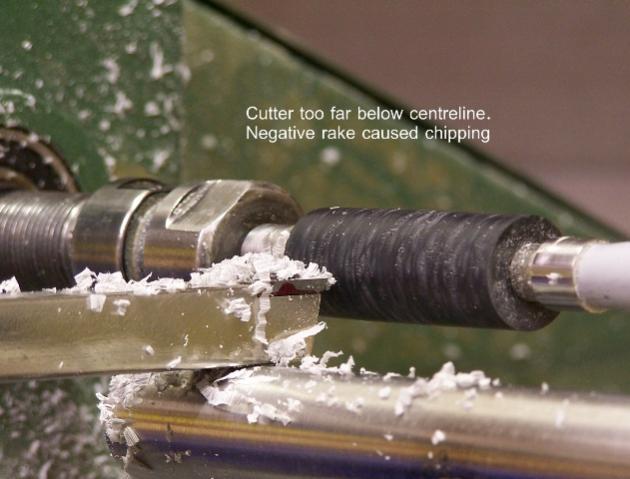

3TooLowDegRake.jpg38.6 KB · Views: 242
-

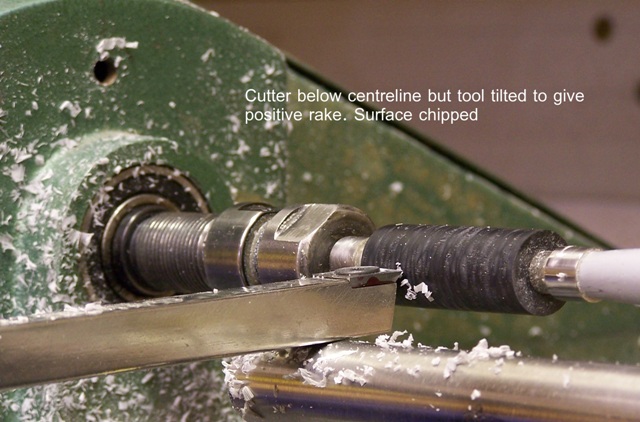

4ToolTooLowPosRake.jpg95 KB · Views: 249
-

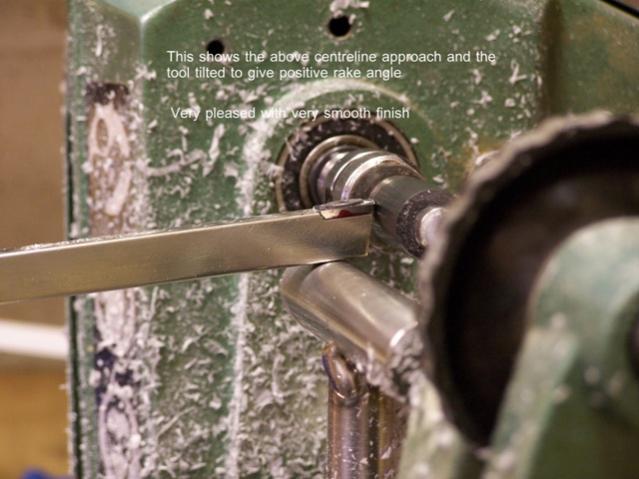

5WorksForMe.jpg43.3 KB · Views: 237
-

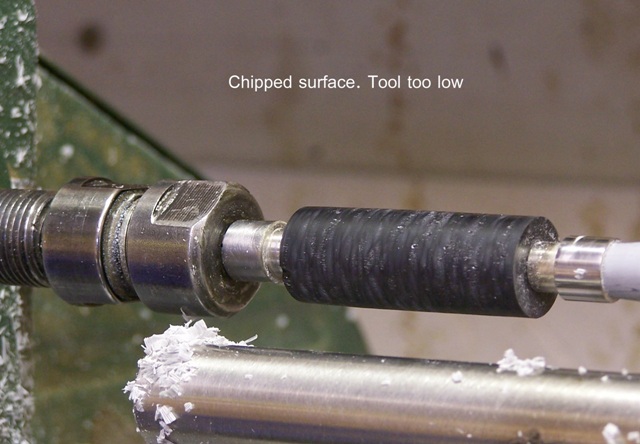

6TooLowChipped.jpg79.2 KB · Views: 227
-

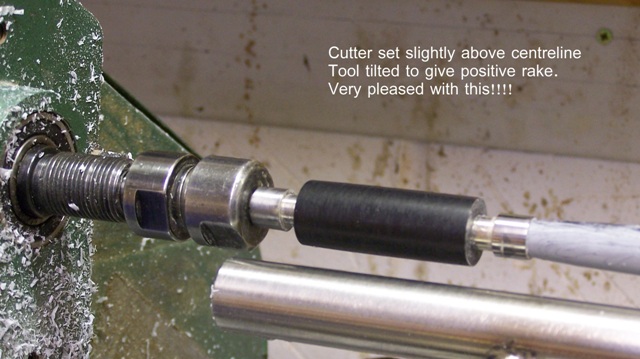

7BestFinishSoFar.jpg79.6 KB · Views: 240
-

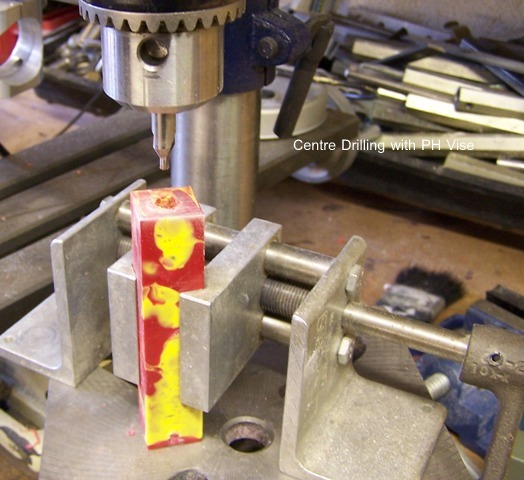

8PHVCentreDrilling.jpg83.1 KB · Views: 238
-

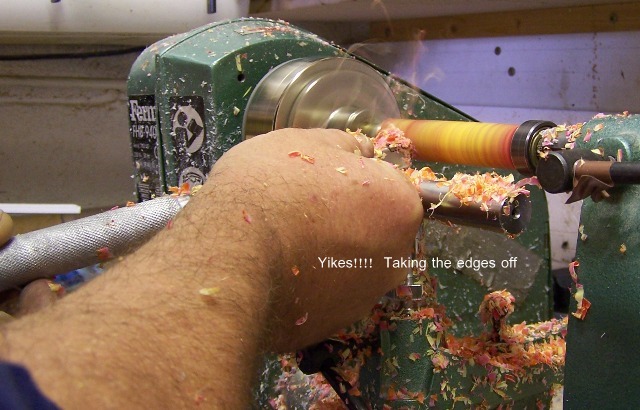

9SquaringUp.jpg96.3 KB · Views: 243
-

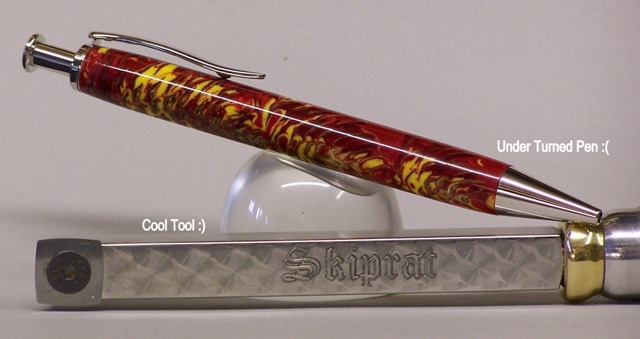

Result.jpg51.9 KB · Views: 272
