crabcreekind
Member

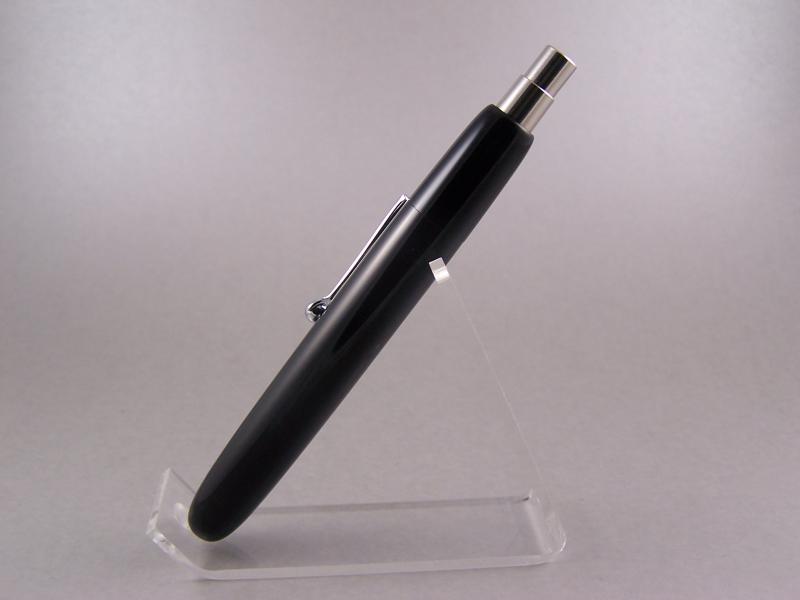

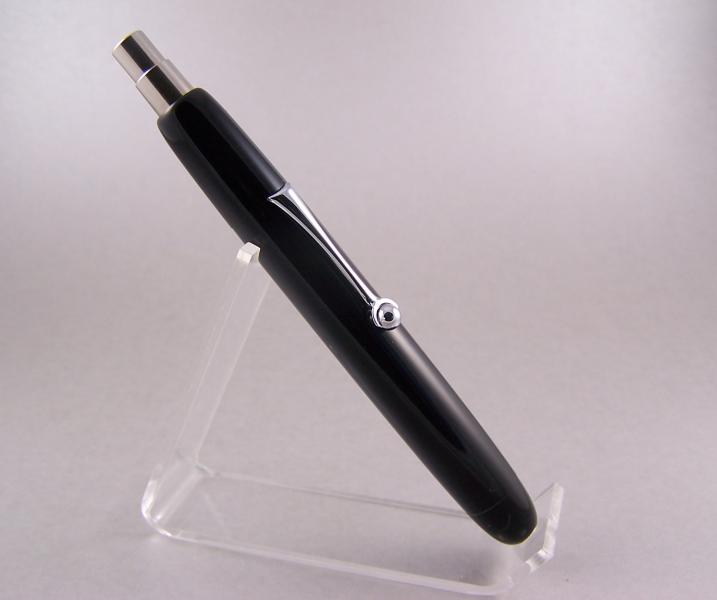

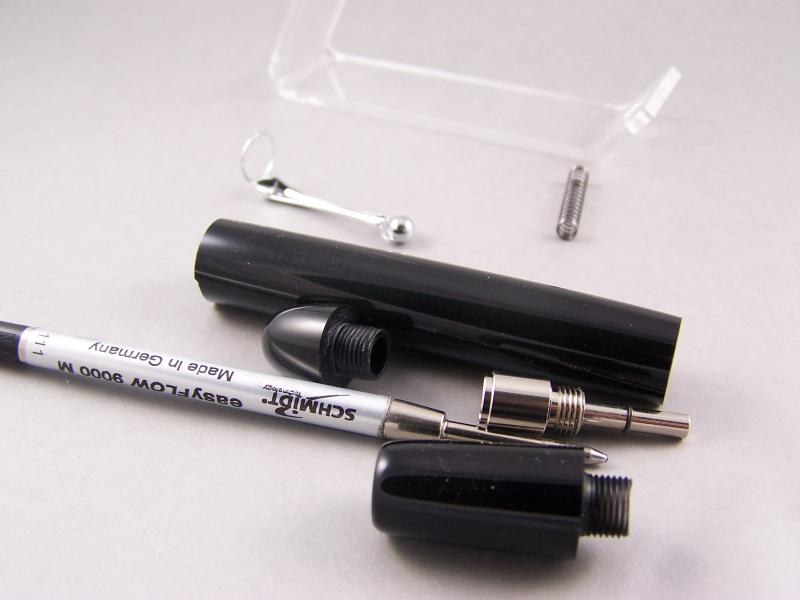

Ok, where do i start. For the top piece, i drill it with a d bit. Then tapped the click mechanism 7x.75. Then i made the tenon which was 8mm and then threaded that. As you can see, it is off center and super thin, because light is coming through it.. lol. Then the main body i drilled with a j bit. Then i recessed the top with my 27/64 colt bit, which is flat on the bottom. So it worked out good. Then i tapped it with 8x.75. Then the other side was also tapped with 8x.75. Then the nose cone was made, tenon is 8mm and threaded. Then, i put all the pieces together, and turned it. As it being black, it is very hard to get it perfect, but it is very good. After it was all polished it dremel out the slot for the clip to fit in. My first time for that, I went slow and checked it alot. I didnt want to mess up 5 hours of works for 1 second of stupidness with the dremel. So what do you guys think? C&C welcome
