graningwood
Member

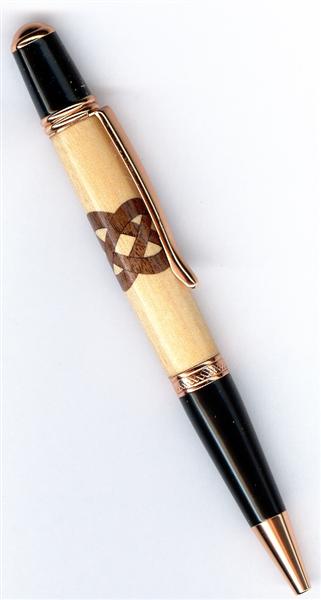

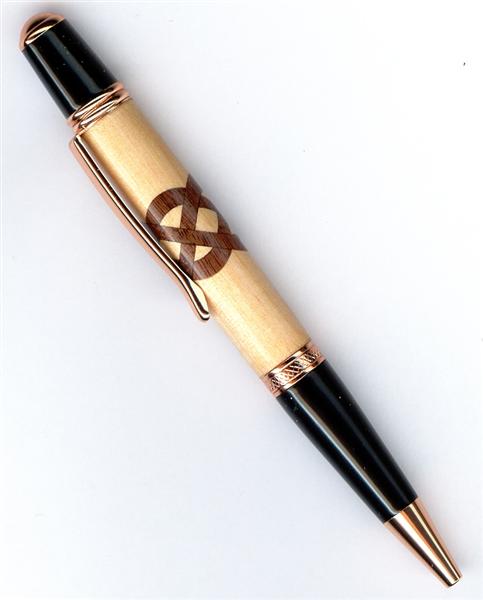

Here is my attempt at a double Celtic knot. It is made with birch and walnut with a ca finish. Please all comments welcome.
First knots
- Thread starter graningwood
- Start date
Signed-In Members Don't See This Ad
- Status
Signed-In Members Don't See This Ad
kent4Him
Member
Very nice. Nice contrast. I use Cherry and Walnut combinations myself.
GaryMGg
Member
Lovely.
gketell
Local Chapter Leader
Well done Michael!! Gorgeous knots.
GK
GK
rherrell
Member
Nice job Michael!
papaturner
Member
Good job.
Perry
Perry
Ligget
Member
Great job, the woods really go well together! [
]
]Texatdurango
Member
Aren't these fun to make? Nice job!
Fred
Member
Very well executed. You did good! []
]
jedgerton
Member
That looks great and I just have to find the time to try it myself. I've read the tutorials I've been able to find and I'm still confused about (at least) one point. Do the laminations that make up the knot have to be the same thickness as the saw kerf? If so, how do you guys get wood planed to the same thickness as your saw's kerf? I'm hoping the answer is obvious and I've just missed some critical point.
Any help would be appreciated.
John
Any help would be appreciated.
John
txbatons
Member
Nice pen there. Good job on the knots. I gotta try the knots.
GaryMGg
Member
John,
Have a look here for another explanation: http://www.thepenshop.net/forum/forum_posts.asp?TID=6715
George's (texatdurango) tutorial is still the best out there.
Yet, my photo explanation seems to have helped a bunch of folks over the edge.
I use a sled with my planer -- it allows me to get below the typical 1/8 - 1/4" limitation.
Alternatively, I've also ripped a long thick board, making the offcut the proper thickness.
If you get real close, you can always use a belt sander, hand plane or scraper [my preference] to fit the kerf perfectly.
Have a look here for another explanation: http://www.thepenshop.net/forum/forum_posts.asp?TID=6715
George's (texatdurango) tutorial is still the best out there.
Yet, my photo explanation seems to have helped a bunch of folks over the edge.
I use a sled with my planer -- it allows me to get below the typical 1/8 - 1/4" limitation.
Alternatively, I've also ripped a long thick board, making the offcut the proper thickness.
If you get real close, you can always use a belt sander, hand plane or scraper [my preference] to fit the kerf perfectly.
jedgerton
Member
Gary,
Thank you! I never thought of not cutting the blank through. I'll give this a try.
John
Thank you! I never thought of not cutting the blank through. I'll give this a try.
John
tipusnr
Member
Nice work.
Gary, could you tell me more about your thickness planer sled? I have been trying to design one for my 12" thickness planer that likes the wood to be at least 10" long.
Gary, could you tell me more about your thickness planer sled? I have been trying to design one for my 12" thickness planer that likes the wood to be at least 10" long.
GaryMGg
Member
Bill,
These sleds should give you workable solutions:

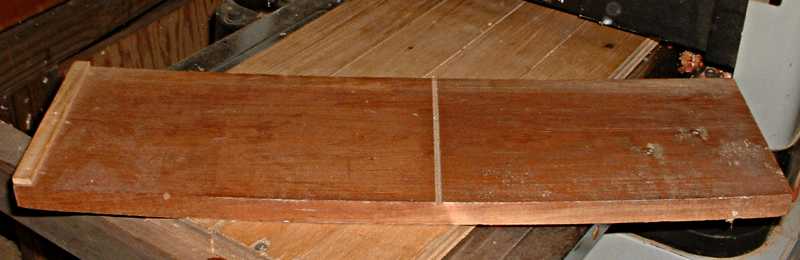

For short stuff, I use this sled or one like it. The short piece rides in the sled.
It's just a square milled piece of cherry scrap with a stop:

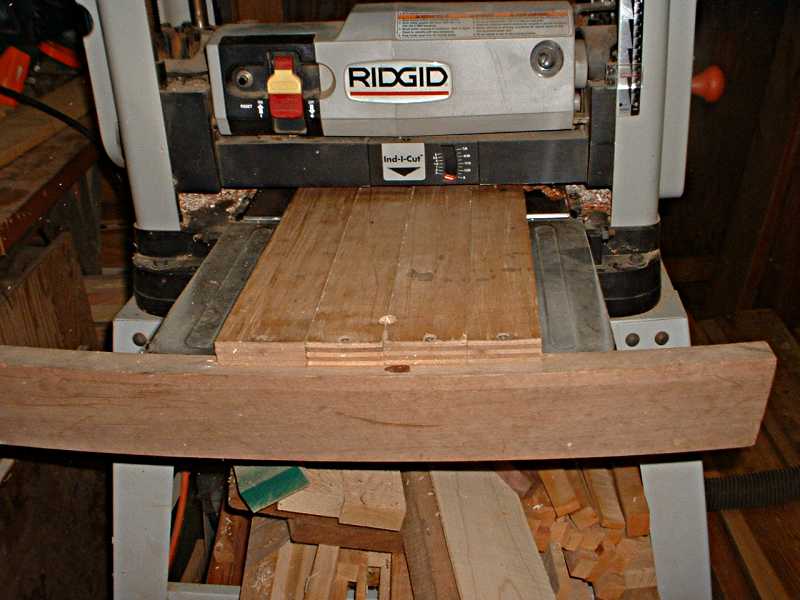

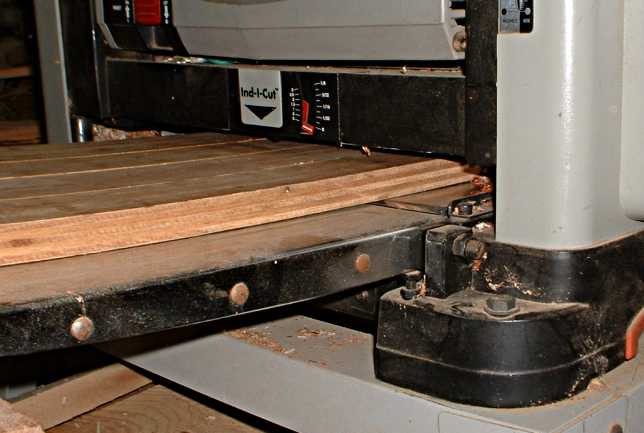

For longer pieces, wherein I simply need to get it thinner than normally possible:
Someone made a comment about having sharp blades. I agree; if the blades aren't sharp
in your planer, what's the point?!? I keep mine sharp! [] []
These sleds should give you workable solutions:
For short stuff, I use this sled or one like it. The short piece rides in the sled.
It's just a square milled piece of cherry scrap with a stop:
For longer pieces, wherein I simply need to get it thinner than normally possible:
Someone made a comment about having sharp blades. I agree; if the blades aren't sharp
in your planer, what's the point?!? I keep mine sharp! [
] []- Status
