First attempt

Signed-In Members Don't See This Ad
skamrath1

skamrath1

Member
Joined
Jun 17, 2012
Messages
131
Location
Duncan, Oklahoma
:RockOn::RockOn:Ok tonight I am gonna attempted my first pen. So any last minute advise is welcomed lol I will try to post a picture on here no matter how good or bad it turns out so I can get some constructive criticism hehe Wish me luck:biggrin::biggrin:

Signed-In Members Don't See This Ad
skamrath1

skamrath1

Member
Joined
Jun 17, 2012
Messages
131
Location
Duncan, Oklahoma
dbledsoe said:
Don't do it! I'm warning you, if you do one you will never be able to stop. The first one is a choice - after that it's an obsession.
Click to expand...

I am already hooked lol I have been a pen lover for a long time. My wifey calls me a pen geek lol

D.Oliver said:
Sharp tools + light cuts. What material are you turning (wood, acrylic)?
Click to expand...

Gonna start with wood. I think that would be the wise choice lol

skamrath1

skamrath1

Member
Joined
Jun 17, 2012
Messages
131
Location
Duncan, Oklahoma
Jim Burr said:
dbledsoe said:
Don't do it! I'm warning you, if you do one you will never be able to stop. The first one is a choice - after that it's an obsession.
Click to expand...

Resistance is futile...walk away from the light!! Take a picture of that last $20 in your wallet...
Click to expand...

Should have told me that before I bought all my tools lol Now I am digging in the sofa to find change to buy blanks and kits lol

JohnU

JohnU

Member
Joined
Jan 31, 2008
Messages
4,964
Location
Ottawa, Illinois
Like said above, sharp tools, light cuts, and don't turn it to finished size. Leave some some room for sanding down to bushings. Most of all, be safe and have fun. Make sure you keep this one to show how you began.

skamrath1

skamrath1

Member
Joined
Jun 17, 2012
Messages
131
Location
Duncan, Oklahoma

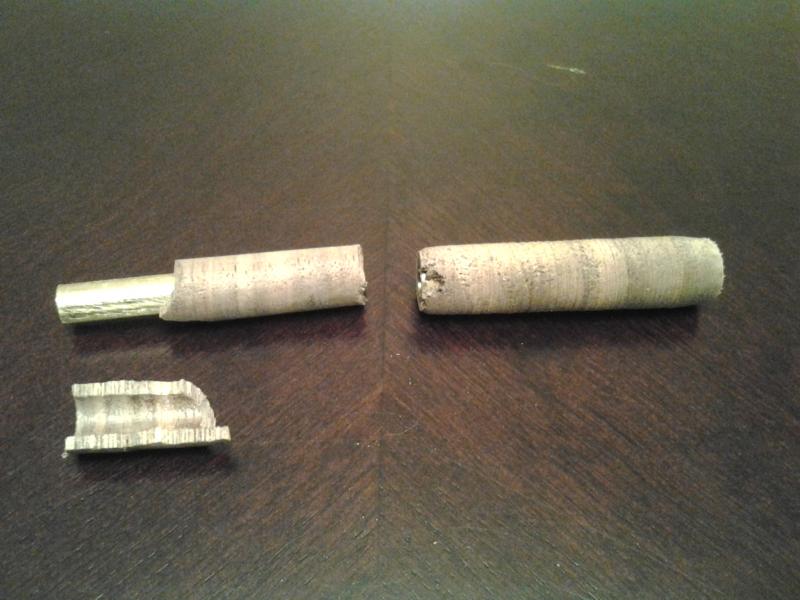

Well that didn't go as planned lol. To start I was having a tough time keeping the blanks from spinning. I don't know if I was holding tools right or if I was using the right took at the right time. Well tomorrow is a new day and a new turn hehe


Attachments

  • 20120712_220436.jpg
    56.4 KB · Views: 178
Displaced Canadian

Displaced Canadian

Member
Joined
Aug 5, 2009
Messages
3,229
Location
Millersburg, OR
New really doesn't mean sharp. When glueing in tubes I'll put a little glue in from the other side of the blank. I'll use thick CA so I have time to push the tube in and rotate, then do the same from the other side. Sometimes a spinning blank means the tube has broken loose from the blank or the tool is pushed too far into the wood. Side note CA doesn't really work with acrylic blanks. You will need to use epoxy or gorilla glue. It is also easier to blow up an acrylic blank than a wood one. Let us know how it goes tomorrow.

Jarod888

Jarod888

Member
Joined
Mar 11, 2012
Messages
467
Location
Brighton, Colorado
I would suggest watching a few of the videos on YouTube concerning turning. In particular, Capn' Eddie Castelin's is very good. Some of his suggestions are great, i.e. letting the glue cure over night, others are OK, i.e. using a twist clamp as a pen vice. I know that a lot of people use them because they are cheap, but I can't imagine essentially ruining one just to use it as a pen vice. You can buy a great one for about 30$ from Woodcraft, and it is dead simple to use, plus it fits nicely on a drill press bench.
One other suggestion, pick a blank that is generally considered hard. Black Mesquite, Cocobolo, Lacewood, are good suggestions. I wouldn't try anything super hard like Ligum Vitae or Desert Ironwood unless you have carbide tools.

As others have said, sharp tools and light cuts are essential. One last thing, have fun!!


Here is the link to the video I mentioned above.

104 basic pen turning.mp4 - YouTube

Last edited:
skamrath1

skamrath1

Member
Joined
Jun 17, 2012
Messages
131
Location
Duncan, Oklahoma
Xander said:
Just my opinion but looks like your tools are not sharp. New does NOT mean sharp.
Good try, keep on practising, you'll get it.
Click to expand...

I did file the tools before I started maybe not good enough lol

firewhatfire said:
what did you glue the tube in with? Next time stick your tongue out the other side of your mouth.
Click to expand...

I used a medium CA

Displaced Canadian said:
New really doesn't mean sharp. When glueing in tubes I'll put a little glue in from the other side of the blank. I'll use thick CA so I have time to push the tube in and rotate, then do the same from the other side. Sometimes a spinning blank means the tube has broken loose from the blank or the tool is pushed too far into the wood. Side note CA doesn't really work with acrylic blanks. You will need to use epoxy or gorilla glue. It is also easier to blow up an acrylic blank than a wood one. Let us know how it goes tomorrow.
Click to expand...

So put the CA in the blank 1st? And yea I aint gonna attempt to do a acrylic til I get the wood mastered lol

Jarod888

Jarod888

Member
Joined
Mar 11, 2012
Messages
467
Location
Brighton, Colorado
Ensure that you have scruffed up the pen tube. Essentially it should not be shiny anywhere. You should then put you medium or thick CA glue on the tube. The glue should essentially cover the tube. You then need to insert it with some "speed" while spinning the wood blank a bit. This essentially spreads the glue around the inside of the blank and creates a better bond.

skamrath1

skamrath1

Member
Joined
Jun 17, 2012
Messages
131
Location
Duncan, Oklahoma
Jarod888 said:
I would suggest watching a few of the videos on YouTube concerning turning. In particular, Capn' Eddie Castelin's is very good. Some of his suggestions are great, i.e. letting the glue cure over night, others are OK, i.e. using a twist clamp as a pen vice. I know that a lot of people use them because they are cheap, but I can't imagine essentially ruining one just to use it as a pen vice. You can buy a great one for about 30$ from Woodcraft, and it is dead simple to use, plus it fits nicely on a drill press bench.
One other suggestion, pick a blank that is generally considered hard. Black Mesquite, Cocobolo, Lacewood, are good suggestions. I wouldn't try anything super hard like Ligum Vitae or Desert Ironwood unless you have carbide tools.

As others have said, sharp tools and light cuts are essential. One last thing, have fun!!


Here is the link to the video I mentioned above.

104 basic pen turning.mp4 - YouTube
Click to expand...

Thanks for the video. I already see that I was using the skew wrong lol. One other question I have is when rounding the blank should it be at a high or low speed?

BSea

BSea

Member
Joined
Dec 28, 2009
Messages
4,628
Location
Little Rock, Arkansas
skamrath1 said:
Well that didn't go as planned lol. To start I was having a tough time keeping the blanks from spinning. I don't know if I was holding tools right or if I was using the right took at the right time. Well tomorrow is a new day and a new turn hehe
Click to expand...
WAIT JUST 1 MINUTE THERE!!! How did you get a hold of my 1st pen :confused::mad::confused:. Just kidding. :biggrin: But it looks eerily similar.

skamrath1

skamrath1

Member
Joined
Jun 17, 2012
Messages
131
Location
Duncan, Oklahoma
BSea said:
skamrath1 said:
Well that didn't go as planned lol. To start I was having a tough time keeping the blanks from spinning. I don't know if I was holding tools right or if I was using the right took at the right time. Well tomorrow is a new day and a new turn hehe
Click to expand...
WAIT JUST 1 MINUTE THERE!!! How did you get a hold of my 1st pen :confused::mad::confused:. Just kidding. :biggrin: But it looks eerily similar.
Click to expand...


Yea I had had a little mishap :eek: lol But i will be at it again tonight after work. My wifey called me today at work and asked what I wanted for dinner and my reply was I dont have time for dinner I have a pen to turn hehehe:bananen_smilies051:

Steve Busey

Steve Busey

Member
Joined
Jul 9, 2008
Messages
1,143
Location
Marietta, GA.
It looks like you have the wood glued on the tube "cross grain", instead of running from one end of the tube to the other. Your's is a bit trickier than typical "end-to-end" grain orientation. If you try another, try it with the grain running the length of the pen. Later you can move on to cross grain...

skamrath1

skamrath1

Member
Joined
Jun 17, 2012
Messages
131
Location
Duncan, Oklahoma
Steve Busey said:
It looks like you have the wood glued on the tube "cross grain", instead of running from one end of the tube to the other. Your's is a bit trickier than typical "end-to-end" grain orientation. If you try another, try it with the grain running the length of the pen. Later you can move on to cross grain...
Click to expand...

Ah that make sense I will do a straight cut blank tonight. DANG when is 6:30 gonna get here lol:rotfl:

X

Xander

Member
Joined
Feb 11, 2012
Messages
373
Location
Arizona
skamrath1 said:
Jarod888 said:
I would suggest watching a few of the videos on YouTube concerning turning. In particular, Capn' Eddie Castelin's is very good. Some of his suggestions are great, i.e. letting the glue cure over night, others are OK, i.e. using a twist clamp as a pen vice. I know that a lot of people use them because they are cheap, but I can't imagine essentially ruining one just to use it as a pen vice. You can buy a great one for about 30$ from Woodcraft, and it is dead simple to use, plus it fits nicely on a drill press bench.
One other suggestion, pick a blank that is generally considered hard. Black Mesquite, Cocobolo, Lacewood, are good suggestions. I wouldn't try anything super hard like Ligum Vitae or Desert Ironwood unless you have carbide tools.

As others have said, sharp tools and light cuts are essential. One last thing, have fun!!


Here is the link to the video I mentioned above.

104 basic pen turning.mp4 - YouTube
Click to expand...

Thanks for the video. I already see that I was using the skew wrong lol. One other question I have is when rounding the blank should it be at a high or low speed?
Click to expand...

High speed for rounding and turning. Some people then slow it down for sanding ( I sand at top speed). Again, sharp tools and light cuts. The 'skew' is not the easiest tool for beginners so... you might want to use something else, like a smaller spindle gouge.

Good luck and most important, have fun.

Paul in OKC

Paul in OKC

Member
Joined
Jul 26, 2004
Messages
3,092
Location
Oklahoma City, OK, USA.
I run high speed on all. If your blank spins try tightening up the nut a bit. A skew is a tough tool to master, I still rarely use one. Do all my turning with about a 1/2" gouge.

robutacion

robutacion

Member
Joined
Aug 6, 2009
Messages
6,514
Location
Australia - SA Adelaide Hills
Steve Busey said:
It looks like you have the wood glued on the tube "cross grain", instead of running from one end of the tube to the other. Your's is a bit trickier than typical "end-to-end" grain orientation. If you try another, try it with the grain running the length of the pen. Later you can move on to cross grain...
Click to expand...

Yes, I had notice the end-grain blank used, straight away but I kept reading through to see if anyone noticed that and obviously you did so, nice catch...!

There is certainly not the best blank option to use on your first pen, anything with a angle cut, is more difficult to work with and more fragile in all aspects of the pen making, starting with the drilling...!

There is nothing to worry about and any improvement that can me made on the tube gluing, will also minimise the risks of a blow-out...!

Straight cut (with the grain) "solid wood blanks, are my recommendation at this point, leave all the soft woods, woods cut in angles and even the acrylics alone, a regular wood blank is a lot cheaper to replace than a acrylic one...!

Keep practising...!

Good luck

Cheers
George
