I've acquired a number of these kits. They have three tubes.
When I got the kits I did not get instructions.
If someone could post them I'd appreciate it.

Lee

Signed-In Members Don't See This Ad

ssajn

Local Chapter Leader
Joined
Feb 3, 2008
Messages
1,034
Location
Milwaukee, Wi, USA.
I have the same instructions Lenny has that tell you not to glue in the tubes. After his experience of making one and having it out of round I decided to try it and glue in the tubes. The only reason I can see for not gluing in the tubes is the tube would come loose during assembly. I found that if you glue in the tubes, then during assembly support the smaller tube ( I used a transfer punch ) there was no problem.

I turned mine between centers without bushings. If you cut the blanks to as close to finish size you can square it up with a skew. If necessary finish trimming the tube with a file, just don't touch the wood.

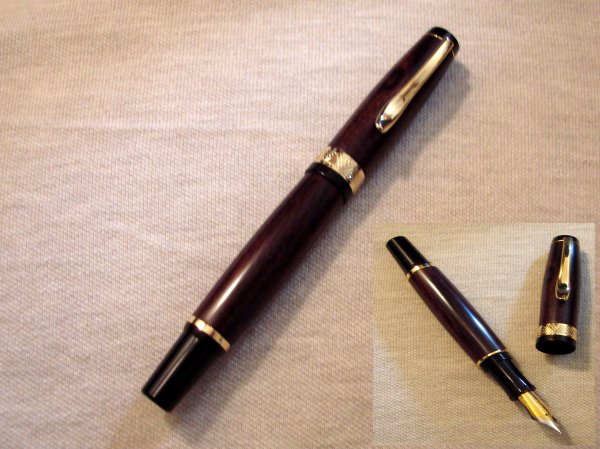

Here's mine.


Attachments

  • Dsc03885.jpg
    62.2 KB · Views: 188
