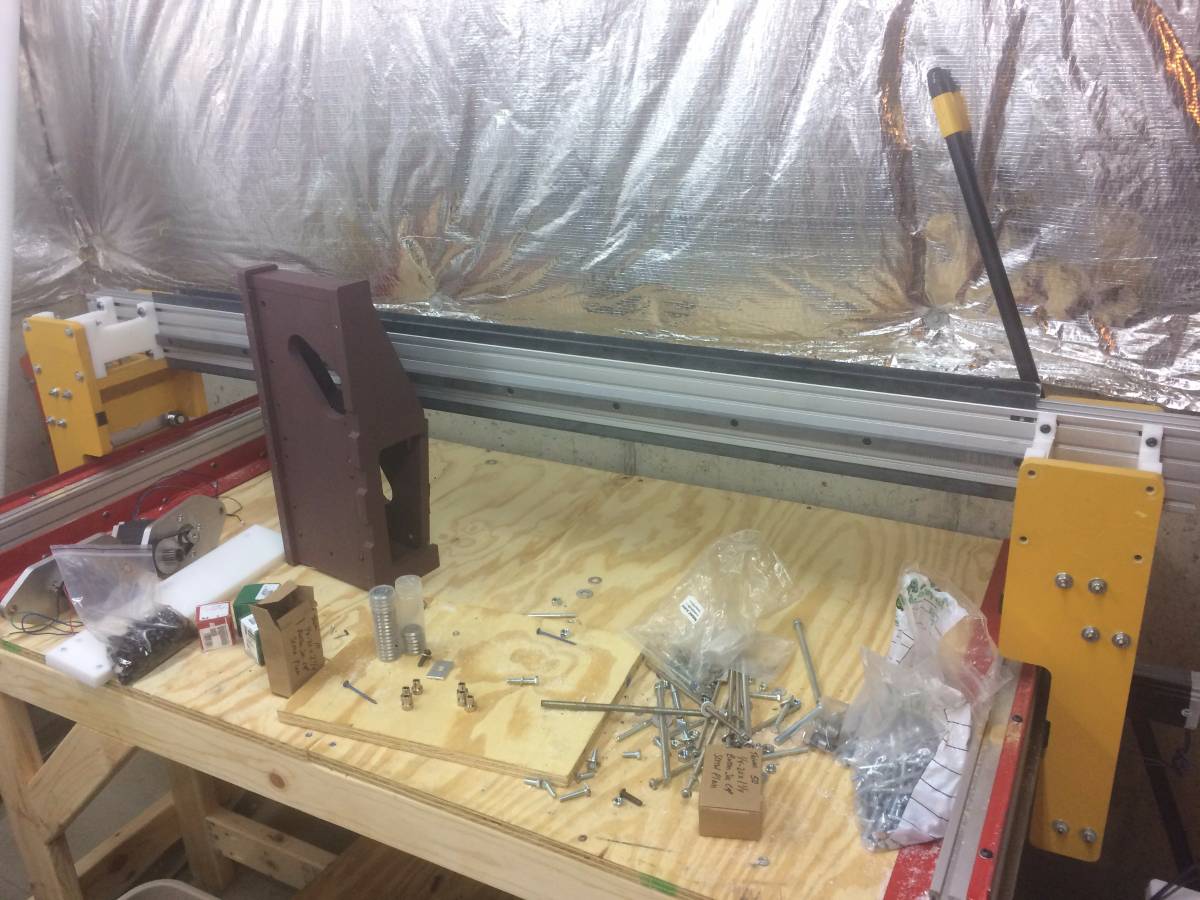

I have a Joe's 4x2 hybrid rack and pinion CNC machine that is partially assembled right now. It has never been run or used as it sits. I have too many work and family obligations to finish it and put it to use. Overall I estimate I have over $2600 in the parts as they sit. I estimate it's 97% finished. All that's left is to assemble the z axis, and finish the wiring.
The following items are included in this sale:
- Joe's CNC Hybrid 4x4 Rack and Pinion Plans
- (2) 72" 2x4 Aluminum extrusions from 80/20
- (2) 36" 2x4 Aluminum extrusions from 80/20
- (2) 36" 20 degree pitch pre-drilled gear rack from Moore Gear
- (1) 72" 20 degree pitch pre-drilled gear rack from Moore Gear

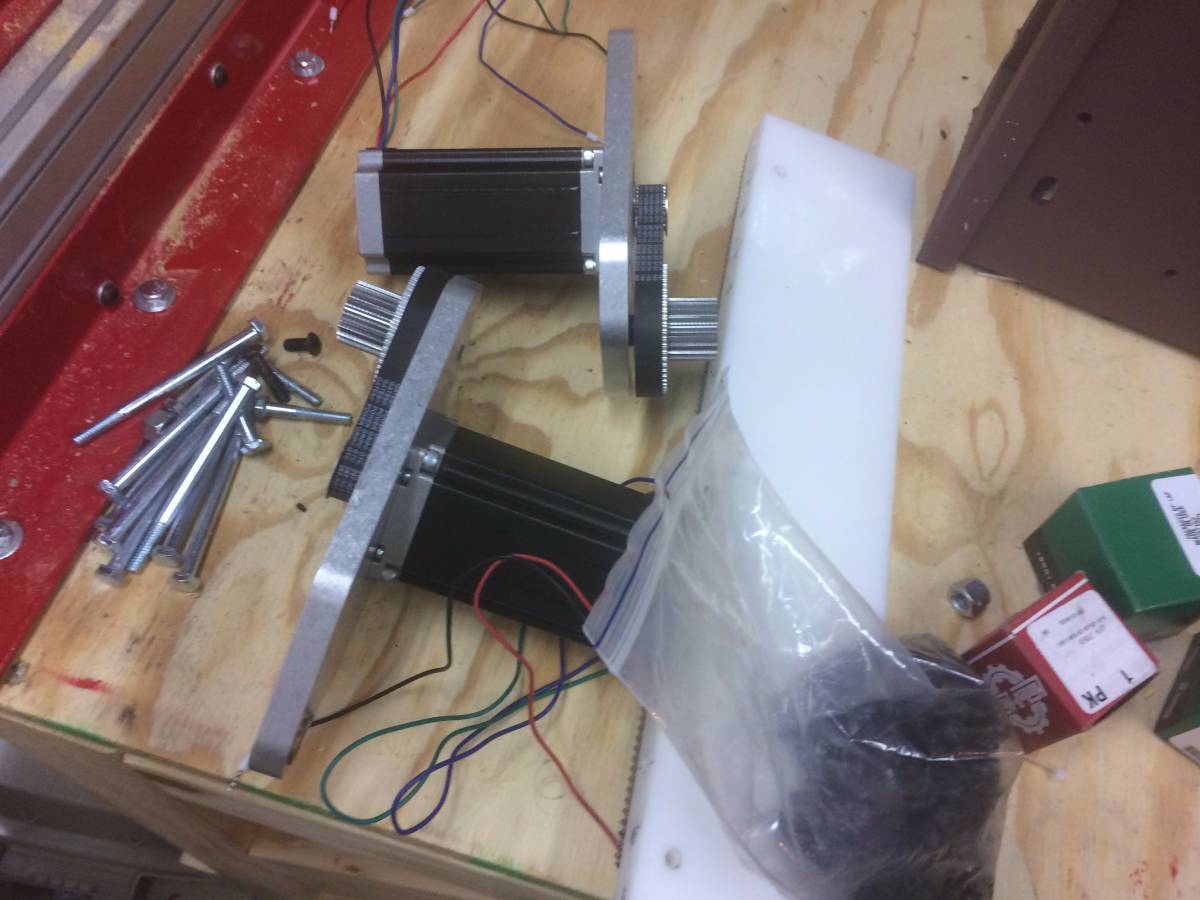

- (4) 425 oz/in motors
- (4) m542 digital stepper motor drivers

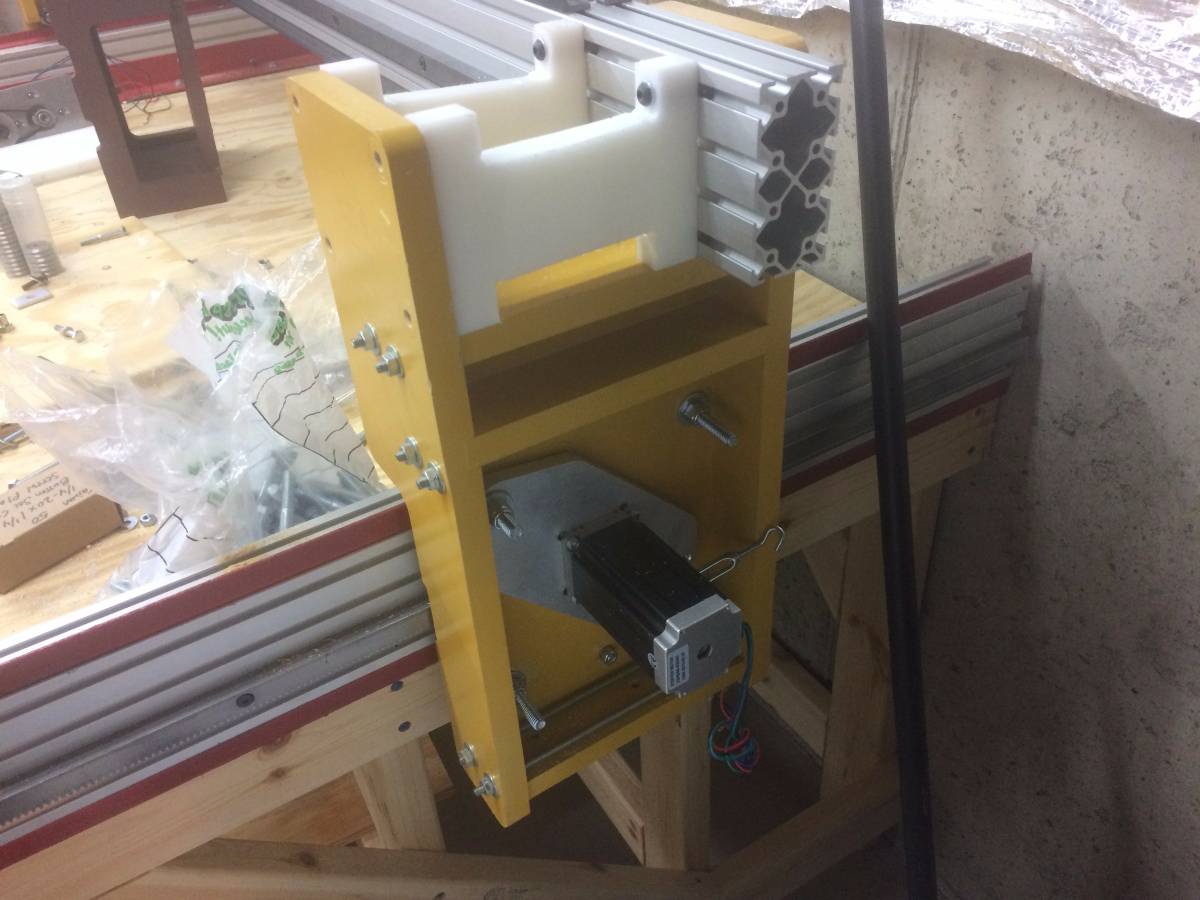

- (4) Nema 23 rack and pinion drives from cncrouterparts.com

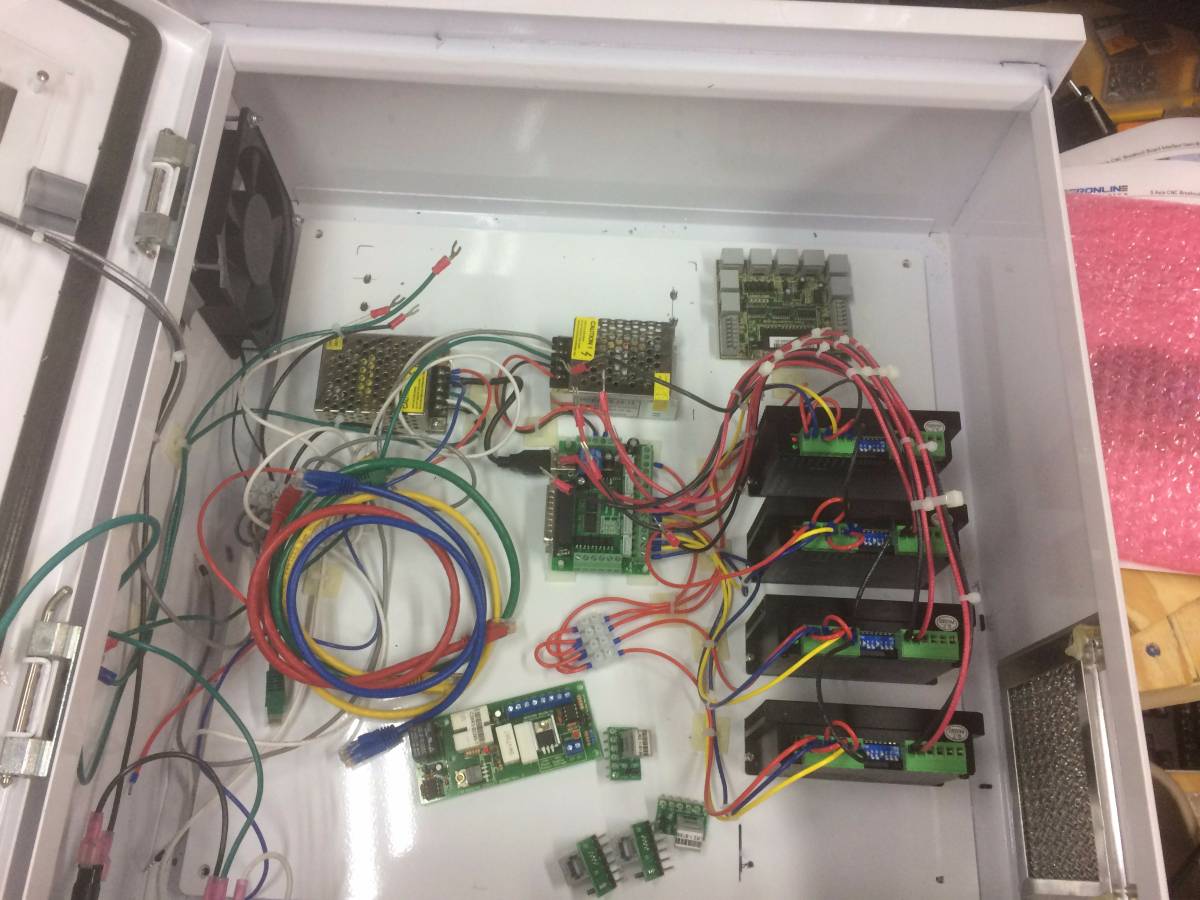

- (1) 20x20x8 Saginaw Control & Engineering Nema steel enclosure
- (1) Back plate for enclosure
- (1) Unbranded breakout board.
- (1) C35S quick break out board from CNC4PC
- (1) C48 external E-stop and probe connector board from CNC4PC
- (1) C38 breaking resistor board from CNC4PC
- (4) K34L quick connect RJ45 boards from CNC4PC
- different colored cat5 cables for stepper connections.
- (1) 5v power supply
- (1) 12v power supply
- (1) Meanwell 48v Power Supply
- (18) RM2-2RS 3/8" V-Groove Guide Bearings
- required eccentric and concentric bushings
- Used MDF X/Y axis carriages from joescnc.com
- MDF Warp drive rack and pinion z axis carriage from MakerMasters.com
- Over 200 t-nuts and bolts for the 80/20
- Nuts and bolts and washers for everything else
- Hitachi M12VC router
- SUPER-PID
- K2 Aluminum router mount
- Precisebits.com Precision Grade Collet Kit
- CMT 60 degree v-bit
- Anything else I have purchased CNC related that I'm forgetting that I can find.
I'm asking $1500 for this stuff so I can return to my pen turning addiction. In reality it's over $2000 worth of stuff so I'm offering a very good deal and I'm not really too negotiable on price.
I'm in southern Ohio and it's pickup only.
