360 herringbone with a twist

[ochoabrian]

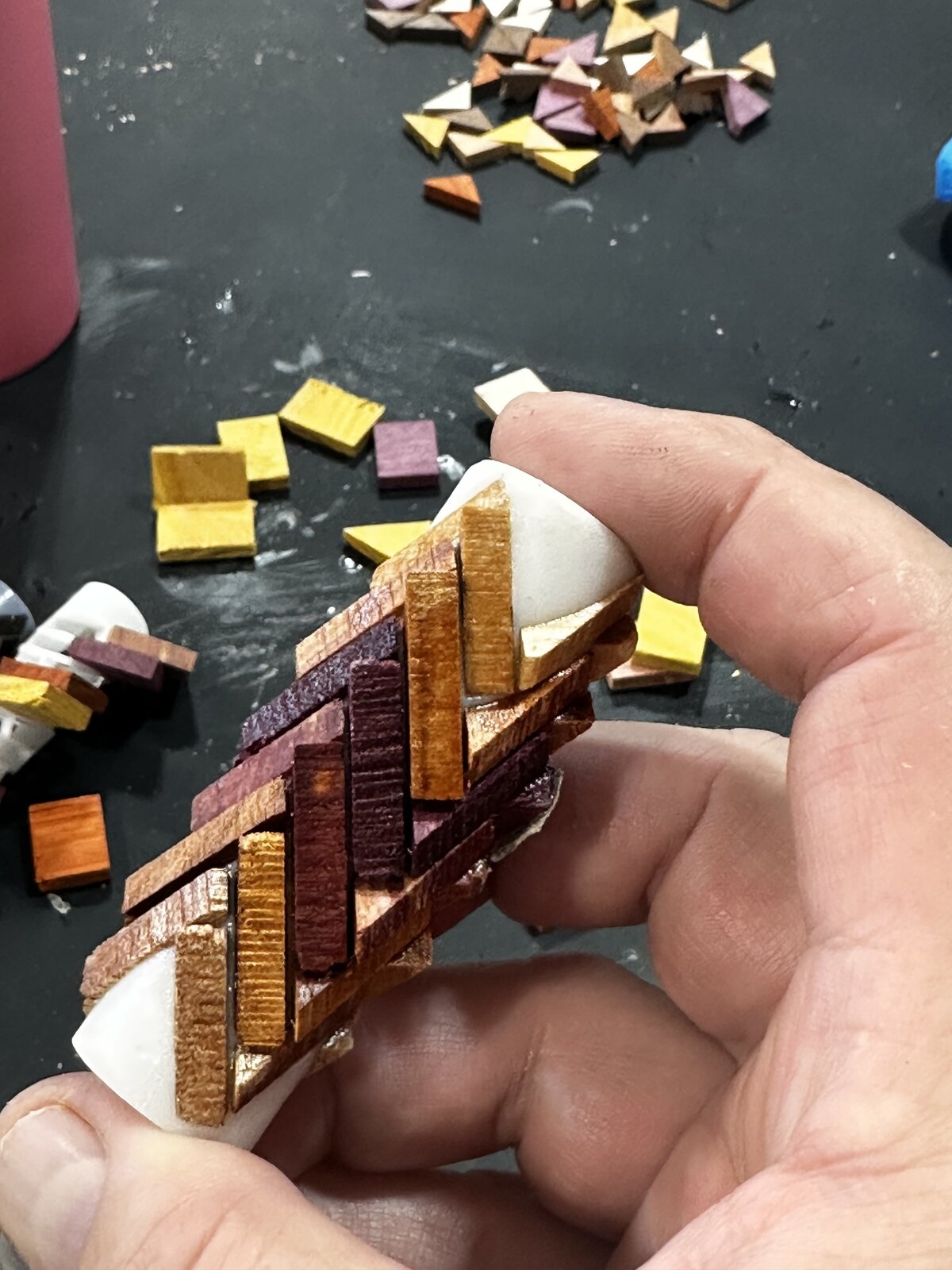

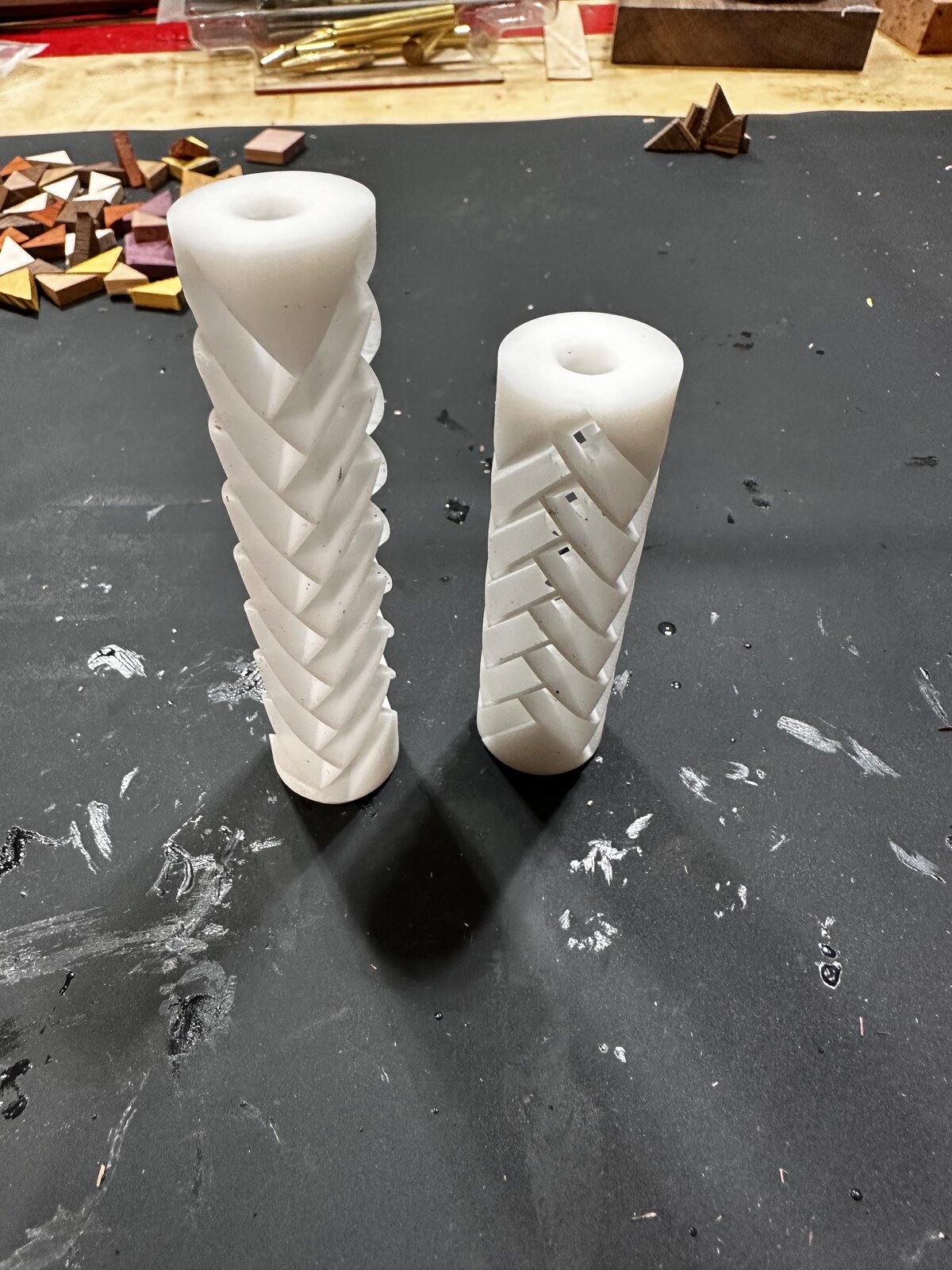

I love herringbone pens, specially the 360 ones, but not necessarily the process of making them, so I designed a method to make them using a 3D printed core (what I call a skeleton) in which I add the wood segments. Aside of making the process much simpler (without considering the design of the skeleton) the waste is significantly smaller. Let me know what you think!

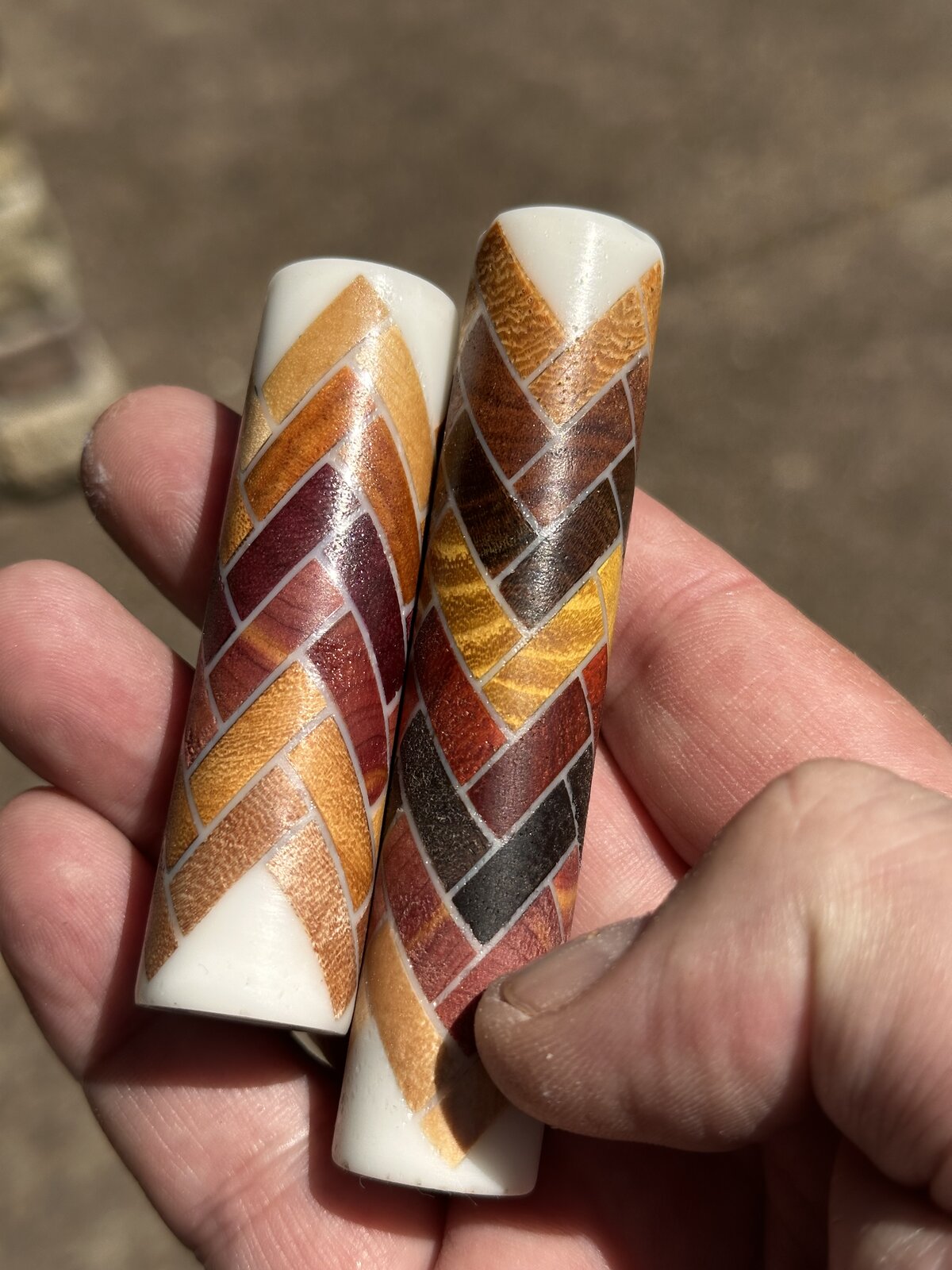

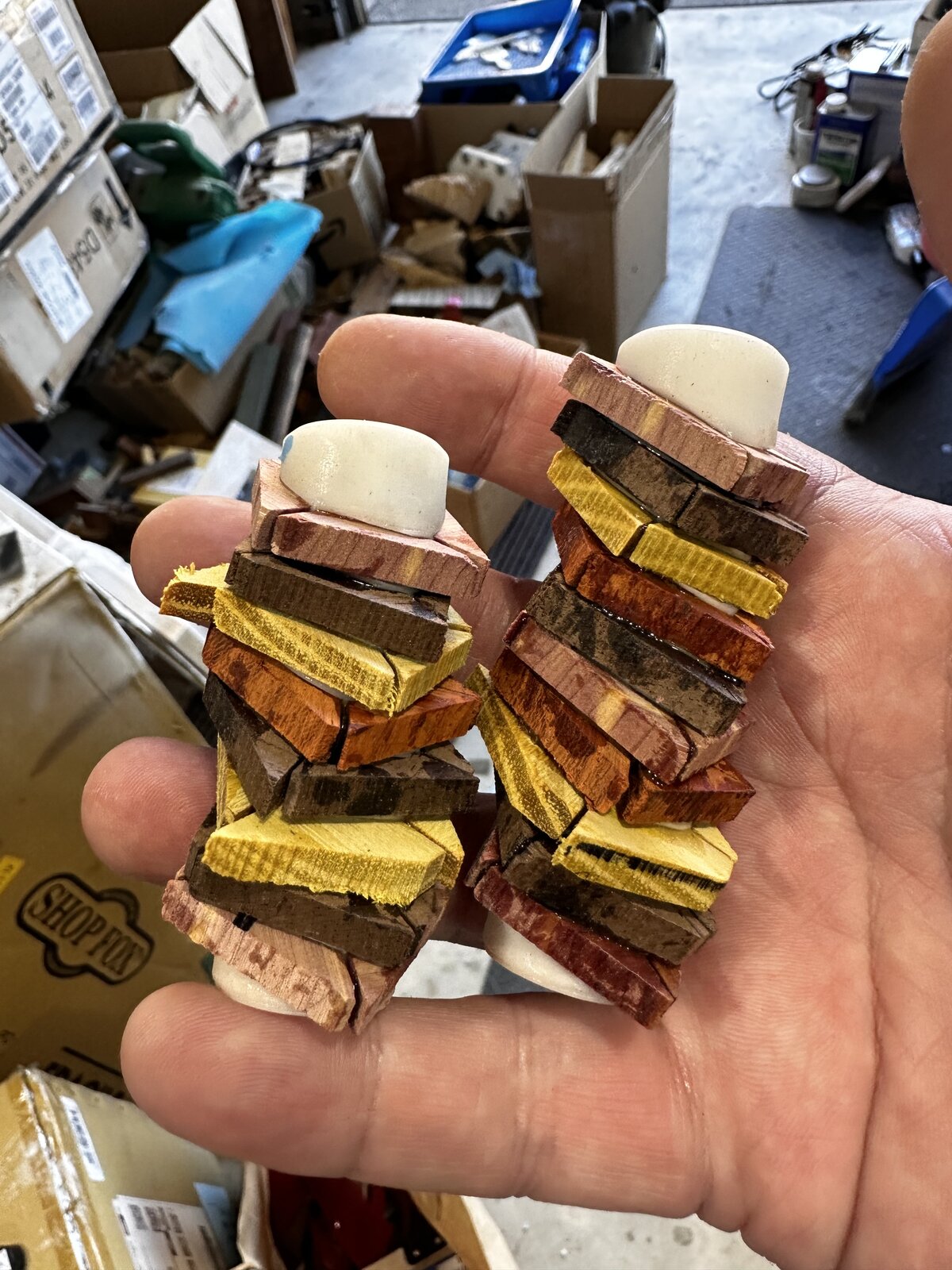

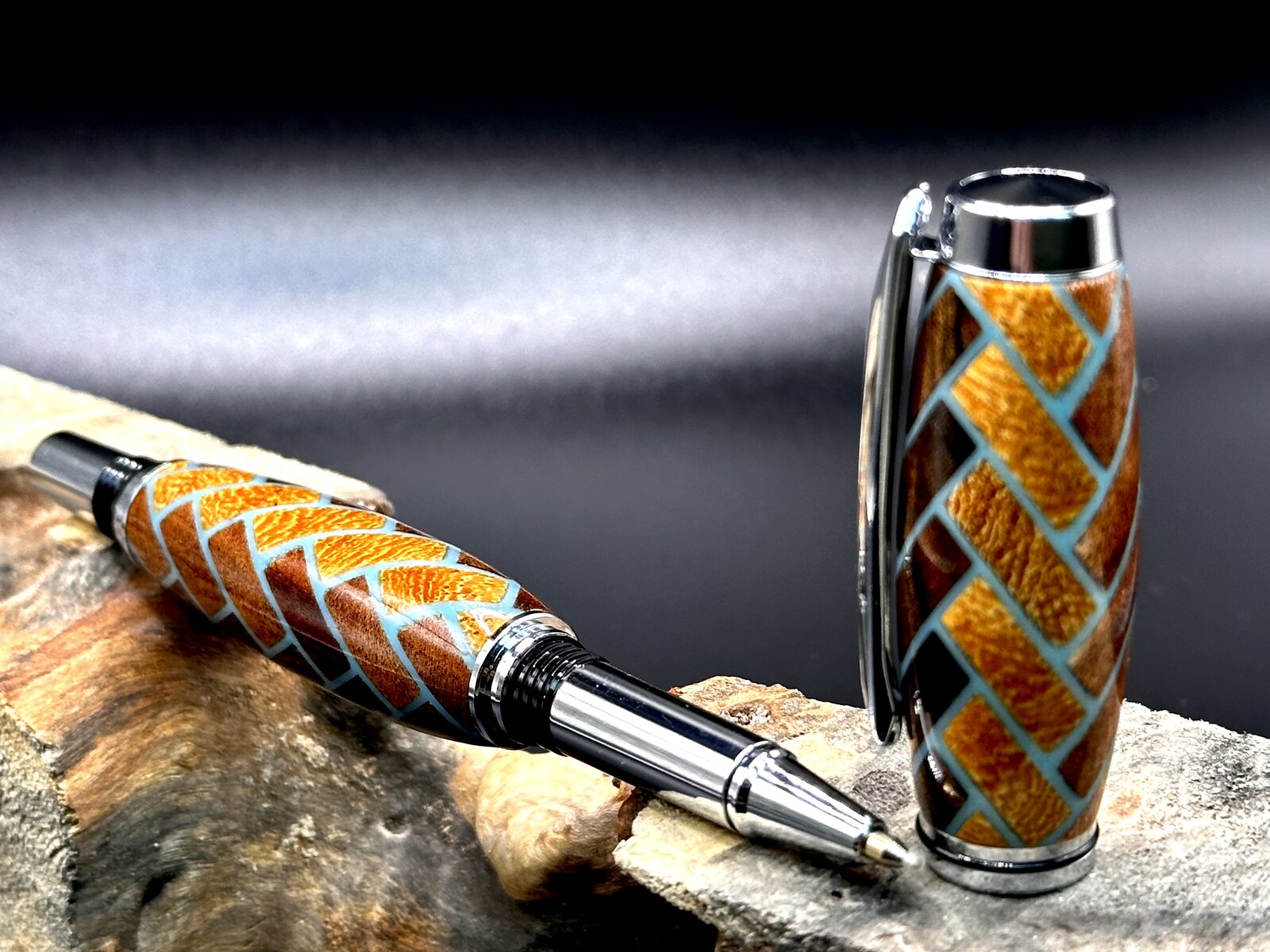

I am adding some pictures of the process and the results.
Cheers



[its_virgil]

Excellent. Great idea. I majestic 360 herringbone blanks the "old fashioned way". Lots of work and lots of waste but I too love the results.
Do a good turn daily!
Don



[leehljp]

Wow. That is mind blowing. Beautiful work. Thanks for posting this!



[ochoabrian]

Excellent. Great idea. I majestic 360 herringbone blanks the "old fashioned way". Lots of work and lots of waste but I too love the results.
Do a good turn daily!
Don

Thanks! It was a fun project and I had several variations using the same concept. Cheers

Wow. That is mind blowing. Beautiful work. Thanks for posting this!

thanks for you comment! Cheers

I love herringbone pens, specially the 360 ones, but not necessarily the process of making them, so I designed a method to make them using a 3D printed core (what I call a skeleton) in which I add the wood segments. Aside of making the process much simpler (without considering the design of the skeleton) the waste is significantly smaller. Let me know what you think!
I am adding some pictures of the process and the results.
Cheers

One more thing, the beauty of this process is that you don need to be precise in cutting the segments aside of course of the thickness. But the the shape can be a triangle or rectangle as long as there are one 90 deg angle
