octagonal (faceted) fountain pen

Signed-In Members Don't See This Ad
duncsuss

duncsuss

Member
Joined
Jun 29, 2012
Messages
2,346
Location
Wilmington, MA
I've owned a Montegrappa Symphony for many years, and started thinking about how I'd build one similar soon after I got into pen making.

I didn't get around to starting till last weekend, then yesterday I see there's a slew of activity around the subject of "faceted" pens ... cue the Twilight Zone music ...

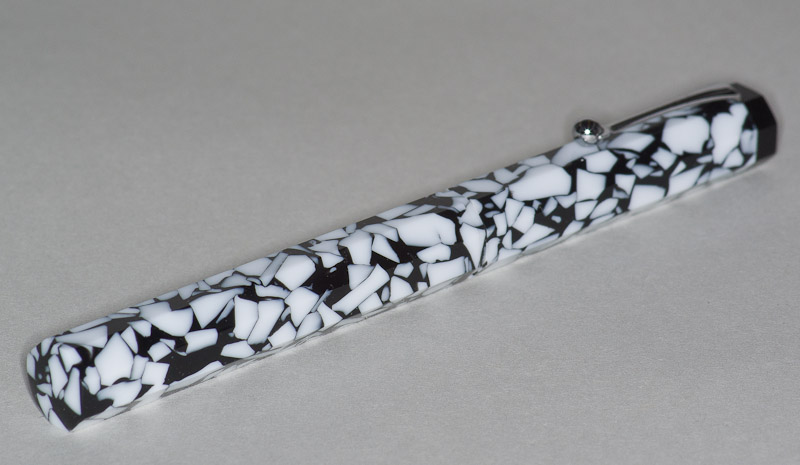

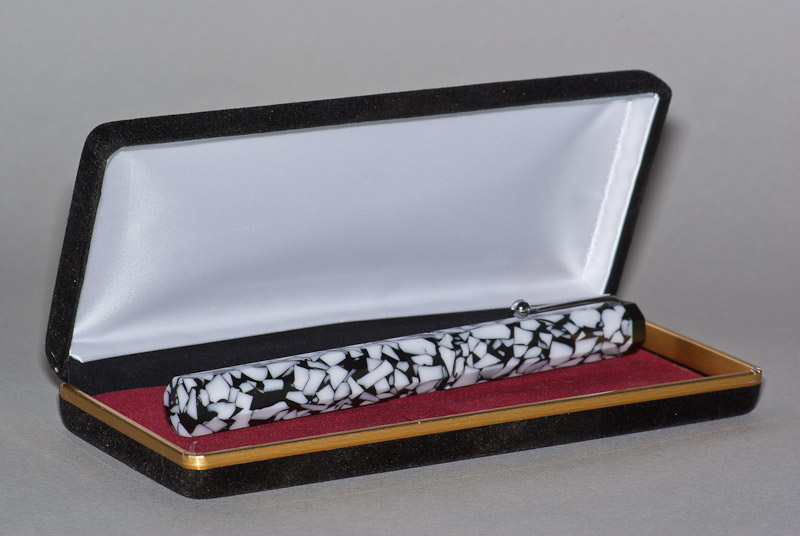

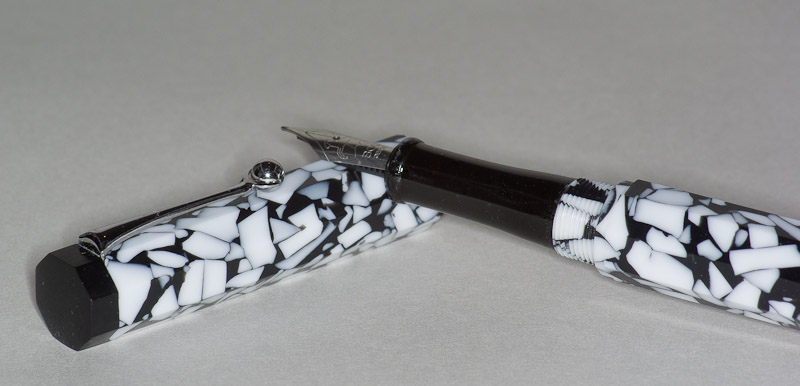

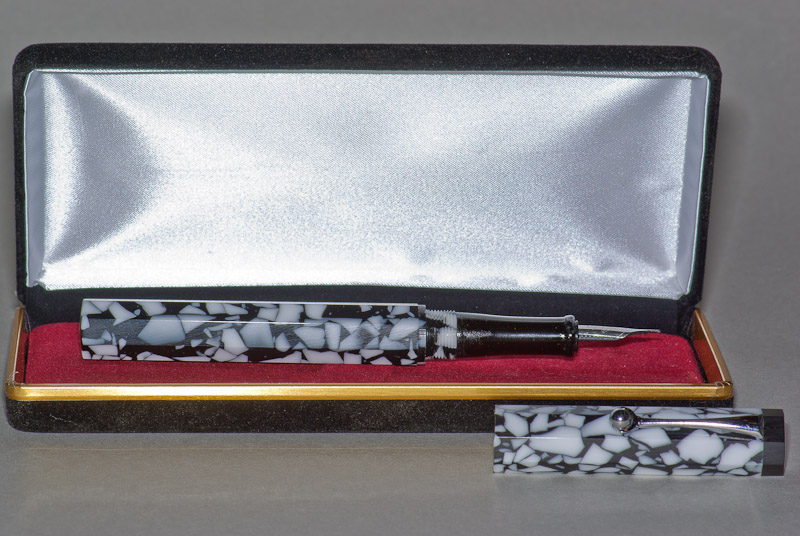

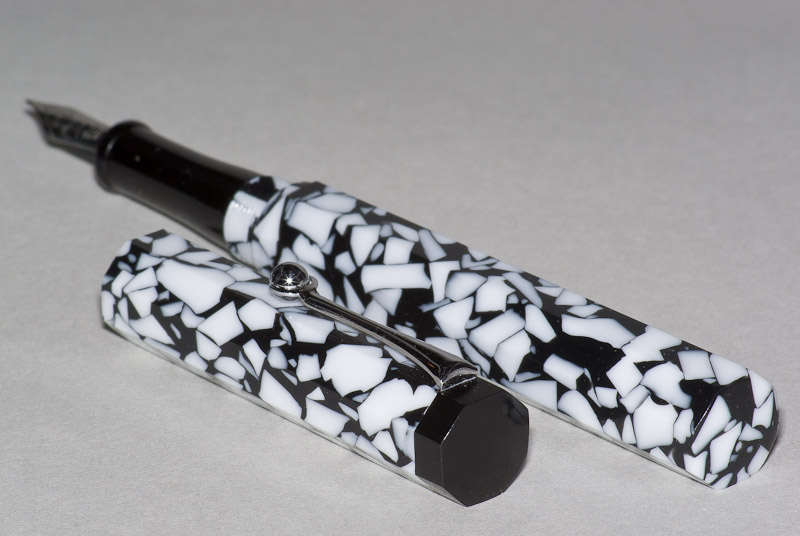

Anyway, here's mine: it's Dalmatian acrylic acetate, with a cap finial of black acrylic acetate. The section is black ebonite, with a Bock #5 nib -- though I might swap it out for one made from the same acetate as the cap finial (and might change the nib type while I'm tinkering with it.) As a first attempt, I'm quite happy with the way it turned out -- though there are a few things I have to improve (as will always be the case.)

Dimensions:

Length (capped): 146mm
Length (uncapped): 137mm
Thickness (across flats): 14.2mm (average)
Nib: Bock #5
Fill: cartridge/converter
Weight: 21g (without cartridge or converter)







Signed-In Members Don't See This Ad
Penultimate said:
That is very nice. How did you make it?
Click to expand...

PennState Industries used to sell a product called a "lathe mounted fluting guide" ... I can't find it on their site now, they must have discontinued it. One part holds a laminate router (trim router), the other clamps to the lathe ways and becomes a fence against which you can run the jig holding the router. My lathe has 24 indexing positions built in, so I used every 3rd stop.

thebillofwrites said:
Nice work !!

I can only imagine the time spent sanding and polishing.

The black & white has a classic look.

If I made that pen, I would have to keep it.
Click to expand...

Thanks!

It took a while, but not nearly as bad as I'd expected. Maybe I was in condition, having lapped and honed a couple of new chisels earlier in the day :biggrin:

Twissy said:
Really nice work Duncan! Something else for my bucket list! If you do tinker with the front end, how about an octagonal section!?
Click to expand...
Thanks, John ... tbh, sections are my weak link, I have to throw away as many as I get to keep. Until I improve my success rate I think I'll try to keep them as simple as possible :smile:

dalecamino said:
I like it. Can you show both pens in the same photo?
Click to expand...

Thanks :biggrin:

I only made one ... oh, do you mean show the inspiration (Montegrappa) and my attempt next to each other? I hadn't thought of doing that (haven't even looked at the Montegrappa since starting this one, I didn't want to succumb to the temptation of making it a direct copy.)

duncsuss said:
dalecamino said:
I like it. Can you show both pens in the same photo?
Click to expand...

Thanks :biggrin:

I only made one ... oh, do you mean show the inspiration (Montegrappa) and my attempt next to each other? I hadn't thought of doing that (haven't even looked at the Montegrappa since starting this one, I didn't want to succumb to the temptation of making it a direct copy.)
Click to expand...
That's what I had in mind but, it doesn't matter. Still a nice pen, all by itself. Keep 'em coming.
