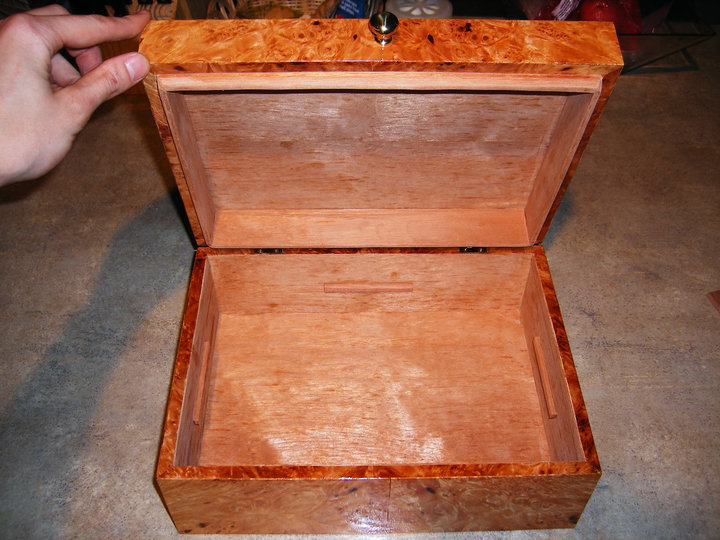

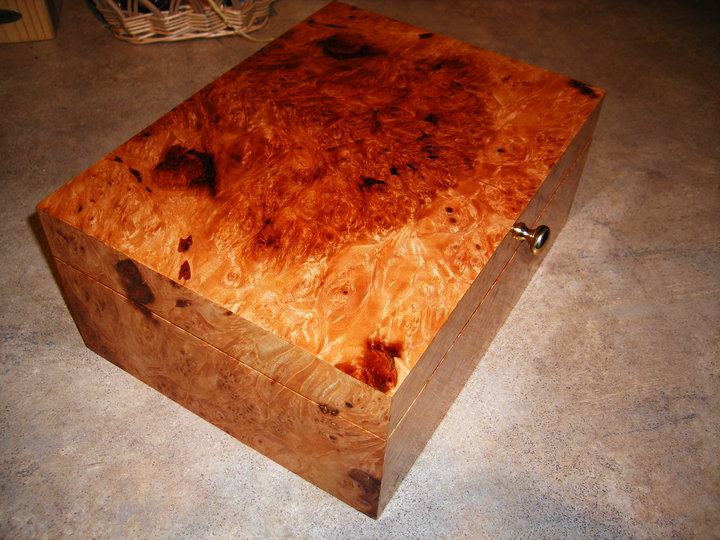

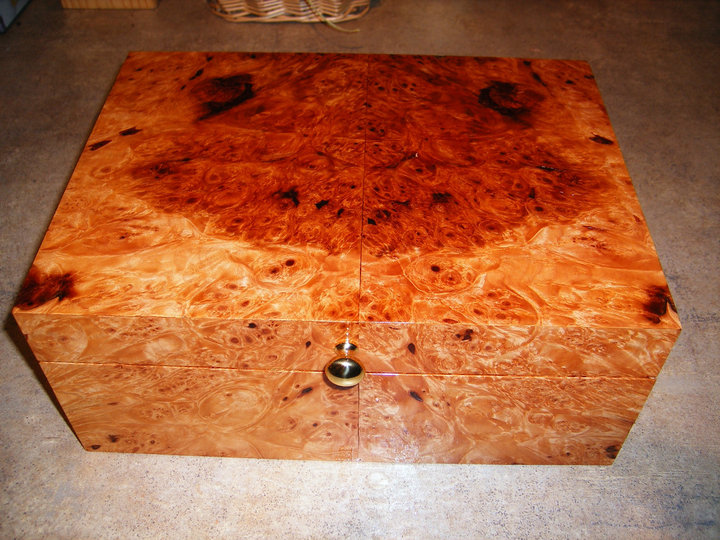

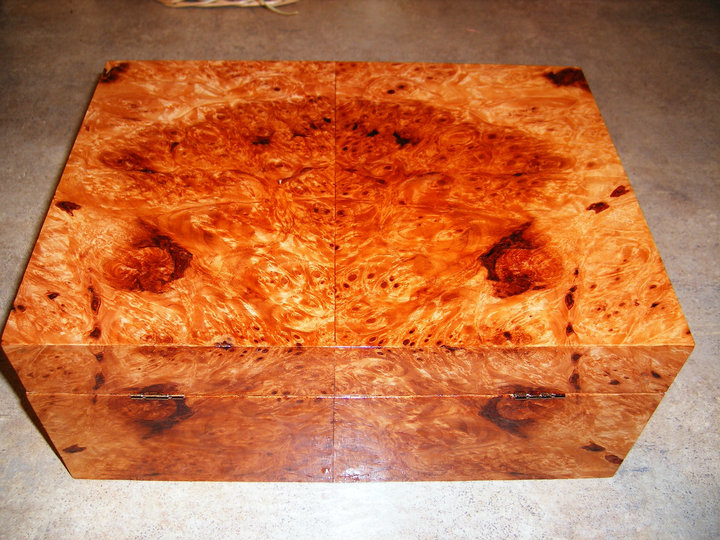

This is the third humidor that I have made. The box is made out of birch ply and covered in maple burl veneer. It is lined with Spanish cedar. The finish is 15 coats of wipe on glossy poly sanded between the coats.

As far as a humidor it is excellent. The seal is perfect. I have since added a humidifier and hygrometer into the lid. It holds the desired 70% humidity. It will hold between 50-60 cigars based on the size.

I was offered $400 at a local cigar store for the humidor but I am going to keep this one. Thanks for looking and letting me know what you think.

Caleb


Attachments

  • 1.jpg
    131.7 KB · Views: 860
  • 2.jpg
    122.4 KB · Views: 430
  • 3.jpg
    140.3 KB · Views: 682
  • 4.jpg
    109.8 KB · Views: 517
  • finishedhumidor.jpg
    50 KB · Views: 438
Last edited:
Signed-In Members Don't See This Ad

aggromere

Member
Joined
Mar 27, 2009
Messages
1,385
Location
Tampa, FL
Man, im jealous. I can't make anything unless it is round. That is beautiful. Make some more and post them.


Halfcaff

Member
Joined
Mar 6, 2010
Messages
58
Location
Pearland, Texas
Asbolutely stunning. The bookmatching is perfect.
Did you vacuum press the veneer or make your own clamping mechanism?

I made my own clamp. I made sure the veneer was where I wanted it then I clamped it down. I cut a piece of plywood to distribute the weight and used about 60 pounds of free weights.

Due to the nature of burl, it was very wavy and bumpy when I bought it. Before I could do anything with it I had to soften and flaten it. They make a veneer softener with a watered down glue and volatile liquid that you soak the veneer in then press it. I was then able to cut it to size when it was good and flat.


Halfcaff

Member
Joined
Mar 6, 2010
Messages
58
Location
Pearland, Texas

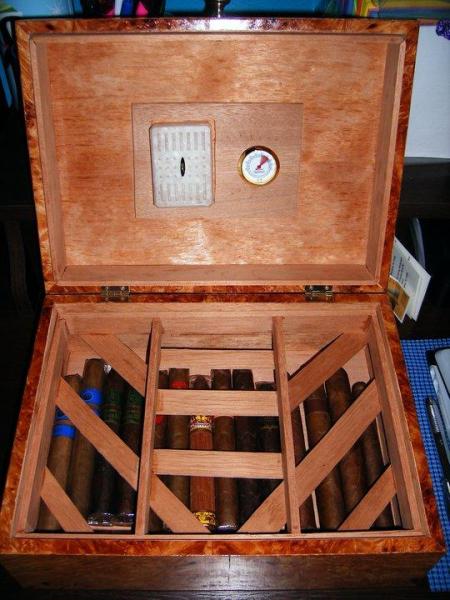

Here is the finished humidor with the humidification, hygrometer and shelf.....plus a few good sticks. It still holds a perfect 70% humidity. I want to build another!


Attachments

  • finishedhumidor.jpg
    50 KB · Views: 224

Halfcaff

Member
Joined
Mar 6, 2010
Messages
58
Location
Pearland, Texas
Does anyone know a better way to finish Burl? I used wipe on poly....a lot of wipe on poly but it is not a glass smooth finish. I have never tried shellac or epoxy. Any experience or suggestions? Thanks


hewunch

Member
Joined
Aug 5, 2008
Messages
4,657
Location
Albany, GA
If you sanded between all the coats that could be your problem. You have to build up a base. You could lacquer. Epoxy would be very durable, but you should still lacquer over it.


Dana Fish

Member
Joined
Jan 27, 2011
Messages
172
Location
Portland, ME
Wow very jealous. During your next build you should make a mini tutorial. I would interested in the reading of it. Not that my skills are capable for making such a thing of beauty. Great Job!


islandturner

Member
Joined
Jul 17, 2009
Messages
376
Location
Victoria, BC
"I was offered $400 at a local cigar store for the humidor but I am going to keep this one..."

I am not surprised at this... Stunning....!


TexasTaxi

Member
Joined
Mar 11, 2011
Messages
112
Location
Richmond, TX
VERY nice!

Did you build the trays, too?
A humidor is on my list of "stuff I'd like to build for myself but will never have time".


paps

Member
Joined
Dec 7, 2010
Messages
143
Location
Bryan, TX
I made a couple of humidors a few years ago, but they do not compare to yours... Outstanding!
