Elegant Sierra click problems

[Bean_Counter]

Amy ideas on why this click won't work. It seems like the refill is to short. It will click but not extend the refill through the nib. Is the click just 2plastic pieces? Thanks



[commercialbuilder]

some of the click sierras have a small round piece about 1/4" long that has a smaller piece that pushes into the hole in the back of the refill. It is made so you can use a G2 refill also which will not require the piece to work since that refill is longer. The click will not work with out that piece installed in the refill that comes with the pen.



[longbeard]

Just wondering if you was able to get this fixed?



[Bean_Counter]

Mike I don't think these kits have that part you are talking about. Do you happen to have a pic?

Still working on it Harry



[commercialbuilder]

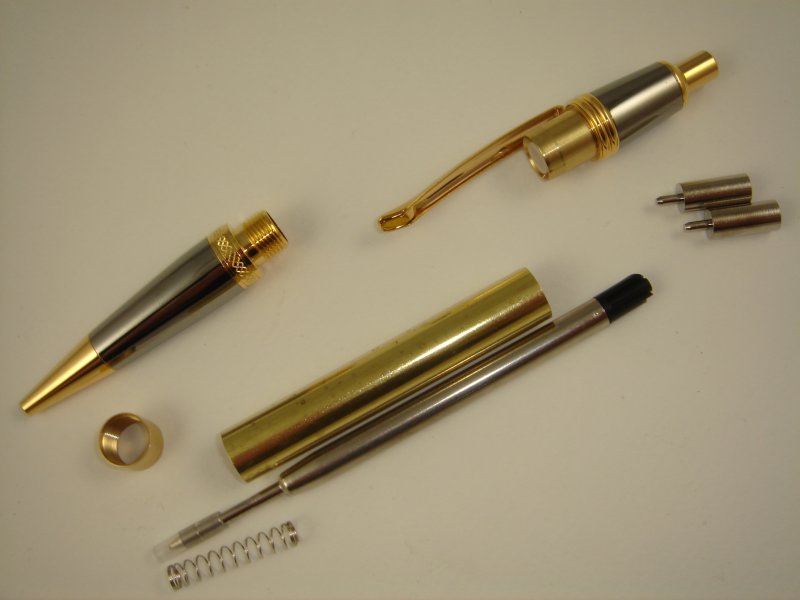

Here is a picture I got from Bear Tooth that shows all the parts, there are 2 of these parts in each pen kit shown in the top right of the photo.
Hope this helps.



[johncrane]

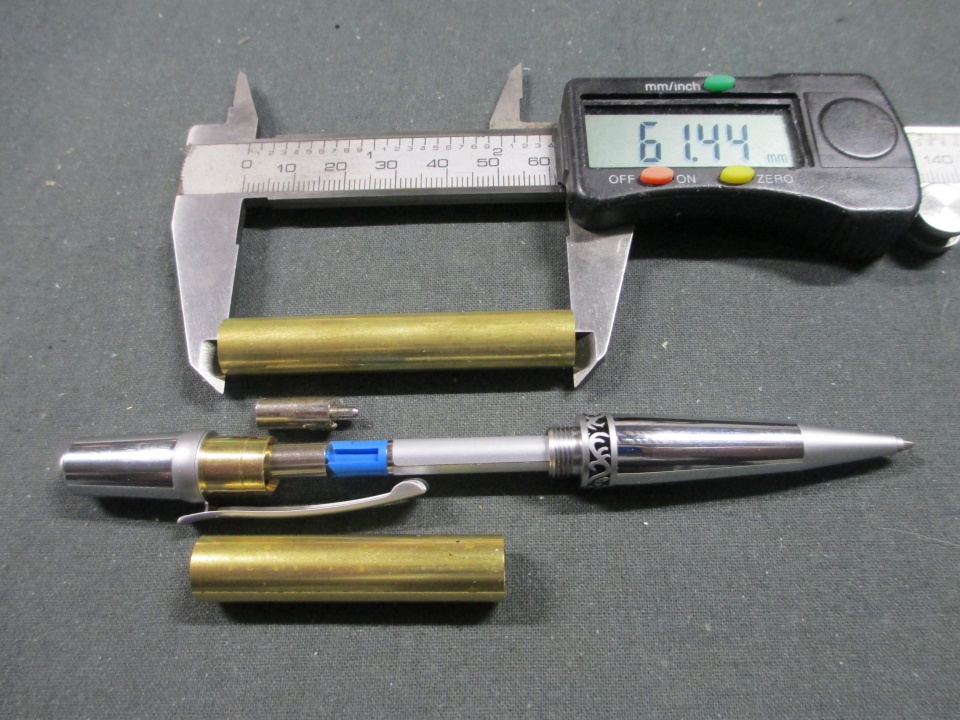

Michael here is another photo with the 2 different tubes if you cant find the steel extender you could trim down the blank to fit,but its probably better you get the part you need
Richard Greenwald sells a R2B Converter made of plastic there only a dollar check out Miscellaneous Pen Parts on his web site, you can find it here in the Vendors pages FIRST click on the LINKS at the top of the home page left side.
