Birdseye Maple Cane

Signed-In Members Don't See This Ad
See more from Dalecamino

Dalecamino

Dalecamino

Local Chapter Leader
Joined
Jan 2, 2008
Messages
14,572
Location
Indianapolis, In.

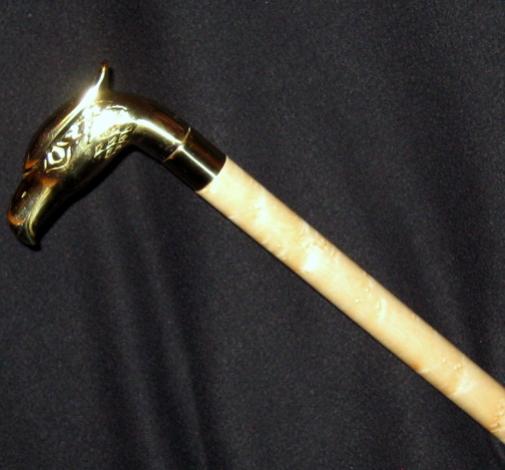

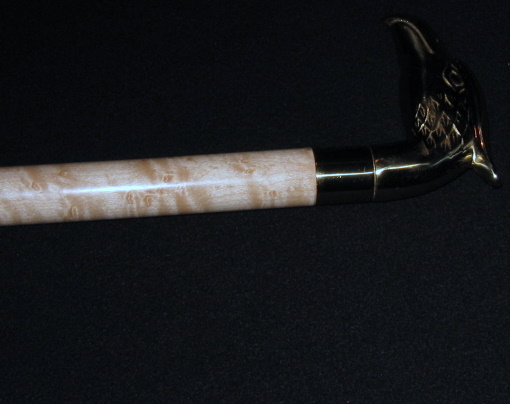

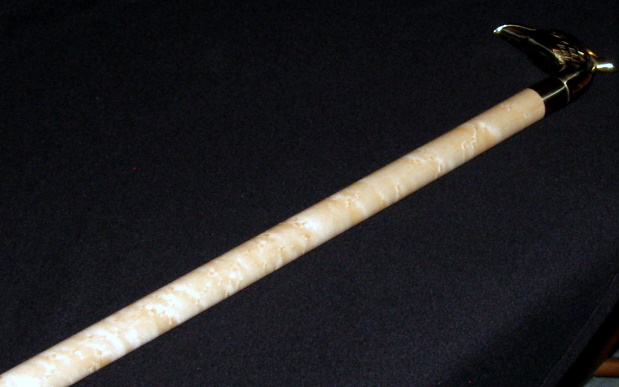

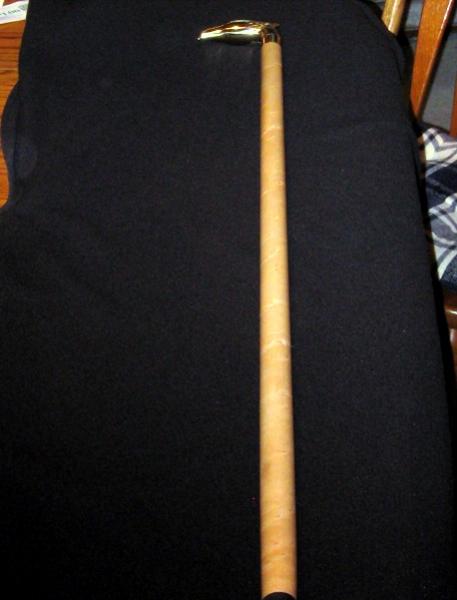

My first item turned on a lathe aside from a pen . Got the blank from Bellforest Products . The hardware is from CSUSA , and I finished the wood with friction polish also from CSUSA . I eliminated the bushings and turned it as one piece . By not having a center support , I had to sand it as opposed turn using tools . Thanks for looking . Any comments are welcomed . Sorry for the poor photography .


Attachments

  • IMG_0501.JPG
    85.6 KB · Views: 576
  • IMG_0505.jpg
    28 KB · Views: 470
  • IMG_0503.jpg
    26 KB · Views: 493
  • IMG_0504.JPG
    58.4 KB · Views: 559
Signed-In Members Don't See This Ad
Dalecamino

Dalecamino

Local Chapter Leader
Joined
Jan 2, 2008
Messages
14,572
Location
Indianapolis, In.
Thank you all . This cane is for my cousin . He has collected canes and walking sticks from all over the world , and I noticed that none of them were light colored wood . So , I thought I would fix him up . :wink:

J

jleiwig

Member
Joined
Jan 10, 2007
Messages
1,860
Location
Monroe, Ohio, USA.
If you ever do another one look into a steady rest so you can use your turning tools and hopefully make it a little easier on yourself.

Either way though..beautiful piece.

Rifleman1776

Rifleman1776

Member
Joined
Dec 18, 2004
Messages
7,330
Location
Mountain Home, Arkansas, USA.
Very fine job. That is beautiful and unique, I'm sure it will be appreciated.
The few canes I have made proved near impossible to turn, even with a steady rest.
Just too long and slender. I first cut down with a draw knife, then, like you, did the final work with sanding on the lathe. Tedious but possible.
Another approach is to use couplings and turn shorter sections.

Dalecamino

Dalecamino

Local Chapter Leader
Joined
Jan 2, 2008
Messages
14,572
Location
Indianapolis, In.
Thank you all for the kind words . Being my first cane , and a gift that probably never be used by it's intended recipient , I simply guessed at a suitable length . Maybe someone who knows how this is done can answer the question .

W

writestuff

Member
Joined
Oct 6, 2009
Messages
57
Location
Marquette, Mi. 49855
Turning canes!

dalecamino said:
Thank you all for the kind words . Being my first cane , and a gift that probably never be used by it's intended recipient , I simply guessed at a suitable length . Maybe someone who knows how this is done can answer the question .
Click to expand...

I'm certainly no expert, but several years ago I made several. I turned them on a Crafsman lathe the had a 48" bed, and made them of various lengths. For my own use, I stood with my hand at my side, andwith my wrist bent at 90 degrees measured to the floor from my palm. This distance will vary with each individual, and I don't know that it is right, I just know it works for me.
I never had any sucess with the joyned canes, as they were never straight the way I made them, and they tended to loosen up with the vibration of walking.
Mr. bell has some truly outstanding figured maple, and would certainly appreciate your posting your pictures on thier website, (www.bellforestproducts.com). Our AAW turning club meets there and I always come home with more turning wood :)
WS (Bob)

Dalecamino

Dalecamino

Local Chapter Leader
Joined
Jan 2, 2008
Messages
14,572
Location
Indianapolis, In.
writestuff said:
I'm certainly no expert, but several years ago I made several. I turned them on a Crafsman lathe the had a 48" bed, and made them of various lengths. For my own use, I stood with my hand at my side, andwith my wrist bent at 90 degrees measured to the floor from my palm. This distance will vary with each individual, and I don't know that it is right, I just know it works for me.
I never had any sucess with the joyned canes, as they were never straight the way I made them, and they tended to loosen up with the vibration of walking.
Mr. bell has some truly outstanding figured maple, and would certainly appreciate your posting your pictures on thier website, (www.bellforestproducts.com). Our AAW turning club meets there and I always come home with more turning wood :)
WS (Bob)
Click to expand...
Bob Thanks . That's pretty much what I did , and considered my cousin is 3 inches shorter than me . I have some pen photos posted on the Bellforest forum . And plan to send these photos to them . Not sure if they're good enough quality . Nice folks over there . Thanks for the comments .

el_d

el_d

Member
Joined
Apr 26, 2007
Messages
3,368
Location
Lockhart, Tx, USA.
I have made a few and from what I researched you should have the customer stand straight with hands down at his/her sides and mark the length at the wrist.

Total hight of the cane (Where the hand will rest) should hit the customer at the wrist so when they lean over they have good support. Too low they have to lean over too much and could fall, Too high and they may not have the arm strength to help hold themselves.

But my mom liked hers a little bit higher. I guess it would be a comfort thing.

L

Larry in Harrow

Member
Joined
Dec 17, 2008
Messages
286
Location
Canada
el_d said:
I have made a few and from what I researched you should have the customer stand straight with hands down at his/her sides and mark the length at the wrist.

Total hight of the cane (Where the hand will rest) should hit the customer at the wrist so when they lean over they have good support. Too low they have to lean over too much and could fall, Too high and they may not have the arm strength to help hold themselves.

But my mom liked hers a little bit higher. I guess it would be a comfort thing.
Click to expand...

Thanks Lupe and everyone else, that gives me a good idea of length. I've got a carved eagle head cane project in the new year.

Rifleman1776

Rifleman1776

Member
Joined
Dec 18, 2004
Messages
7,330
Location
Mountain Home, Arkansas, USA.
Larry in Harrow said:
Very nice job Chuck. A question, if I may. How do you determine the length of a cane for a specific person?
Click to expand...

Very good question. I believe most canes made, and used, are too long for the person using them. I have made myself two canes (for future use, if ever) and they are shorter than 'store bought'. They fit me and I like them.
BTW, one has a nearly 1" hickory shaft and an antique brass tip from a horse hame. It is heavy and stout. I call it my 'New Orleans walking stick'.

Dalecamino

Dalecamino

Local Chapter Leader
Joined
Jan 2, 2008
Messages
14,572
Location
Indianapolis, In.
Good information Frank . I saw on a TV show decades ago , that a good walking stick was indeed made from Hickory , because it was stout . I may put one of those in order .

W

writestuff

Member
Joined
Oct 6, 2009
Messages
57
Location
Marquette, Mi. 49855
A little long, yes!

mickr said:
Hi Larry..measure from bent palm of hand while it is straight down your side..better to make them too long than too short!!!
Click to expand...
Having walked with one for a few years, the method I suggested works pretty well. I'm sure that the orthopedic people are mjch more scientific about it. :)
WS (Bob)

L

Larry in Harrow

Member
Joined
Dec 17, 2008
Messages
286
Location
Canada
writestuff said:
Having walked with one for a few years, the method I suggested works pretty well. I'm sure that the orthopedic people are mjch more scientific about it. :)
WS (Bob)
Click to expand...

Thanks Bob. Sounds like your the man with the experience. I'm going to start with one using your advise but just a ball end for a test before I go through with the carved one. With that problem solved I still have to pick the material for the eagle's beak. The design I have in mind exposes the sharp beak to possible peril should the cane fall over.

W

writestuff

Member
Joined
Oct 6, 2009
Messages
57
Location
Marquette, Mi. 49855
Eagles head?

Larry in Harrow said:
Thanks Bob. Sounds like your the man with the experience. I'm going to start with one using your advise but just a ball end for a test before I go through with the carved one. With that problem solved I still have to pick the material for the eagle's beak. The design I have in mind exposes the sharp beak to possible peril should the cane fall over.
Click to expand...
Larry,
When I started making canes I used several of the CUSA heads, and found that the only one comfortable was the curved T head. I put quite a bit of preassure on my cane hand, and those other CSUSA shapes can hurt a lot afeter a very short time. If you can make the head in the form of the two T handles already posted here I'm sure it will work. I think the most uncomfortable I have used is the steam bent "drug store" cane.:peace:
WS (Bob)

WriteON

WriteON

Member
Joined
Aug 21, 2013
Messages
3,305
Location
Florida & Pa
Dalecamino said:
My first item turned on a lathe aside from a pen . Got the blank from Bellforest Products . The hardware is from CSUSA , and I finished the wood with friction polish also from CSUSA . I eliminated the bushings and turned it as one piece . By not having a center support , I had to sand it as opposed turn using tools . Thanks for looking . Any comments are welcomed . Sorry for the poor photography .
Click to expand...
Beautiful. Absolutely beautiful. Love that BEM.

WriteON

WriteON

Member
Joined
Aug 21, 2013
Messages
3,305
Location
Florida & Pa
Dalecamino

Dalecamino

Local Chapter Leader
Joined
Jan 2, 2008
Messages
14,572
Location
Indianapolis, In.
WriteON said:
Hey thanks. I appreciate this. I'm not going to turn the dowel. Only the ends. Are you saying the 1.25 is slightly over 1" not 1.25. That would be ok with me.
Click to expand...
No...I'm saying the 1" is slightly over 1" But that's what I got, a 1" dowel and all I had to do was sand it, and finish it, and fit the hardware on the ends.

WriteON

WriteON

Member
Joined
Aug 21, 2013
Messages
3,305
Location
Florida & Pa
Dalecamino said:
No...I'm saying the 1" is slightly over 1" But that's what I got, a 1" dowel and all I had to do was sand it, and finish it, and fit the hardware on the ends.
Click to expand...
ok... perfect... just want to sand / finish. Maybe some burn lines and inlays eventually. 1' is perfect. I'm ordering.
